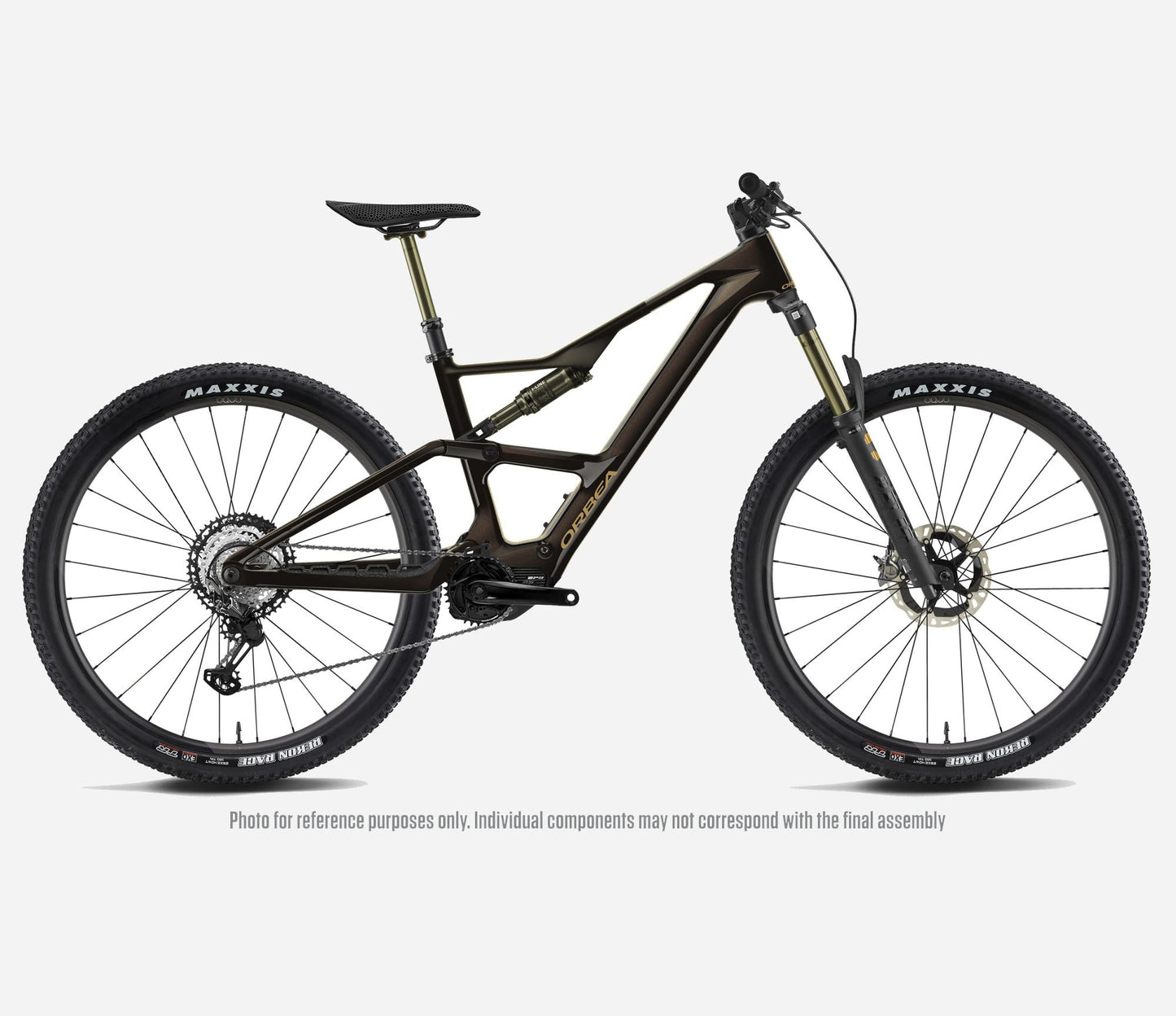

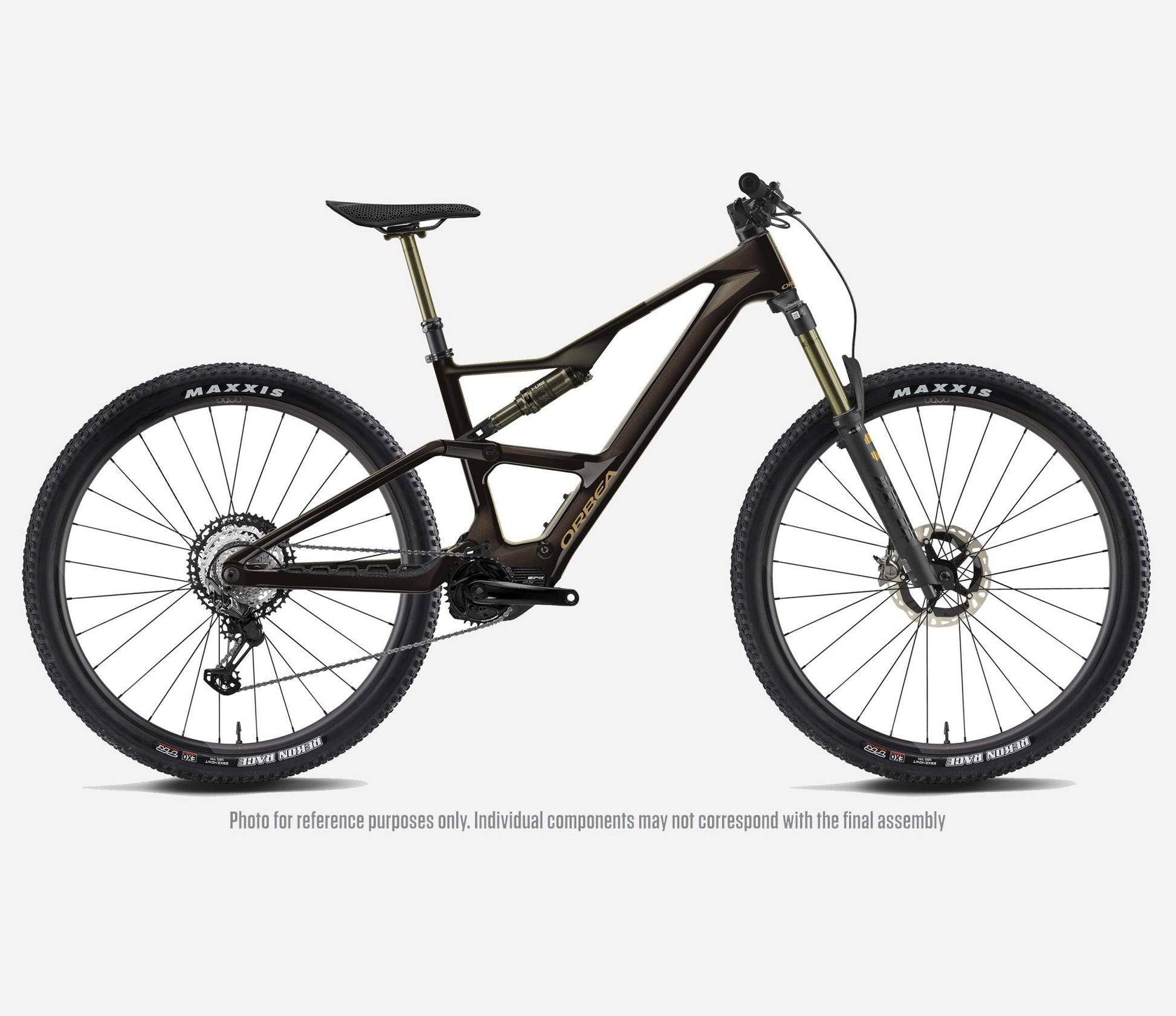

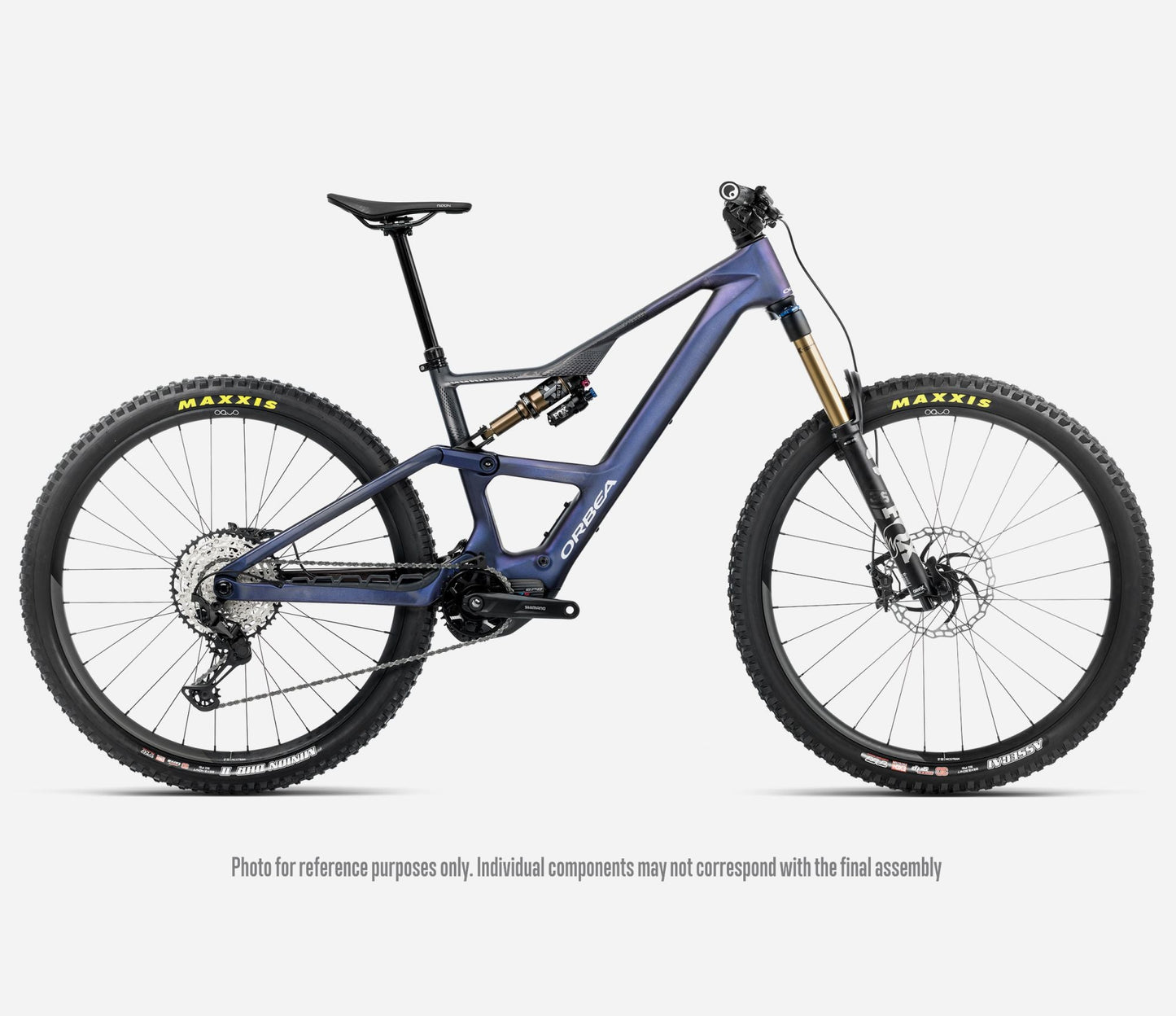

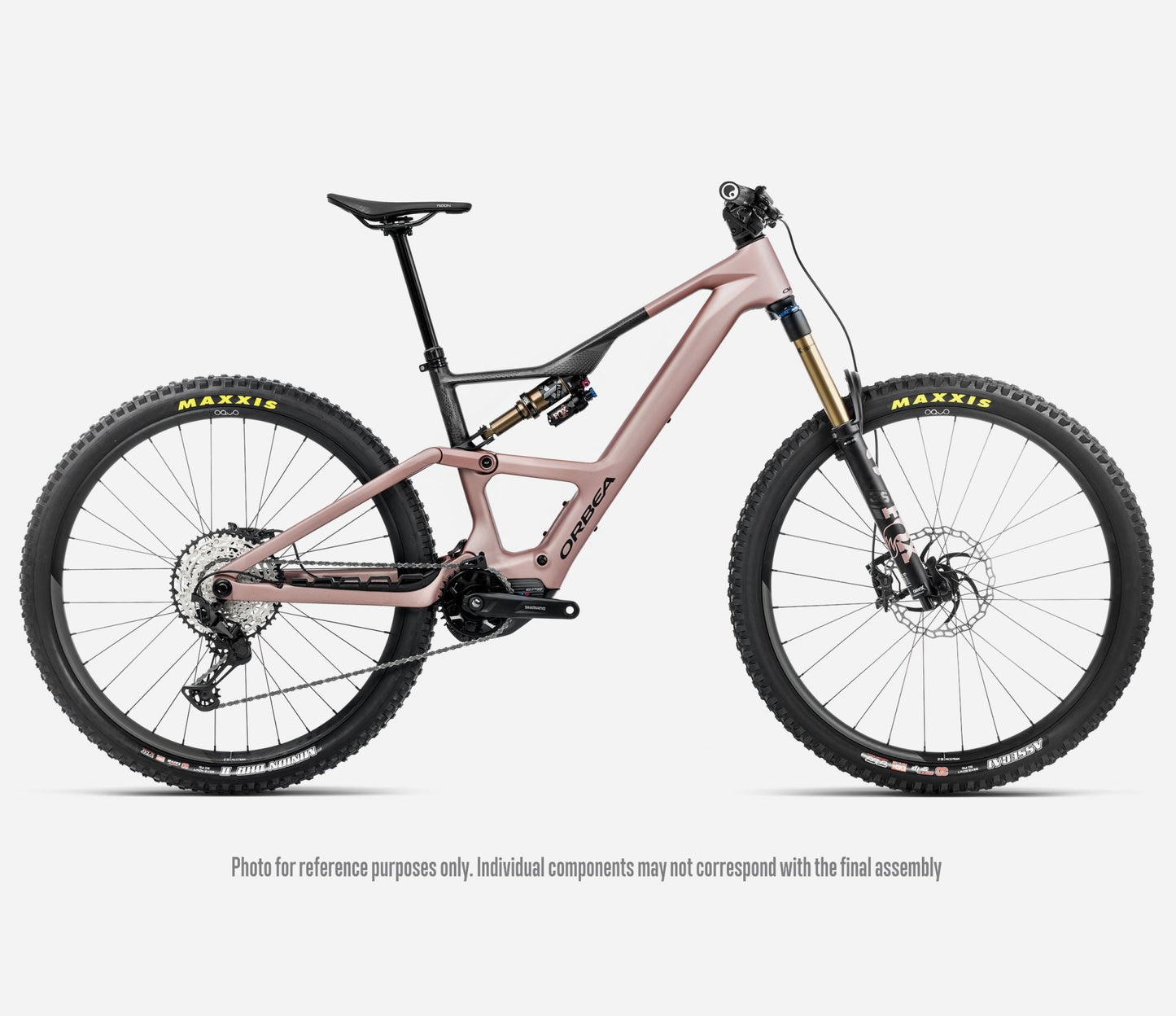

Orbea NEW 2026 Orbea RISE LT M10 420W 20mph Electric Carbon Trail Mountain Bike - 210000067826
The Trail Shredder's eMTB. Rise LT offers 160mm / 150mm of plush travel with a progressive trail geometry.
Features
- Frame: Orbea Rise LT OMR 2025, 150mm travel, 29" wheels, Concentric Boost 12x148
- Shock: Fox Float X Factory 2-Pos Adjust Evol LV Kashima custom tune 210x55mm
- Fork: Fox 36 Float Factory 160, Grip X, QR15x110, Kashima
- Steerer tube: Alloy 1-1/2", Black Oxidated Bearing
- Battery: Orbea Internal 420Wh
- Range Extender: N/A
- Motor: Shimano EP801 RS Gen2 MC
- Charger: Orbea 2.Generation eBike Smart charger 42V/2-4A
- Remote: Orbea System Controller with eDropper Remote
- Chainring: ethirteen Helix Core espec Direct Mount 32T 55mm ChainLine
- Crank: Shimano Steps EM600
- Shifters: Shimano XT M8250
- Cassette: Shimano CS-M7100 10-51t 12-Speed
- Rear derailleur: Shimano XT M8260 SGS
- Chain: Shimano M7100
- Chainguide: Orbea eBike chainguide
- Handlebar: OC Mountain Control MC10 Carbon, Rise 20, Width 800
- Stem: OC Mountain Control MC20, 0º
- Computer Mount: OC Computer Mount CM-05, Garmin/Sigma
- Brakes: Shimano XT Hydraulic Disc
- Rotors: Galfer Wave Rotors 203mm front / 180mm rear
- Brakes Configuration: N/A
- Wheels: Oquo Mountain Control MC32TEAM
- Tyres: Maxxis Assegai 2.50" 60TPI 3CG/EXO+/TR MaxxGrip
- Tyres: Maxxis Minion DHR II 2.40" WT FB 120 TPI 3C MaxxTerra Exo+ TR
- Seatpost: OC Mountain Control MC10, 31.6mm, Electronic Dropper
- Saddle: Fizik Terra Ridon X5 145mm
- Lights: N/A
- Tools: OC FLP Multitool MT-20, Hex 2, 3, 4, 5 + OC Rear axle lever (Hex 6 & valve core removal)
What our Experts Think
- The Orbea Rise LT M10 2026 (420W) is a true lightweight enduro-capable e-MTB, built for riders who want more downhill confidence without losing the Rise’s natural “less e, more bike” feel
- Equipped with the Shimano EP801 RS Gen2 motor (up to 85Nm tuned assist), it delivers smooth, highly controllable power that stays predictable on technical climbs and loose terrain
- The 420Wh internal battery prioritizes low weight and agility, making the bike feel lively, responsive, and easy to maneuver on tight singletrack
- “LT” geometry brings 160mm front / ~150mm rear travel, giving noticeably more stability and control on steep, rocky, or aggressive descents
- Premium suspension setup (typically Fox Factory spec) ensures excellent small-bump sensitivity and traction on rough trails
- Carbon OMR frame keeps overall weight competitive, preserving the Rise identity as a playful, efficient climber rather than a heavy e-enduro bike
- Best suited for riders who want a do-it-all trail/enduro hybrid: capable on big descents but still light and efficient on long climbs
Q&A
Q: What is the Orbea Rise LT M10 (2026, 420Wh)?
A: A lightweight carbon long-travel e-MTB from Orbea, built for aggressive trail and enduro-style riding with a natural-feel assist system.
Q: What motor does it use?
A: Shimano EP801 RS motor with Orbea RS tuning, delivering smooth, quiet assistance and up to ~85Nm peak torque in boost modes.
Q: What battery does it have?
A: A 420Wh integrated internal battery, prioritizing lower weight and agile handling over maximum range.
Q: Can it use a range extender?
A: Yes, compatible with a 210Wh range extender for longer rides when needed.
Q: How is the LT version different?
A: “LT” (Long Travel) adds more suspension travel and downhill capability compared to SL models, making it more aggressive and capable on rough terrain.
Q: What suspension does it use?
A: High-end Fox Factory suspension, typically around 160mm front and 150mm rear travel for strong descending control.
Q: Is it heavy or light?
A: Light for a long-travel e-MTB, but heavier than SL models due to extra suspension and rugged build focus.
Q: What type of riding is it best for?
A: Technical trails, steep descents, bike park-style terrain, and aggressive mountain riding with climbing support.
