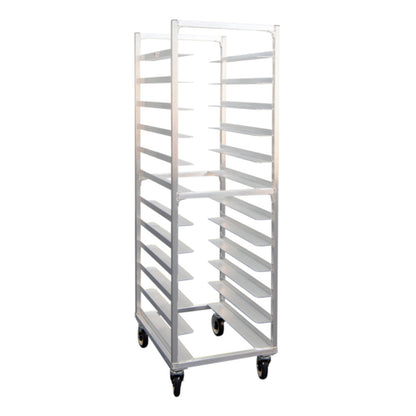

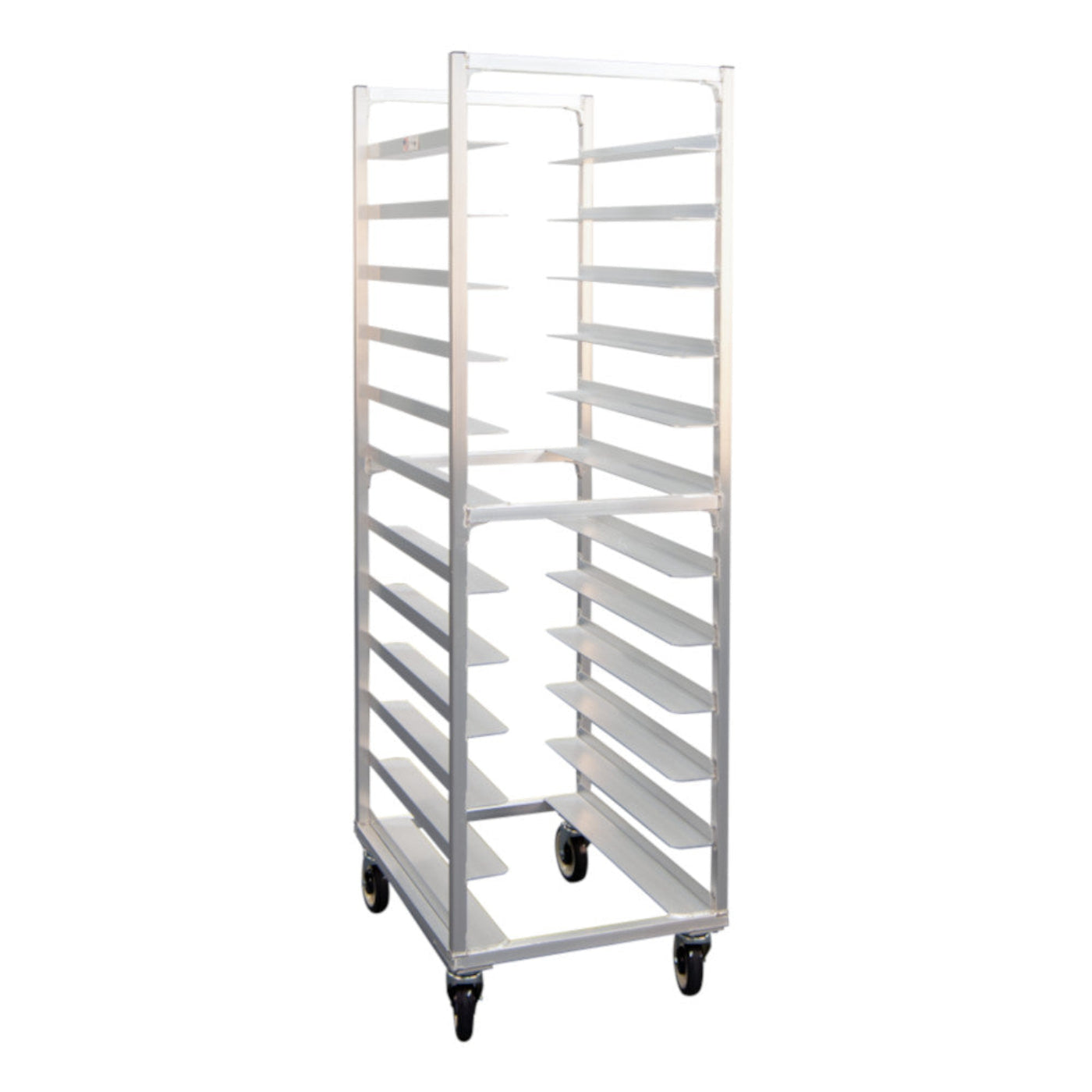

New Age Mobile Universal 20.875"W x 67"H x 27"D Pan Rack with Open Frame - NW1305
New Age 1305 is a mobile universal pan rack. With the ability to store a variety of pans and trays, it is ideal for transferring food from one area to another. It has a durable construction. Being made from all welded aluminum, it has heavy-duty aluminum tubes and angle slides for maximum strength. It has an all welded rectangular frame with caster plates pre-tapped for caster bolts. The casters are 5" and are designed for heavy-duty use. This 1305 is guaranteed for life against rust and corrosion and has a five-year warranty against material defects.
Features
- Extremely versatile
- Extra wide 3-1/4" angles are welded to the heavy duty frame giving you the freedom to mix–and–match pans and trays of mixed sizes on one rack
- Designed to hold trays by the bottom to ensure equal load distribution for easy handling
- Heavy duty aluminum tube and angle slides maximize strength and durability
- All welded aluminum racks
- Equipped with four 5" heavy duty platform type casters
- Non-marking wheels protect floors and minimize noise
- All heli-arc welded with all seams welded and sealed (no rivets)
- Each side had two vertical posts of 1" x 1" x .070" wall tube
- Welded to each side are angle runners of 1-1/2" x 3-1/4" x .100" wall aluminum angle, spaced on 3" or 5" centers
- Each rack has (4) horizontal supports located at the top and center. These supports are 1" x 1" x .070" wall tube
- Gussets of 1-1/2" x 1-1/2" x 5/8" thick angle are welded to the inside angles (bottom side) where horizontal cross bracing meets vertical uprights
- All welded rectangular frame with caster plates pre-tapped for caster bolts welded to each corner
- Lifetime guarantee against rust and corrosion
Specifications
- Model: 1305
- Capacity: 8" x 26" and 12" x 20" pans or trays
- Number of Universal Slides: 12
- Dimensions: 69.75" H x 20.38" W x 26.38" D
- Approximate Shipping Weight: 56.2 lbs.
- Approximate Product Weight: 48 lbs.
- Certifications: NSF
What our Experts Think
Q&A
Q: What is the New Age NW1305 Mobile Universal Pan Rack used for?
A: A commercial open-frame aluminum rack designed for storing, staging, and transporting sheet pans, trays, and baked goods in bakeries, restaurants, and food production kitchens.
Q: What are the dimensions of this rack?
A: 20.875"W x 27"D x 67"H (approx. 20.38"W x 26.38"D x 69.75"H depending on spec variation).
Q: How many pans does it hold?
A: Typically supports about 12 universal slide levels, suitable for multiple pan sizes including 18" x 26", 12" x 20", and 13" x 18" trays.
Q: What makes it “universal”?
A: Its wide-angle aluminum runners allow mixed pan sizes on the same rack, improving workflow flexibility in busy kitchens.
Q: What is it made of?
A: Heavy-duty all-welded aluminum construction for strength, corrosion resistance, and long service life in commercial environments.
Q: Is this rack mobile?
A: Yes. It includes four 5" swivel casters for smooth movement even when fully loaded.
Q: What is the loading style?
A: End-loading open frame design, allowing fast access and efficient pan handling from both sides.
