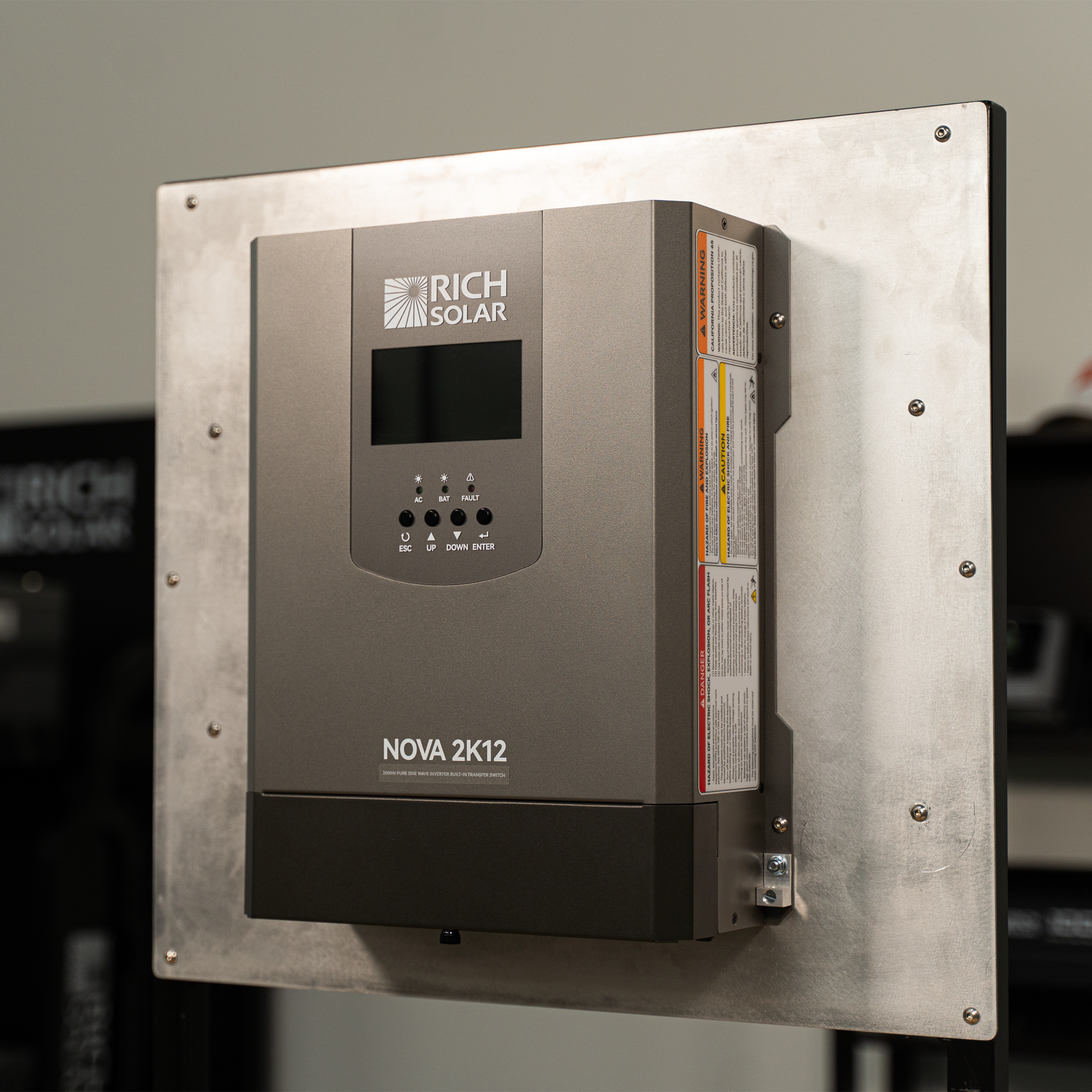

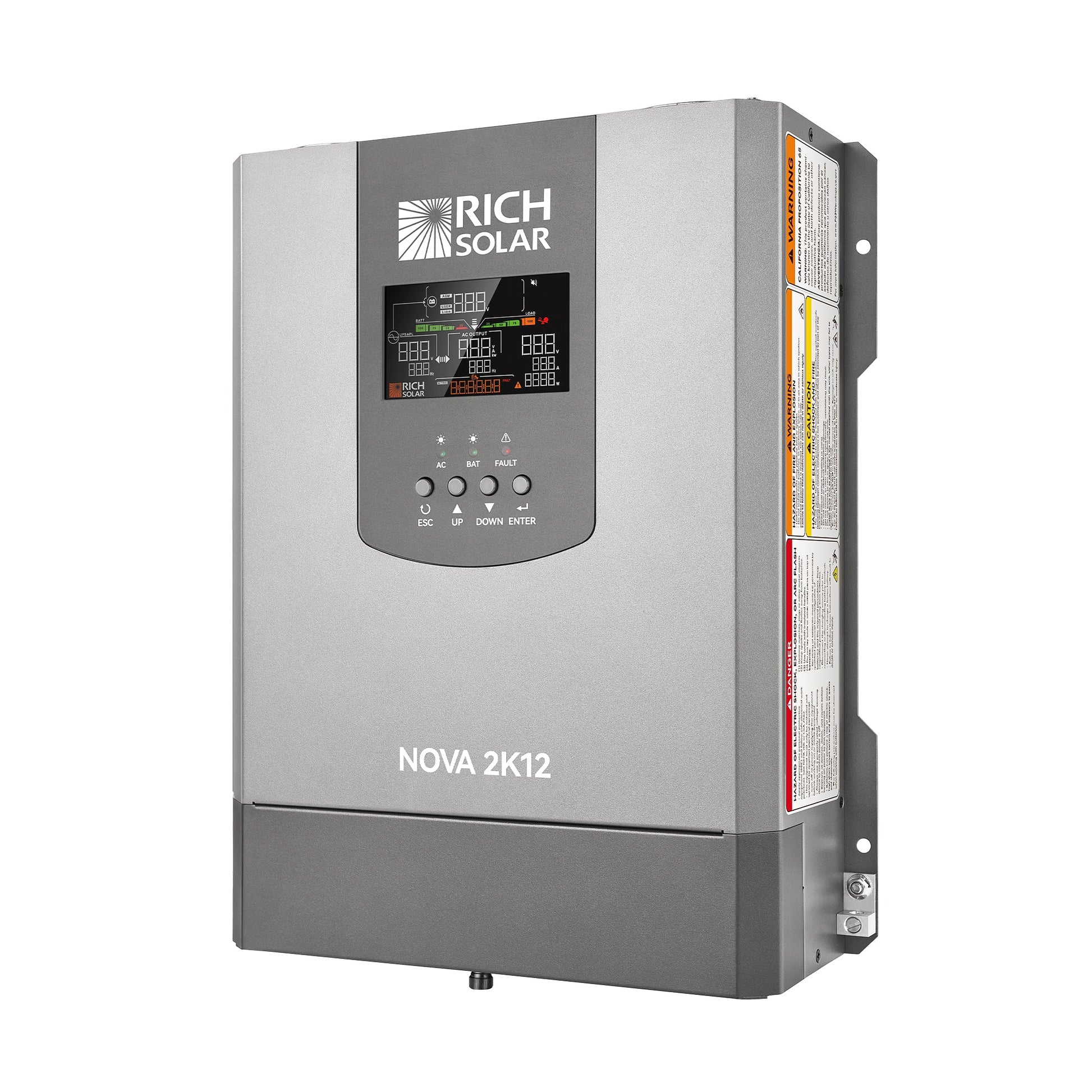

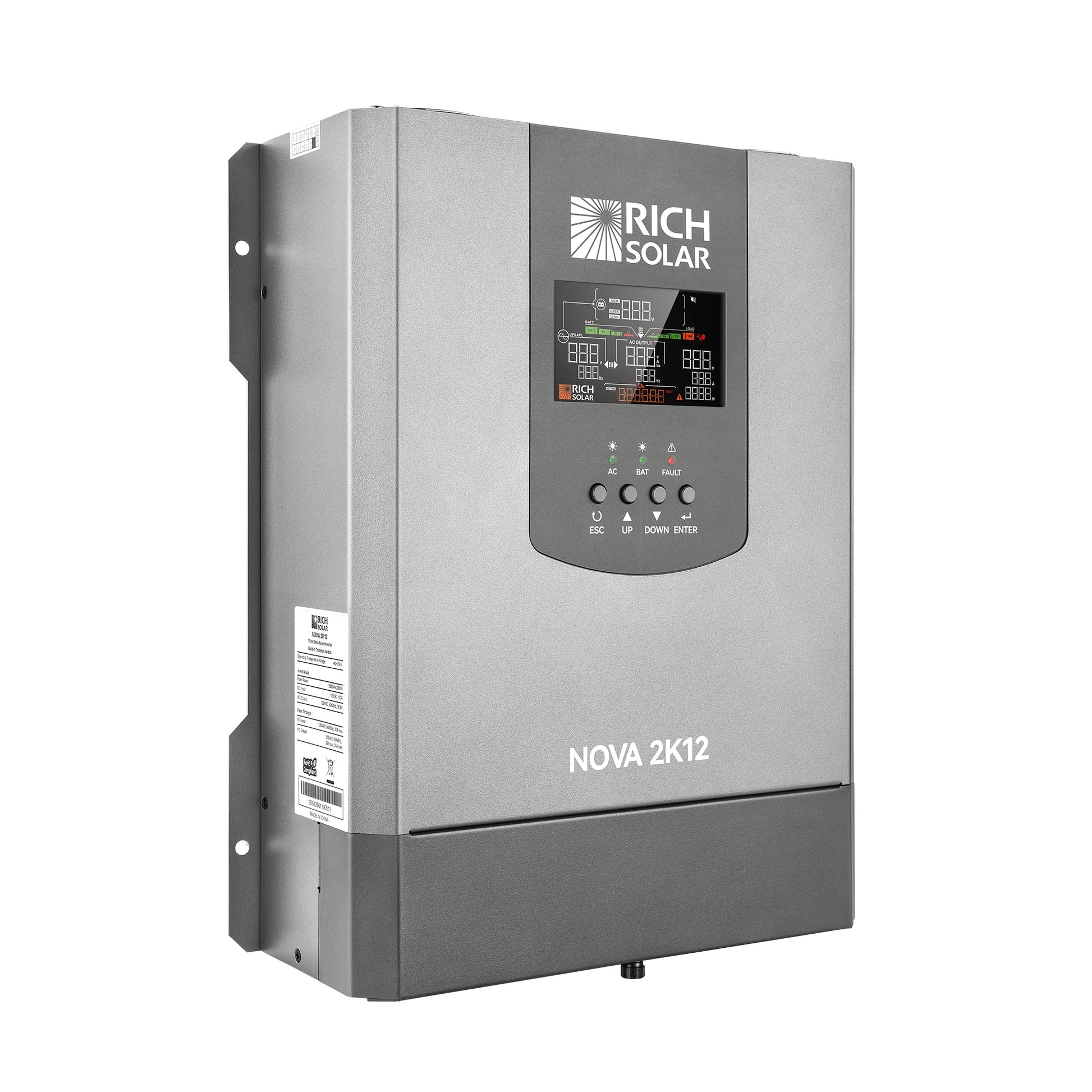

Rich Solar 2K12 | 2000W 12V Pure Sine Wave Inverter with Built-in Transfer Switch | UL458 Certified for RVs, Campers, Trailers, Vans - RS-V2P12TS
Features
- Pure Sine Wave Output (<5% THD): Delivers clean, stable power for sensitive electronics, including medical equipment and servers.
- 91% High Efficiency: Maximizes battery life with minimal energy loss and low standby consumption.
- Seamless Automatic Transfer Switch: <20ms transfer time for uninterrupted power during outages; Dual transfer modes: Normal (fridges, tools) / Fast (computers, servers).
- Advanced Protection System: Adjustable low voltage shutdown (10.5V-12.8V) with overload/short-circuit/overheat protection.

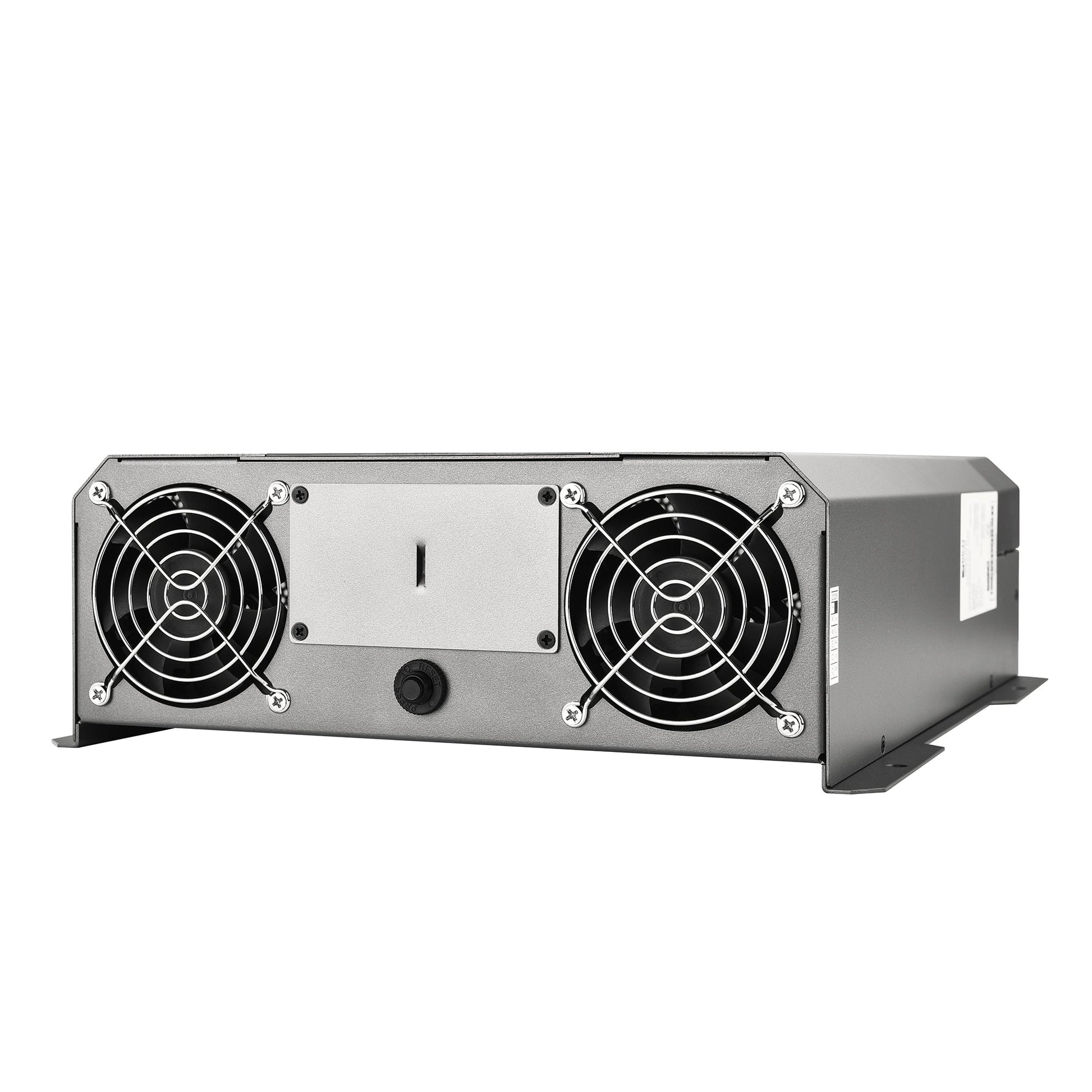

- Marine-Grade Durability: Optional drip shield and temperature-regulated cooling fan for harsh environments.

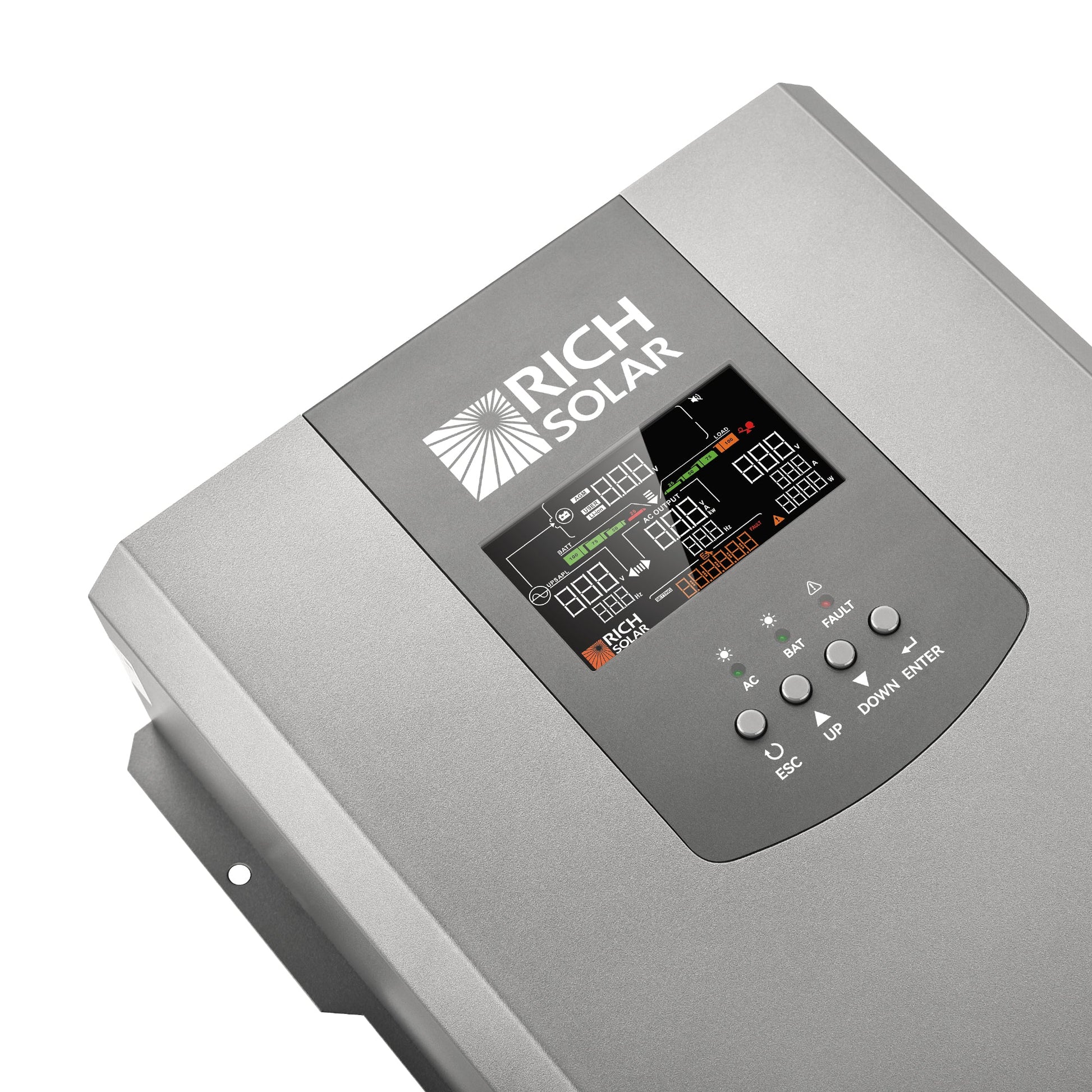

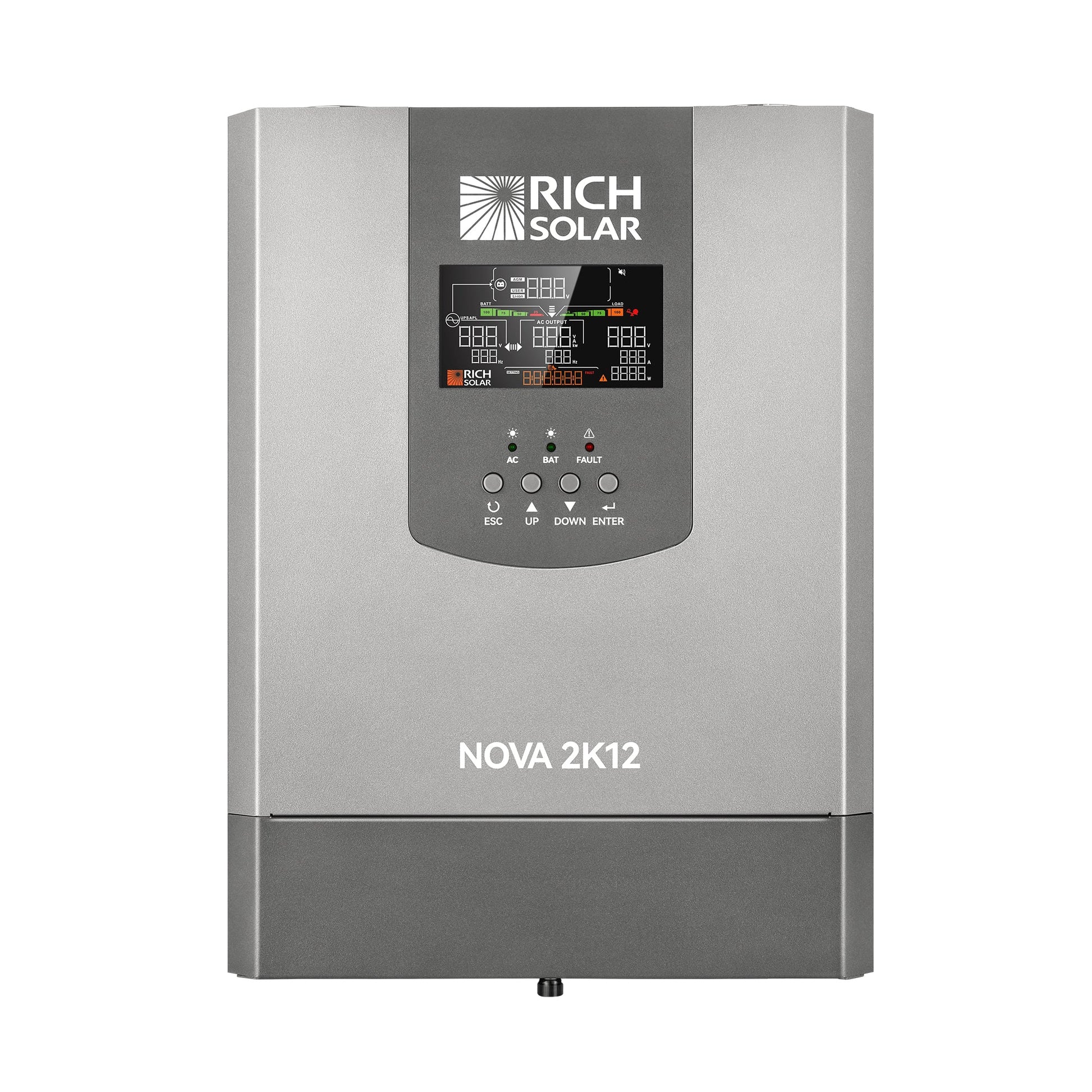

- Smart LCD Display: Shows real-time voltage, load, and system status.
- Safety Certified: Complies with UL standards, compatible with 12V deep-cycle and lithium (BMS) batteries.
Specifications
Model: NOVA 2K12
Rated Output Power: 2000W
Peak Power: 4000W (5s)
DC Input Voltage: 12VDC (Max 18V)
Communication: RS232 / RS485

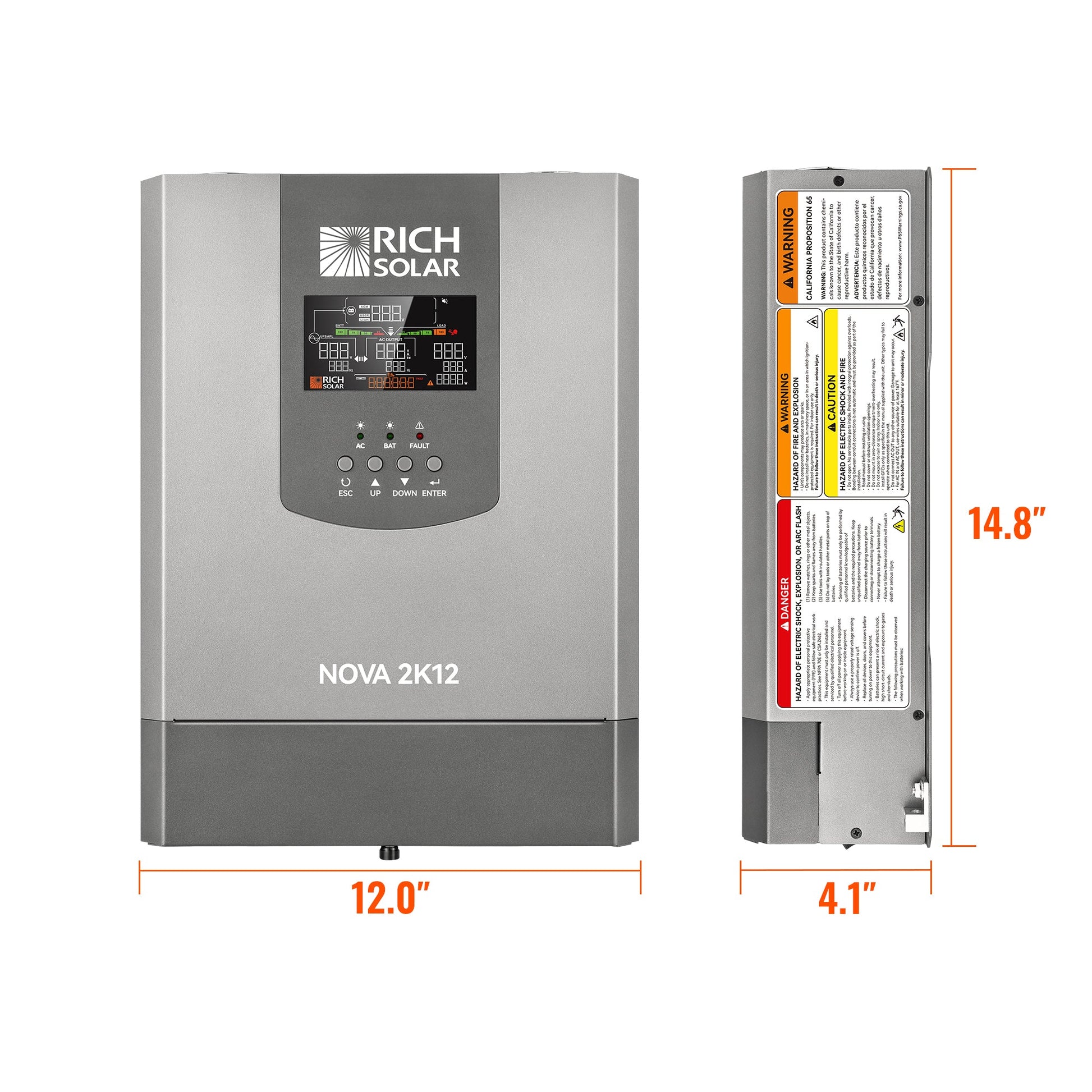

Dimension (LxWxH): 14.8x12.0x4.1 in
Net Weight: 15.9 lb

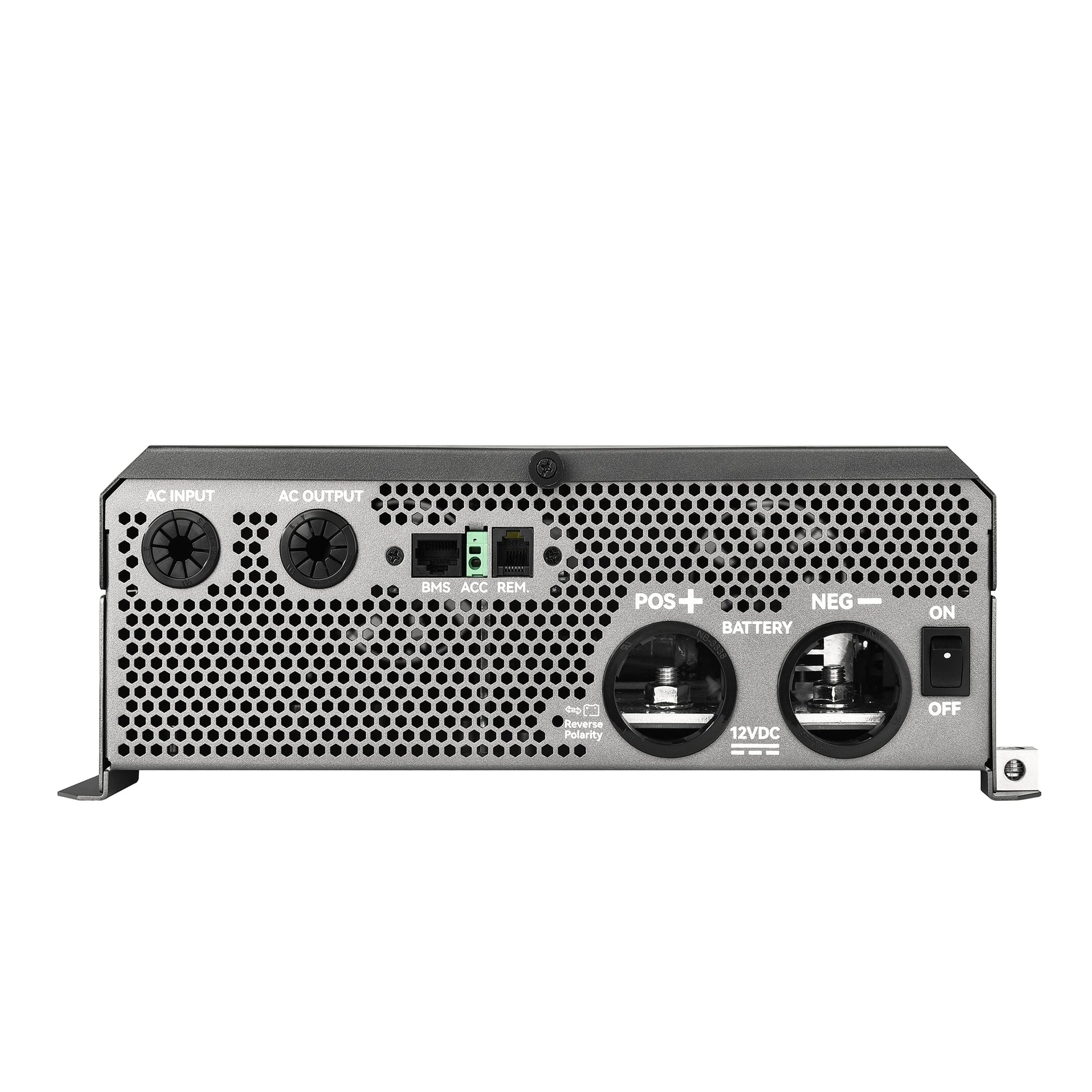

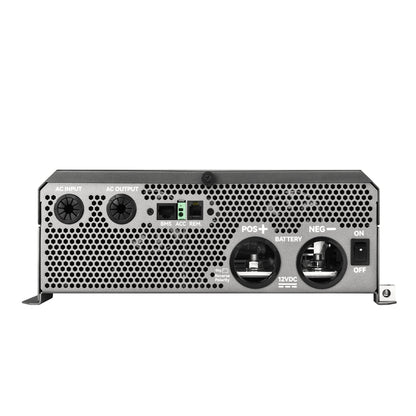

AC Input
Nominal Voltage (AC INPUT): 120VAC
Operation Range: 80-140 VAC full power
AC Input Frequency: 50/60 Hz selectable
Frequency Range: 45 ~ 70 Hz
AC Output
Nominal Voltage (AC OUTPUT): 120VAC
Voltage Regulation (Batt. Mode): 120VAC ± 5%
Output Frequency: 50Hz or 60Hz selectable ± 1%THD
Peak Efficiency: 91%
Waveform: Pure sine wave
Transfer Time: ≤ 20ms
Transfer Modes: Normal / Fast
Battery
Nominal DC Voltage (BATTERY): 12VDC
DC Input Power Operating Voltage Range: 10-17VDC
Battery Compatibility: 12V deep-cycle (min. 100Ah), LiFePO4 (with BMS)
Indicators
Line Mode: Green LED on
Battery Mode: Amber LED on
Warning With Output: Red LED flashing
Fault Without Output: Red LED on
Operating Environment
Humidity: 5% to 95% Relative Humidity (Non-condensing)
Operating Temperature: -40°F ~ 160°F (-4°F ~ 122°F with full power)
What our Experts Think
-
Strong mid-size off-grid solution – The Rich Solar 4000W kit delivers a solid balance of power and affordability, making it ideal for small homes, cabins, RV setups, and essential backup power systems.
-
Reliable 4kW pure sine wave output – With 120V AC output at 4000W capacity, it can comfortably run everyday essentials like refrigerators, lights, fans, routers, TVs, and small power tools.
-
Efficient 48V system design – The 48VDC architecture improves energy efficiency, reduces current load on cables, and supports more stable performance compared to lower-voltage systems.
-
Good entry point for solar independence – Designed for users transitioning away from grid dependence or reducing generator use, this kit provides a practical foundation for off-grid living.
-
Compatible with expandable setups – The system can be scaled over time with additional solar panels and battery storage as energy needs grow.
-
Simplified installation approach – Pre-matched components help reduce compatibility issues, making it easier for installers or DIY users to deploy a working system faster.
-
Balanced performance for daily use – Well-suited for moderate household loads and intermittent heavy use, rather than whole-home high-demand applications.
-
Dependable backup power option – Works effectively as an emergency power system during outages, ensuring critical devices stay operational.
Q&A
Q: What is included in the Rich Solar RS-CBK4000 4000W Off-Grid Solar Kit?
A: The kit includes a 6,500W 48V hybrid inverter, 10 x 410W MEGA solar panels (4,100W total), 4 x 5.12kWh LiFePO4 batteries (20.48kWh storage), busbars, battery cables, extension cables, DC disconnect, and full installation accessories.
Q: What power output does the RS-CBK4000 system provide?
A: It delivers up to 4,000W continuous AC output at 120V from a 48V off-grid system, suitable for cabins, RVs, small homes, and backup power.
Q: How much solar generation does the system have?
A: The included solar array provides approximately 4,100W of PV capacity using high-efficiency 410W monocrystalline panels.
Q: What battery storage capacity is included?
A: The system includes four 51.2V 100Ah LiFePO4 batteries, delivering a total of about 20.48kWh of usable energy storage for nighttime and backup use.
Q: What type of inverter is used in this kit?
A: It uses a 48V pure sine wave hybrid inverter with MPPT solar charging, designed for off-grid and hybrid (solar + generator/grid) operation with stable AC output.
Q: Can this system be expanded in the future?
A: Yes. The inverter supports parallel operation and the battery bank can be expanded for higher capacity, making it scalable for larger energy needs.
Q: What can this solar kit power?
A: It can run essential home loads such as lights, refrigerators, fans, TVs, small appliances, pumps, and electronics—ideal for off-grid living or emergency backup.
Maintenance Tips
- Clean solar panels every 1–3 months using clean water and a soft brush or microfiber cloth to remove dust, bird droppings, and debris for maximum efficiency.
- Inspect mounting structure, wiring, MC4 connectors, and DC isolators quarterly to ensure tight, corrosion-free, and safe electrical connections.
- Monitor inverter status regularly for fault codes, overheating warnings, and performance drops; address issues immediately to avoid system downtime.
- Keep inverter ventilation areas clean and unobstructed to maintain proper cooling and prevent thermal shutdown.
- Check battery (if included in configuration) monthly for state of charge, voltage stability, and terminal tightness to ensure long lifespan.
- Avoid deep discharging batteries and follow recommended charge/discharge ranges for LiFePO4 or lead-acid storage systems.
- Trim nearby trees or remove shading sources to maintain consistent solar generation throughout the day.
- Inspect breakers, surge protection devices, and grounding system every 6–12 months for safety and compliance.
