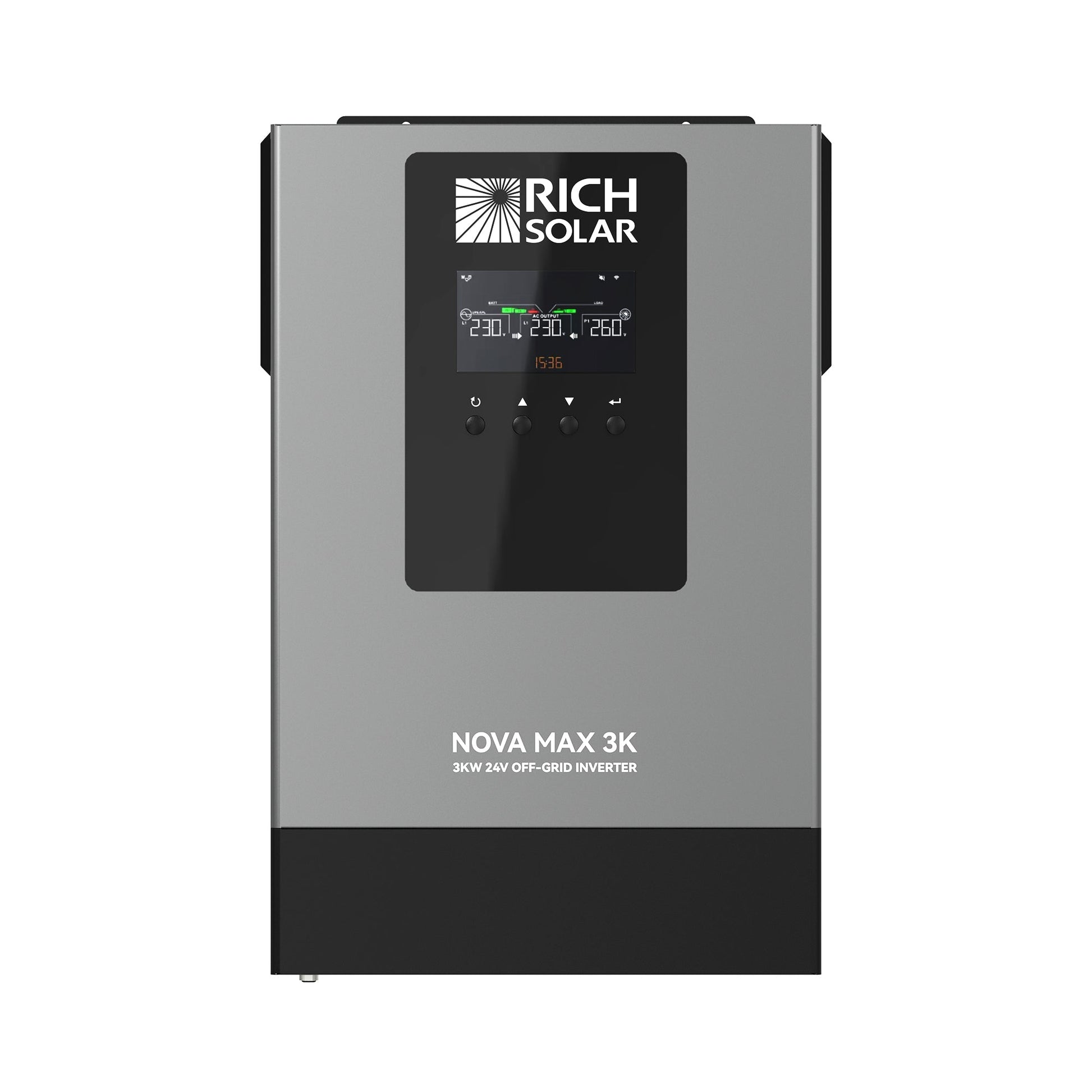

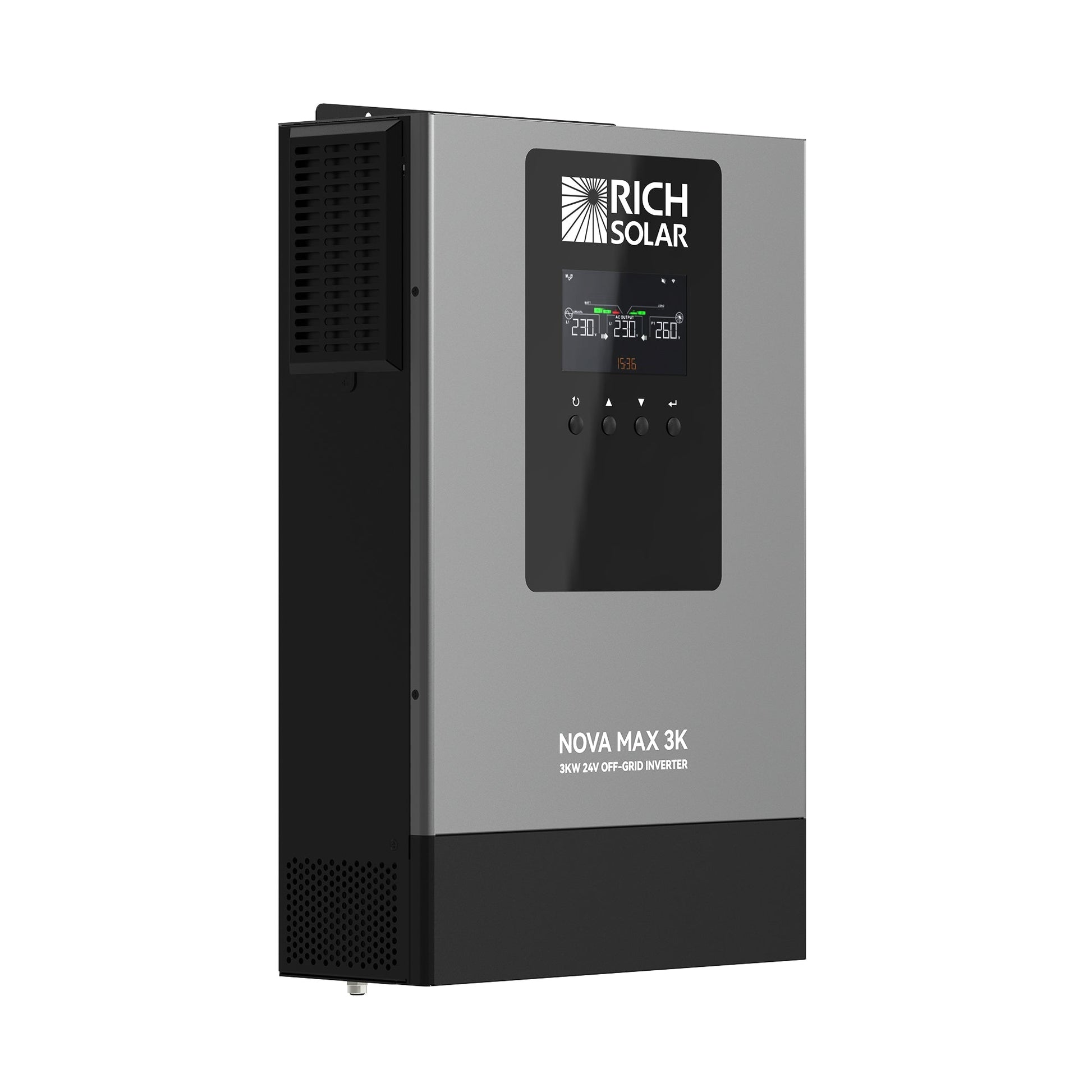

Rich Solar MAX 3K 2026 | 24V 3000W Off-Grid Hybrid Inverter | Pure Sine Wave Power for RVs, Campers, Vans, Trailers, Boats & Off-Grid Systems - RS-H3024X
Features
Powerful & Reliable Performance
- 3,000W pure sine wave output with 6,000W surge power (5s) for heavy-duty appliances and sensitive electronics.
- 10ms (UPS) / 20ms (Appliance) transfer time ensures seamless backup during outages.
- Up to 91% inverter-mode efficiency and 95%+ line-mode efficiency.
Advanced Solar & Hybrid Charging
- All-in-one design combining an inverter, solar charger, and AC charger.
- Built-in 80A MPPT solar charger with a wide PV input voltage range to maximize solar harvest.
- Supports Solar First, Utility First, and SBU modes.
- Compatible with utility grid or generator input.
Smart Battery Compatibility & Expansion
- Supports AGM, Gel, Flooded, and Lithium batteries with BMS communication.
- Includes battery equalization and cold start capability.
- Parallel up to 9 units for single-phase, split-phase, or three-phase systems.
Intelligent Control & Protection
- Adjustable LCD settings for battery type, charging current, and power priority.
- Wi-Fi monitoring for remote management.
- Built-in protection: overload, over-temperature, short circuit, and over-voltage.
Specifications
- Rated Power: 3,000VA / 3,000W
- Surge Power (5s): 6,000W
- Output Voltage: 120VAC ±5%
- Frequency: 50/60Hz (Selectable)
- THD: <5% (Linear Load)
- Efficiency: Up to 91%
- Transfer Time: 10ms (UPS) / 20ms (Appliance)
- Max PV Input Power: 3,000W
- Max PV Open-Circuit Voltage: 250VDC
- MPPT Voltage Range: 90-230VDC
- Max PV Input Current: 22A
- PV Start-up Voltage: 80VDC ±5V
- Nominal DC Voltage: 24VDC
- Max Charge Current: 80A (Utility + Solar)
- Battery Cold Start Voltage: 23VDC
- Battery Equalization: User-Configurable
- Low DC Cutoff Voltage: User-Configurable
- Nominal Input Voltage: 120VAC
- Input Voltage Range (UPS): 90-140VAC
- Input Voltage Range (Appliance): 80-140VAC
- Input Frequency: 50/60Hz (Auto Detection)
- Max Utility Charge Current: 80A
- Operating Temperature: 14°F to 104°F
- Cooling: Smart Temperature-Controlled Fan
- Communication: Wi-Fi/RS232/RS485/CAN

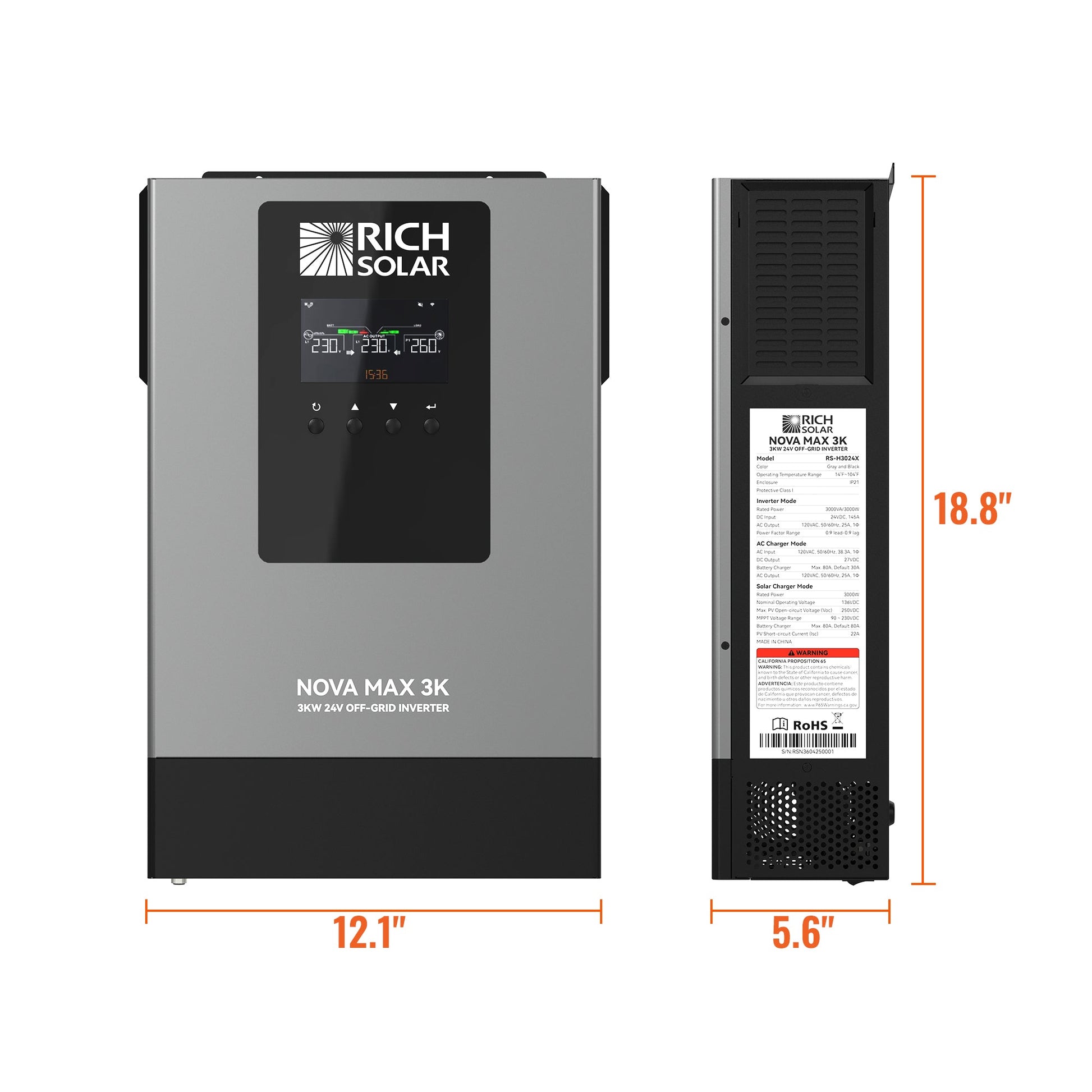

- Dimensions (D x W x H): 5.6 x 12.1 x 18.8 in
- Net Weight: 26.5 lbs
What our Experts Think
-
All-in-one hybrid power solution — Combines inverter functionality with advanced off-grid power management, reducing system complexity and saving installation space.
-
3000W of dependable pure sine wave power — Safely runs sensitive electronics, appliances, tools, and everyday essentials with utility-grade power quality.
-
Optimized for 24V battery systems — Delivers efficient performance for RVs, vans, campers, trailers, boats, cabins, and off-grid solar installations.
-
Designed for solar energy independence — Helps maximize solar power utilization while supporting reliable battery charging and energy storage management.
-
Ideal for mobile and remote applications — Provides flexible power wherever grid access is limited or unavailable.
-
Space-saving, streamlined installation — Hybrid design reduces the need for multiple standalone components, simplifying system setup and maintenance.
-
Built for long-term reliability — Engineered to provide consistent performance in demanding off-grid and backup power environments.
Q&A
Q: What is the Rich Solar MAX 3K 2026 (RS-H3024X)?
A: The MAX 3K 2026 is a 24V, 3000W off-grid hybrid inverter that combines a pure sine wave inverter, MPPT solar charge controller, and battery charger in one compact unit.
Q: What applications is the MAX 3K 2026 designed for?
A: It is ideal for RVs, campers, vans, trailers, boats, cabins, backup power systems, and off-grid solar installations.
Q: What power output does this inverter provide?
A: The inverter delivers 3000W continuous power with a 6000W surge capacity, making it suitable for running appliances, tools, and motor-driven equipment.
Q: Does the MAX 3K 2026 include a solar charge controller?
A: Yes. It features a built-in MPPT solar charge controller that supports up to 3000W of solar input for efficient energy harvesting.
Q: What charging modes are available?
A: The inverter supports Solar First, Solar & Utility, Utility First, and Solar Only charging modes for flexible energy management.
Q: Is the output pure sine wave?
A: Yes. Pure sine wave output provides clean, stable power for sensitive electronics, household appliances, and communication equipment.
Q: What safety features are included?
A: The MAX 3K 2026 includes overload, over-temperature, short-circuit protection, automatic AC recovery, and smart battery charging technology.
Q: Can it work with utility power and generators?
A: Yes. The inverter is compatible with grid power and generators, allowing seamless charging and backup power integration.
Q: What battery system does it use?
A: The MAX 3K 2026 is designed for 24V battery banks and supports configurable charging settings for different battery types.
Q: Why choose the Rich Solar MAX 3K 2026?
A: Its all-in-one hybrid design, 3000W pure sine wave output, integrated MPPT controller, flexible charging modes, and advanced protection features make it a reliable solution for off-grid and mobile solar power systems.
Maintenance Tips
- Inspect DC battery cables, PV input wiring, AC terminals, and grounding connections every 3–6 months; tighten any loose connections and check for corrosion.
- Keep ventilation openings, cooling fans, and air passages free from dust and debris to ensure efficient cooling and reliable operation.
- Regularly monitor the LCD display for fault codes, overload warnings, over-temperature alerts, or charging abnormalities. The inverter includes built-in protection systems that should be addressed promptly if triggered.
- Verify solar array voltage and battery settings remain within manufacturer specifications to protect the MPPT charge controller and battery bank.
- Maintain adequate clearance around the inverter and install it in a clean, dry, well-ventilated location away from direct sunlight, moisture, and corrosive environments.
- Periodically review charging priorities, battery charging current settings, and operating modes (Solar First, Utility First, SBU) to ensure optimal system performance.
- Clean the exterior with a soft, dry cloth; avoid solvents, abrasive cleaners, and high-pressure water.
- Inspect fuses, breakers, and protective devices regularly for signs of wear, overheating, or damage.
- Do not exceed the inverter’s 3000W continuous output, 6000W surge rating, or specified PV input limits.
