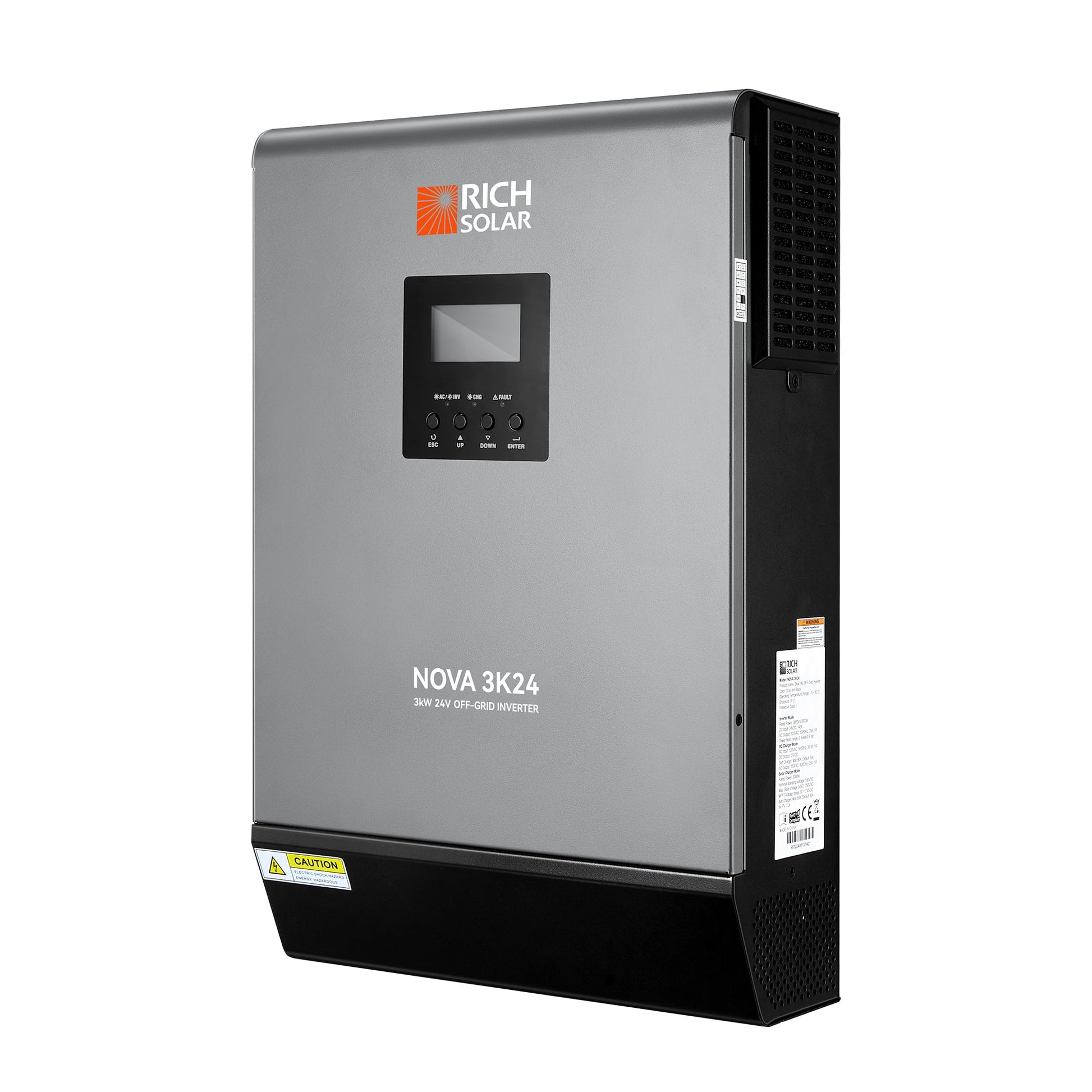

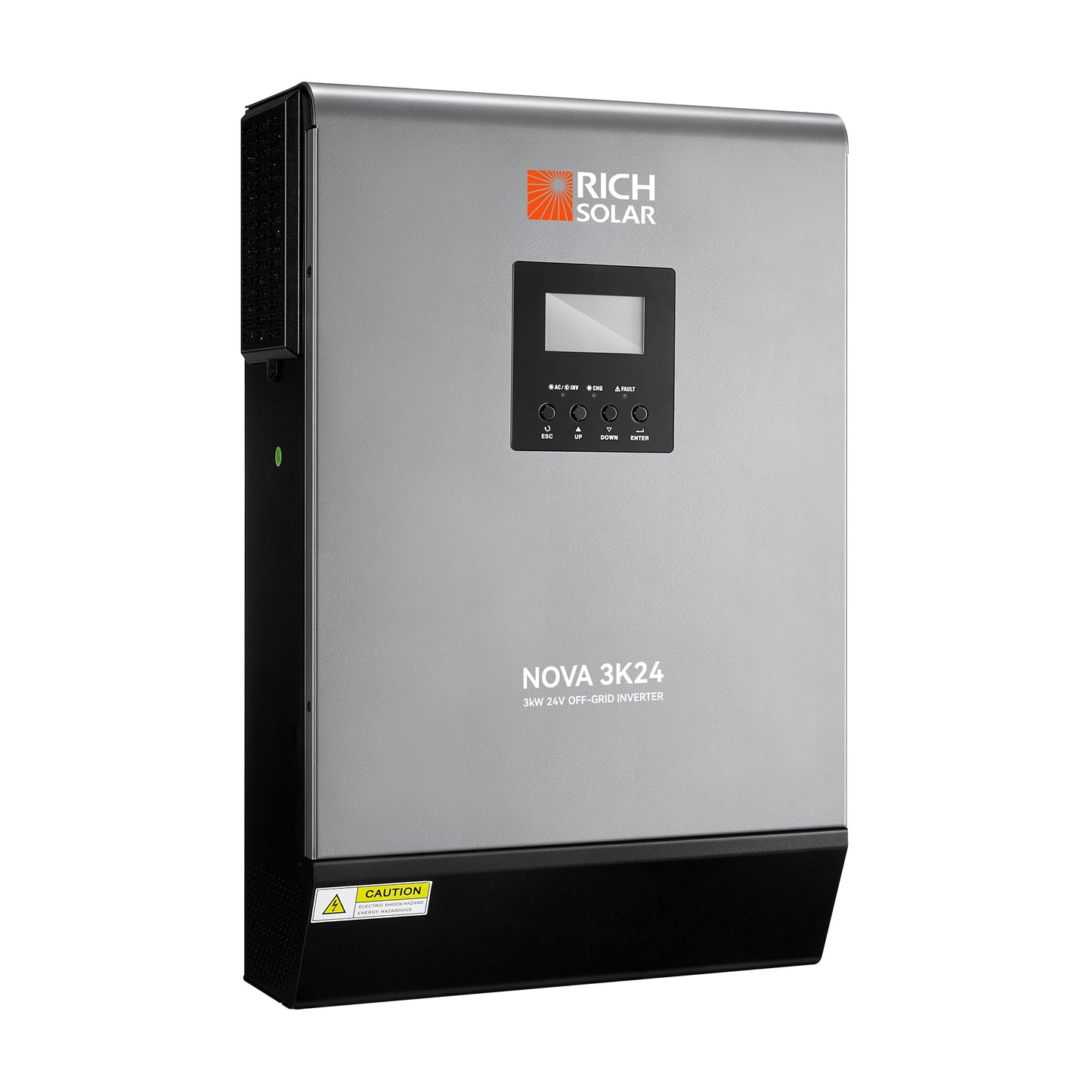

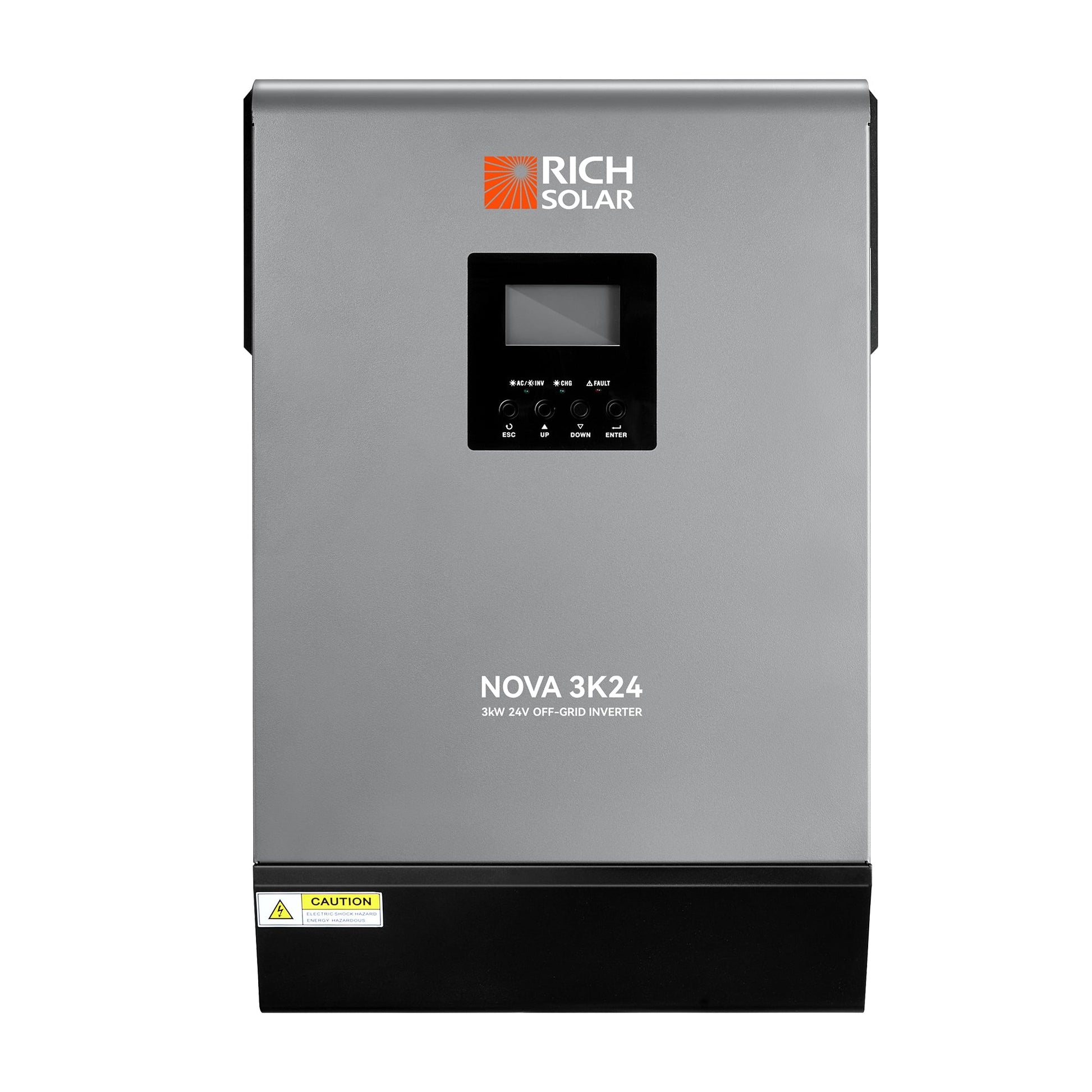

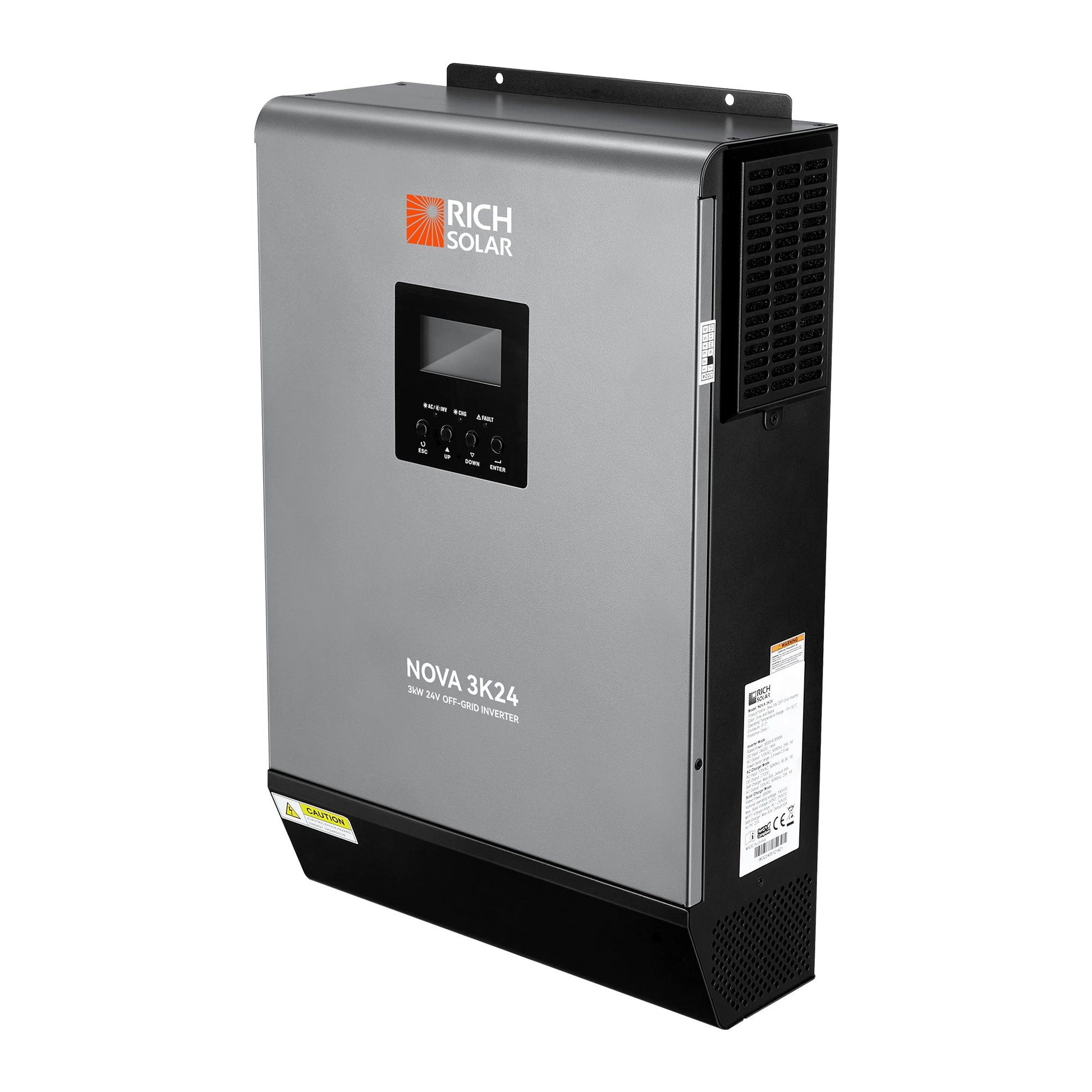

NOVA MAX 3K | 3000 Watt (3kW) 24 Volt Off-Grid Hybrid Solar Inverter | Powerful 3000W 24V Hybrid Inverter for RVs, Trailers, Campers, Vans, Trucks, Overlanders, Boats | #1 Ranked 24V Hybrid Inverter - RS-H3024

NOVA MAX 3K | 3000 Watt (3kW) 24 Volt Off-Grid Hybrid Solar Inverter | Powerful 3000W 24V Hybrid Inverter for RVs, Trailers, Campers, Vans, Trucks, Overlanders, Boats | #1 Ranked 24V Hybrid Inverter - RS-H3024

Features

• Pure Sine Wave Inverter
• Built-in MPPT solar charge controller

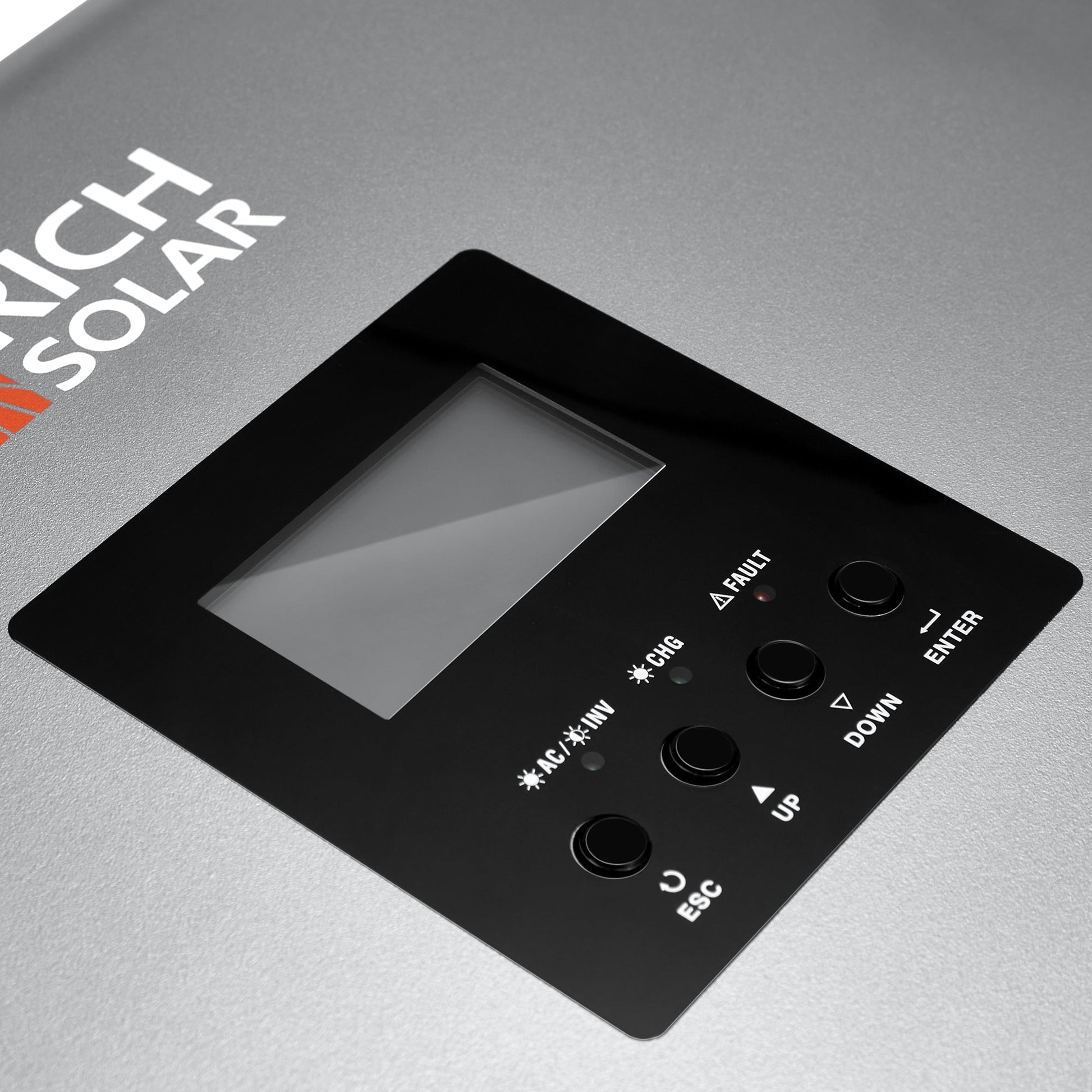

• Configurable input voltage range for home appliances and personal computers via LCD setting
• Configurable battery charging current based on applications via LCD setting
• Configurable AC/Solar Charger priority via LCD setting
• Compatible to mains voltage or generator power
• Auto restart while AC is recovering
• Overload / Over temperature / short circuit protection
• Smart battery charger design for optimized battery performance
• Cold start function

Specifications

• Inverter

• Model: NOVA 3K24
• Rated Output Power: 3KVA / 3KW
• Output Voltage Waveform: Pure Sine Wave
• Output Voltage Regulation: 120 VAC±5%
• Output Frequency: 60Hz / 50Hz
• Peak Efficiency: 91%
• Surge Capacity: 2* rated power for 5s
• Nominal DC Voltage: 24 VDC

• Solar Input

• Max. PV Array Open Circuit Voltage: 250 VDC
• PV Array MPPT Voltage Range: 90 VDC~230 VDC
• Max. Input Current: 18A

• Physical

• Operation Temperature Range: 14°F ~ 104°F
• Dimension (D*W*H): 5.6*12.1*18.8in (142.4*307.8*477.6mm)
• Net Weight: 26.5lb (12kg)

What our Experts Think

• Reliable 3kW Off-Grid Performance – Delivers 3000W pure sine wave output, making it suitable for running essential RV, cabin, and small home appliances efficiently.
• All-in-One Hybrid Design – Combines an inverter + MPPT solar charge controller, reducing the need for separate components and simplifying system setup.
• Strong Solar Compatibility – Supports a wide PV input range (90V–230V MPPT) with up to 250V open-circuit voltage, enabling flexible panel configurations.
• Pure Sine Wave Output – Provides stable, clean power safe for sensitive electronics like laptops, routers, and appliances.
• Flexible Energy Management – Allows configurable battery charging current and AC/solar priority settings via LCD for optimized performance.
• Built for Mobile & Off-Grid Use – Ideal for RVs, vans, boats, and overlanding setups, where compact but powerful energy systems are needed.
• Smart Protection Features – Includes overload, over-temperature, short-circuit protection, and auto restart for reliable operation.

Q&A

Q: What is the NOVA MAX 3K (RS-H3024) 3000W 24V Hybrid Solar Inverter?
A: A 3kW (3000W) pure sine wave off-grid hybrid inverter with a built-in MPPT solar charge controller, designed for RVs, vans, boats, and small off-grid home systems.

Q: What is its power output and surge capacity?
A: It delivers 3000W continuous output (3kVA) with a surge capacity of about 2× rated power for short bursts (~5 seconds), suitable for starting appliances like pumps or refrigerators.

Q: What battery system does it use?
A: It operates on a 24V DC battery system, which improves efficiency and reduces cable heat compared to 12V setups in higher-load applications.

Q: Does it include solar charging features?
A: Yes. It has a built-in MPPT solar charge controller with a PV input range of roughly 90V–230V and up to 250V max open-circuit voltage.

Q: What appliances can it run?
A: It can power essential loads such as lights, fans, refrigerators, TVs, laptops, small tools, and RV appliances, depending on total system size and battery capacity.

Q: Is it suitable for off-grid or mobile use?
A: Yes. It is designed for RVs, campers, overlanding, trucks, boats, and compact off-grid homes, combining inverter + charger + solar controller in one unit.

Q: What protections does it include?
A: It includes overload, short-circuit, over-temperature protection, and auto restart features for safer long-term operation.

Q: Why choose this inverter?
A: It’s a compact all-in-one hybrid inverter that simplifies solar setups by combining inverter, charger, and MPPT controller—ideal for mid-size off-grid systems with 24V battery banks.

Maintenance Tips

• Keep the inverter installed in a cool, dry, and well-ventilated location (14°F–104°F / -10°C–40°C) to prevent overheating.
• Ensure at least 6–12 inches of clearance around the unit so internal cooling fans can work efficiently.
• Regularly clean air vents and fan filters to prevent dust buildup that can reduce performance or cause thermal shutdowns.
• Inspect AC input/output terminals, battery cables, and PV connections for tightness, discoloration, or signs of heat stress.
• Avoid running continuously above 80–90% of the 3000W rated load to extend inverter lifespan and reduce stress on internal components.
• Periodically check MPPT solar input settings (90–230V range, max 250V open circuit) to ensure panels are correctly configured.
• Keep firmware/LCD settings (battery type, charging priority, and voltage parameters) properly configured for your battery system.
• Do not connect or disconnect solar panels, batteries, or loads while the inverter is running to prevent arcing damage.
• Use proper grounding and surge protection to protect against lightning and voltage spikes.
• Perform a monthly system check: verify charging behavior, output stability, and error-free operation under load.
