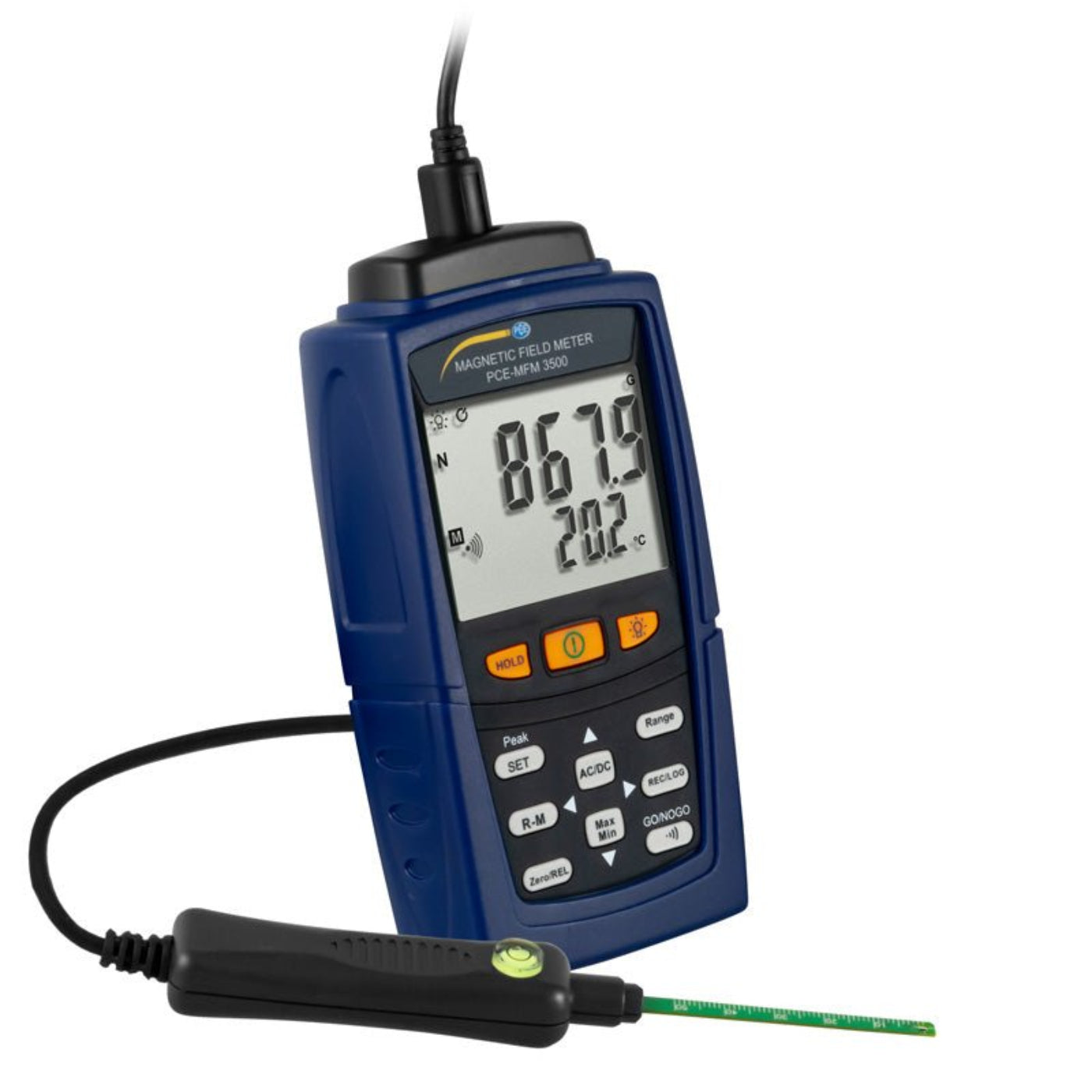

PCE 0 - 30,000G Portable EMF Detector & Magnetometer Gauss Magnetic Field Meter - MFM 3500

PCE 0 - 30,000G Portable EMF Detector & Magnetometer Gauss Magnetic Field Meter - MFM 3500


The PCE 0 - 30,000G Portable AC/DC EMF Detector & Magnetometer Gauss Magnetic Field Meter is a dependable tool for measuring magnetic fields. It is designed for both static (permanent magnets) and alternating magnetic fields. The flat external probe allows for measurements in tight spaces and small openings. With a measuring range of up to 30,000 G, it is versatile for various measuring tasks. In addition to detecting magnetic fields, the magnetometer also measures temperature simultaneously. The device features an adjustable alarm function that alerts the operator when a preset measurement value is exceeded.

The magnetometer also has a memory function. Values ??can be stored automatically as well as manually. To analyze the measured data, the magnetometer can be connected to a PC via the mini-USB interface. With the software, the data stored on the magnetometer can be read out and analyzed. In addition, the software can be used for live viewing and operation of the magnetometer.

Features

•  Adjustable alarm function
• Data memory with PC connection
• Temperature measurement
• Switchable AC / DC measurement
• Sensor alignment with bubble possible
• Rubber protective cover for the handset

Highlights

• External sensor
• Measuring range up to 30,000 G
• Leveling bubble
• Built-up memory for up to 7,000 values ??
• Software for live view and reading
• Sensor cable approx. 1 m (3.3 ft)
• Battery life approx. 100 hours

What our Experts Think

• Wide-Range Magnetic Field Measurement – The PCE-MFM 3500 measures AC and DC magnetic fields up to 30,000 G, making it suitable for demanding industrial, laboratory, and field applications.
• Portable Professional Performance – Combines high-range measurement capability with a handheld design, allowing convenient on-site magnetic field testing and analysis.
• Accurate & Reliable Results – Delivers precise magnetic field readings for evaluating magnets, motors, transformers, electromagnetic devices, and magnetic materials.
• Ideal for Maintenance & Research – A valuable tool for engineers, technicians, quality control teams, and researchers who require dependable magnetic field measurements.
• Supports Diagnostics & Quality Assurance – Helps identify performance issues, verify magnetic strength, and maintain equipment and product standards.

Q&A

Q: What is the PCE-MFM 3500 Magnetic Field Meter used for?
A: The PCE-MFM 3500 is a portable magnetic field meter designed to measure AC and DC magnetic fields for EMF testing, equipment inspection, research, and quality control.

Q: What magnetic field range can the PCE-MFM 3500 measure?
A: The device measures magnetic fields up to 30,000 G (Gauss), making it suitable for a wide range of industrial and laboratory applications.

Q: Can the PCE-MFM 3500 measure both AC and DC magnetic fields?
A: Yes. It accurately measures both AC and DC magnetic fields, providing versatile magnetic field analysis.

Q: Is the PCE-MFM 3500 portable?
A: Yes. Its compact and portable design makes it ideal for field inspections, maintenance work, and on-site magnetic field testing.

Q: Can measurement data be stored and reviewed?
A: Yes. The device supports data recording and analysis for reporting, documentation, and long-term monitoring.

Q: Why choose the PCE-MFM 3500 Magnetic Field Meter?
A: It combines portability, a wide measurement range, and accurate AC/DC magnetic field detection for professional EMF and magnetic field measurement applications

Maintenance Tips

• Keep the probe and sensor area clean and free from dust, dirt, and moisture to ensure accurate magnetic field measurements.
• Store the meter in its protective carrying case when not in use to prevent damage during transport and storage.
• Handle the probe carefully and avoid bending, dropping, or exposing it to excessive force.
• Protect the instrument from extreme temperatures, high humidity, and direct sunlight.
• Check battery condition regularly and replace or recharge as needed for reliable operation.
• Inspect cables and connectors periodically for wear or damage.
• Verify measurement accuracy regularly using known reference sources or calibration services.
• Avoid exposing the sensor to magnetic fields beyond its specified measurement range.
• Clean the housing with a soft, dry cloth and avoid harsh chemicals or abrasive cleaners
