PCE 0 - 30,000G Tabletop AC DC EMF Detector & Magnetometer Gauss Magnetic Field Meter - MFM 4000

PCE 0 - 30,000G Tabletop AC DC EMF Detector & Magnetometer Gauss Magnetic Field Meter - MFM 4000

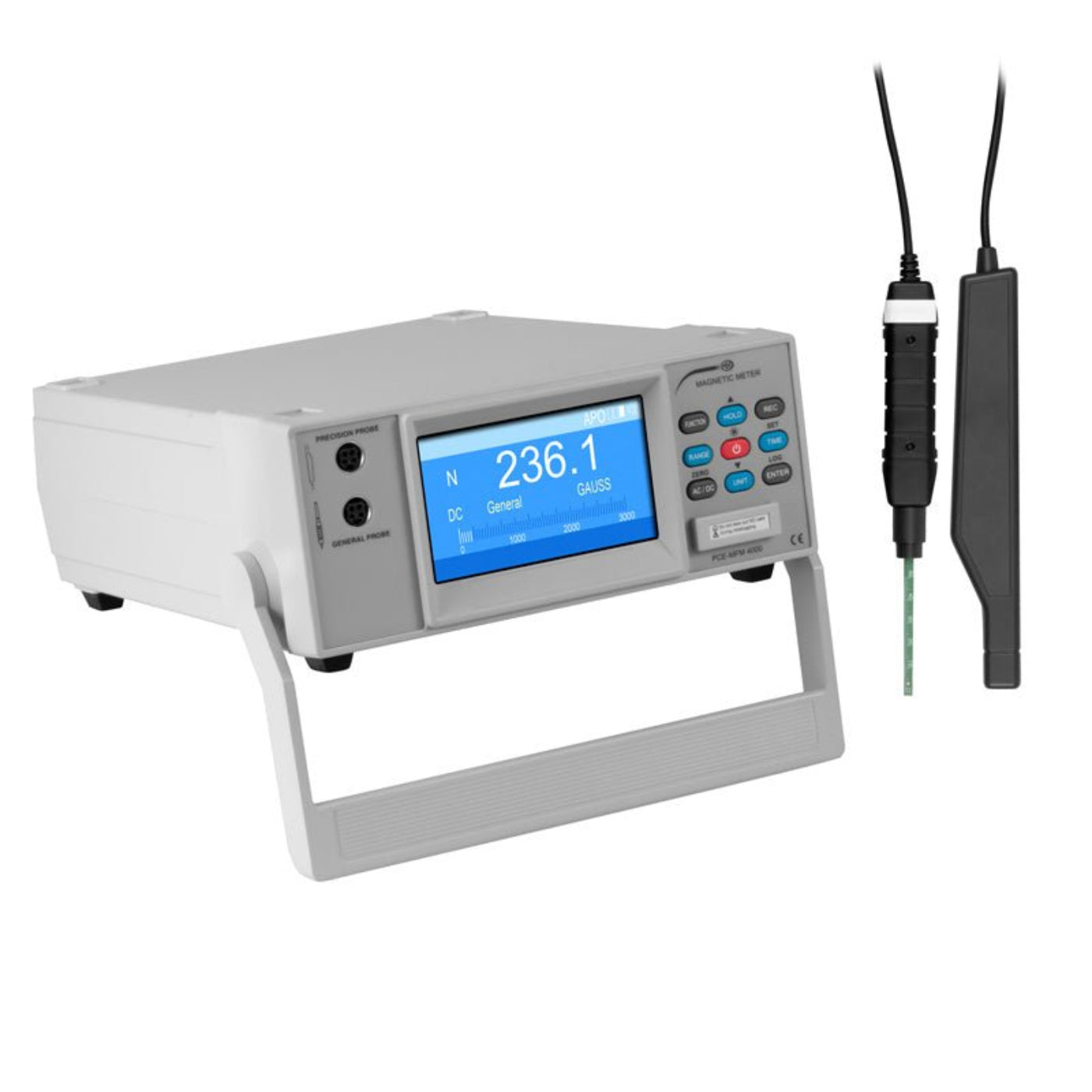

The PCE 0 - 30,000G Tabletop AC DC EMF Detector & Magnetometer Gauss Magnetic Field Meter is often used in the laboratory and in quality assurance to measure the strength of magnetic fields. It includes two different sensors; one for general measurements in the Gauss and milli-Tesla range, as well as a precision sensor for measurements in the milli Gauss and micro-Tesla range. The magnetometer sensors have automatic temperature compensation. The device can be used for measurements of DC and AC magnetic fields. The magnetometer shows the polarity of the DC magnetic field on the display next to the measured value. This precise magnetometer can be connected to a PC via serial interface for measurement value analysis.

The magnetometer features a data logging function that allows it to save measured values to an SD memory card at preset intervals during measurements. In addition to interval storage, up to 99 individual measurements can be saved with the push of a button. The measurement data is stored in Excel format on the SD card, eliminating the need for additional software to use with the magnetometer.

The magnetometer is supplied as a table device and is particularly suitable for stationary measurements in QA, the test laboratory or also in research and. The bright display of the magnetometer is easy to read at all times and shows all the necessary information about the magnetic field strength. The magnetometer also has an automatic switch-off. The magnetometer is supplied with 6 x 1.5V AA batteries or with a 9V plug-in power supply.

Features

• Tabletop device with 2 sensors:
• General Probe Range: 0-3000 milli-Tesla (0-30,000 Gauss)
• Precision Probe Range: 0-300 micro-Tesla (0-3000 milli-Gauss)
• For static and changing magnetic fields
• Highly accurate Transverse Hall sensor
• Different units selectable (mG / µT)
• Data storage on SD memory card
• Automatic shutdown
• Serial interface
• Max.- min.- hold function

Highlights

• For AC and DC magnetic fields
• Precision and standard sensor
• LCD display
• SD data logger
• Serial interface
• Tabletop device

What our Experts Think

• High-Range Magnetic Field Measurement – The PCE-MFM 4000 measures AC and DC magnetic fields up to 30,000 G, making it ideal for demanding industrial, laboratory, and research applications.
• Precision Tabletop Testing Solution – Designed for accurate and repeatable magnetic field analysis where stability and measurement reliability are essential.
• Versatile AC & DC Field Detection – Suitable for testing permanent magnets, motors, transformers, magnetic materials, electromagnetic devices, and scientific equipment.
• Advanced Quality Control Tool – Helps engineers and technicians verify magnetic performance, troubleshoot equipment, and maintain product standards.
• Built for Professional Environments – An excellent choice for laboratories, manufacturing facilities, research institutions, and technical inspection applications.

Q&A

Q: What is the PCE-MFM 4000 Magnetic Field Meter used for?
A: The PCE-MFM 4000 is a tabletop magnetic field meter designed to measure AC and DC magnetic fields for research, testing, quality control, and industrial applications.

Q: What magnetic field range can the PCE-MFM 4000 measure?
A: The device measures magnetic fields up to 30,000 G (Gauss), making it suitable for both low- and high-strength magnetic field analysis.

Q: Can the PCE-MFM 4000 measure both AC and DC magnetic fields?
A: Yes. It is capable of measuring both AC and DC magnetic fields, providing versatile testing capabilities.

Q: Where is the PCE-MFM 4000 commonly used?
A: It is widely used in laboratories, electronics manufacturing, magnet production, research facilities, and quality assurance environments.

Q: Does the device support data recording and analysis?
A: Yes. Measurement data can be stored and reviewed for reporting, documentation, and detailed magnetic field analysis.

Q: Why choose the PCE-MFM 4000 Magnetic Field Meter?
A: It offers a wide measurement range, accurate AC/DC magnetic field detection, and reliable performance for professional magnetic field testing applications.

Maintenance Tips

• Keep the probe and sensor area clean and free from dust, dirt, and moisture for accurate magnetic field measurements.
• Store the instrument in a clean, dry environment away from excessive heat, humidity, and direct sunlight.
• Handle the probe carefully and avoid bending, dropping, or exposing it to mechanical stress.
• Inspect cables and connections regularly to ensure stable and reliable operation.
• Verify calibration periodically using appropriate reference standards or calibration services.
• Avoid exposing the meter to magnetic fields beyond its specified range to protect the sensing components.
• Clean the housing with a soft, dry cloth and avoid abrasive cleaners or solvents.
• Ensure proper power supply stability to maintain consistent measurement performance.
• Cover the instrument when not in use to minimize dust accumulation.
