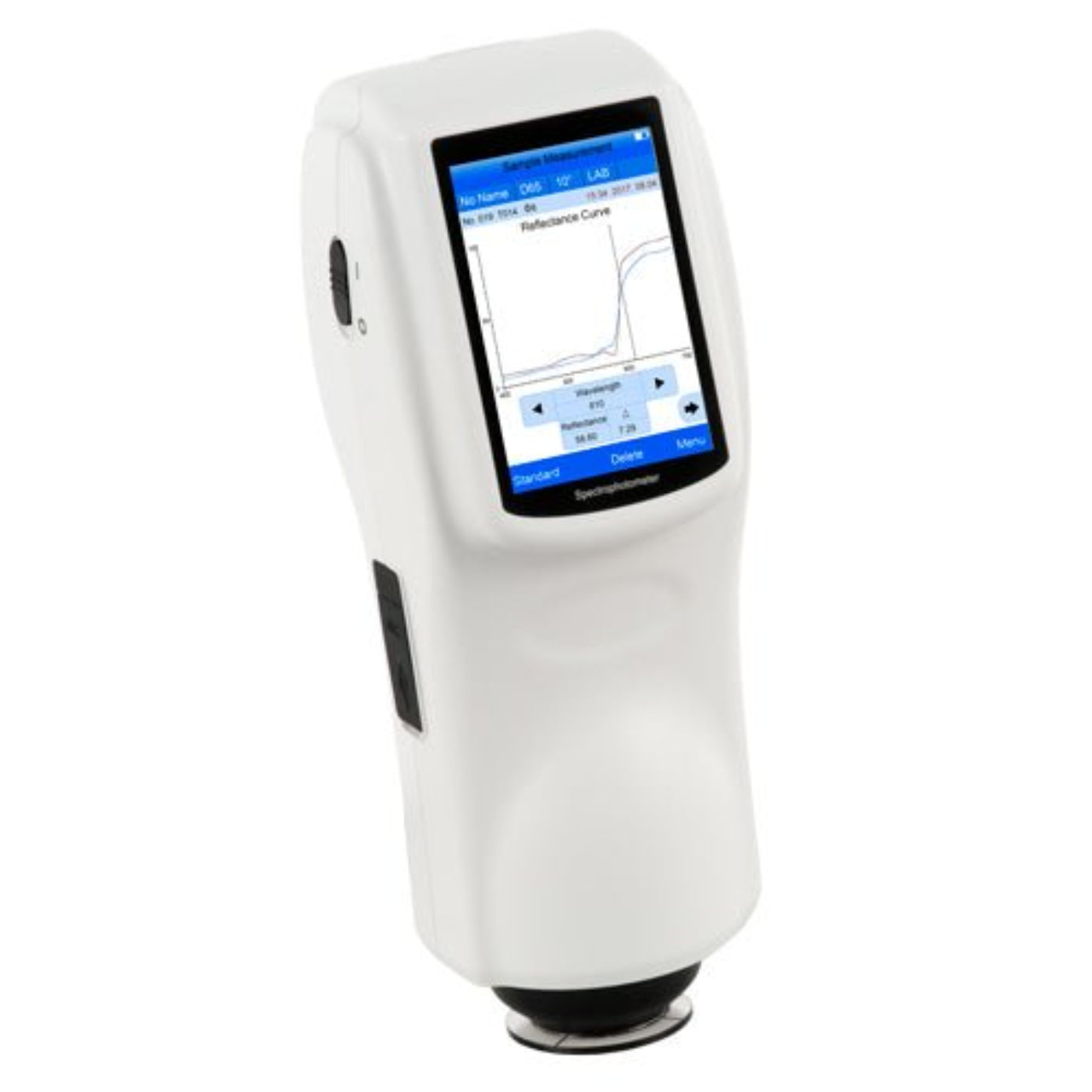

PCE Spectrophotometer - CSM 10

PCE  Spectrophotometer - CSM 10

The PCE CSM 10 Spectrophotometer was developed for quality control, offers high accuracy, and comes with a 3.5" touch screen display. When using the device you can choose between different color spaces (CIE LAB, XYZ, Yxy, LCh, CIE LUV, HunterLAB). After measuring, the reading can be used as a reference value while other readings can be recorded as a sample and later be compared to the reference value easily.

In addition to the individual color space coordinates, the deviation between the reading is also displayed. When using the spectrophotometer, it is possible to store up to 1000 reference values and up to 15,000 samples on the device. The measured data can also be transferred to a PC via the USB interface. A special PC software is included in the package.

Features

• CIE LAB, XYZ, Yxy, LCh, CIE LUV, HunterLAB
• black and white calibration
• determination of reference values and samples
• 3.5" touch screen display
• rechargeable lithium-ion battery
• high accuracy
• easy to use
• incl. PC software
• 8 mm aperture

Highlights

• Spectrophotometer
• Best for quality control
• PC software included
• Li-ion battery
• Different color spaces
• Black and white calibration
• Determination of reference values and samples
• 3.5" touch screen

What our Experts Think

• Advanced Spectrophotometer for Precision Colour Analysis – The PCE-CSM 10 delivers highly accurate colour measurement and evaluation for demanding quality control applications.
• Exceptional Colour Matching Performance – Ideal for maintaining colour consistency across production batches, helping reduce waste and improve product quality.
• Designed for Professional Industries – Well-suited for plastics, paints, coatings, textiles, printing, packaging, automotive, and research environments where colour accuracy is essential.
• Reliable & Repeatable Measurements – Provides consistent results that support strict quality standards and process control requirements.
• Efficient Workflow Integration – Combines advanced analytical capabilities with user-friendly operation to streamline colour inspection and reporting.

Q&A

Q: What is the PCE-CSM 10 Spectrophotometer used for?
A: The PCE-CSM 10 is a professional spectrophotometer designed for precise color measurement, color matching, and quality control in industrial and laboratory applications.

Q: Which industries commonly use the PCE-CSM 10?
A: It is widely used in paints, coatings, plastics, textiles, printing, packaging, automotive manufacturing, and research laboratories.

Q: Can the PCE-CSM 10 measure color differences accurately?
A: Yes. It provides highly accurate color difference analysis, helping maintain product consistency and meet strict quality standards.

Q: Does the PCE-CSM 10 support industry-standard color spaces?
A: Yes. It measures and analyzes colors using widely recognized color systems for reliable and repeatable results.

Q: Can measurement data be stored and transferred?
A: Yes. The device supports data storage and transfer for reporting, documentation, and advanced color analysis.

Q: Why choose the PCE-CSM 10 Spectrophotometer?
A: It offers high-precision color measurement, dependable repeatability, and professional-grade performance for demanding color management and quality control tasks.

Maintenance Tips

• Calibrate the instrument regularly using the supplied reference standards to ensure accurate color measurements.
• Keep the measurement aperture and optical components clean with a soft, lint-free cloth.
• Protect calibration tiles and standards from dust, scratches, fingerprints, and direct sunlight.
• Store the spectrophotometer in its protective carrying case when not in use.
• Avoid exposure to extreme temperatures, humidity, and sudden environmental changes that can affect measurement accuracy.
• Handle with care and avoid drops, impacts, or excessive vibration.
• Maintain adequate battery charge for reliable field and laboratory operation.
• Verify performance periodically using certified color reference samples.
• Back up measurement data regularly and keep software updated for optimal functionality.
