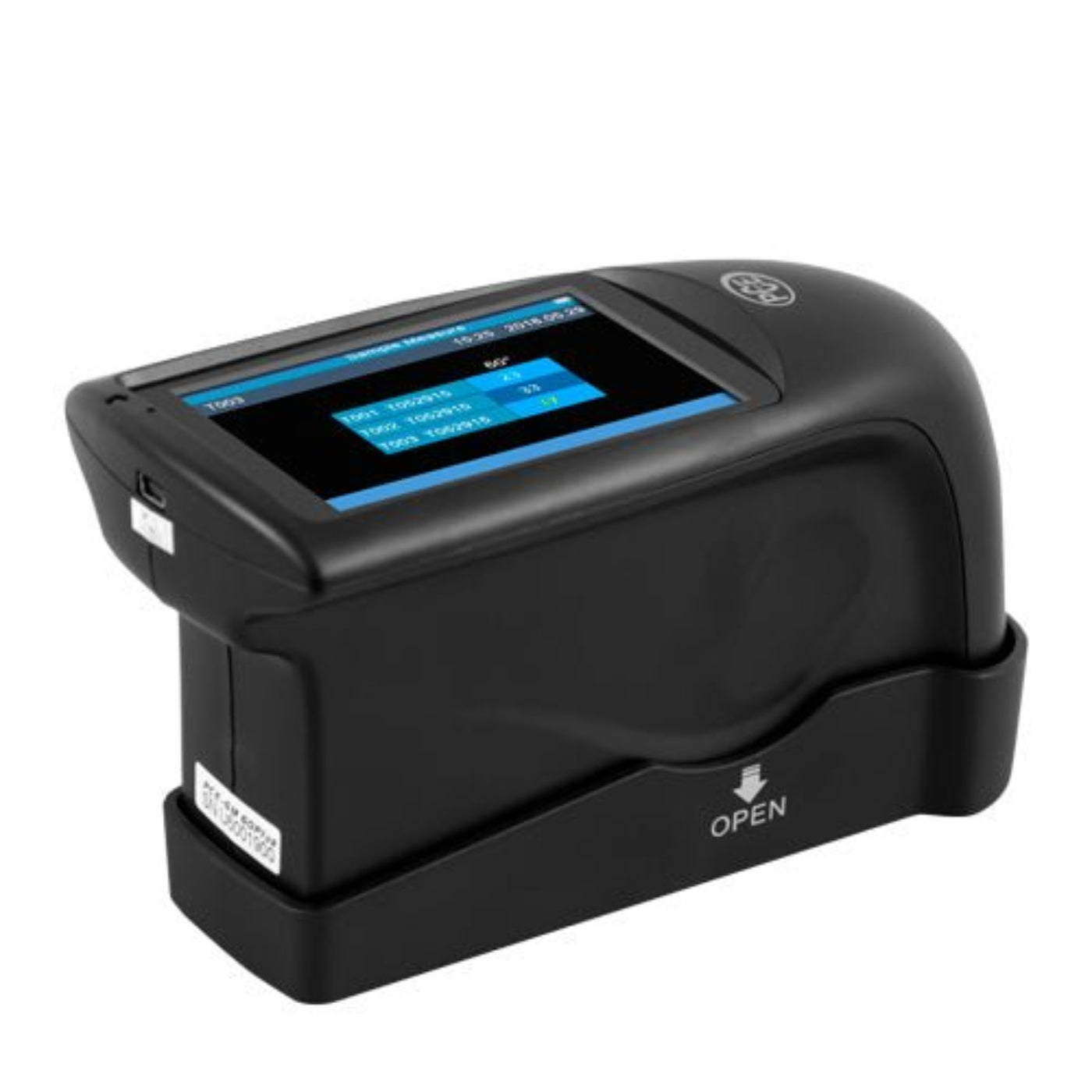

PCE Plus Gloss Meter - GM 60Plus
The PCE GM 60 Plus Gloss Meter is a measuring device for the determination of gloss on different materials. Light is emitted by the device onto the part that is to be tested, a part of that light is absorbed by the surface, and the other part is reflected back. The reflected light is what's captured and measured by the gloss meter. The results are then clearly shown on the TFT display. This gloss meter is typically used in areas where it is essential that individual products always have the same appearance, texture and properties. In this way, complaints and associated costs are avoided. In addition, the external reputation of companies with consistent quality and consistent products is respected or improved.
Features
- 60° measuring geometry
- 3.5" TFT touchscreen display
- Built-in rechargeable battery
- Quick 0.5 second measuring time
- 0 - 200 GU gloss measurement range
- Measuring accuracy ±1.5 GU
- Self-calibration possible using included calibration plate
- Chromaticity fulfills CIE 1931 2° under a CIE illuminant C
- Reflective gloss measurement per ISO 2813, GB/T 9754, ASTM D523 and ASTM D2457 standards
- Light source: D65
- Wave length: 400-700 nm
Highlights
- For non-stationary use
- Measurement up to 200 gloss points
- 60° Measurement geometry
- 3.5" TFT display
- Quick measuring time of 0.5 seconds
What our Experts Think
-
Professional Gloss Measurement Solution – The PCE-GM 60 Plus delivers accurate gloss readings, helping ensure consistent surface appearance and product quality.
-
Ideal for Quality Control Applications – Perfect for paints, coatings, plastics, automotive finishes, packaging, furniture, and other gloss-sensitive materials.
-
Fast & Reliable Results – Provides precise, repeatable measurements that support efficient inspection processes and reduce subjective visual assessments.
-
Portable & Easy to Operate – Compact handheld design allows convenient testing in laboratories, production facilities, and field environments.
-
Enhances Product Consistency – Helps manufacturers maintain appearance standards, improve quality control, and minimize costly surface finish variations.
Q&A
Q: What is the PCE-GM 60Plus Gloss Meter used for?
A: The PCE-GM 60Plus is designed to measure surface gloss levels accurately for quality control, inspection, and product consistency testing.
Q: Which materials can be tested with the PCE-GM 60Plus?
A: It is suitable for paints, coatings, plastics, metals, ceramics, automotive finishes, and other reflective surfaces.
Q: Why is gloss measurement important?
A: Gloss measurement helps ensure consistent product appearance, surface quality, and compliance with manufacturing specifications.
Q: Is the PCE-GM 60Plus suitable for industrial quality control?
A: Yes. It is widely used in manufacturing, automotive, coating, and quality assurance environments.
Q: Can measurement data be stored and analyzed?
A: Yes. The device supports data storage and management for reporting, quality documentation, and process monitoring.
Q: Why choose the PCE-GM 60Plus Gloss Meter?
A: It delivers fast, accurate gloss measurements, reliable repeatability, and professional performance for surface quality evaluation.
Maintenance Tips
-
Calibrate the gloss meter regularly using the supplied calibration standard to ensure accurate gloss readings.
-
Keep the measurement aperture and calibration tile clean and free from dust, fingerprints, and scratches.
-
Store the instrument in its protective carrying case when not in use.
-
Avoid exposure to excessive heat, humidity, and direct sunlight that may affect measurement performance.
-
Handle with care and avoid drops, impacts, or excessive vibration.
-
Clean the exterior with a soft, lint-free cloth and avoid abrasive cleaners or solvents.
-
Maintain adequate battery charge for reliable operation during inspections.
-
Verify measurement accuracy periodically using certified reference standards.
-
Ensure test surfaces are clean and dry before taking measurements to improve consistency.
