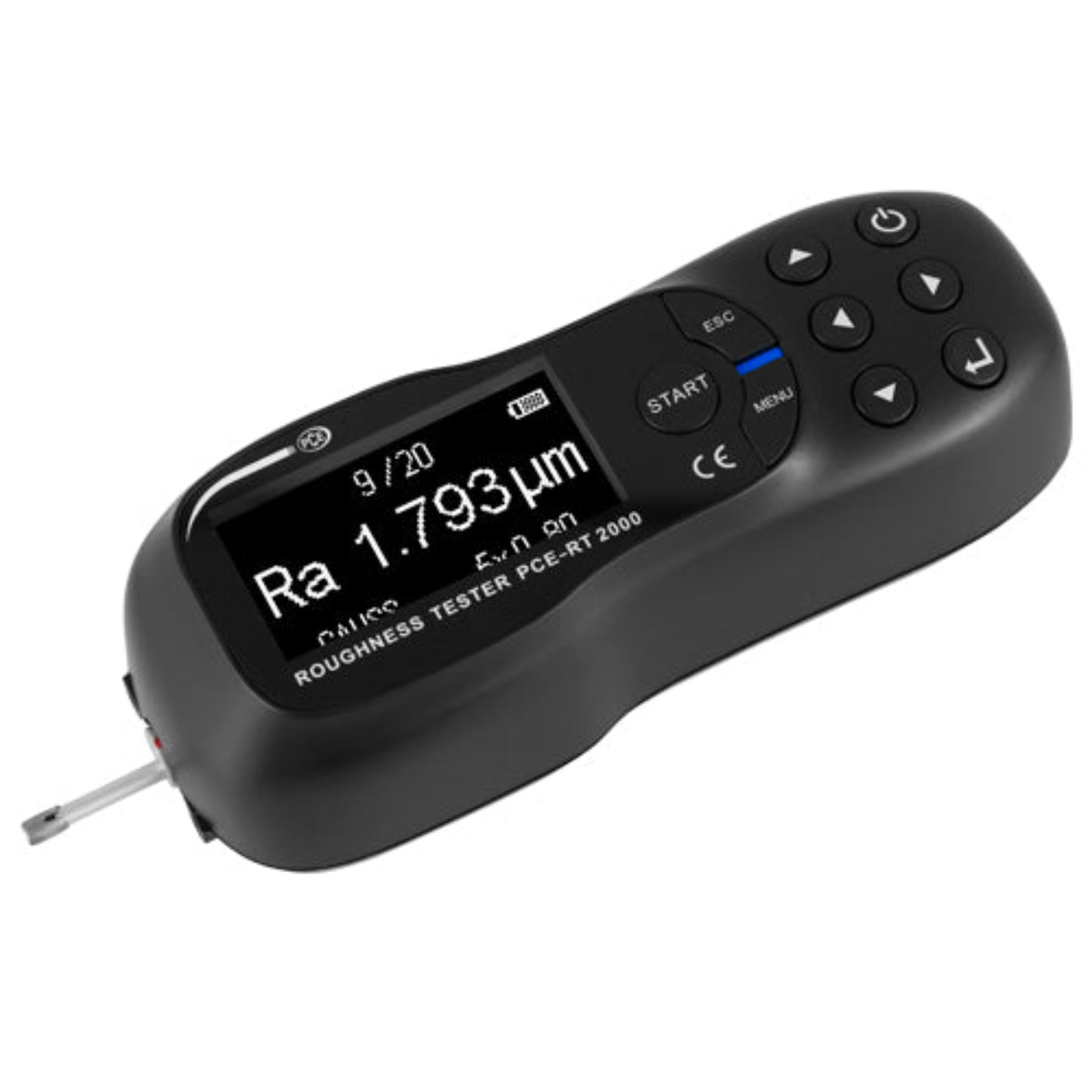

PCE Parameter Bluetooth Profilometer Surface Roughness Tester - RT 2000BT

PCE Parameter Bluetooth Profilometer Surface Roughness Tester - RT 2000BT

The PCE RT 2000BT 9-Parameter Bluetooth Profilometer Surface Roughness Tester allows for quick and precise measurement of surface roughness across a variety of materials. Simply place the roughness meter on the surface to be tested, and use the positioning device to align it accurately. With just the press of a button, you can initiate the measurement. Once completed, the measured value is displayed on the screen, along with a progress diagram of the surface.

When measuring the surface roughness, there are various measurement parameters that provide information about the roughness of the surface, for example the maximum roughness depth, the mean roughness depth and many other measurement parameters. After a measurement has been carried out, these can be displayed in the data memory of the Bluetooth roughness meter.

After each measurement of the roughness, the recorded measured values ??are saved in the roughness meter with Bluetooth. Up to 20 measurement sequences can be saved with the Bluetooth roughness meter. In order to process or analyze these further, the Bluetooth roughness meter can be connected to a PC via the micro-USB interface and read out, analyzed and further processed using the free software in the download portal.

This roughness meter has a Bluetooth interface. This Bluetooth interface can be used to establish a direct connection with an Android device. This has several advantages. The stored data can be displayed and analyzed directly on the Android device. The measured values ??measured by the Bluetooth roughness meter can also be exported and forwarded by the mobile device. In addition to transferring the measured values, it is also possible to control the Bluetooth roughness meter via the connected mobile device. This means that the measurement parameters can be set directly on the roughness meter with Bluetooth. At the same time, a measurement process can be started with the Bluetooth roughness meter via the Bluetooth interface. This has the particular advantage that, in contrast to starting via the buttons on a roughness meter, no vibrations are transmitted to the Bluetooth roughness meter. As a result, the operator receives a more precise and at the same time more reliable measurement result from the Bluetooth roughness meter.

Features

• Bluetooth
• Download free app from the Google Play Store
• OLED display
• Measures Ra, Rq, Rsm, Rsk, Rz, Rt, Rp, Rv, Rc
• Numerical and graphical display of measured values
• Micro USB cable
• 3 different cutoff wavelengths
• PC software
• Statistical functions
• Battery operation

Highlights

• App connection via Bluetooth
• Fast roughness detection
• Portable
• Large OLED display
• Measurement of Ra, Rq, Rsm, Rsk, Rz, Rt, Rp, Rv, Rc
• Numeric and graphic display
• Data memory for 20 measurement processes

What our Experts Think

• Advanced Multi-Parameter Surface Analysis – The PCE-RT 2000BT measures multiple surface roughness parameters, providing detailed insights into surface finish quality and manufacturing precision.
• Bluetooth Connectivity for Efficient Data Management – Built-in Bluetooth functionality enables convenient data transfer, reporting, and analysis, improving workflow efficiency.
• Accurate & Repeatable Measurements – Delivers reliable roughness readings that help maintain product consistency and compliance with quality standards.
• Ideal for Industrial Quality Control – Perfect for machining, automotive, aerospace, metalworking, engineering, and precision manufacturing applications.
• Portable & User-Friendly Design – Compact handheld construction allows quick on-site inspections in workshops, production facilities, and quality control laboratories.

Q&A

Q: What is the PCE-RT 2000BT Surface Roughness Tester used for?
A: The PCE-RT 2000BT is designed to measure surface roughness parameters for quality control, machining verification, and surface finish inspection.

Q: What makes the PCE-RT 2000BT different from standard roughness testers?
A: The device features Bluetooth connectivity, allowing convenient wireless data transfer and efficient measurement management.

Q: Which materials can be tested with the PCE-RT 2000BT?
A: It is suitable for metals, machined components, automotive parts, precision tools, and other industrial surfaces.

Q: Is the PCE-RT 2000BT suitable for quality assurance applications?
A: Yes. It is widely used in manufacturing, production facilities, inspection departments, and quality control laboratories.

Q: Can measurement data be stored and analyzed?
A: Yes. The tester supports data storage and Bluetooth-enabled data transfer for reporting, documentation, and process monitoring.

Q: Why choose the PCE-RT 2000BT Surface Roughness Tester?
A: It combines accurate surface roughness measurement, wireless Bluetooth connectivity, and reliable performance for professional surface inspection tasks.

Maintenance Tips

• Keep the probe and stylus clean to ensure precise surface roughness measurements.
• Handle the stylus carefully and avoid impacts or excessive force that could damage the sensor tip.
• Calibrate the instrument regularly using certified roughness standards for consistent accuracy.
• Store the tester in its protective carrying case when not in use to prevent dust and physical damage.
• Avoid exposure to moisture, extreme temperatures, and direct sunlight that may affect performance.
• Clean the housing with a soft, dry cloth and avoid harsh chemicals or abrasive cleaners.
• Inspect the probe tip periodically for wear and replace it if measurement accuracy decreases.
• Keep the battery charged and monitor battery health for reliable operation.
• Maintain Bluetooth connectivity and update software when available for smooth data transfer and record management.
