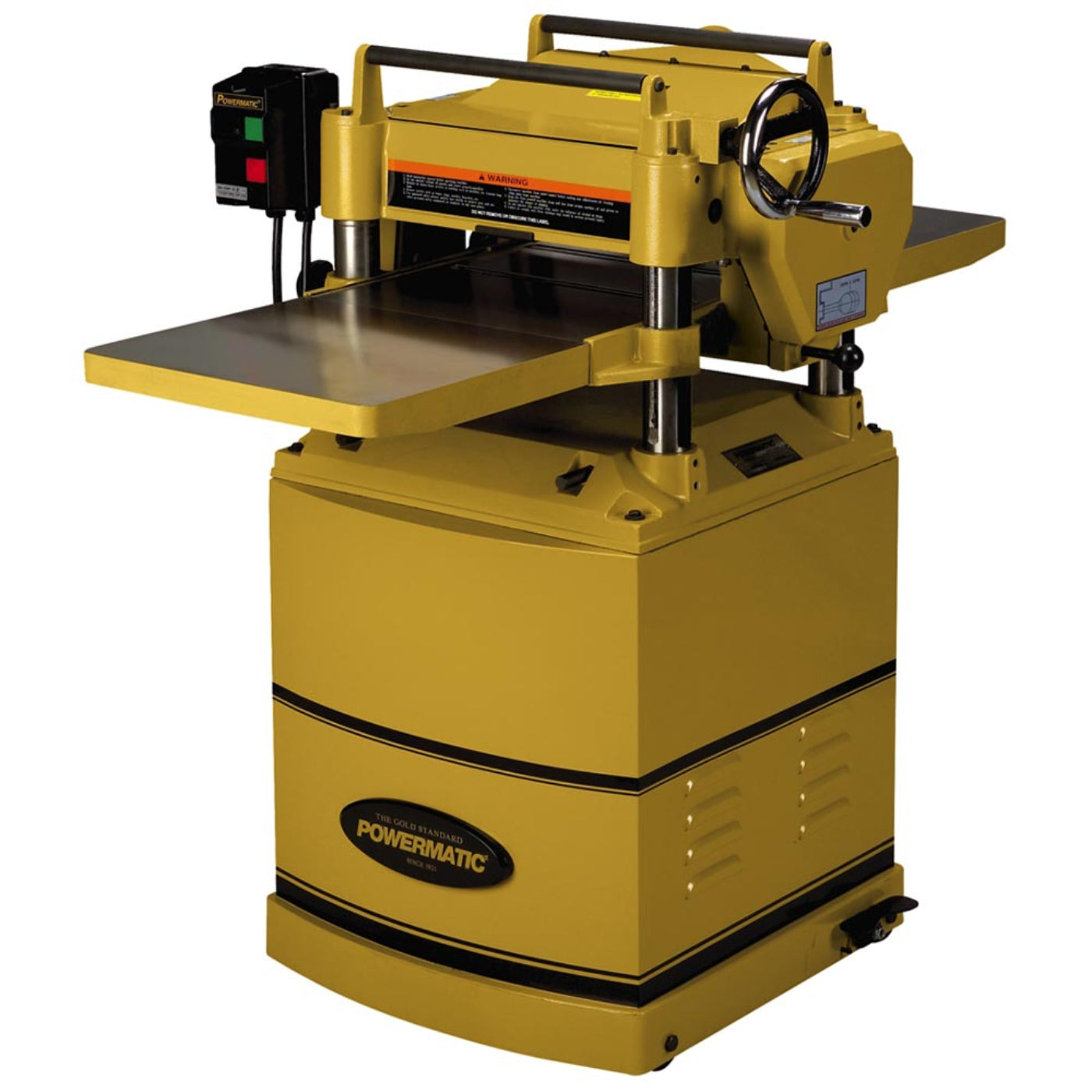

Powermatic 15HH 15" Helical Head Planer - PM9-1791213
Built for woodworkers who value precision and durability, the Powermatic 15" Helical Head Planer delivers consistent results for all your planing needs. With a 3HP motor and 6" maximum board thickness, users get the power and capacity needed for flattening rough lumber, reducing stock to final thickness, and handling demanding milling tasks with confidence.
The helical cutterhead on the Powermatic 15HH uses 74 four-sided carbide knife inserts to produce a smoother finish and quieter operation compared to conventional straight knives. These indexable knives do not require adjustment and can be rotated to extend cutter life.
Your workpiece will get substantial support from the precision-ground cast-iron table and two large extension wings. The two-speed gearbox with automatic chain tensioner allows operators to dial in feed rate and finish quality, while steel infeed and outfeed rollers ensure positive feeding and consistent thicknessing with up to 1/8" depth of cut.
Features
Helical cutterhead with 74 four-sided carbide knife inserts delivers smoother, quieter finishes and reduced tear-out compared to straight knives
3HP, 230V single-phase motor with triple V-belts provides consistent power transfer for demanding, professional planing applications
Indexable carbide inserts require no height adjustment, minimizing setup time and extending cutter life
Precision-ground cast-iron table with large extension wings ensures accurate, stable support for long and wide workpieces
Two-speed gearbox with automatic chain tensioner lets operators balance feed rate, surface finish, and material removal with ease
Heavy-duty welded steel stand with lockable casters delivers rock-solid stability while allowing convenient repositioning around the shop
Specifications
Style (Type)
Planer
Type of Cutterhead
Helical
Cutterhead Speed
4,500 RPM
Cutterhead Diameter
2-7/8"
Number of Knives
74 Four-Sided Carbide Helical Inserts
Max. Depth of Cut
3/16"
Max. Full Width Depth of Cut
1/8"
Max. Planing Width
14-7/8"
Max. Planing Thickness
6"
Min. Planing Length
8"
Feed Rate
16 / 20 FPM
Table Size (L × W)
48" × 15"
Table Size with Extensions (L × W)
15" × 48"
Table Support
4 Column
Column Diameter
2-3/16"
Min. Dust Collection Required
800 CFM
Dust Port Outside Diameter
4"
Motor Power
3 HP
Motor Phase
1 Phase
Video
What our Experts Think
The Powermatic 15HH 15" Helical Head Planer is a premium choice for woodworkers who need consistent thickness, smooth finishes, and reliable performance.
The helical cutterhead with 74 four-sided carbide inserts delivers quieter operation, reduced tear-out, and a finer surface finish compared with traditional straight knives.
The 3HP motor with triple V-belt power transfer provides steady cutting strength for demanding hardwood planing applications.
Experts appreciate the precision-ground cast iron table and extension wings, which provide strong support for wider boards and help maintain accuracy.
The two-speed feed system allows better control between faster material removal and smoother finishing passes.
Built with a heavy-duty frame, mobile base, and durable components, this planer is designed for serious workshops that prioritize longevity and professional results.
Expert verdict: A powerful, low-maintenance planer that delivers the precision and finish quality expected from a high-end woodworking machine.
Q&A
Q: What is the Powermatic 15HH Helical Head Planer? A: The Powermatic 15HH is a professional 15-inch planer designed for accurate thicknessing, smooth finishes, and reliable woodworking performance.
Q: What motor does the PM9-1791213 use? A: It features a powerful 3 HP, single-phase, 230V motor for handling hardwood and softwood planing applications.
Q: What is the benefit of the helical cutterhead? A: The helical cutterhead uses 74 four-sided carbide inserts to deliver quieter operation, reduced tear-out, and smoother finished surfaces.
Q: What is the maximum planing capacity? A: It provides a 15-inch cutting width and can plane boards up to 6 inches thick.
Q: Does it provide consistent material feeding? A: Yes, serrated steel infeed and smooth outfeed rollers help provide steady feeding and reliable thickness control.
Q: Does the planer have adjustable feed speeds? A: Yes, the two-speed gearbox allows users to balance feed rate and finish quality for different materials.
Q: Is the table built for stability? A: Yes, the precision-ground cast iron table and extension wings provide strong support for larger workpieces.
Q: Does it include dust collection support? A: Yes, it features a 4-inch dust port for efficient chip and dust removal.
Q: Is the Powermatic 15HH suitable for professional shops? A: Yes, its heavy-duty construction, carbide helical head, and powerful motor make it ideal for serious woodworking environments.
Q: Why choose the Powermatic 15HH Planer? A: It combines precision thicknessing, durable construction, and advanced helical cutting technology for professional-quality woodworking results.
Maintenance Tips
Clean sawdust, chips, and debris regularly from the cutterhead, table, rollers, and dust port to maintain smooth operation.
Keep the cast iron table and extension wings clean and dry; apply protective wax when needed to prevent rust and improve stock feeding.
Inspect the helical cutterhead inserts regularly; rotate or replace damaged carbide inserts to maintain smooth cuts and reduce tear-out.
Maintain proper dust collection through the 4" dust port to prevent buildup around internal components.
Clean and inspect the infeed and outfeed rollers periodically to ensure consistent material feeding.
Check feed rate settings, cutterhead alignment, and table adjustments regularly for accurate thickness planing.
Lubricate moving parts, height adjustment mechanisms, and chains according to recommended maintenance practices.
Inspect belts, motor components, switches, and electrical connections for wear or damage.
Tighten bolts, knobs, and hardware periodically to maintain stability during operation.
Store the planer in a dry workshop environment and protect surfaces during extended periods of non-use.
