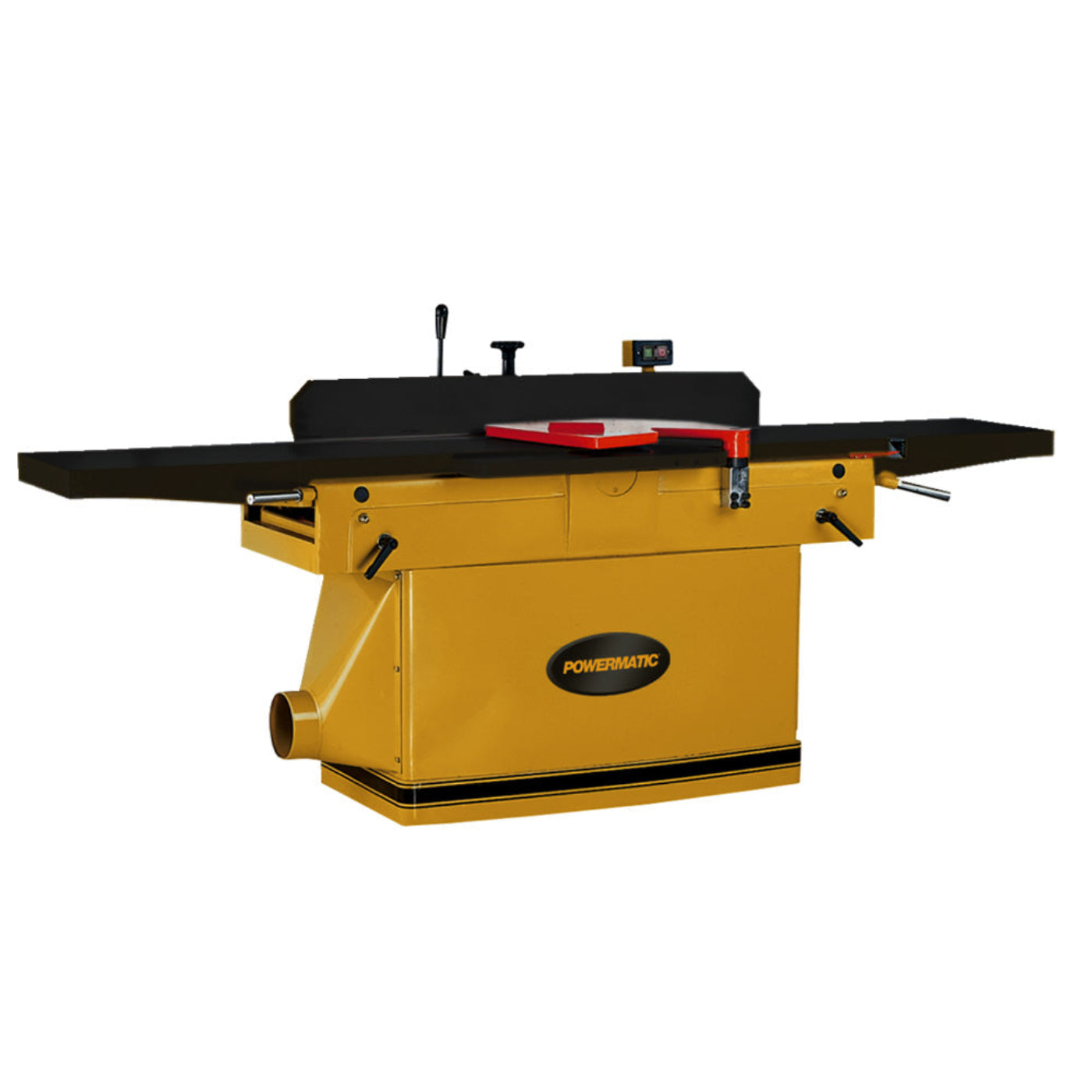

Now featuring ArmorGlide Technology, the Powermatic PJ1696T 16-Inch Jointer offers big capacity and performance in a machine loaded with features. A large center-mounted fence assembly adjusts easily by a rack and pinion system with ram lock. Preset stops on the fence body allow for fast angle set-up at 45ยฐ in and out, and a positive stop for perfect 90ยฐ angles.
The parallelogram design keeps the table in close proximity to the cutterhead for improved finish and allows for a fast depth of cut adjustment. This design also ensures the tables remain perfectly parallel even after years of tough duty.
The specially-designed solid steel helical cutterhead consists of six rows of precision-ground staggered inserts. This system makes fast work of knife changing, and never needs adjustments. The heavy-duty 7.5hp motor delivers all the power you need for even the biggest jobs.
Enhanced visibility:The dark surface reduces glare, so you can see where you're cutting better.
Rust resistant:Ditch the steel wool and never worry about rust again.
Low friction:Coated tables require 50% less force, so you get more control.
Maintenance-free:Get rid of the waxes and messy cleaning supplies, so you can do more of what you love.
Durable coating:ArmorGlide tables can withstand 250,000 passes without showing signs of wear.
Features
ArmorGlide Technology gives you a low-friction, industrial-grade coating on the work surface that is rust resistant, requires less maintenance, and gives you more control
Cast iron fence bevel controls include positive stops at 45 degrees and 90 degrees
Full size rabbeting table supports large workpieces for rabbets up to 3/4-inch deep
Helical cutterhead features 58 two-sided knife inserts that reduce noise, eliminate adjustments, and speed knife changes
Large 16" x 96" precision ground cast iron table surface for maximum support and fine finish
Parallelogram construction maintains close table-to-cutterhead proximity and ensures table parallelism
Rack and pinion adjustable cast iron fence assembly allows for smooth fence positioning without play
Specifications
Style (Type)
Jointer
Cuts Per Minute
20,800
Cutterhead Diameter
4"
Cutterhead Speed
5,200 RPM
Cutting Capacity (W ร D)
16" ร 3/4"
Infeed Table Length
47-1/2"
Motor Power
7.5 HP
Motor Voltage
460V
Number of Knives
58
Dust Port Outside Diameter
6"
Min. Dust Collection Required
800 CFM
Table Height from Floor
37-1/2"
Video
What our Experts Think
Industrial-Grade Jointer Performance โ Designed for professional woodworking shops requiring precise and consistent edge and face jointing.
16" Parallelogram Design โ Provides wide jointing capacity for larger boards, panels, and furniture components.
Helical Cutterhead Technology โ Delivers smoother finishes, reduced tear-out, quieter operation, and longer cutter life.
Powerful 7.5HP Motor โ Offers heavy-duty performance for demanding hardwood applications.
ArmorGlide Surface Technology โ Helps reduce friction and improves workpiece movement for smoother operation.
Precision Engineering โ Built for accurate adjustments and repeatable jointing results.
Heavy-Duty Construction โ Designed for long-term durability in production environments.
High-Capacity Workshop Solution โ Ideal for cabinetmakers, furniture builders, and professional woodworkers.
Q&A
Q: What is the Powermatic 16" Parallelogram Jointer used for? A: This jointer is designed for flattening, straightening, and preparing wood surfaces before assembly and finishing.
Q: What is the benefit of the helical cutterhead? A: The helical cutterhead provides smoother cuts, quieter operation, reduced tear-out, and longer-lasting cutting performance.
Q: What makes the parallelogram table design useful? A: The parallelogram design allows smooth table adjustment while maintaining the cutterhead relationship for accurate jointing.
Q: Is this jointer suitable for professional woodworking? A: Yes, its 7.5 HP motor, 16" capacity, and heavy-duty build make it ideal for production shops and professional woodworkers.
Q: What materials can this jointer handle? A: It is designed for jointing hardwoods, softwoods, and other compatible woodworking materials.
Q: What is ArmorGlide technology? A: ArmorGlide provides a low-friction, rust-resistant surface that helps improve material movement and table durability.
Q: What power requirements does this model need? A: This model operates on 460V three-phase power for demanding industrial woodworking environments.
Q: Who is the Powermatic 16" Jointer ideal for? A: It is ideal for cabinetmakers, furniture manufacturers, professional workshops, and high-volume woodworking operations.
Maintenance Tips
Clean dust, chips, and debris from the cutterhead, tables, and fence after each use.
Keep the ArmorGlide table surface clean and protected for smooth stock movement.
Inspect helical cutter inserts regularly and rotate or replace worn inserts as needed.
Check fence alignment and parallelogram table adjustments periodically for accuracy.
Lubricate moving parts, adjustment mechanisms, and slides according to recommendations.
Keep dust collection ports clear to maintain efficient airflow.
Inspect belts, bearings, and drive components for wear or damage.
Remove resin buildup from cutterhead and surfaces to maintain cutting performance.
Tighten bolts, handles, and hardware regularly for safe operation.
Store the jointer in a dry environment to help prevent corrosion.
