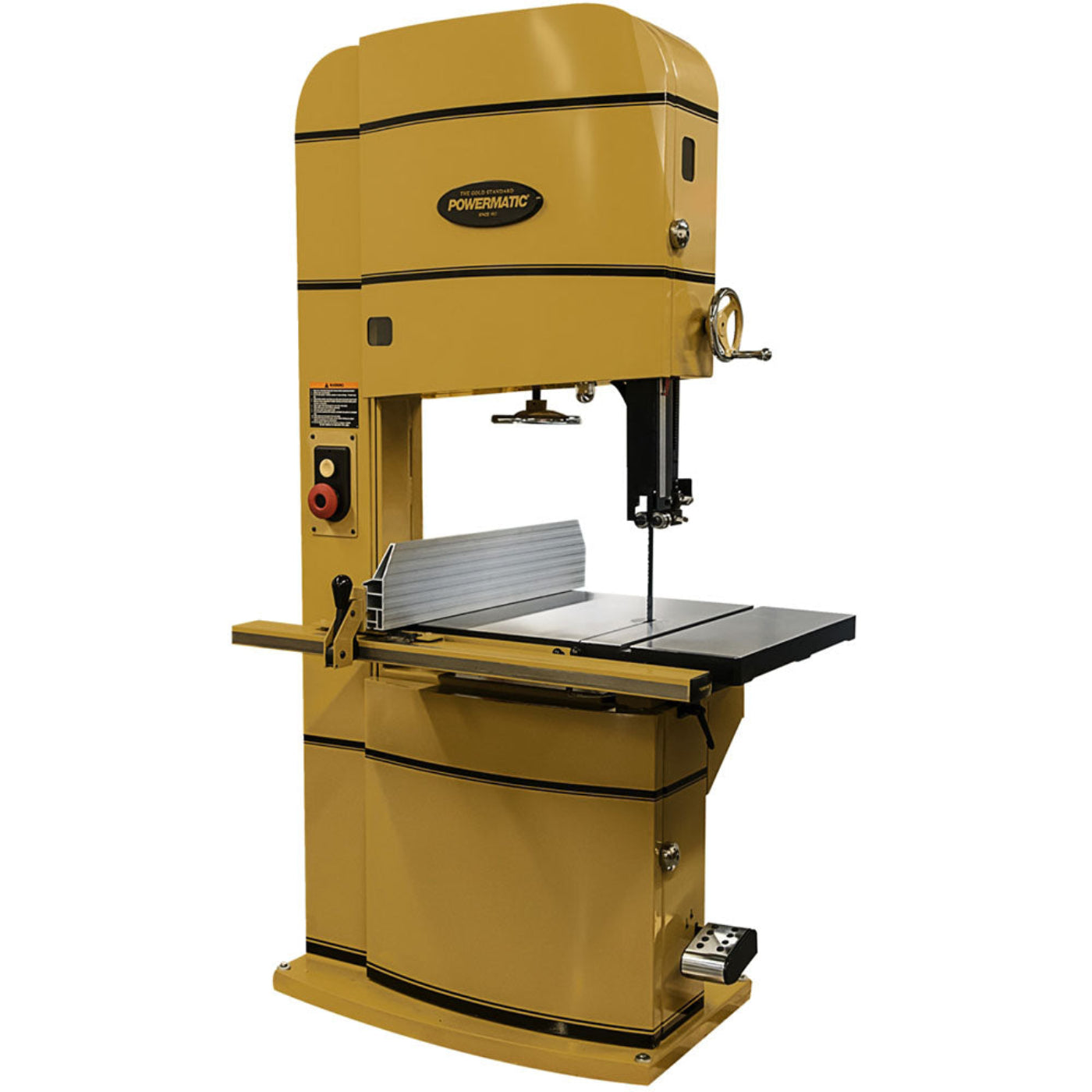

Powermatic 24" Band Saw 5hp, 3PH, 230/460V - PM9-1791260B
Powermatic believes that ambition is the fuel that drives progress. Every product that is engineered is born out of the same idea: How can they empower woodworkers to do more? In shops across the world, craftsmen are continually pushing the limits of their creativity, and in turn, challenging Powermatic to provide the best tools for the job.
When they reimagined their line of bandsaws, they not only set out to meet their ambitions, but to exceed them. Larger projects and larger workpieces call for more power, more resaw capacity and more cast iron. This bandsaw also features the legendary quality, precision and attention to detail that has been helping woodworkers expand their ambition for more than ninety years.
Features
- Blade tension release with electrical interlock prevents the bandsaw from starting when the blade is detensioned
- Exclusive Powermatic T-square style Accu-Fence® maximizes accuracy and safety
- Heavy duty upper wheel support and tracking mechanism for smooth operation
- High end blade guides with tool less adjustment provide stability, increasing cut accuracy
- Oversized side plate can be used in the horizontal or vertical position
- Solid cast iron upper and lower wheels create the momentum needed for heavy resaw
- Spacious, heavy duty cast iron table with more room in the front of the blade
- Sturdy cast iron table and trunnion assembly offers maximum rigidity for large work pieces
- Accu-Fence has complete adjustability for aligning to blade and squaring to table
Specifications
| Style (Type) |
Floor Band Saw |
| Blade Length |
183" |
| Blade Speed |
2,500 / 4,800 SFPM |
| Cutting Capacity Height |
15" |
| Cutting Capacity Width |
24" |
| Dust Collection Minimum Required |
600 CFM |
| Dust Port Outside Diameter |
4" |
| Minimum Saw Blade Width |
1/4" |
| Motor Phase |
3 Phase |
| Motor Power |
5 HP |
| Motor Voltage |
230/460V |
| Prewired Voltage |
230V |
| Recommended Circuit Size |
30 Amps |
| Table Height from Floor |
35" |
| Table T-Slot |
3/4" |
| Table Tilt |
45° Right / 10° Left |
What our Experts Think
-
Industrial Band Saw Performance – Built for professional woodworking shops needing high-capacity cutting and reliable production performance.
-
Powerful 5HP Motor – Delivers strong cutting force for hardwoods, resawing, and demanding woodworking applications.
-
24" Cutting Capacity – Large throat and resaw capacity allow handling of oversized boards and heavy stock.
-
Heavy Cast Iron Construction – Reduces vibration while improving stability, accuracy, and smoother operation.
-
Accu-Fence System – Helps achieve precise, repeatable resaw cuts with better alignment and control.
-
Precision Blade Guidance – Advanced blade guides support accurate tracking and consistent cutting results.
-
Large Workpiece Support – Ideal for furniture making, cabinetry, and large-scale woodworking projects.
-
Professional Workshop Upgrade – Designed for users who need durability, power, and long-term reliability.
Q&A
Q: What is the Powermatic 24" Band Saw used for?
A: The Powermatic 24" Band Saw is designed for precision cutting, resawing, curve cutting, and handling large woodworking projects.
Q: Is the 24" Band Saw suitable for professional woodworking?
A: Yes, its 5 HP motor, heavy-duty cast iron construction, and large cutting capacity make it ideal for production shops and professional woodworkers.
Q: What materials can this band saw cut?
A: It is designed for cutting hardwoods, softwoods, panels, and other compatible woodworking materials.
Q: What is the benefit of the large 24" capacity?
A: The wide resaw capacity allows users to cut larger stock, thicker boards, and oversized workpieces with stability.
Q: Does it include features for accurate cutting?
A: Yes, it includes an Accu-Fence system, precision blade guides, and a rigid frame to support accurate cuts.
Q: What power requirements does this model need?
A: This model uses a 5 HP three-phase motor and supports 230/460V operation for professional shop environments.
Q: Is dust collection recommended?
A: Yes, connecting a dust collection system helps maintain cleaner operation and improves workshop safety.
Q: Who is the Powermatic 24" Band Saw ideal for?
A: It is ideal for cabinetmakers, furniture builders, professional woodworkers, and high-capacity woodworking shops.
Maintenance Tips
- Clean sawdust, chips, and debris from the table, guides, and interior after each use.
- Inspect the blade regularly and replace dull, damaged, or worn blades for accurate cuts.
- Check blade tension, tracking, and alignment periodically for smooth operation.
- Clean and adjust blade guides and thrust bearings to maintain cutting precision.
- Keep the table surface clean and apply protection to prevent rust.
- Lubricate moving parts, bearings, and adjustment mechanisms as recommended.
- Inspect belts, wheels, and drive components for wear or damage.
- Keep dust collection ports clear to improve airflow and reduce buildup.
- Check electrical connections, switches, and cords before operation.
- Tighten bolts, knobs, and hardware regularly for safe performance.
