Powermatic 25" Wide Belt Sander WB-25 - PM9-1790825

Powermatic 25" Wide Belt Sander WB-25 - PM9-1790825

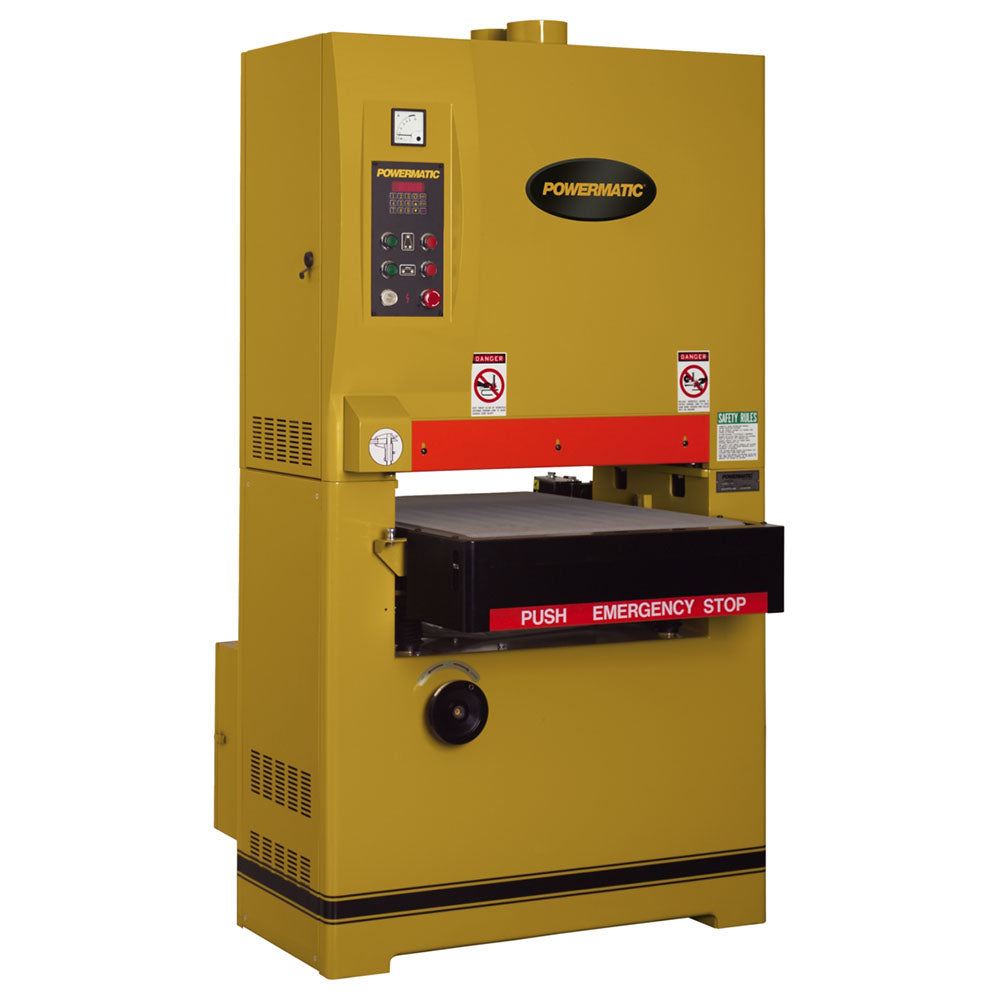

The Powermatic 25" Wide Belt Sander delivers the utmost performance in measurement and sanding, creating a flawless finish every time. The sander has centralized controls which allow the user to access all the needed buttons on one simple panel for more convenience.

The variable speed feed belt allows the user to accurately dial in the exact feed speed to best suit each project and work environment. The sander also features a special digital readout control. This element is especially helpful because it will show the exact thickness of the finished piece or will allow the user to preset exactly what thickness they would prefer the finished piece to be.

The sander also includes a unique measuring device, the auto thicknesser, that will capture the piece of wood to give the user an exact measurement of the starting thickness. The Powermatic 25" Wide Belt Sander has an air-eye system which controls the oscillation for the 25" x 75" sanding belt. This prevents the belt from running off the end of the drums and uses the sanding surface in a more uniform manner. This also ensures sanding lines will not be left on the work piece.

The WB-25 also has a powerful three motor system for maximum performance. The first motor system allows for maximum horsepower to feed the drive drums. A second, smaller motor, directly powers the VS feed belt and a third, smaller motor, powers the feed table up and down to the desired thickness automatically and with ease. For safety, the WB-25 Sander has a disc brake, which slows the machine quickly and stops it instantly in the event of an emergency.

Features

• Centralized controls allow you to access all the needed buttons on one simple panel
• Digital readout will show the user the exact thickness of the finished piece, or will allow you to preset exactly the thickness you prefer for the finished piece
• The auto thicknesser will capture the piece of wood to give the user the exact starting thickness
• Disc brake slows the machine quickly and will activate immediately to stop machine in an emergency
• The pneumatic sensor system controls the sanding belt oscillation to prevent the belt from running off the ends of the drums, as well as use the sanding surface more uniformly without leaving sanding lines on the workpiece
• The three motor system allows for maximum horsepower to independently power the sanding drums, the variable speed feed, and the feed table movement.
• The variable speed feed belt allows you to accurately dial in the exact feed speed to best suit your project

Specifications

Includes

• 2 Sanding belts, 100 and 180 Grit

What our Experts Think

• Industrial Sanding Performance – Designed for professional woodworking shops requiring consistent thickness control and premium surface finishes.
• Powerful 15HP Motor System – Three-motor design delivers strong, reliable performance for continuous production sanding.
• 25" Wide Sanding Capacity – Handles large panels, furniture components, and wide boards with ease.
• Automatic Thickness Control – Helps achieve repeatable results by measuring and maintaining precise finished thickness.
• Variable-Speed Feed Conveyor – Allows adjustment for different materials, abrasives, and finishing requirements.
• Pneumatic Belt Tracking System – Improves belt alignment, promotes even abrasive wear, and helps prevent sanding marks.
• Digital Readout Controls – Makes thickness adjustments faster and improves accuracy during operation.
• Production-Ready Construction – Built for cabinetmakers, furniture manufacturers, and high-volume woodworking environments.


Q&A

Q: What is the Powermatic WB-25 Wide Belt Sander used for?
A: The WB-25 is a production-grade wide belt sander designed for precision thickness sanding, surface finishing, and smoothing large wood panels.

Q: What is the sanding capacity of the WB-25?
A: It supports workpieces up to 25" wide and up to 6" thick for versatile woodworking applications.

Q: What makes the three-motor system useful?
A: Independent motors power the sanding drums, feed conveyor, and table movement for consistent performance under heavy workloads.

Q: Does the WB-25 provide accurate thickness control?
A: Yes, it includes an auto thicknesser and digital readout for repeatable finished dimensions.

Q: What is the benefit of pneumatic belt tracking?
A: Pneumatic belt oscillation helps maintain proper belt alignment and improves sanding consistency.

Q: Is the Powermatic WB-25 suitable for professional shops?
A: Yes, its 15 HP motor, variable-speed feed, and heavy-duty design make it ideal for cabinet shops and production woodworking.

Q: What power requirements does this model need?
A: The WB-25 operates on 230/460V three-phase power for industrial woodworking environments.

Q: Who is the Powermatic WB-25 ideal for?
A: It is ideal for furniture manufacturers, cabinetmakers, and professional woodworkers needing fast, accurate surface finishing.


Maintenance Tips

• Clean dust, sanding debris, and residue from the sanding area, table, and conveyor regularly.
• Inspect sanding belts frequently and replace worn or damaged abrasives for consistent finishes.
• Keep conveyor belt surfaces clean for smooth and accurate material feeding.
• Check belt tracking, tension, and alignment periodically.
• Remove resin buildup from rollers and sanding components to prevent uneven sanding.
• Maintain proper dust collection airflow by keeping ports and hoses clear.
• Lubricate moving parts, bearings, and adjustment mechanisms as recommended.
• Inspect rollers, belts, and drive components for wear or damage.
• Tighten bolts, fasteners, and hardware regularly for safe operation.
• Store the sander in a clean, dry environment to help prevent corrosion.
