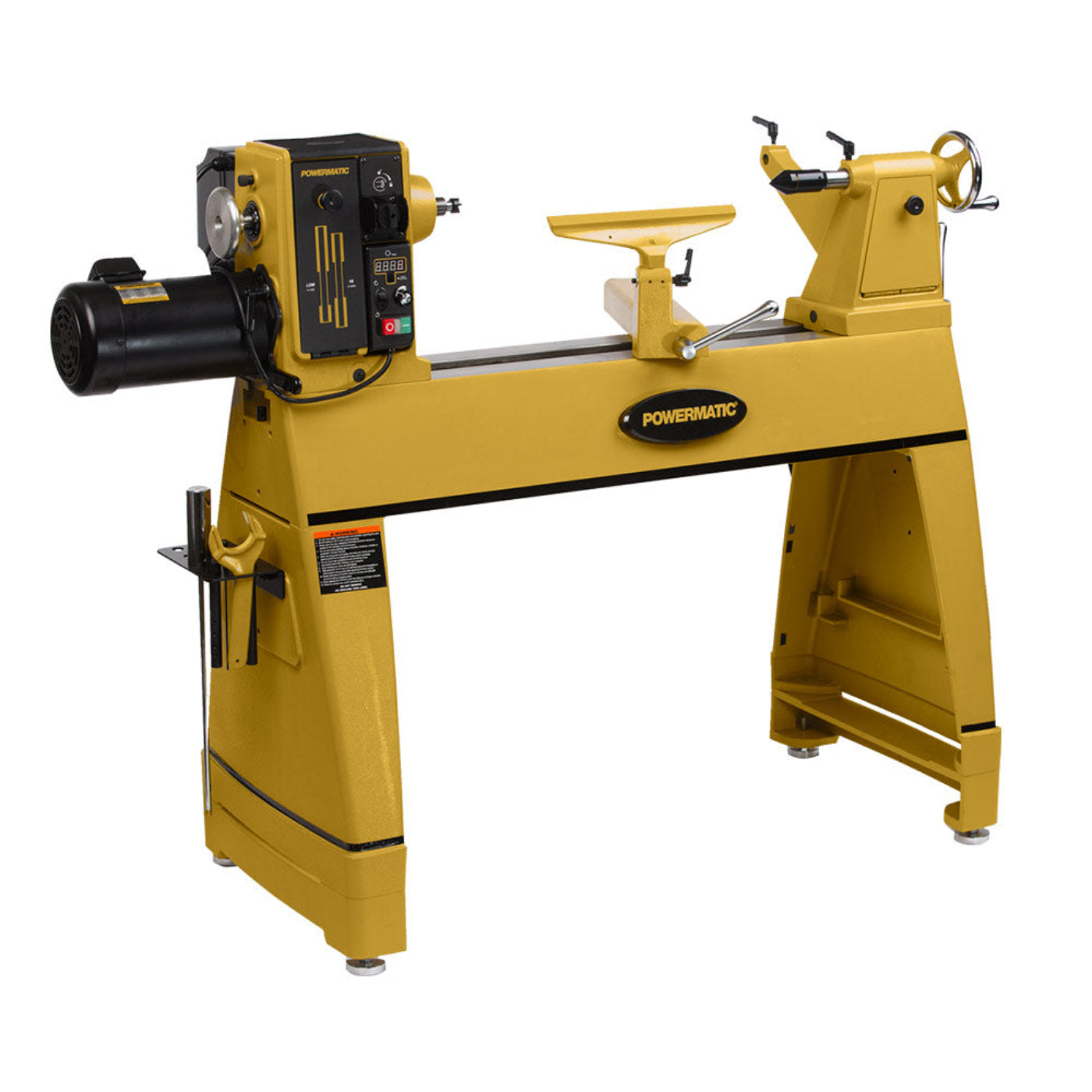

The Powermatic 3520C pairs vibration-dampening cast-iron with ergonomic controls and intuitive digital readouts. These features reduce user fatigue and deliver smooth, precise control during long turning sessions. With a powerful 2HP motor and an impressive 36" between centers, this lathe is ideal for woodworkers or contractors turning medium-to-large projects, such as table legs or bed posts.
Enhanced features of the 3520C include a moveable control box for maximum versatility, adjustable riser blocks for 4" of height adjustment, and an increased weight of 726 lbs. (814 lbs. with the bed extension). The moveable control box magnetically mounts to the headstock or anywhere along the lathe bed, and has a digital speed readout, variable speed control dial, start/stop buttons, and a forward/reverse switch.
Additional features include an ergonomic spindle lock design, anti-rotation tailstock key for smoother operation, a set of dead centers which hold a spindle for visual comparison, a two-position mount for the optional and a sliding hammer knockout rod with brass tip.
Features
Powerful 2HP motor with single-phase power delivers controlled torque for demanding applications and long run times
Electronic variable speed with digital RPM display allows precise speed adjustments for consistent control during roughing and finishing
Sliding headstock design improves access to the workpiece and supports flexible positioning for bowl and spindle turning
Digital spindle indexing readout simplifies repeatable layout work such as fluting, carving, and decorative details
Magnetic-backed movable control box allows you to reposition controls closer to the work area for improved visibility and convenience
Adjustable riser blocks provide up to 4" of height adjustment to accommodate different operator preferences
Upgraded banjo with non-marring pinch-style clamp secures the tool rest firmly while protecting the lathe bed surface
Extended spindle nose increases clearance and access when mounting or removing turning workpieces
Fully enclosed VFD enhances operator protection while supporting smooth electronic speed control
Anti-rotation tailstock design with self-ejecting quill supports smooth operation and accurate alignment
Specifications
Style (Type)
Wood Lathe
Motor Power
2 HP (1.5 kW)
Motor Voltage
220V
Motor Phase
3 Phase
Frequency
60 Hz
Recommended Circuit Size
20 Amps
Full Load Amps
6.2 Amps
Working Distance Between Centers
36"
Swing Over Bed
20"
Spindle Thread Size
1-1/4" × 8 TPI
Headstock Spindle Taper
#2 Morse
Headstock Spindle Hole Diameter
5/8" (16mm)
Outboard External Threads
1-3/16" - 18 UNC
Faceplate Size
3"
Tailstock Quill Hole Through
3/8"
Tailstock Quill Travel
4-1/2"
Riser Block Height
4"
Overall Dimensions (L × W × H)
69-1/2" × 36-1/2" × 47"
Net Weight
726 lbs.
Video
What our Experts Think
Flagship Woodturning Performance – Built for serious woodturners who demand precision, power, and long-term reliability in a professional lathe.
Powerful 2HP Motor – Delivers smooth, consistent torque for bowls, spindles, furniture parts, and larger turning projects.
20" Swing Capacity – Provides excellent clearance for large diameter workpieces and advanced turning applications.
35" Between Centers – Offers versatile capacity for longer projects while maintaining a compact workshop footprint.
Electronic Variable Speed Control – Allows quick speed adjustments for better control, smoother finishes, and safer turning.
Sliding Headstock Design – Improves flexibility and comfort by allowing better positioning around the workpiece.
Heavy Cast Iron Construction – Added mass helps reduce vibration and improves stability during demanding turning operations.
Digital RPM Display & Magnetic Control Box – Makes speed monitoring and machine adjustments more convenient.
Advanced Safety & Comfort Features – Includes upgraded controls, enclosed VFD protection, and ergonomic improvements for daily use
Q&A
Q: What is the Powermatic 3520C Lathe used for? A: The Powermatic 3520C is a professional woodturning lathe designed for bowls, spindles, vessels, and large turning projects.
Q: What is the turning capacity of the 3520C? A: It provides a 20" swing over the bed and approximately 35" between centers for handling large workpieces.
Q: What makes the variable speed system useful? A: The electronic variable speed control allows smooth RPM adjustment for roughing, shaping, sanding, and finishing operations.
Q: Is the 3520C suitable for professional woodturners? A: Yes, its 2 HP motor, heavy cast iron construction, and precision controls make it ideal for serious woodworking shops.
Q: What features improve turning control? A: It includes a sliding headstock, digital RPM display, movable magnetic control box, spindle lock, and adjustable riser blocks for comfort.
Q: Does the 3520C help reduce vibration? A: Yes, its heavy-duty cast iron bed and stable design help provide smoother, more controlled turning.
Q: What power requirements does this lathe need? A: This model uses a 2 HP motor with 220V power for demanding woodturning applications.
Q: Who is the Powermatic 3520C ideal for? A: It is ideal for professional woodturners, furniture makers, craftsmen, and advanced hobbyists needing a powerful full-size lathe
Maintenance Tips
Clean wood chips, dust, and debris from the lathe bed, spindle, and work area regularly.
Keep the bed ways clean and protected for smooth tailstock and tool rest movement.
Lubricate bed surfaces, spindle components, and moving parts as recommended.
Inspect drive belts, pulleys, and motor components for wear or damage.
Check spindle, chuck, faceplate, and accessories for secure attachment before use.
Clean the tool rest and tailstock surfaces to maintain accurate positioning.
Inspect variable speed controls and adjustment mechanisms for smooth operation.
Tighten stand bolts, hardware, and mounting points periodically.
Keep electrical connections and switches clean and inspect for wear.
Store the lathe in a dry environment to help prevent rust and corrosion.
