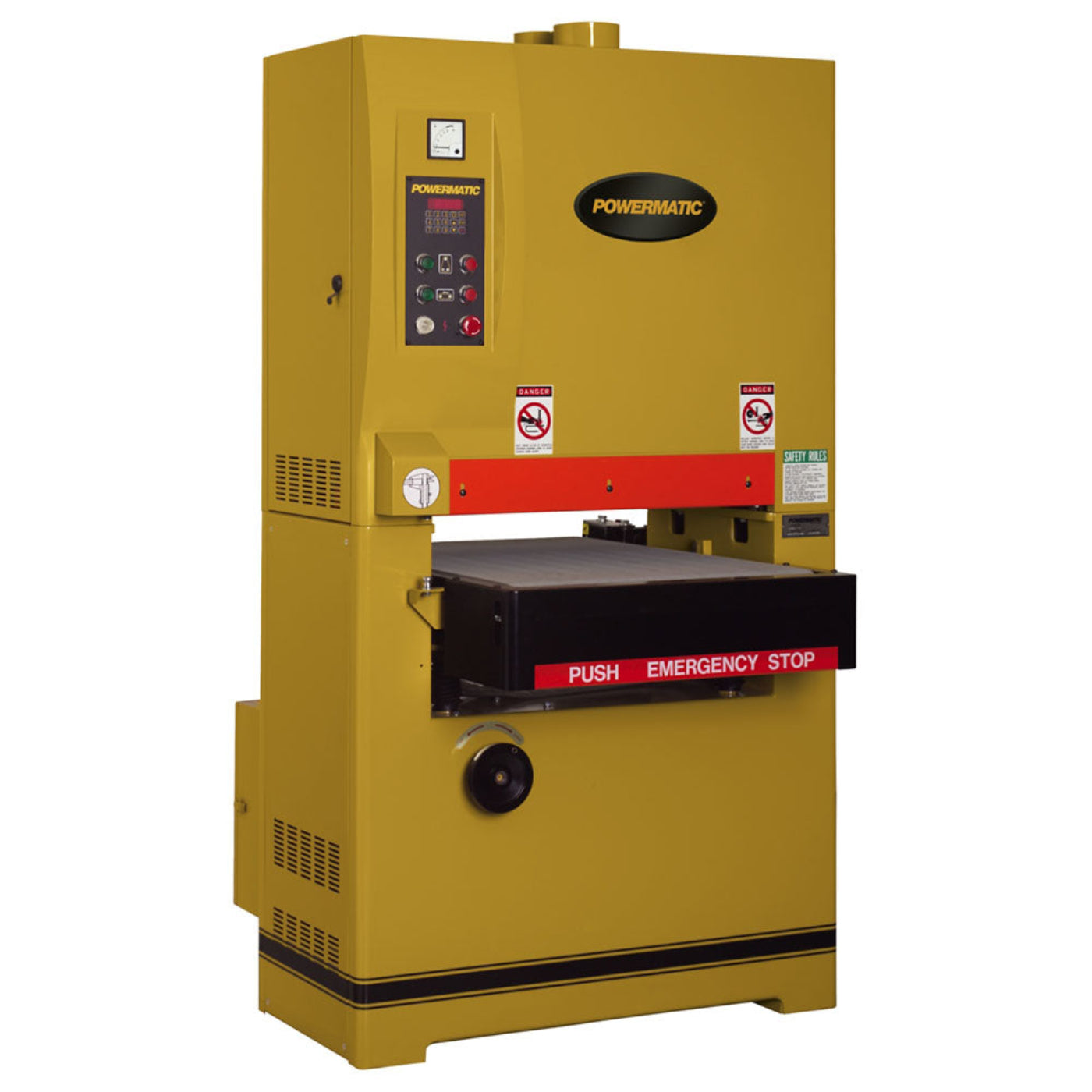

Powermatic 37" Wide Belt Sander WB-37 - PM9-1790837

Powermatic 37" Wide Belt Sander WB-37 - PM9-1790837

The Powermatic 37" Wide Belt Sander is designed to deliver ultra precise sanding and a flawless finish in the busy shop environment. Centralized controls grouped on one simple panel make operating this machine easier and safer. A variable speed feed conveyor, a special digital thickness readout control, and an auto thicknesser all make the WB-37 easy to use and more productive. Each Wide Belt Sander also comes with a tool box loaded with necessary tools for service and adjustment.

The WB-37 Wide Belt Sander uses three individual motors to maximize consistency and performance. The 20HP motor drives the sanding belt drive drums. A 1HP variable speed motor powers the feed belt. Finally, a 1/4HP motor supplies power to the system that moves the table up and down to vary thickness.

All frequently used controls are grouped on a centralized panel. This allows the operator to access them or to shut the machine down easily without having to move around the machine. The digital readout eliminates mistakes by displaying the exact thickness that has been entered. For safety, the POWERMATIC WB-37 Wide Belt Sander has a powerful disc brake that slows the machine quickly when it is off. It also stops it instantly in the event of an emergency when the exterior safety bar is depressed.

The WB-37 Wide Belt Sander comes with 100 and 180-grit belts. A large side door provides full access to the belt system and related controls. Even the belt platen is specially designed with a replaceable graphite pad that can be checked or replaced through the side door. The platen position can be adjusted to maximize sanding performance with the various wood species and conditions.

The feed conveyor belt is specially designed to provide smooth, consistent material movement for ultra-smooth sanded surfaces. The conveyor belt is driven by a variable speed motor that can be set to any speed within the 15 - 49 fpm (feet per minute) range. Feed rate adjustments are made using a dial on the conveyor motor, allowing the operator to set the best speed for the job.

The WB-37 Wide Belt Sander is equipped with sophisticated thicknessing controls that make its operation fast, simple and virtually error free. It handles stock up to 6" thick and as short as 12" and the control systems make using that range easy. The digital read out and keypad eliminates mistakes and allows ultra precise settings.

This machine has three, 5" diameter dust ports on the top that make connecting it to your dust system easy. A dust collection system with a minimum 1600 CFM is required. The exterior ports are connected to internal baffles that focus the collection power to keep the interior of the WB-37 Wide Belt Sander as clean as possible. That prolongs the life of the abrasive and keeps the machine running smoothly.

Features

• Centralized controls allow you to access all the needed buttons on one simple panel
• Digital readout will show the user the exact thickness of the finished piece, or will allow you to preset exactly the thickness you prefer for the finished piece
• The auto thicknesser will capture the piece of wood to give the user the exact starting thickness
• Disc brake slows the machine quickly and will activate immediately to stop machine in an emergency
• The pneumatic sensor system controls the sanding belt oscillation to prevent the belt from running off the ends of the drums, as well as use the sanding surface more uniformly without leaving sanding lines on the workpiece
• The three motor system allows for maximum horsepower to independently power the sanding drums, the variable speed feed, and the feed table movement.
• The variable speed feed belt allows you to accurately dial in the exact feed speed to best suit your project

Specifications

Includes

• Includes 2 Sanding belts, 100 and 180 Grit

What our Experts Think

• Industrial Sanding Performance – Built for professional woodworking environments requiring consistent thickness control and high-quality surface finishes.
• Powerful 20HP Motor System – Delivers strong, reliable sanding power for continuous production workloads.
• 37" Wide Sanding Capacity – Handles large panels, doors, tabletops, and oversized woodworking components with ease.
• Automatic Thickness Control – Helps achieve precise, repeatable material thickness while reducing setup time.
• Variable-Speed Feed Conveyor – Allows adjustment for different materials, sanding grits, and finishing requirements.
• Pneumatic Belt Tracking System – Maintains smooth belt alignment, improves abrasive life, and supports consistent finishes.
• Digital Thickness Readout – Provides quick monitoring and accurate adjustments for production-level accuracy.
• Three-Motor Design – Separates sanding, feed, and table movement functions for smoother operation under heavy loads.
• Professional Safety Features – Integrated braking system helps improve operator control during demanding applications.


Q&A

Q: What is the Powermatic WB-37 Wide Belt Sander used for?
A: The WB-37 is designed for precision sanding, thicknessing, and finishing large wood panels and surfaces.

Q: What is the sanding capacity of the WB-37?
A: It handles workpieces up to 37" wide, making it ideal for large woodworking projects and production use.

Q: What are the benefits of a wide belt sander?
A: It provides fast material removal, consistent thickness control, and a smooth professional finish.

Q: Is the Powermatic WB-37 suitable for professional shops?
A: Yes, its heavy-duty construction and powerful performance make it ideal for cabinet shops, furniture makers, and manufacturers.

Q: Does the WB-37 provide accurate sanding results?
A: Yes, it is designed for consistent thickness, even sanding, and repeatable finishing results.

Q: What materials can the WB-37 sand?
A: It is suitable for hardwoods, softwoods, panels, and other compatible woodworking materials.

Q: Does this sander require dust collection?
A: Yes, a proper dust collection system is recommended for cleaner operation and better workshop safety.

Q: Who is the Powermatic WB-37 ideal for?
A: It is ideal for professional woodworkers, furniture manufacturers, cabinetmakers, and high-production woodworking environments.


Maintenance Tips

• Clean dust, sanding debris, and buildup from the sanding area, table, and conveyor regularly.
• Inspect sanding belts often and replace worn or damaged abrasives for consistent finishes.
• Keep conveyor surfaces clean to ensure smooth material feeding.
• Check sanding belt tracking, tension, and alignment periodically.
• Remove resin buildup from rollers and sanding components to prevent uneven results.
• Maintain clear dust collection ports and hoses for efficient airflow.
• Lubricate moving parts, bearings, and adjustment mechanisms as recommended.
• Inspect rollers, belts, and drive components for wear or damage.
• Tighten bolts, fasteners, and hardware regularly for safe operation.
• Store the machine in a clean, dry environment to help prevent corrosion.
