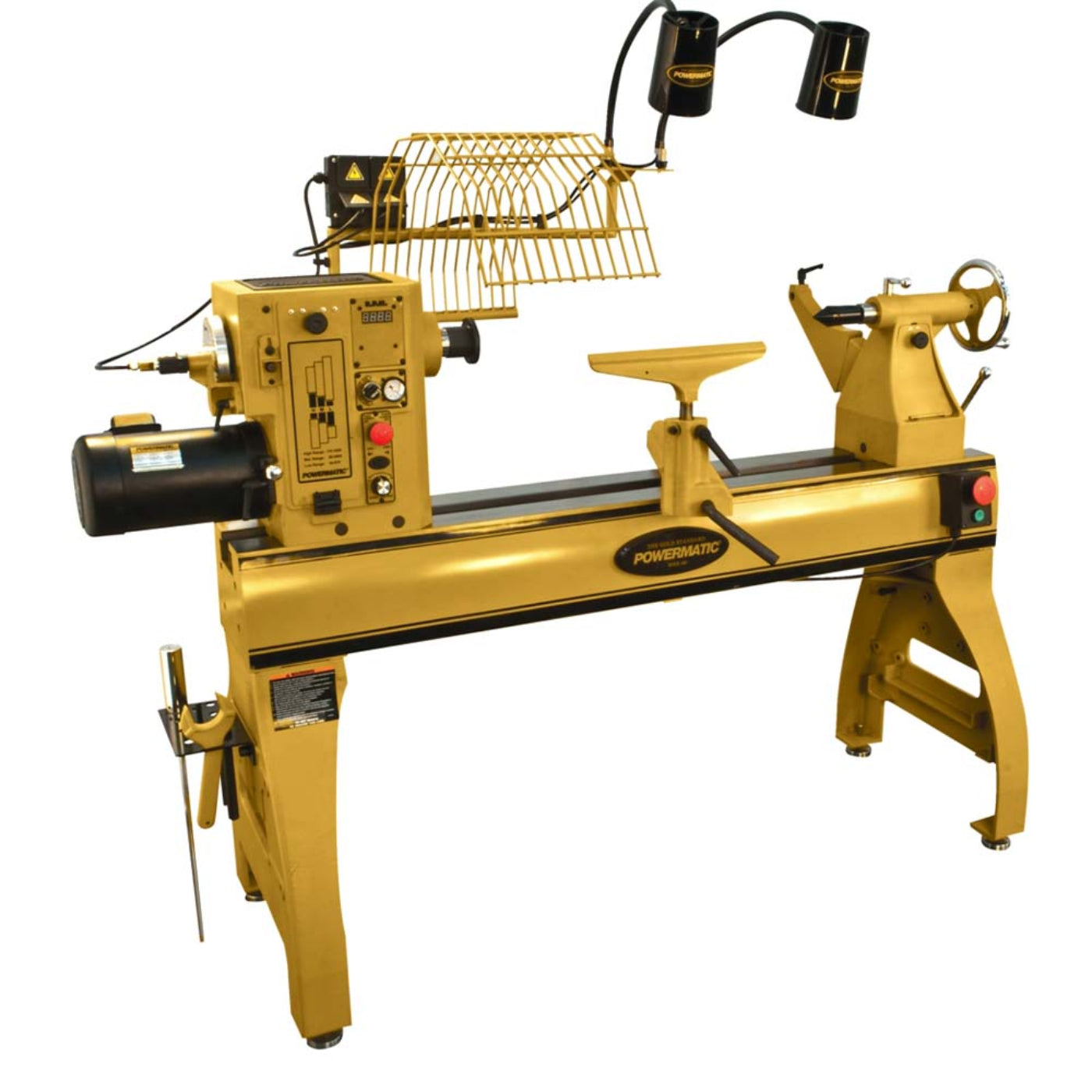

Powermatic 4224B Lathe - PM9-1794224K
The Powermatic 4224B is the newest member of the industry-leading family of lathes. Over 900 pounds, the 4224B is the biggest, heaviest, and most capable lathe Powermatic has ever built. It expands the limits of creative possibility, and takes your passion to a whole new level. With updated, top of its class features, the 4224B pushes the limits of design, innovation, and durability.
Features
- 15 Amp quad receptacle for easy reach of powered accessories
- Variable frequency drive allows machine to run on single- or three-phase power
- Air nozzle with quick connect for clearing dust/chips
- Brass-tipped knockout bar concentrates the action in the sliding handle; the brass tip will not damage drive centers
- Includes two 100W task lamps to provide ideal lighting and safety guard.
- Magnetic-backed moveable control box for versatility and safety
- Set of dead centers which hold a spindle for visual comparison
- Sliding headstock with electronic variable speed
- Spindle lock and built in spindle indexing on the headstock for drilling hole patterns, routing flutes and other equally spaced features
- Vacuum system provides quick method of chucking bowl blanks
Specifications
| Style (Type) |
Wood Lathe |
| Bed Construction |
Cast Iron |
| Centerline of Spindle to Floor |
44" |
| Distance Between Centers |
42" |
| Swing Over Bed |
24" |
| Gross Weight |
945 lbs. |
| Net Weight |
870 lbs. |
| Weight |
870 lbs. |
| Input Power |
220V 1-Phase |
| Motor Power |
3 HP |
| Motor Phase |
3 Phase |
| Motor Voltage |
220V |
| Motor Amps |
10 Amps |
| Recommended Circuit Size |
30 Amps |
| Overall Dimensions (L × W × H) |
89" × 28" × 65" |
| Shipping Dimensions (L × W × H) |
68" × 27" × 31.5" |
What our Experts Think
- The Powermatic 4224B Lathe - PM9-1794224K is a premium woodturning machine built for professionals who need maximum capacity, stability, and precision control.
- The 3HP motor with electronic variable speed control provides strong torque and smooth operation for large bowls, vessels, spindles, and demanding turning projects.
- With a 24" swing over bed and 42" between centers, this lathe offers excellent versatility for oversized workpieces and creative turning applications.
- The 900+ lb heavy-duty construction helps minimize vibration, improving control, accuracy, and surface finish when turning large or unbalanced pieces.
- The sliding headstock design with digital RPM readout improves convenience by allowing easier positioning and accurate speed adjustments.
- The built-in spindle indexing and spindle lock system supports detailed work such as fluting, drilling patterns, and decorative turning techniques.
- The vacuum chucking system, movable control box, and integrated task lighting add flexibility, safety, and better workflow during extended projects.
- The cast iron bed and precision components make it a reliable choice for furniture makers, bowl turners, and professional woodturning shops.
-
Expert verdict: A top-tier wood lathe designed for serious craftsmen who want industrial-level stability, large turning capacity, and long-term performance.
Q&A
Q: What is the Powermatic 4224B Lathe?
A: The Powermatic 4224B is a professional woodturning lathe designed for large bowls, vessels, spindles, and advanced turning projects.
Q: What motor does the PM9-1794224K use?
A: It features a powerful 3 HP motor with 230V capability, providing strong torque for demanding woodturning applications.
Q: What is the turning capacity of this lathe?
A: It offers a 24-inch swing capacity and 42 inches between centers for handling large workpieces.
Q: Does the 4224B have variable speed control?
A: Yes, the electronic variable-speed system allows precise RPM adjustments for different turning tasks.
Q: What is the benefit of the sliding headstock?
A: The sliding headstock improves flexibility by allowing easier positioning for faceplate and outboard turning.
Q: Does it include spindle indexing?
A: Yes, the built-in indexing system supports decorative turning, fluting, and detailed woodworking designs.
Q: Is the 4224B stable during heavy turning?
A: Yes, the heavy-duty cast iron construction helps reduce vibration and improves turning accuracy.
Q: Does it include useful accessories?
A: Yes, it includes features like task lighting, movable controls, and accessories designed for better workflow.
Q: Is the Powermatic 4224B suitable for professional shops?
A: Yes, its large capacity, powerful motor, and precision controls make it ideal for professional woodturners.
Q: Why choose the Powermatic 4224B Lathe?
A: It combines power, stability, variable-speed control, and premium construction for reliable professional woodturning results.
Maintenance Tips
- Clean wood chips, dust, and debris regularly from the lathe bed, spindle area, and work surfaces.
- Keep the lathe bed and ways clean and apply light lubricant to maintain smooth movement.
- Inspect the spindle, bearings, and drive components for unusual noise or vibration.
- Clean and maintain the tailstock quill and tool rest for smooth adjustments.
- Check belts and pulleys regularly for wear, proper tension, and alignment.
- Lubricate moving parts, locking mechanisms, and adjustment points as needed.
- Inspect chucks, centers, and accessories for damage or loose connections.
- Keep the motor, switches, and electrical connections free from dust buildup.
- Tighten bolts, handles, and mounting hardware periodically for stability.
- Store the lathe in a clean, dry workshop environment to prevent rust.
