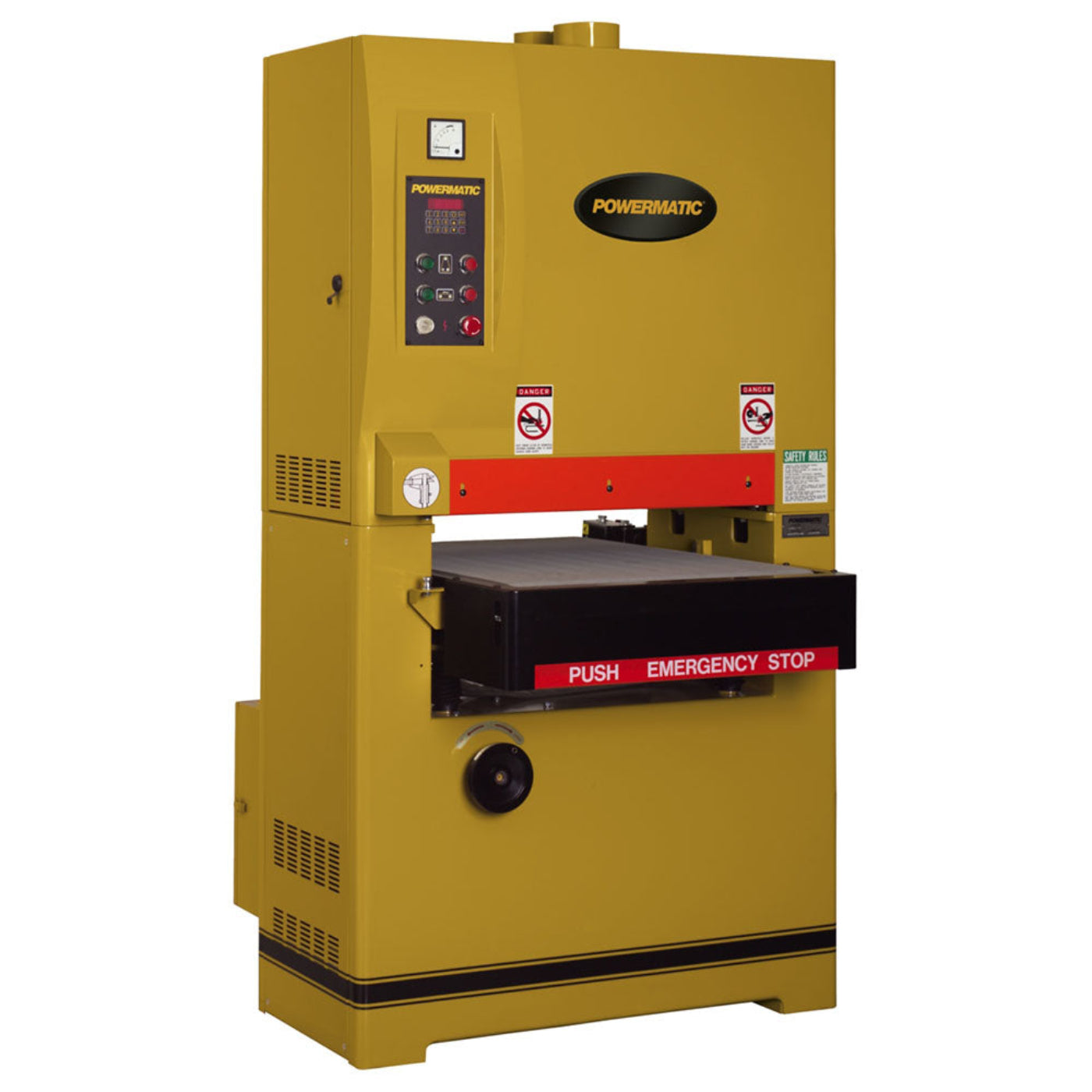

Powermatic 43" Wide Belt Sander WB-43 - PM9-1790843

Powermatic 43" Wide Belt Sander WB-43 - PM9-1790843

The Powermatic 43" Wide Belt Sander delivers the utmost performance in measurement and sanding, creating a flawless finish every time. The sander has centralized controls that allow the user to access all the needed buttons on one simple panel for more convenience. The variable speed feed belt allows the user to accurately dial in the exact feed speed to best suit each project and work environment.

Featured is a special digital readout control. This element is especially helpful because it will show the exact thickness of the finished piece or will allow the user to preset exactly what thickness they would prefer the finished piece to be. The sander also includes a unique measuring device, the auto thicknesser, that will capture the piece of wood to give the user an exact measurement of the starting thickness.

The Powermatic 43" Wide Belt Sander has an air-eye system which controls the oscillation for the 43" x 75" sanding belt. This prevents the belt from running off the end of the drums and uses the sanding surface in a more uniform manner. This also ensures sanding lines will not be left on the workpiece.

The 43" wide belt sander also has a powerful three-motor system for maximum performance. The first motor system allows for maximum horsepower to feed the drive drums. A second, smaller motor, directly powers the VS feed belt and a third, smaller motor, powers the feed table up and down to the desired thickness automatically and with ease. For safety, the Sander has a disc brake, which slows the machine quickly and stops it instantly in the event of an emergency.

Features

• Centralized controls allow you to access all the needed buttons on one simple panel
• Digital readout will show the user the exact thickness of the finished piece, or will allow you to preset exactly the thickness you prefer for the finished piece
• The auto thicknesser will capture the piece of wood to give the user the exact starting thickness
• Disc brake slows the machine quickly and will activate immediately to stop machine in an emergency
• The pneumatic sensor system controls the sanding belt oscillation to prevent the belt from running off the ends of the drums, as well as use the sanding surface more uniformly without leaving sanding lines on the workpiece
• The three motor system allows for maximum horsepower to independently power the sanding drums, the variable speed feed, and the feed table movement.
• The variable speed feed belt allows you to accurately dial in the exact feed speed to best suit your project

Specifications

Includes

• 2 Sanding belts, 100 and 180 Grit

What our Experts Think

• The Powermatic PF-41 Power Feeder 1HP 1-PH 115V - PM9-1790812K is a heavy-duty woodworking accessory designed to provide consistent material feeding, improved safety, and smoother workflow.
• The 1HP continuous-duty motor delivers reliable feeding power for table saws, jointers, shapers, and other woodworking machines, helping maintain steady cuts and finishes.
• The 4-wheel roller system provides strong stock control and positive feeding, reducing manual pushing effort and improving operator consistency.
• The four-speed feed range (13, 36, 43, and 108 FPM) allows users to adjust material movement based on cutting requirements and project needs.
• The cast iron body, base, and universal joints provide excellent stability while minimizing vibration during operation.
• The adjustable support column with 360° swing capability allows horizontal, vertical, and angled feeding positions for greater machine compatibility.
• The roller chain and sprocket drive system ensures dependable power transfer and consistent feeding performance across different materials.
• The quick-change roller design makes maintenance and setup changes faster, helping reduce downtime in busy workshops.
• Expert verdict: A professional-grade power feeder that improves cutting accuracy, operator control, and productivity for serious woodworking shops.


Q&A

Q: What is the Powermatic WB-43 Wide Belt Sander?
A: The Powermatic WB-43 is a professional wide belt sander designed for smooth finishing, thickness sanding, and high-volume woodworking applications.

Q: What motor does the PM9-1790843 use?
A: It features a powerful industrial motor system designed to deliver reliable sanding performance for demanding shop environments.

Q: What is the sanding capacity of the WB-43?
A: It provides a 43-inch sanding width, making it suitable for large panels, doors, tabletops, and wide workpieces.

Q: What is the benefit of a wide belt sander?
A: A wide belt sander provides faster material removal, consistent thickness control, and a smoother finish compared to traditional sanding methods.

Q: Does the WB-43 support heavy-duty production work?
A: Yes, its robust construction and large sanding capacity make it ideal for professional woodworking shops.

Q: Does it provide accurate thickness adjustment?
A: Yes, the precision adjustment system helps maintain consistent material thickness across workpieces.

Q: Does it support dust collection?
A: Yes, it is designed for efficient dust extraction to maintain a cleaner and safer working environment.

Q: Is the WB-43 easy to operate?
A: Yes, user-friendly controls and adjustable settings help operators achieve consistent sanding results.

Q: What materials can be sanded with this machine?
A: It is suitable for sanding hardwoods, softwoods, panels, veneers, and other woodworking materials.

Q: Why choose the Powermatic WB-43 Wide Belt Sander?
A: It combines industrial performance, precision sanding, and durable construction for professional woodworking results.


Maintenance Tips

• Clean sawdust, abrasive residue, and debris regularly from the sanding area, rollers, and dust ports.
• Inspect sanding belts frequently and replace worn or damaged abrasives for consistent finishes.
• Keep the conveyor belt clean to maintain smooth and accurate material feeding.
• Check conveyor tracking and alignment regularly to prevent belt drift.
• Clean pressure rollers and feed components to ensure steady stock movement.
• Maintain proper dust collection to reduce buildup around motors and internal parts.
• Lubricate moving parts, bearings, and adjustment mechanisms as recommended.
• Inspect sanding drums, belts, switches, and electrical connections for wear.
• Tighten bolts, covers, and hardware periodically to reduce vibration.
• Keep the machine in a clean, dry workshop environment to prevent corrosion.
