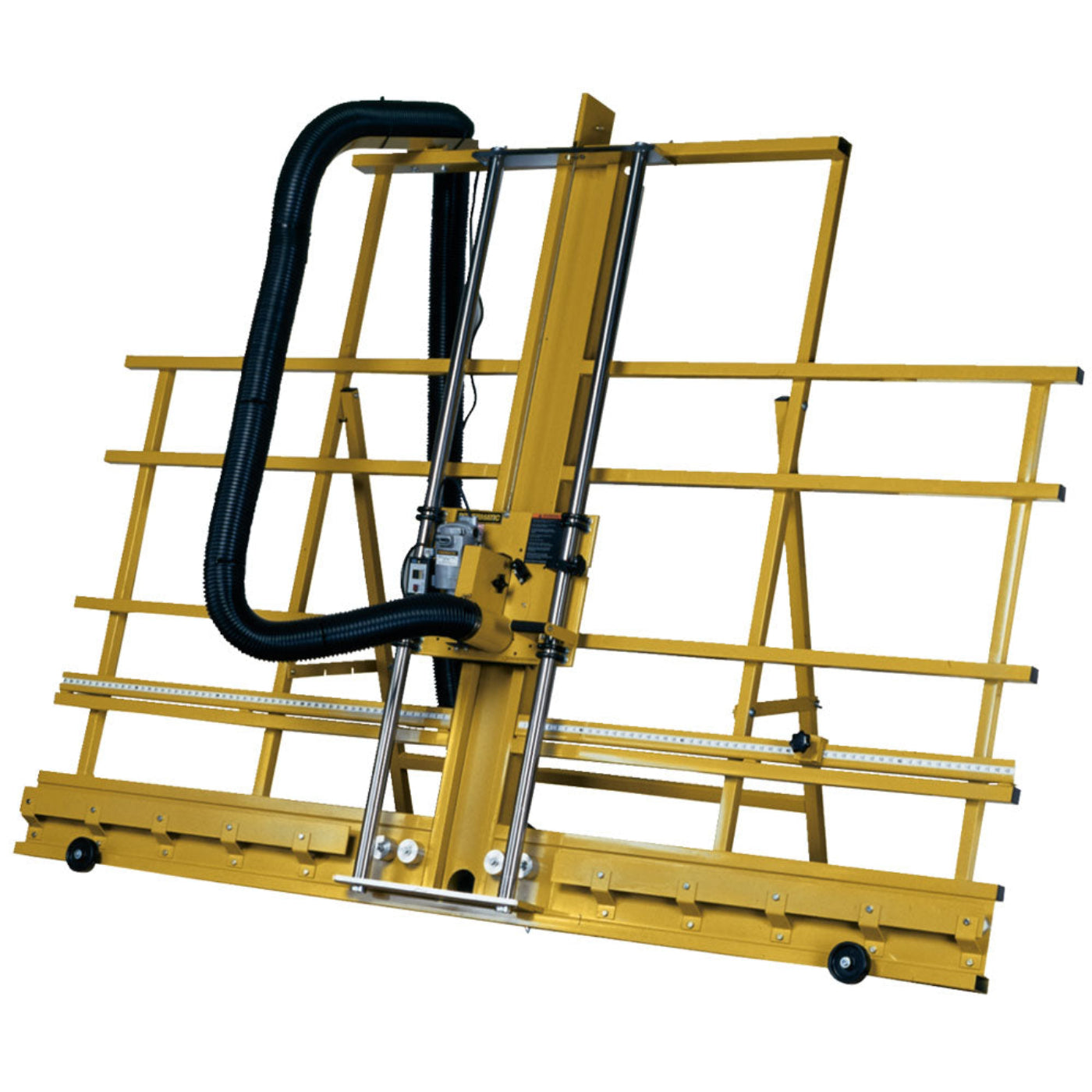

Powermatic 511 Panel Saw - 3hp, 1ph, 115v - PM9-1510007
If you regularly cut sheet goods, the 511 Vertical Panel Saw gives you the power and efficiency your shop needs. Designed to make accurate vertical cuts on full-size panels, this space-saving saw fits easily into most work areas with its compact 120” x 39” x 90” footprint. Whether you’re a cabinet maker, carpenter, production shop, or educational facility, the 511 Panel Saw streamlines material handling and delivers reliable performance in every cut.
The 511 Vertical Panel Saw can perform crosscuts on workpieces up to 62” tall, making cuts on plywood, OSB, melamine, and other sheet goods a breeze. Along with crosscutting, the rotating motor carriage makes it easy to rip panels of virtually unlimited length. Have a 12 ft. long sheet of plywood? The 511 Panel Saw can handle it with ease. The saw features one rip (vertical) ruler and two crosscut (horizontal) rulers for accurate measurements.
Solid aluminum rollers with support brackets ensure smooth feeding and perfect 90° cuts on the 511 Panel Saw every time. The saw is made of a heavy-duty, one-piece steel frame that prevents vibration. There's also a true counterweight system that keeps the saw carriage in the desired position when loading or unloading panels.
Dual 4" dust ports and a nylon brush surrounding the blade provides superior dust collection from the front and rear side of the panel. The saw includes a dust hose, two hose clamps, and a bracket that keeps the hose out of the way at all times. Complete with casters for mobility around your shop, the Powermatic 511 Panel Saw provides power, versatility, and ease for any application.
Features
- 3HP worm drive saw motor rotates in carriage to perform rip cuts
- Casters for easy mobility
- Dual 4" dust ports
- Dual 4" dust ports with nylon brush surrounding blade for front and rear dust exhaust
- Heavy-duty welded one-piece steel frame prevents vibration and ensures solid support
- Polished stainless steel guide tubes with eight guide roller assemblies provide smooth carriage glide
- Solid aluminum rollers with outside support brackets for square cuts
- True counterweight system keeps the carriage where you position it while loading stock
Specifications
| Style (Type) |
Cabinet Table Saw |
| Arbor Diameter |
5/8" |
| Arbor Speed |
4,200 RPM |
| Blade Diameter |
10" |
| Dust Collection Required (Min.) |
350 CFM |
| Dust Port Outside Diameter |
4" |
| Gross Weight |
289 lbs. |
| Net Weight |
289 lbs. |
| Max. Depth of Cut at 45° |
2-1/8" |
| Max. Diameter of Dado |
8" |
| Max. Rip Left of Blade |
12" |
| Max. Rip Right of Blade |
30" |
| Max. Width of Dado |
13/16" |
| Miter Gauge Type |
T-Slot with Stops |
| Motor Phase |
1 Phase |
| Motor Power |
1-3/4 HP |
| Motor Voltage |
115V |
| Prewired Voltage |
115/230V |
| Recommended Circuit Size |
20 Amps |
| Overall Dimensions (L × W × H) |
43" × 61" × 44" |
| Table Height from Floor |
34-1/4" |
| Table in Front of Saw Blade at Maximum Depth of Cut |
10" |
| Table Type |
Cast Iron |
What our Experts Think
-
Professional Sheet-Good Cutting Solution: The Powermatic 511 Panel Saw PM9-1510007 is designed for woodworking shops needing accurate, repeatable cuts on large panels, plywood, and sheet materials.
-
Powerful 3 HP Motor: The 3 HP worm-drive motor provides dependable cutting power while allowing the blade carriage to perform both crosscuts and rip cuts efficiently.
-
Smooth Precision Movement: Eight guide roller assemblies and polished stainless-steel guide tubes allow the carriage to glide smoothly for consistent, accurate cuts.
-
Excellent Cutting Capacity: Designed to handle panels up to 5 feet tall with a maximum crosscut length around 62 inches, making it ideal for cabinets, furniture, and production woodworking.
-
Enhanced Dust Collection: Dual 4-inch dust ports with blade-area brush collection help capture debris from both sides for a cleaner workspace.
-
Built for Stability: A heavy-duty welded steel frame, aluminum rollers, and counterweight carriage system improve support, reduce vibration, and maintain accuracy during operation.
Q&A
Q: What is the Powermatic 511 Panel Saw?
A: The Powermatic 511 is a professional vertical panel saw designed for accurate cutting of sheet goods, plywood, and large panels.
Q: What motor does the PM9-1510007 use?
A: It features a powerful 3 HP, single-phase, 115V motor for reliable woodworking performance.
Q: What type of cuts can this panel saw perform?
A: It supports precise rip cuts and crosscuts, making it suitable for cabinet making, furniture production, and panel processing.
Q: What is the maximum cutting capacity?
A: The saw offers up to 62" crosscut capacity and handles material up to 1-1/2" thick.
Q: Is the carriage system designed for accuracy?
A: Yes, the smooth-gliding carriage uses guide roller assemblies and stainless steel rails for consistent, accurate movement.
Q: Does it include dust collection?
A: Yes, it features dual 4" dust ports for efficient front and rear dust extraction.
Q: Is the panel saw easy to move?
A: Yes, built-in casters allow easier positioning within the workshop.
Q: What blade size does it use?
A: The Powermatic 511 uses an 8" blade with a blade speed around 4300 RPM.
Q: Is this machine suitable for professional shops?
A: Yes, its heavy-duty frame, precision carriage, and powerful motor make it ideal for woodworking and production environments.
Q: Why choose the Powermatic 511 Panel Saw?
A: It combines power, accuracy, smooth operation, and efficient dust control for dependable professional panel cutting.
Maintenance Tips
-
Clean sawdust, chips, and debris regularly from the carriage, blade area, rails, and work surfaces to maintain smooth operation.
-
Keep the stainless steel guide tubes and carriage rollers clean and free of buildup to ensure accurate, smooth movement.
-
Inspect the 8-inch blade regularly for sharpness, damage, and proper alignment; replace when cutting quality decreases.
- Maintain the dual dust collection ports to prevent sawdust accumulation around internal components.
- Check blade tracking, carriage movement, and cutting alignment periodically to maintain precise cuts.
- Lubricate moving parts as recommended to reduce wear and keep adjustments smooth.
- Inspect the motor, electrical connections, switches, and power cord for signs of wear.
- Keep the frame, guides, and hardware clean and tighten loose bolts or fittings regularly.
- Protect metal surfaces from moisture to help prevent rust and corrosion.
- Store and operate the machine in a clean, dry workshop environment.
