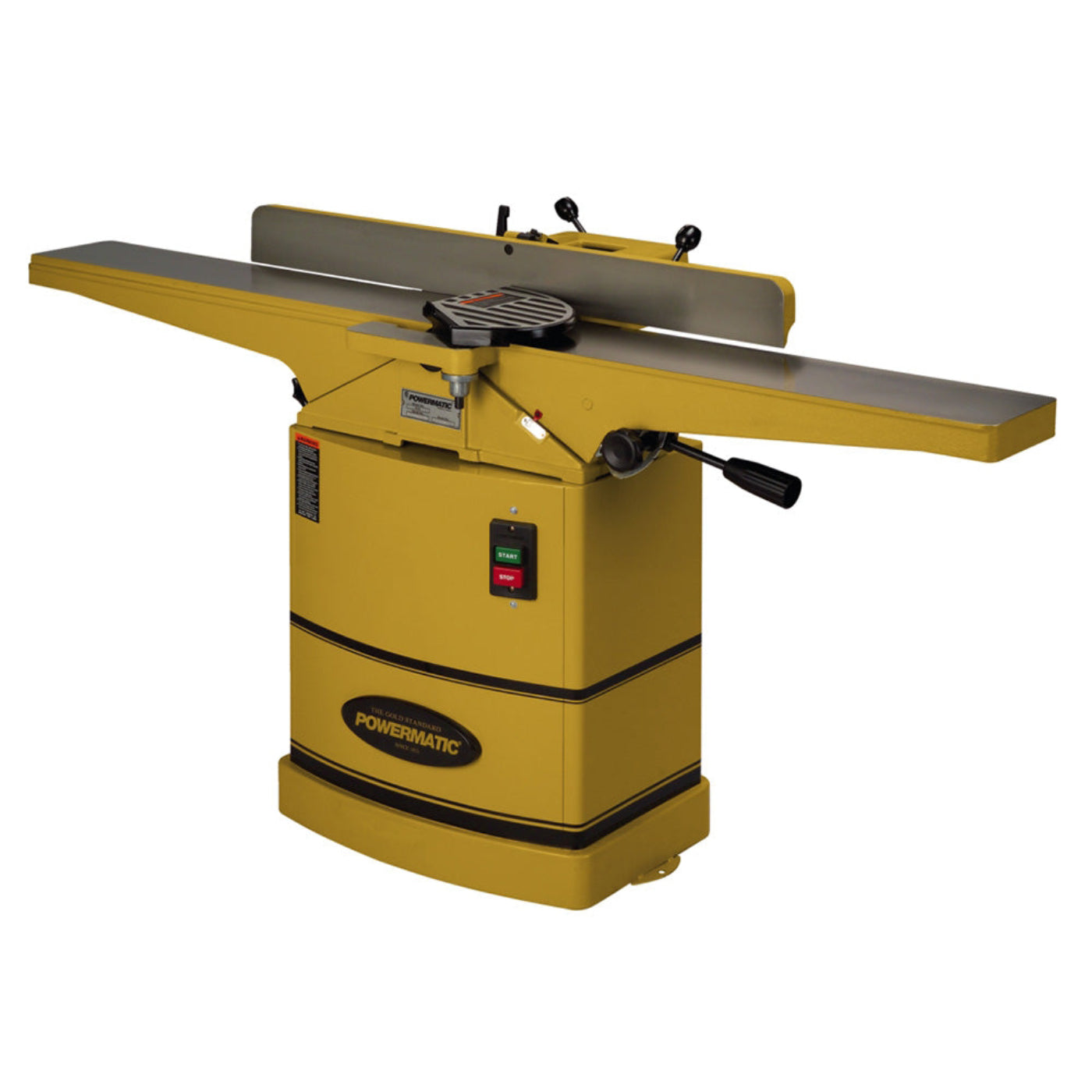

Powermatic 54HH 6" Helical Head Jointer - PM9-1791317K
Creating flat, straight surfaces is crucial in the quest to build elegant projects. Virtually all forms of joinery and the tools that cut them depend on straight edges and square cuts. The Powermatic 54HH 6" Jointer makes it easy to achieve the high levels of accuracy you need in this always-crucial operation.
The 1 HP, 1Ph, 115/230V motor (pre-wired 115V) is factory-mounted within the base cabinet and can be converted to use 230V power should that be desirable. The motor is on a special mount within the base cabinet that allows the user to adjust belt tension should that become necessary. The base also contains the dust collection chute that evacuates debris from below the cutterhead. The chute guides that debris to the exterior 4" diameter port near the floor.
There are many cutterhead designs that carry the helical moniker, including simple straight blades broken into segments and dispersed around the cutterhead cylinder. However, despite the name, they retain many of the liabilities of the long blade designs. Powermatic incorporates the performance of a true segmented, shear-cutting helical head.
The helical cutterhead is so effective because its carbide inserts are arranged in spiral-shaped rows. The inserts have a 4" radius ground into them and are mounted so they approach the wood at a 14° angle. That creates a true shear cut that eliminates much of the impact and the resulting fiber disturbance other cutterhead designs deliver to the wood.
Because the inserts themselves and the seats into which they fit are so precisely machined, there is no adjustment or "fitting" necessary. Indexing or replacing an insert takes just seconds. Simply loosen its retaining screw, turn the insert to its new position and tighten the screw.
At 7-1/4" wide and 66" long, the cast iron Powermatic 54HH Jointer table is one of the longest available in this class and provides plenty of support for even large work pieces. The tables are precision-ground to insure flatness and each is mounted on dovetailed ways that keep them perfectly aligned through height changes.
The all cast iron 4" tall by 38" long fence system is, like the tables, precisely ground to assure straightness. The fence tilts up to 45° towards and away from the tables. Fully adjustable stops at 90° (vertical) and each 45° position make setup fast and help keep the 54HH accurate with minimal maintenance.
The Powermatic 54HH Jointer has been designed and built to make your wood straightening tasks easy and accurate. The heavy duty construction and materials mean that this machine will remain an important part of your woodworking shop for many years to come.
Want to make your jointer mobile? Order the compatible Mobile Base .
Features
66" long adjustable infeed and outfeed tables provide more working surface
Enlarged sheet metal stand provides a sturdy base
Extra-long 38" two-way tilting fence with positive stops provides quick positioning for 90° or bevel cuts
Fence controls are center mounted for convenience
Durable carbide cutters combined with low impact, shear cutting action means the inserts have an extremely long life
Fine/quick adjustment lever on infeed table for precision cuts
Outfeed table height can be adjusted via handwheel
Infeed table height adjusted using a unique lever system
Helical cutterhead with 40 four sided carbide inserts provides smoother, quieter cutting and finer finish than conventional systems
Push button switch is lockable to prevent accidental starting
Specifications
Style (Type)
Jointer
Cutterhead Diameter
2-1/2"
Cutterhead Speed
6,000 RPM
Cutting Capacity (W × D)
6" × 1/2"
Table Dimensions (L × W)
66" × 7-1/4"
Fence Dimensions (L × H)
38" × 4"
Dust Collection Minimum Required
450 CFM
Dust Port Outside Diameter
4"
Infeed Table Length
32-1/2"
Motor Amps
13/6.5 Amps
Motor Phase
1 Phase
Motor Power
1 HP
Motor Voltage
115/230V
Prewired Voltage
115V
Number of Knives
40
Type of Cutterhead
Helical
Video
What our Experts Think
The Powermatic 54HH 6" Helical Head Jointer - PM9-1791317K is a premium compact jointer designed for woodworkers who want precision, smoother finishes, and reduced maintenance.
The helical cutterhead with 40 four-sided carbide inserts delivers quieter cutting, reduced tear-out, and a cleaner surface finish compared with traditional straight knife systems.
The 1HP motor with 115/230V single-phase compatibility makes this jointer a great fit for small professional shops and serious woodworking setups.
The 66" adjustable infeed and outfeed tables provide excellent board support, helping users achieve straighter and more accurate edges.
The 38" tilting fence with 90° and 45° positive stops allows quick setup for square edges and bevel jointing tasks.
The fine/quick depth adjustment system improves workflow by allowing fast changes while maintaining precise control over material removal.
The dovetail-mounted tables and heavy-duty stand design help maintain alignment, stability, and long-term performance.
The 4" dust port and lockable power switch add convenience, safety, and easier shop cleanup.
Expert verdict: A high-quality jointer that combines Powermatic durability with helical-head performance, making it an excellent choice for furniture makers, cabinet builders, and precision-focused woodworkers.
Q&A
Q: What is the Powermatic 54HH 6" Helical Head Jointer? A: The Powermatic 54HH is a professional 6-inch jointer designed for flattening boards, straightening edges, and preparing stock for precise woodworking projects.
Q: What motor does the PM9-1791317K use? A: It features a 1 HP, single-phase motor with 115/230V capability for reliable performance in woodworking shops.
Q: What is the benefit of the helical cutterhead? A: The helical cutterhead uses 40 four-sided carbide inserts to provide smoother cuts, reduced noise, and less tear-out compared to traditional knives.
Q: What cutting capacity does this jointer offer? A: It provides a 6-inch cutting width with a 66-inch long adjustable infeed and outfeed table for accurate stock support.
Q: Does the fence allow precise adjustments? A: Yes, the 38-inch tilting fence includes positive stops at 90° and 45° for quick and repeatable setups.
Q: Is the table design stable? A: Yes, dovetail-mounted tables provide strong support and help maintain alignment for consistent jointing results.
Q: Does it include dust collection? A: Yes, it features a 4-inch dust port for efficient chip and dust removal.
Q: Is the Powermatic 54HH suitable for professional workshops? A: Yes, its durable construction, precision fence system, and helical head technology make it ideal for serious woodworking applications.
Q: Why choose the Powermatic 54HH Jointer? A: It combines compact design, professional accuracy, and advanced helical cutting technology for smoother woodworking results.
Maintenance Tips
Clean sawdust, chips, and debris regularly from the cutterhead, tables, fence, and dust port.
Keep the cast iron tables and fence clean and dry; apply protective wax to help prevent rust.
Inspect the helical cutterhead inserts regularly and rotate or replace damaged inserts when needed.
Maintain proper dust collection to prevent buildup and keep airflow efficient.
Check and adjust the fence alignment and table settings periodically for accurate jointing.
Lubricate moving parts and adjustment mechanisms to ensure smooth operation.
Inspect belts, motor components, switches, and electrical connections for wear.
Tighten bolts, handles, and hardware regularly to maintain stability.
Avoid placing heavy objects on the table or fence to protect precision surfaces.
Store the jointer in a dry workshop environment to prevent corrosion.
