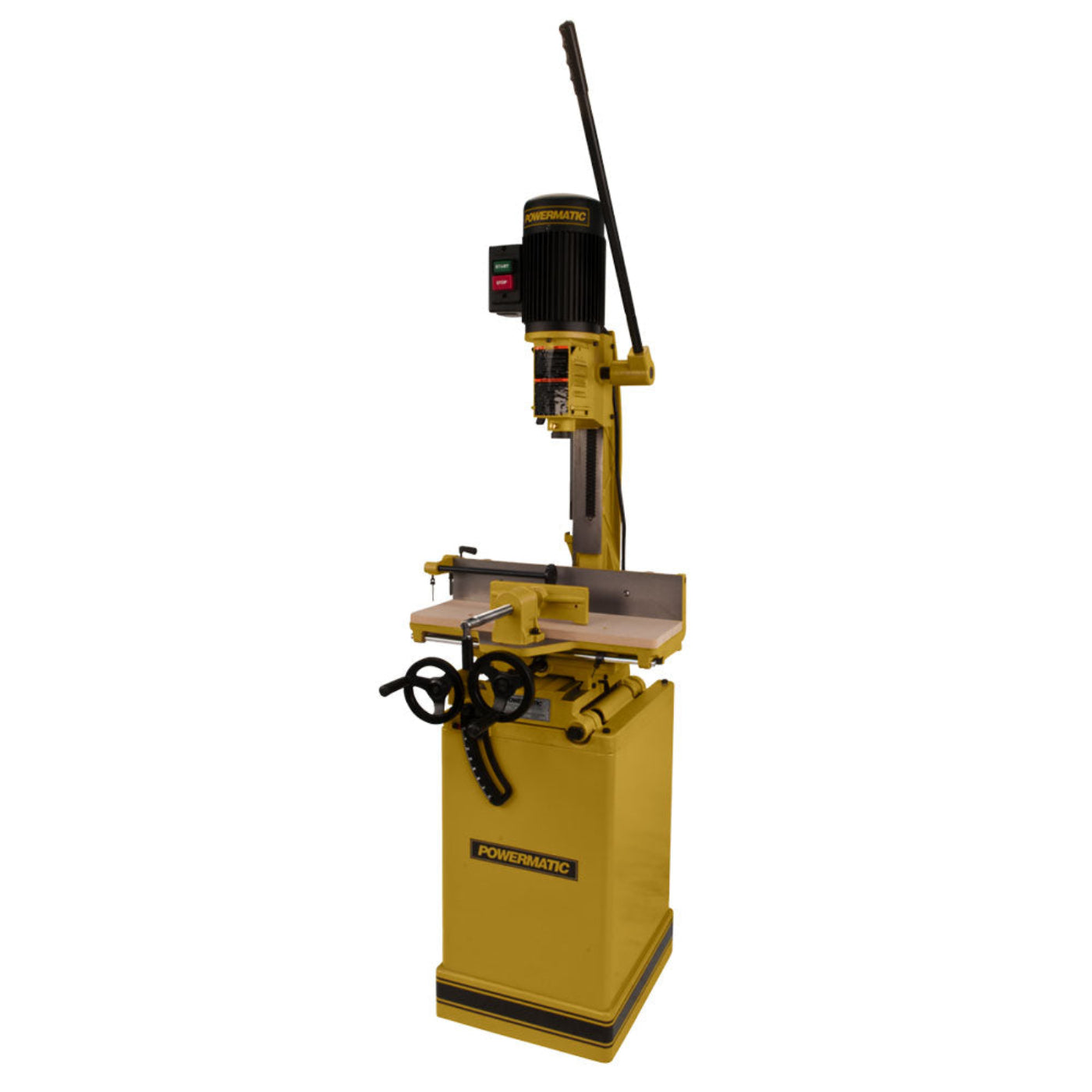

Powermatic 719T Mortiser - PM9-1791264K
The Powermatic 719T Hollow Chisel Mortiser is designed to help you cut extremely accurate mortises in a wide range of woods and project designs and to reduce setup time and effort. The 719T has been designed and built to extend its value by maintaining its performance for many years under the demands of even busy woodworking shops.
The 719T Hollow Chisel Mortiser is built around several heavy-duty iron castings for accuracy and repeatability, not to mention long-term durability. Precision machining ensures accuracy and smooth operation.
This mortiser is mounted atop a steel, enclosed base cabinet. The cabinet is 14" wide, 16" deep, 25" tall, and features an internal storage area for chisels, related tools, and accessories. The base cabinet puts the Powermatic 719T Hollow Chisel Mortiser table surface at a comfortable 32" height (0° tilt angle) above the floor.
The 719T is equipped with a 1hp, TEFC (totally enclosed fan cooled) motor that delivers smooth, consistent power. The motor comes wired for 110V (11 amp) operation but can be converted to use 230V (5.5 amp) electrical power. The motor produces a (direct drive) spindle speed of 1725 rpm and is controlled by an industrial style pushbutton On/Off switch, mounted on the powerhead for fast, easy access.
A pair of hinged doors, one on either side of the powerhead, provides easy access to the high quality, 1/2" capacity, key-operated, 3-jaw chuck. An extended chuck key is included that makes installing or removing the auger bits fast and easy. The chuck is designed to be compatible with the common long-shank auger bits. However, a chuck extender is included that allows using short shanked auger bits.
The tilt function of the Powermatic 719T Hollow Chisel Mortiser makes cutting angled mortises easier than ever. Because the entire table surface tilts on a single hinge point, setups are fast and easy. A handy easy to read scale on the front of the machine makes setting precise tilt angles easy.
Features
- Adjustable work stop for repeat cuts
- Large 5" diameter handwheels control table movement along tried and true dovetail-shaped keyways
- Entire table tilts up to 35° in addition to the X/Y movements to make even complicated mortises easy to produce
- Feed lever features size positions allowing for quick adjustments
- Gas cylinder controlled rack and pinion system for smooth head raising and lowering
- Handwheels control smooth linear and cross table motions
- Hinged chuck door allows easy access for quick bit changes
- Quick position table mounted swiveling vise clamp accommodates angled workpieces
- Sturdy cast iron construction with precision-machined column and table
Specifications
| Style (Type) |
Mortiser |
| Chisel Capacity |
1/4" to 1" |
| Chisel Center to Fence |
4" |
| Chuck Size |
1/2" |
| Spindle Speed |
1,725 RPM |
| Motor Amps |
11/5.5 Amps |
| Motor Phase |
1 Phase |
| Motor Power |
1 HP |
| Motor Voltage |
115/230V |
| Prewired Voltage |
115V |
| Prop 65 |
Cancer and Reproductive Harm |
What our Experts Think
-
Professional Mortising Performance – Built for precise mortise-and-tenon joinery in furniture making, cabinetry, and advanced woodworking projects.
-
Powerful 1HP Motor – Provides reliable cutting strength for hardwood applications and repeated shop use.
-
Large Tilt Table Design – 20" x 7" cast iron table tilts from 0° to 35° for angled mortises and flexible work positioning.
-
Deep 10-3/4" Chisel Stroke – Supports larger workpieces and deeper mortise requirements with consistent results.
-
Heavy-Duty Cast Iron Build – Helps minimize vibration while improving stability and long-term accuracy.
-
Rack & Pinion Head Movement – Smooth head adjustment system allows controlled operation and repeatable cuts.
-
Precision Workholding System – Adjustable stops and swiveling clamp help secure material for accurate mortising.
-
Built-In Storage Cabinet – Keeps chisels and accessories organized while adding support to the machine base.
Q&A
Q: What is the Powermatic 719T Mortiser used for?
A: The Powermatic 719T is a floor-standing tilt table mortiser designed for creating accurate mortise joints in woodworking projects.
Q: What makes the tilt table feature useful?
A: The 20" x 7" cast iron table tilts from 0° to 35°, allowing angled mortising for specialized joinery applications.
Q: What motor does the 719T use?
A: It features a 1 HP motor with 115/230V single-phase operation for reliable workshop performance.
Q: What is the mortising capacity of this machine?
A: It supports chisels up to 1" capacity with a 10-3/4" chisel stroke for versatile joinery work.
Q: Does the 719T provide accurate positioning?
A: Yes, rack-and-pinion head movement, handwheel table controls, adjustable stops, and a quick-adjust clamp help deliver repeatable mortises.
Q: Is the Powermatic 719T suitable for professional woodworking?
A: Yes, its heavy-duty cast iron construction and precision controls make it ideal for furniture makers, cabinet shops, and serious woodworkers.
Q: Does it include storage for accessories?
A: Yes, the enclosed steel cabinet base provides convenient storage for chisels and woodworking accessories.
Q: Who is the Powermatic 719T Mortiser ideal for?
A: It is ideal for professional woodworkers, cabinetmakers, furniture builders, and anyone needing precise mortise-and-tenon joinery.
Maintenance Tips
- Clean wood chips, dust, and debris from the table, chisel area, and machine regularly.
- Inspect chisels and augers often; sharpen or replace worn cutting tools for clean mortises.
- Remove resin and buildup from cutting components to maintain smooth operation.
- Lubricate the column, rack, and moving mechanisms as recommended.
- Check chisel alignment and quill movement for accurate cuts.
- Keep the work table clean and dry for secure material positioning.
- Inspect belts, motor parts, and fasteners for wear or looseness.
- Maintain dust collection around the cutting area to reduce buildup.
- Tighten clamps, handles, and hardware periodically.
- Store the mortiser in a dry environment to help prevent rust and corrosion
