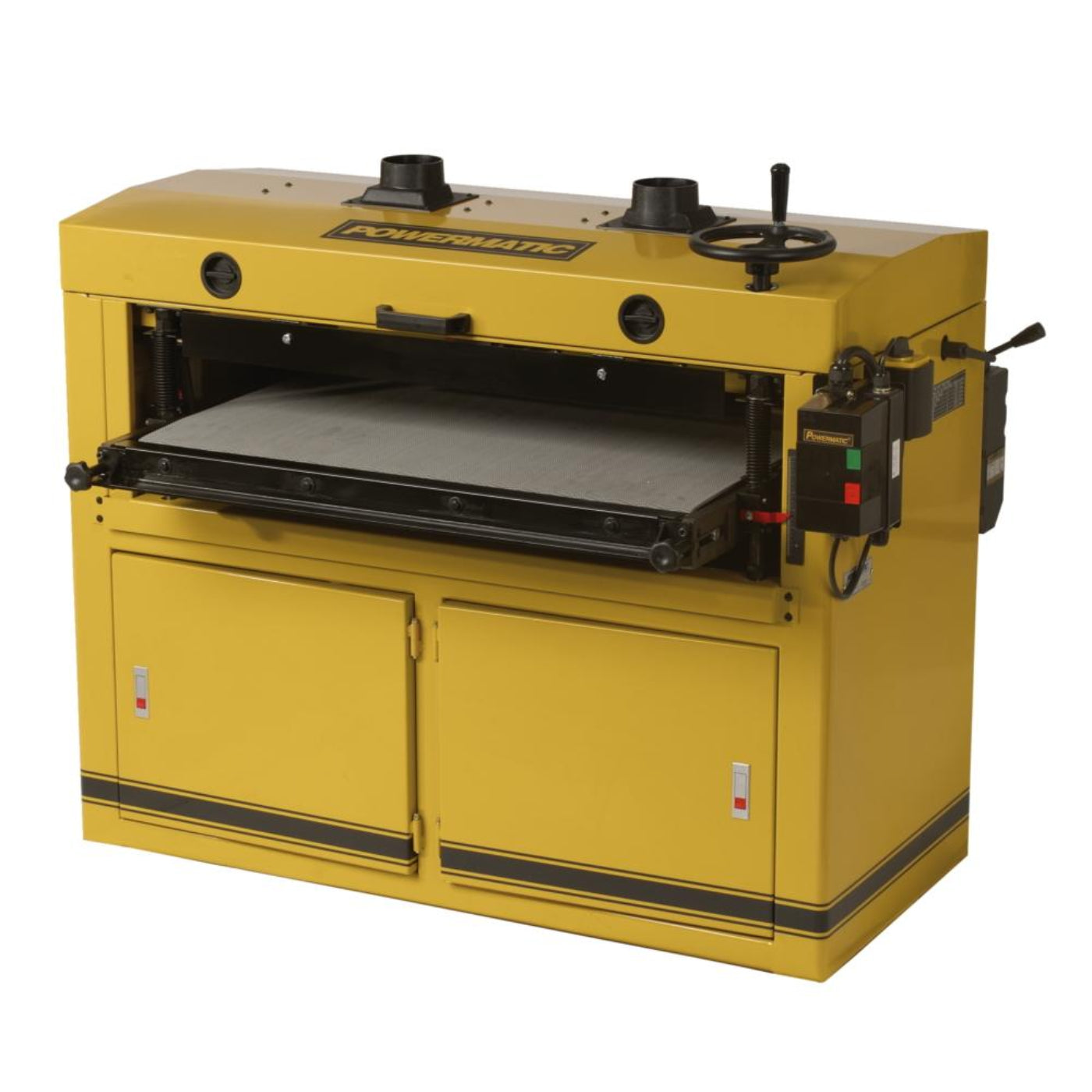

Powermatic DDS-237 37" Dual Drum Sander 10hp 3 Phase - PM9-1791321
The Powermatic DDS-237 Dual Drum Sander is a production class machine that is loaded with features and available in configurations to suit your needs. This machine is equipped with a 10HP, 230/460V (prewired 230V), 3 PH motor. All Powermatic Dual Drum Sanders are protected with a full magnetic On-Off switch.
Despite the compact 60" wide, 45" deep and 45" tall overall size, the DDS-237 has the capacity to handle a huge range of jobs from small to large. With a minimum board length of just 9", a minimum thickness of 1/32" and maximum thickness of 5-1/4", these sanders offer expansive job coverage.
Powermatic Dual Drum Sanders are enclosed in an all-steel cabinet. Compartments with latching doors at the bottom enclose the motor, drive systems and provide spacious storage. Removable panels provide good access to important systems when needed.
The full-width, hinged steel top opens to make working with the drums and roller systems easy. Built into the top are a pair of 4" diameter dust ports. These ports connect to specially designed directional baffles within the top that enhance the effectiveness of the dust evacuation. For maximum efficiency, a dust collector system with a minimum 1200 CFM capacity should be used.
Powermatic Dual Drum Sanders feature dual steel drums spinning at a consistent 1,700 RPM that are precisely machined and then given a hard durometer rubber coating that ensures a flat, non marring surface. These 6" diameter steel drums have the strength to resist flex during sanding for maximum accuracy and consistency.
A heavy cast iron table has been precisely machined to insure flatness. The table is raised and lowered on four jackscrews turned simultaneously by a slip-free chain drive. That chain drive also keeps the table level at all heights. The chain drive has an automatic tensioning system built in to reduce setup and adjustment. The table height system is operated by a large cast iron handwheel at the top of the sander.
The 1/4HP feed motor drives the conveyor belt and is controlled by a two-speed forward/reverse gearbox that produces feed rates of 8 and 12 SFPM (surface feet per minute). The gearbox can only be shifted between the low and high feed rates while the machine is running. The conveyor belt can also be reversed, using a separate three-position switch with forward, off and reverse positions.
Powermatic Dual Drum Sanders are designed with the industrial environment in mind. They are tough, easy to use and easy to maintain. Their wide capacity ranges mean one machine handles more jobs, making the Dual Drum Sanders a very cost-effective investment.
Features
- Dual drum head for superior finish
- Dual dust ports with directional baffles for more efficient dust removal
- Forward/reverse conveyor belt grips stock evenly
- Full size cast iron table for solid support
- Hard durometer rubber coating on steel drums provides flat, smooth finish
- Independently adjustable rear drum for fine tuning
- Two-speed gearbox for wide range of sanding projects
- The rear drum is independently adjustable, which allows fine-tuning, especially when it is equipped with a different grit paper than what is on the front drum
- Handy chart on the cabinet below the adjustment that shows the correct settings for the various grits
- Tracking adjusters on conveyor belt at either end of the table
Specifications
| Style (Type) |
Dual Drum Sander |
| Conveyor Speed |
8 / 12 FPM |
| Drum Diameter |
6" |
| Drum Length |
37" |
| Drum Speed |
1,700 RPM |
| Dust Collection Minimum Required |
1,200 CFM |
| Maximum Board Thickness |
5-1/4" |
| Maximum Board Width |
37" |
| Minimum Board Length |
9" |
| Minimum Board Thickness |
1/32" |
| Motor Power |
10 HP |
| Weight |
962 lbs. |
What our Experts Think
- The Powermatic DDS-237 37" Dual Drum Sander 10HP 3 Phase - PM9-1791321 is a production-class sanding machine designed for high-volume woodworking shops requiring speed, accuracy, and consistent finishes.
- The 10HP three-phase motor provides exceptional power for demanding sanding operations, allowing efficient material removal across wide boards and large panels.
- The dual-drum sanding system improves productivity by combining aggressive stock removal with fine finishing in fewer passes, helping achieve flatter and smoother results.
- The 37" sanding capacity makes it ideal for wide tabletops, doors, cabinetry parts, and large woodworking projects.
- The rubber-coated steel drums apply even pressure while helping deliver a smooth, mar-resistant surface finish.
- The independently adjustable rear drum allows fine-tuning for improved thickness control and finish quality.
- The cast iron table with precision jackscrew support system helps maintain stability and consistent sanding accuracy throughout the machine’s travel.
- The two-speed forward/reverse conveyor system gives operators flexibility between faster material removal and smoother finishing passes.
- The dual 4" dust ports and heavy-duty conveyor design support cleaner operation, better dust extraction, and reliable stock feeding.
-
Expert verdict: A premium industrial drum sander built for professionals who need maximum throughput, dependable performance, and precise results on large-scale woodworking projects.
Q&A
Q: What is the Powermatic DDS-237 Dual Drum Sander?
A: The Powermatic DDS-237 is a production-grade 37" dual drum sander designed for wide-stock sanding, thickness control, and professional woodworking applications.
Q: What motor does the PM9-1791321 use?
A: It features a powerful 10 HP, 3-phase motor with 230/460V capability for heavy-duty sanding operations.
Q: What is the sanding capacity of the DDS-237?
A: It provides a 37-inch sanding width and handles boards up to 5-1/4 inches thick, making it ideal for large panels and furniture components.
Q: What is the advantage of dual drums?
A: The dual-drum design improves material removal speed while producing flatter, smoother finishes with fewer sanding passes.
Q: Does it have adjustable sanding speeds?
A: Yes, the two-speed conveyor system offers 8 and 12 surface feet per minute for balancing aggressive sanding and fine finishing.
Q: Are the sanding drums designed for smooth finishes?
A: Yes, the steel drums feature hard durometer rubber coating to provide even pressure and help prevent surface marks.
Q: Does the rear drum adjust independently?
A: Yes, the independently adjustable rear drum allows fine-tuning for improved finish quality and thickness accuracy.
Q: Does the DDS-237 include dust collection support?
A: Yes, it includes dual 4-inch dust ports for efficient dust extraction and cleaner operation.
Q: Is the table built for stability?
A: Yes, the full-size cast iron table with precision support components helps maintain accuracy during sanding.
Q: Is the Powermatic DDS-237 suitable for professional shops?
A: Yes, its 10 HP motor, wide sanding capacity, and heavy-duty construction make it suitable for production woodworking environments.
Q: Why choose the Powermatic DDS-237 Drum Sander?
A: It combines industrial power, dual-drum efficiency, precision control, and durable construction for consistent professional sanding results.
Maintenance Tips
- Clean sawdust, debris, and abrasive residue regularly from drums, conveyor, table, and dust ports.
- Inspect sanding belts/drums frequently and replace worn abrasives for consistent sanding results.
- Keep the conveyor belt clean and free from buildup to maintain smooth material feeding.
- Check conveyor alignment and tracking regularly to prevent uneven sanding or belt drift.
- Maintain proper dust collection to reduce buildup around drums, motors, and internal components.
- Clean pressure rollers and feed components to ensure steady stock movement.
- Lubricate moving parts, bearings, and adjustment mechanisms as recommended.
- Inspect belts, motors, switches, and electrical connections for wear or damage.
- Tighten bolts, hardware, and adjustments periodically to reduce vibration.
- Keep the machine in a clean, dry workshop environment to prevent corrosion.
