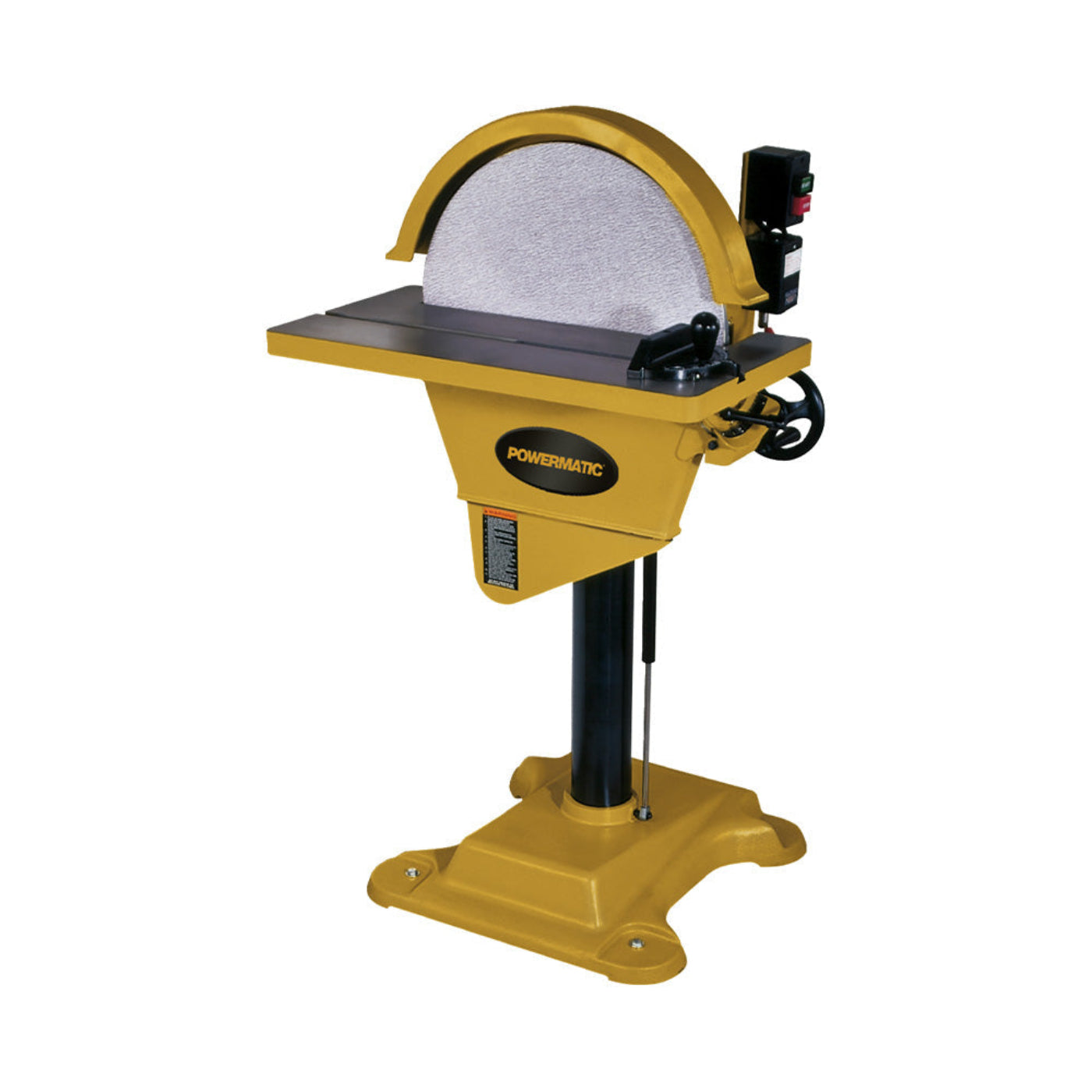

Powermatic DS20 20" Disc Sander 3hp, 3PH, 230/460V - PM9-1791264
Disc sanders have always been useful in woodworking. The Powermatic DS20 20" Disc Sander takes that concept with its brute power, 20" diameter disc and an array of user-friendly features. Near the top of the feature list is a huge, articulated cast iron table, making it clear that the DS20 20" Disc Sander is a serious tool.
The DS20 20" Disc Sander comes with a 3 horsepower, 3 phase, 230/460V motor. Powermatic motors are rated using a continuous duty cycle for a true representation of its power rather than the "peak" or "max developed" figures. The motor is big, heavy, and built to operate efficiently and smoothly for years. The heavy platen that backs the abrasive is driven directly from the motor shaft, ensuring a very consistent 1,720 RPM.
The DS20 20" adhesive-backed discs attach to a precision-machined steel platen that is mounted directly to the motor shaft using a large-diameter flange for maximum strength and alignments. This mass of this 9/16" thick by 20" diameter steel platen dissipates heat while resisting distortions and vibrations. Its sheer mass adds a flywheel effect that further smooths the sanding process.
Because the platen is made from steel, scraping spent abrasive discs from its surface is much easier without fear of damaging the softer materials often used to make the platen on other sanders. The inertia developed by the heavy platen and motor mean that the Disc Sander will take a long time to "spin down" after it is shut off. The DS20 features an easy-to-use hand brake that applies a specially formulated disc to the rear of the platen to safely stop it in seconds.
A full shroud below the table does a good job of evacuating dust from the lower half of the disc before it has a chance to come above the table. The shroud terminates in a 4" diameter port that makes connecting standard dust collector hose simple. We recommend a dust collector with a minimum 600 CFM capacity.
Features
- Tough cast iron table that tilts 30° up and 45° down
- Direct drive from motor to disc for maximum efficiency
- Tilting table allows bevel sanding
- Miter gauge for angle sanding
- 20" sanding disc for larger workpieces
- 4" port for connection to any dust collection system
- Cast iron base for rigidity
Specifications
| Style (Type) |
Disc Sander |
| Disc Diameter |
20" |
| Table Dimensions (W × D) |
27-1/2" × 10-1/2" |
| Dust Collection Required (Min.) |
600 CFM |
| Dust Port Outside Diameter |
4" |
| Motor Amps |
9.8/4.9 Amps |
| Motor Phase |
3 Phase |
| Motor Power |
3 HP |
What our Experts Think
- The Powermatic DS20 20" Disc Sander 3HP 3PH 230/460V - PM9-1791264 is a heavy-duty sanding machine designed for precision finishing, large workpieces, and professional woodworking shops.
- The 3HP motor with direct-drive system transfers power efficiently to the sanding disc, delivering smooth and consistent performance during demanding applications.
- The 20" sanding disc provides a large working surface, making it ideal for flattening edges, shaping parts, and handling bigger projects.
- The forward/reverse switch allows more flexible sanding control and helps improve abrasive performance and finish quality.
- The tilting cast iron table and miter gauge support accurate angle sanding, bevel work, and repeatable setups.
- The hand-activated disc brake improves safety by allowing faster stopping after operation or in emergency situations.
- The heavy cast iron base and rigid construction help reduce vibration, providing smoother results and better control on precision projects.
- The swing-away guard and 4" dust port make abrasive changes quicker and help maintain a cleaner, more efficient workspace.
-
Expert verdict: A professional-grade disc sander that combines power, stability, and accuracy for furniture makers, cabinet shops, and serious woodworking environments.
Q&A
Q: What is the Powermatic DS20 20" Disc Sander?
A: The Powermatic DS20 is a professional disc sander designed for smooth finishing, edge sanding, bevel sanding, and precision woodworking applications.
Q: What motor does the PM9-1791264 use?
A: It features a powerful 3 HP, 3-phase motor with 230/460V capability for demanding woodworking environments.
Q: What size sanding disc does the DS20 use?
A: It uses a large 20-inch sanding disc, providing extra capacity for larger workpieces and professional projects.
Q: Does the DS20 have direct drive performance?
A: Yes, the direct-drive motor-to-disc design helps maximize power transfer and sanding efficiency.
Q: Can the table be adjusted for angled sanding?
A: Yes, the tilting work table supports bevel sanding with adjustable angles for versatile finishing tasks.
Q: Does it include safety features?
A: Yes, it includes a hand-activated disc brake that helps stop the sanding disc quickly when needed.
Q: Can the DS20 sand in different directions?
A: Yes, the forward and reverse switch provides additional sanding flexibility for various applications.
Q: Does it support dust collection?
A: Yes, it includes a 4-inch dust port for efficient dust extraction and cleaner shop operation.
Q: Is the Powermatic DS20 suitable for professional shops?
A: Yes, its heavy-duty cast iron construction, powerful motor, and large sanding surface make it ideal for serious woodworking shops.
Q: Why choose the Powermatic DS20 Disc Sander?
A: It combines industrial power, precision control, large sanding capacity, and durable construction for reliable woodworking results.
Maintenance Tips
- Clean sawdust and debris regularly from the sanding disc, table, and dust collection areas.
- Inspect the sanding disc surface frequently and replace worn abrasive material for consistent results.
- Keep the cast iron table clean and dry; apply protective wax to help prevent rust and improve workpiece movement.
- Maintain proper dust collection to reduce buildup around the motor and internal components.
- Check the sanding table alignment and adjustments periodically for accurate sanding.
- Clean the disc surface and remove adhesive or residue that may affect sanding performance.
- Lubricate moving parts, adjustment mechanisms, and hinges as needed.
- Inspect belts, motor components, switches, and electrical connections for wear.
- Tighten bolts, knobs, and hardware regularly to reduce vibration.
- Keep the machine in a dry workshop environment to protect against corrosion.
