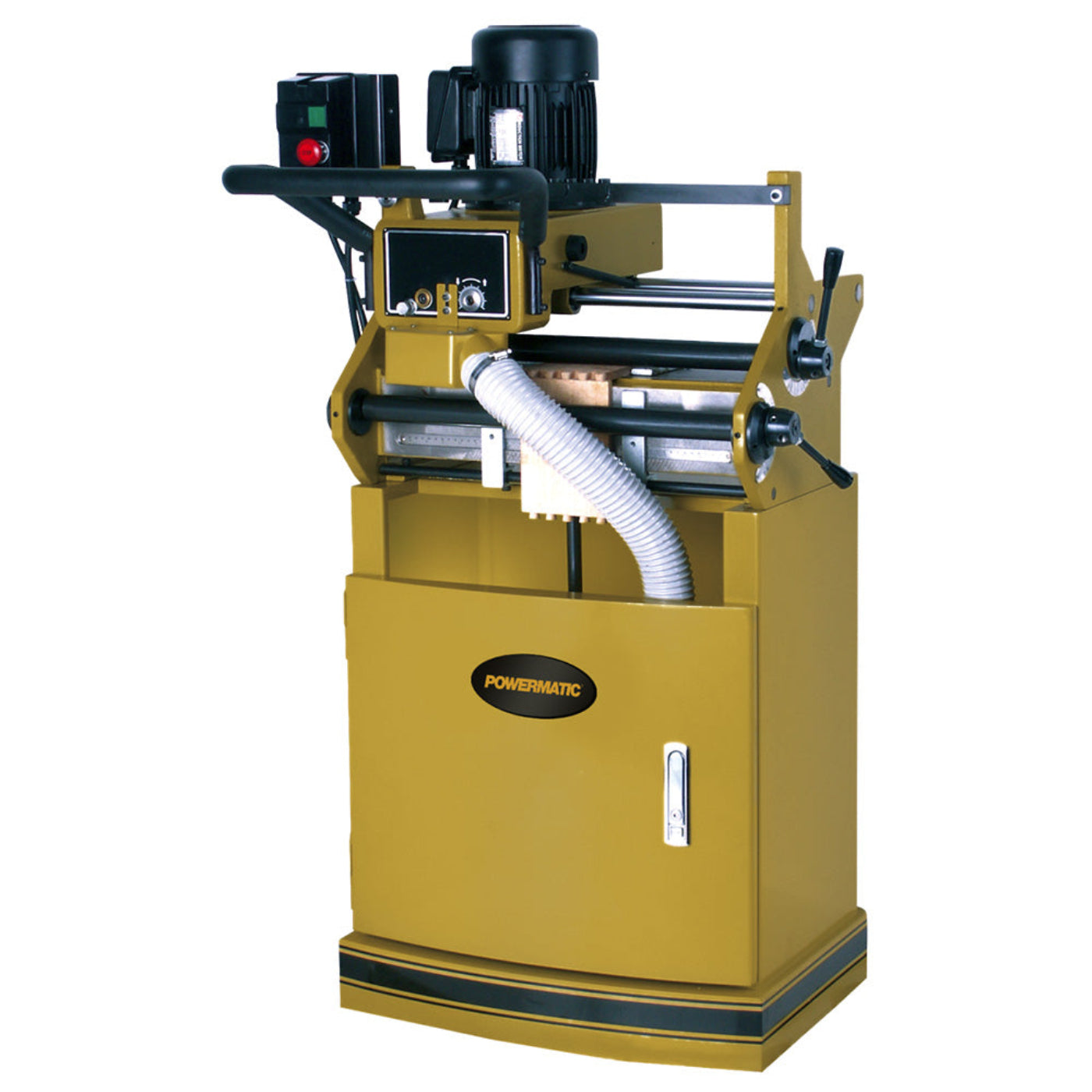

Powermatic DT45 Dovetailer Machine 1hp, 1PH, 115/230V - PM9-1791304
Powermatic's DT45 single spindle dovetailer gives quality to the most popular joints in drawer construction. The machine is equipped with a router spindle which allows cutting dovetails of adjustable height. Use the DT45 to produce cleanly cut, quality dovetails and enhance your products.
The DT45 is complete with a 1hp 1-phase motor, manual eccentric clamping, magnetic starter, carbide-tipped cutter, and a four-sided template that produces dovetails on 1", 1-9/16", 2", and 3-1/8" centerlines. The use of different dovetail centerlines allows you to create a unique, custom appearance.
Features
- Four separate dovetail centerlines
- Eccentric spindle collet for resharpened cutters
- 3/16" to 3/4" cutter height
- Manual eccentric clamping
- Extra-large soft grip handle provides control and comfort
- The precision carriage bearings are sealed on both ends to eliminate dust buildup
- Visual stylus and template aids in guiding the carriage
- Spring-loaded carriage makes for smooth, effortless dovetail cutting
- Material stops provide convenient positioning of the workpiece
- Cast iron and steel construction for added stability and durability
Specifications
| Style (Type) |
Dovetail Machine |
| Motor Power |
1 HP |
| Electrical Requirements |
1 Phase, 230V |
| Spindle Speed |
18,500 RPM |
| Max. Workpiece Size (L ร W) |
31" ร 11" |
| Min. Workpiece Size (L ร W) |
7-7/8" ร 2-3/8" |
| Max. Dovetail Height |
3/4" |
| Min. Dovetail Height |
3/16" |
| Max. Front Thickness |
1-3/4" |
| Min. Front Thickness |
9/32" |
| Table Height |
35" |
| Dust Collection Port |
2-1/2" |
| Dust Collection Required |
500 CFM |
| Overall Dimensions (L ร W ร H) |
33" ร 33" ร 61" |
What our Experts Think
-
Professional Joinery Performance โ Designed for creating precise dovetail joints with accuracy and repeatable results.
-
Powerful 1HP Motor โ Provides reliable cutting performance for demanding woodworking applications.
-
Flexible Voltage Options โ 115/230V compatibility supports various workshop electrical setups.
-
Precision Engineering โ Built to deliver consistent, clean dovetail cuts for furniture, cabinetry, and fine woodworking.
-
Heavy-Duty Construction โ Durable machine design helps ensure stability and long-term workshop performance.
-
Efficient Production Tool โ Speeds up joinery work while maintaining professional-quality craftsmanship.
-
User-Friendly Operation โ Designed for smoother setup, adjustments, and accurate workflow.
Q&A
Q: What is the Powermatic DT45 Dovetailer Machine used for?
A: The DT45 Dovetailer is designed for creating precise dovetail joints used in drawers, cabinets, and fine woodworking projects.
Q: Is the DT45 suitable for professional woodworking shops?
A: Yes, it features a powerful 1 HP motor and durable construction designed for reliable production and precision work.
Q: What type of joints can this machine create?
A: It creates accurate dovetail joints, including half-blind dovetails commonly used in high-quality cabinetry and furniture.
Q: What power requirements does the DT45 need?
A: This model operates with a 1-phase power supply and supports 115V or 230V operation.
Q: What makes the DT45 easy to use?
A: It includes adjustable settings and a user-focused design to help woodworkers achieve consistent, repeatable joints.
Q: What materials can the DT45 work with?
A: It is designed for compatible wood materials such as hardwoods and softwoods used in furniture and cabinet making.
Q: Why choose a dovetailer machine over hand-cut joints?
A: A dovetailer improves speed, accuracy, and consistency while producing strong, professional-quality joints.
Q: Who is the Powermatic DT45 ideal for?
A: It is ideal for cabinetmakers, furniture builders, woodworking professionals, and advanced hobbyists.
Maintenance Tips
- Clean dust, wood chips, and debris from the machine after each use to maintain accuracy.
- Keep the cutting area, templates, and guides free from buildup and residue.
- Inspect router bits regularly and replace dull or damaged cutters for clean joints.
- Lubricate moving parts and adjustment mechanisms as recommended to ensure smooth operation.
- Check clamps, fences, and alignment components periodically for proper positioning.
- Keep the table surface clean and dry to prevent material slipping.
- Inspect electrical cords, switches, and connections for wear or damage.
- Tighten bolts, screws, and hardware regularly for safe and stable operation.
- Store the machine in a dry area to help prevent rust and corrosion.
