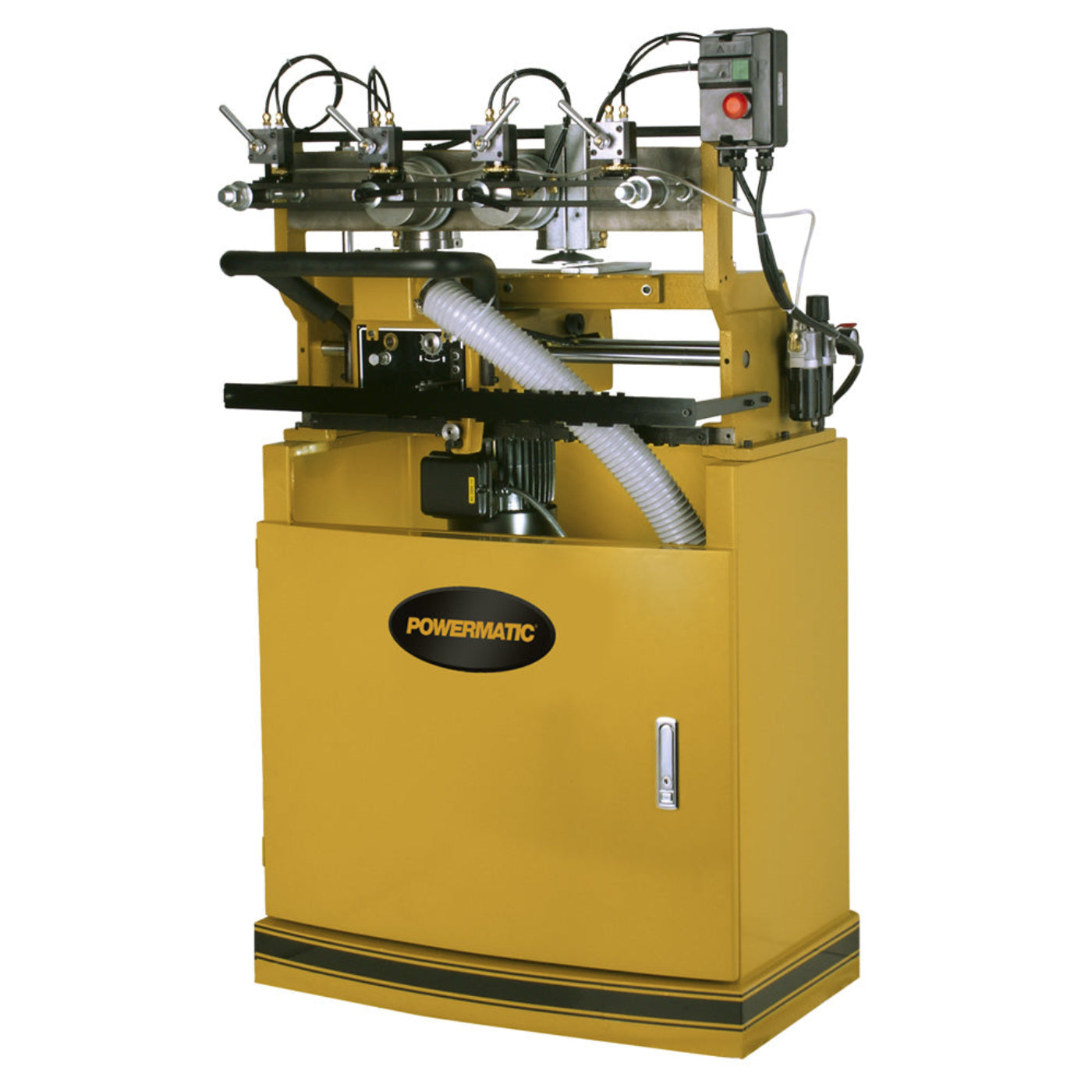

Powermatic DT65 Dovetailer Machine 1hp, 1PH, 115/230V - PM9-1791305
Powermatic's DT65 single end dovetailer gives quality to the most popular joints in drawer construction. The machine is equipped with a router spindle which allows cutting dovetails of adjustable height. Use the DT45 to produce cleanly cut, quality dovetails and enhance your products.
With an impressive 59" x 16-1/2" maximum workpiece capacity, the DT65 is built to handle tough jobs. This machine is complete with a 1hp 1-phase motor, pneumatic clamping, magnetic starter, carbide-tipped cutter, and a four-sided template that produces dovetails on 1", 1-9/16", 2", and 3-1/8" centerlines. The use of different dovetail centerlines allows you to create a unique, custom appearance.
Features
- Four separate dovetail centerlines
- Eccentric spindle collet for resharpened cutters
- 3/16" to 3/4" cutter height
- Pneumatic clamping provides quick locking and unlocking of the workpiece
- Extra-large soft grip handle provides control and comfort
- The precision carriage bearings are sealed on both ends to eliminate dust buildup
- Visual stylus and template aids in guiding the carriage
- Spring-loaded carriage makes for smooth, effortless dovetail cutting
- Material stops provide convenient positioning of the workpiece
- Cast iron and steel construction for added stability and durability
Specifications
| Style (Type) |
Dovetail Machine |
| Motor Power |
1 HP |
| Electrical Requirements |
1 Phase, 230V |
| Spindle Speed |
18,500 RPM |
| Max. Workpiece Size (L × W) |
59" × 16-1/2" |
| Min. Workpiece Size (L × W) |
7-7/8" × 2-3/8" |
| Max. Dovetail Height |
3/4" |
| Min. Dovetail Height |
3/16" |
| Max. Front Thickness |
2-3/8" |
| Min. Front Thickness |
9/32" |
| Table Height |
45" |
| Dust Collection Port |
2-1/2" |
| Dust Collection Required |
500 CFM |
| Overall Dimensions (L × W × H) |
37" × 44" × 63" |
What our Experts Think
-
Professional Drawer Joinery Solution: The Powermatic DT65 Dovetailer is designed for woodworkers seeking fast, repeatable, and precise dovetail joints for drawer and furniture construction.
-
Powerful Workshop Performance: A 1 HP motor with single-phase operation provides reliable cutting power for professional woodworking shops and production environments
-
Fast Pneumatic Clamping: The built-in pneumatic workholding system allows quick loading and secure material positioning, improving workflow efficiency and consistency.
-
Precision Cutting Control: The DT65 features adjustable cutter height from 3/16" to 3/4" and multiple dovetail centerlines for creating customized joint patterns.
-
Built for Long-Term Accuracy: Precision linear carriage bearings, spring-loaded carriage movement, and durable cast construction help maintain smooth operation and repeatable results.
-
Production-Friendly Features: A carbide-tipped cutter, magnetic starter, and template system help streamline professional-quality dovetail production.
Q&A
Q: What is the Powermatic DT65 Dovetailer Machine?
A: The Powermatic DT65 is a professional single-spindle dovetail machine designed for producing clean, precise drawer joints and woodworking projects.
Q: What motor does the DT65 use?
A: It features a 1 HP, 1-phase motor with 230V power for reliable woodworking performance.
Q: What type of work can this machine perform?
A: It is designed for cutting high-quality dovetail joints commonly used in drawer construction and furniture making.
Q: Does it include pneumatic clamping?
A: Yes, the DT65 uses pneumatic clamping to quickly secure workpieces for consistent and efficient cuts.
Q: What dovetail sizes can it create?
A: It offers four dovetail centerlines: 1", 1-1/2", 2", and 2-1/2" for flexible joint spacing options.
Q: What material thickness can it handle?
A: The cutter height adjusts from 3/16" to 3/4", supporting different drawer and furniture stock thicknesses.
Q: Is the DT65 built for professional shops?
A: Yes, its cast iron and steel construction, precision carriage, and repeatable setup features make it suitable for production woodworking environments.
Q: Does it improve workflow efficiency?
A: Yes, features like spring-loaded carriage movement, material stops, and pneumatic clamping help speed up dovetail production.
Q: Does the machine require dust collection?
A: Yes, proper dust collection is recommended, with a minimum requirement listed for operation.
Q: Why choose the Powermatic DT65 Dovetailer?
A: It combines precision cutting, durable construction, and production-focused features to deliver professional-quality dovetail joints.
Maintenance Tips
-
Clean sawdust and wood debris regularly from the cutter area, carriage, and work surfaces to maintain smooth operation.
-
Keep the linear carriage bearings and moving components clean and lubricated according to the manufacturer’s recommendations.
-
Inspect and clean the carbide cutter regularly; replace or sharpen cutters when cutting quality decreases.
-
Check the pneumatic clamping system for leaks and ensure clamps hold workpieces securely before operation.
- Inspect belts, electrical connections, and motor components periodically for wear or damage.
- Keep the machine properly grounded and verify voltage settings before use.
- Maintain proper dust collection to reduce buildup around internal components and moving parts.
- Tighten bolts, handles, and hardware regularly to maintain accuracy and stability.
- Clean the template, guides, and stops to ensure precise dovetail alignment.
- Store the machine in a dry, clean environment to prevent rust and corrosion.
