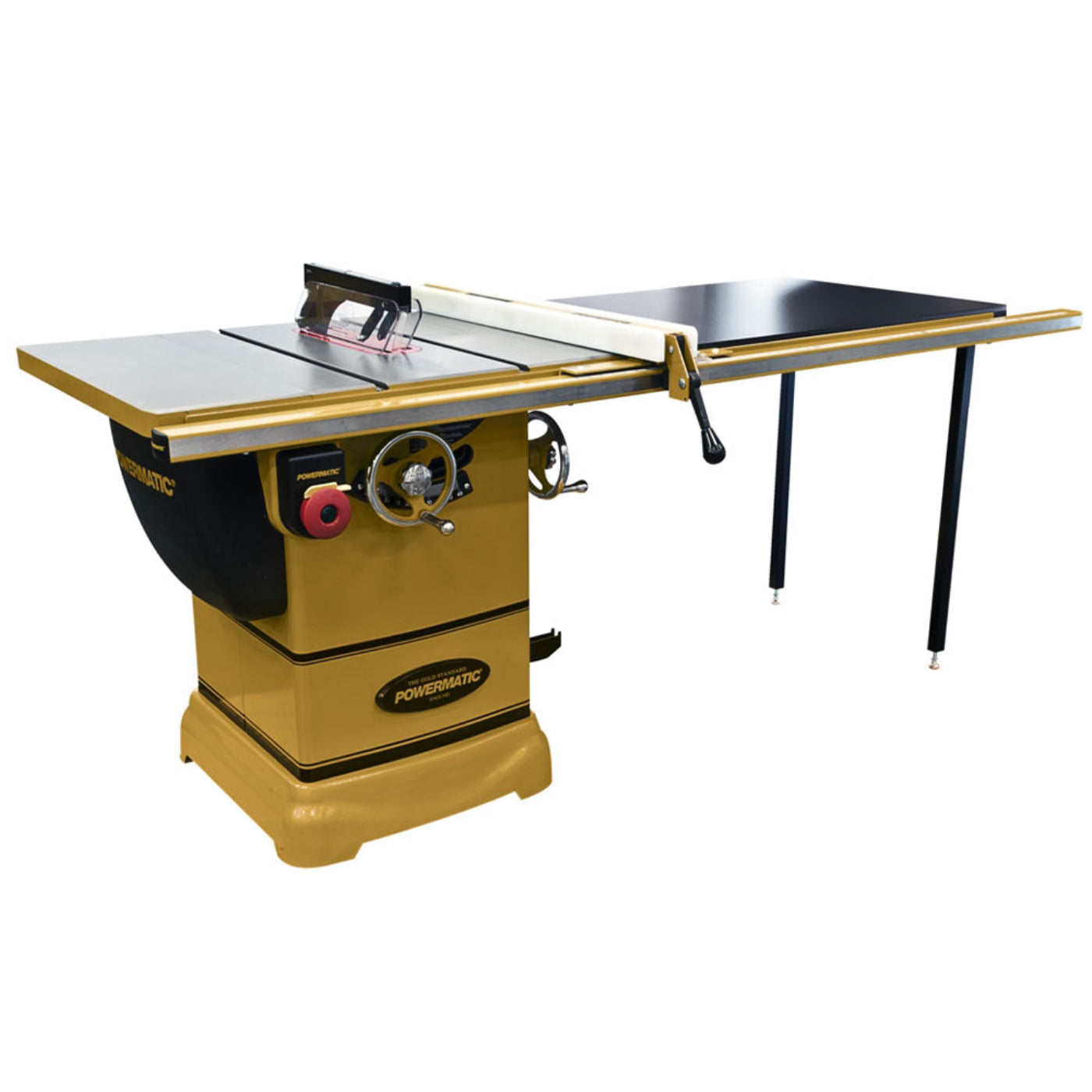

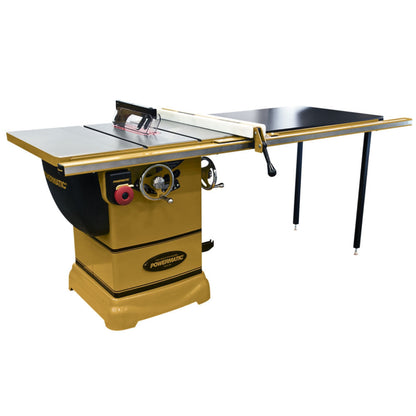

Powermatic PM1000 Table Saws are the perfect blend of capability and refinement. The superior internal design has been engineered to ensure precision and efficiency. Dust collection is maximized thanks to blade housing and a collection hose providing an unobstructed path for particles. The Poly V belt reduces vibration and maximizes efficiency of the 1.75hp motor. The hinged motor cover provides quick access to the interior of the cabinet.
Powermatic's rigid Accu-Fence System instills confidence with every cut. Cuts are made easier with a bevel along the entire cast iron work surface. The tool-less guard assembly with independent side leaves is easy to use, and the push-button arbor lock allows for easy blade changes with minimal tools.
Features
Blade surround and collection hose provide an unobstructed path, maximizing dust collection
Arbor lock allows for one handed blade changes with minimal tools
Conveniently located hands-free power switch
Ergonomically designed 7" handwheels provide momentum, making blade height and bevel adjustments easy
Exclusive Accu-Fence provides rigidity and precision
Precision ground cast iron work surface features a beveled edge for smoother operation
Requires only 115V connection for easy installation
The poly-V belt drive system reduces vibration and maximizes efficiency
The sturdy miter gauge pivots 60 degrees to either side, allowing easy adjustment for a full range of cuts
Toolless guard assembly with independent side leaves is easy to use, maximizing safety
Specifications
Style (Type)
Cabinet Table Saw
Arbor Diameter
5/8"
Arbor Speed
4,200 RPM
Blade Diameter
10"
Dust Collection Required (Min.)
350 CFM
Dust Port Outside Diameter
4"
Gross Weight
289 lbs.
Net Weight
289 lbs.
Max. Depth of Cut at 45°
2-1/8"
Max. Diameter of Dado
8"
Max. Rip Left of Blade
12"
Max. Rip Right of Blade
52"
Max. Width of Dado
13/16"
Miter Gauge Type
T-Slot with Stops
Motor Phase
1 Phase
Motor Power
1-3/4 HP
Motor Voltage
115V
Prewired Voltage
115/230V
Recommended Circuit Size
20 Amps
Overall Dimensions (L × W × H)
43" × 83" × 44"
Table Height from Floor
34-1/4"
Table in Front of Saw Blade at Maximum Depth of Cut
10"
Table Type
Cast Iron
Video
What our Experts Think
Professional-Grade Shaping Power: The Powermatic PM2700 PM9-1280102C delivers serious performance with a 5 HP motor, making it ideal for cabinet shops, furniture makers, and demanding woodworking applications.
Exceptional Precision Control: A digital spindle height readout allows highly accurate adjustments down to .001", helping woodworkers achieve repeatable cuts for detailed projects like raised panels and fine joinery.
Heavy-Duty Cast Iron Stability: The large 30" x 40" precision-ground cast iron table provides excellent support, smooth stock feeding, and reduced vibration during operation.
Versatile Cutting Performance: Two reversible spindle speeds and included 3/4" and 1-1/4" spindle options allow the machine to handle a wide range of shaping tasks.
Production-Friendly Features: Micro-adjust fence controls, independent fence adjustment, and quick belt changes help improve workflow efficiency in professional environments.
Built for Long-Term Use: A heavy cast iron base, integrated caster system, and robust 5 HP motor provide durability and reliable performance for years of woodworking.
Q&A
Q: What is the Powermatic PM2700 Shaper? A: The Powermatic PM2700 is a professional woodworking shaper designed for precision edge forming, profiling, and furniture-making applications.
Q: What motor does the PM2700 use? A: It features a powerful 5 HP, 3-phase motor with 230/460V capability for demanding shop environments.
Q: What type of projects can this shaper handle? A: It is ideal for creating decorative edges, raised panels, moldings, furniture parts, and detailed woodworking designs.
Q: Does it include spindle speed options? A: Yes, the PM2700 offers two reversible spindle speeds for different cutting applications.
Q: Does it have precision adjustment features? A: Yes, it includes a digital spindle height readout and micro-adjust fence controls for accurate repeatable setups.
Q: What table size does the PM2700 provide? A: It features a large 30" x 40" precision-ground cast iron table for stable material support.
Q: Is the shaper easy to move around the shop? A: Yes, the integrated retractable caster system allows easier machine mobility when needed.
Q: What spindle sizes are included? A: It includes 3/4" and 1-1/4" spindles for versatile cutter compatibility.
Q: Is dust collection supported? A: Yes, it includes a 4" dust port connection for efficient dust management.
Q: Is this machine suitable for professional workshops? A: Yes, its heavy-duty cast iron construction, powerful motor, and precision controls make it ideal for production woodworking shops.
Q: Why choose the Powermatic PM2700 Shaper? A: It combines industrial power, precise adjustments, and durable construction to deliver consistent professional woodworking results.
Maintenance Tips
Clean sawdust, chips, and debris regularly from the table, spindle area, fence, and dust collection path to maintain smooth operation.
Keep the precision-ground cast iron table clean and dry; apply protective coating when needed to help prevent rust and maintain smooth stock feeding.
Inspect cutters, spindle components, and inserts regularly; replace worn cutting tools to maintain accuracy and finish quality.
Lubricate moving parts, height adjustment mechanisms, and sliding components according to manufacturer recommendations.
Check the spindle height adjustment, fence micro-adjustments, and digital readout periodically to ensure precise setups.
Inspect belts and use the quick-release belt system properly when changing speeds to reduce wear.
Maintain proper dust collection to prevent buildup around internal parts and improve workshop safety.
Check electrical connections, switches, and 3-phase power supply before operation.
Tighten bolts, handles, and hardware regularly to keep the shaper stable during heavy-duty work.
Keep the machine in a dry workshop environment and cover it during long periods of storage.
