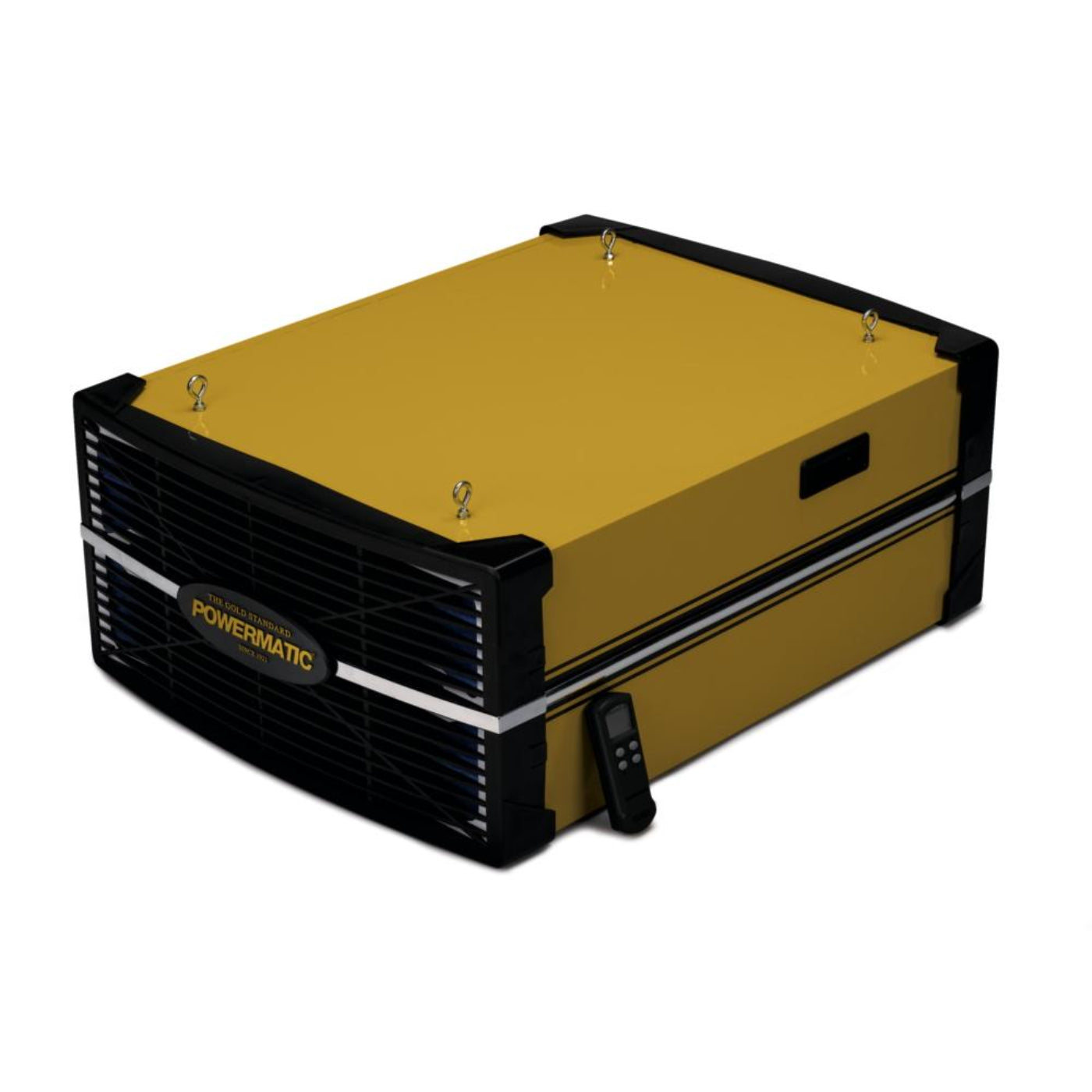

Powermatic PM1200 Air Filtration System - PM9-1791330
A large portion of the design and engineering effort behind the Powermatic PM1200 Air Filtration System was devoted to striking a good balance between airflow volume and efficient filtration. Even the fins on the blower fan were subjected to considerable research and development to be sure they made the most effective fan for this application. The result is an air filtration system specifically designed from the ground up to function effectively in the woodshop environment.
The Powermatic PM1200 Air Filtration System uses two filter stages, the outer to capture large particles and the inner smaller particles. The outer filter removes 99% of 5-micron particles. The inner filter captures 85% of 1-micron particles.
To make it easier to maintain, the PM1200 uses 12" X 24" X 1" filters on the intake side. That size was picked because they can be found at virtually any local home center. The diffusion filter on the exit side does not require replacement in most cases and can be cleaned periodically with a vacuum or compressed air.
Special attention was given to the inlet and outlet filter guards. The Powermatic PM1200 Air Filtration System filter guards are not only stylish but functional and do more than simply protect the filter elements from damage. Both the inlet and outlet filter guards are easily removed and installed without tools. This eliminates trying to extract screws or operate complicated latches while on a ladder.
The Powermatic PM1200 has three speed ranges: Low (547 CFM), Medium (706 CFM), and High 1,196 (CFM). This range of operating speeds lets you set the PM1200 Air Filtration System for the current conditions allowing you to save energy whenever possible. All controls are available both on the air filtration unit itself, as well as on the included LCD screen remote control.
At 67 pounds the Powermatic PM1200 Air Filtration System is relatively light but requires a safe, secure mounting. High quality, appropriately sized fasteners that are properly installed into joists or rafters is required. We recommend avoiding the use of open hook-type connections. Using self-closing clip or loop-style connections will prevent one or more corners of the Powermatic PM1200 from detaching should it be struck accidentally by a project or piece of wood.
Features
- Diffusion filter disperses exhausted air
- Filter guards install and remove easily without tools for quick access to filters
- Four eye bolts allow suspension from shop ceiling
- Re-settable, pop out fuse protects unit in the event of an overload or power surge
- Indicator lights up after 200 hours to remind user to replace filters
- Inner filter has fine mesh pockets for high efficiency, can be blown clean
- Remote control operates on radio frequency for wider range of effectiveness
- Programmable timer can be set to run for one to nine hours
- Three blower speeds to modify air flow
- Timer has nine settings, for up to nine hours of continuous operation
- Two-filter system traps particles as small as 1 micron
Specifications
| Style (Type) |
Air Filtration |
| Gross Weight |
74 lbs. |
| Net Weight |
67 lbs. |
| Motor Amps |
3.5 / 2.8 / 2.3 Amps |
| Motor Phase |
1 Phase |
| Motor Power |
1/4 HP |
| Motor Voltage |
115V |
| Prewired Voltage |
115V |
| Overall Dimensions (L × W × H) |
33" × 25" × 13" |
| Number of Speeds |
3 |
| Airflow Speeds |
547 / 706 / 1196 CFM |
What our Experts Think
-
Cleaner Workshop Environment – Designed to reduce airborne dust and improve overall air quality in woodworking spaces.
-
High-Efficiency Filtration – Captures up to 99% of 5-micron particles and helps trap smaller dust particles for a healthier workspace.
-
Powerful Airflow Performance – Three blower speeds provide adjustable airflow up to 1,196 CFM for different shop conditions.
-
Remote Control Convenience – RF remote allows easy operation without needing direct line-of-sight.
-
Extended Operation Timer – Programmable timer supports continued air cleaning after finishing work sessions.
-
Easy Maintenance Design – Tool-free filter access helps make cleaning and replacement quicker.
-
Flexible Installation – Can be ceiling-mounted or positioned within the workshop for better air circulation.
-
Built for Woodworking Shops – Ideal for furniture makers, cabinet builders, and professionals who want a cleaner workspace.
Q&A
Q: What is the Powermatic PM1200 Air Filtration System used for?
A: The PM1200 is designed to improve woodworking shop air quality by capturing fine airborne dust particles and circulating cleaner air.
Q: How effective is the PM1200 filtration system?
A: It captures up to 99% of 5-micron particles and 85% of 1-micron particles to help reduce airborne dust.
Q: What airflow does the PM1200 provide?
A: It offers three blower speeds with airflow up to 1,196 CFM for flexible shop filtration.
Q: Is the PM1200 suitable for professional woodworking shops?
A: Yes, it is ideal for cabinetmakers, woodworkers, and workshops needing cleaner air during sanding, cutting, and machining.
Q: Does the PM1200 include remote control operation?
A: Yes, it features radio-frequency remote control and a timer with settings up to 9 hours for convenient operation.
Q: What power requirements does this model need?
A: The PM1200 uses a 1/4 HP motor with 115V single-phase power.
Q: Is maintenance easy on the PM1200?
A: Yes, tool-free filter access makes filter inspection and replacement quick and simple.
Q: Who is the Powermatic PM1200 ideal for?
A: It is ideal for woodworking shops, furniture makers, and hobbyists who want cleaner, healthier workspaces.
Maintenance Tips
- Clean the exterior regularly with a soft cloth to prevent dust buildup.
- Inspect filters frequently and replace clogged or damaged filters as needed.
- Clean the pre-filter regularly to maintain airflow and filtration efficiency.
- Keep air intake and exhaust vents free from dust and obstructions.
- Check fan operation periodically for unusual noise or reduced performance.
- Ensure mounting hardware and fasteners remain secure.
- Keep the unit away from moisture and excessive humidity.
- Follow recommended filter replacement intervals for best results.
