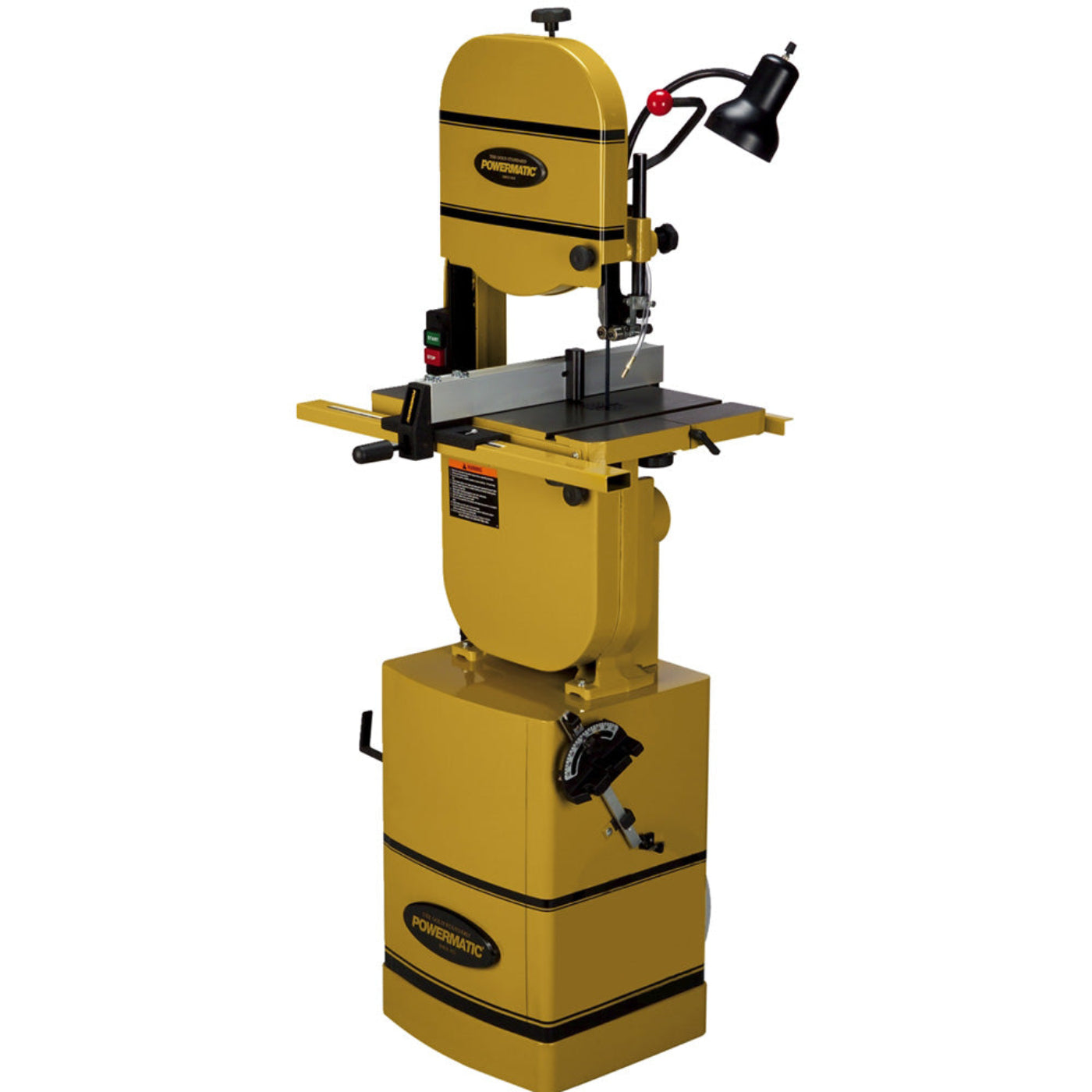

Powermatic 14" Band Saw 1.5hp, 1PH, 115/230V - PM9-1791216K
The Powermatic PWBS-14CS Bandsaw has an extra large, two-piece cast iron table. It consists of a 15" x 15" tilting section and a fixed 15" x 5" extension for a total working surface area of 15" x 20". A balanced, nine-spoke cast iron wheel makes for smooth blade travel, and a quick tension release lever makes blade changing easy.
A micro-adjustable dual bearing blade guide system is featured above and below the table, as well as a work lamp and chip blower. A Poly-V belt maximizes power transmission while minimizing noise and vibration. It has full 6" under guide capacity with 13-1/2" frame to blade clearance. The aluminum rip fence comes with a resaw attachment.
Features
- 60 watt adjustable lamp built into the body provides direct light on blade and work piece while cutting (bulb not included)
- Carter quick tension lever speeds blade changes and the de-tension setting extends blade life during non-use
- Chip blower ensures a clean, visible cut line
- Durable micro-adjustable dual bearing blade guide system above and below the table for close blade control with less friction
- Easy to read tensioning gauge settings indicated in "blade width" increments
- Exclusively designed, quick-release precision T-square style rip fence with 4" resaw attachment
- Includes 6" riser block
- Precision balanced nine spoke cast iron wheels reduces vibration and creates smoother blade travel
- Rigid one-piece welded stand requires no assembly
- Upper and lower dual ball bearing guides for accurate cuts
Specifications
| Style (Type) |
Band Saw |
| Band Saw Size / Wheel Diameter |
14" |
| Blade Length |
93-1/2" |
| Blade Speed |
3,000 SFPM |
| Min. Dust Collection Required |
600 CFM |
| Dust Port Outside Diameter |
4" |
| Minimum Saw Blade Width |
1/8" |
| Motor Phase |
1 Phase |
| Motor Power |
1.5 HP |
| Motor Voltage |
115/230V |
| Prewired Voltage |
115V |
| Recommended Circuit Size |
30/20 Amps |
| Table Height from Floor |
44" |
| Table Tilt |
45° Right / 10° Left |
What our Experts Think
- The Powermatic 14" Band Saw 1.5HP 1PH 115/230V - PM9-1791216K is a versatile woodworking machine built for precision cutting, reliability, and everyday professional shop use.
- The 1.5HP motor provides dependable cutting power for curves, resawing, and general woodworking applications while maintaining smooth operation.
- The 14" cutting capacity with 6" under-guide height and 13-1/2" width capacity gives users flexibility for larger workpieces and detailed projects.
- The large two-piece cast iron table offers strong material support, with a tilting section for angled cuts and improved work control.
- The Carter quick tension release system makes blade changes faster and helps extend blade life during storage periods.
- The precision dual-bearing blade guide system improves blade stability, reduces friction, and helps achieve cleaner, more accurate cuts.
- The balanced nine-spoke cast iron wheels and Poly-V belt drive help minimize vibration while delivering smoother blade movement and quieter performance.
- The built-in work lamp, chip blower, and resaw fence attachment improve visibility, convenience, and cutting efficiency.
-
Expert verdict: A durable and accurate bandsaw that offers the right balance of power, stability, and features for serious hobbyists and professional woodworking shops.
Q&A
Q: What is the Powermatic 14" Band Saw?
A: The Powermatic PWBS-14CS is a professional woodworking band saw designed for curved cuts, resawing, and precision cutting applications.
Q: What motor does the PM9-1791216K use?
A: It features a powerful 1.5 HP, single-phase motor with 115/230V capability for reliable workshop performance.
Q: What cutting capacity does this band saw provide?
A: It offers a 13-1/2" cutting width and 6" cutting height capacity for handling a variety of woodworking projects.
Q: Is the table built for stability?
A: Yes, the extra-large two-piece cast iron table provides strong support and smooth workpiece handling.
Q: Does it include a fence system?
A: Yes, it includes a precision T-square style rip fence with a resaw attachment for accurate cuts.
Q: Does it have blade guide adjustments?
A: Yes, the upper and lower dual bearing blade guides improve blade control and cutting accuracy.
Q: What improve blade changes?
A: The Carter quick tension lever allows faster blade changes and helps extend blade life when the machine is not in use.
Q: Does it reduce vibration during operation?
A: Yes, precision-balanced nine-spoke cast iron wheels and a Poly-V belt help provide smoother, quieter operation.
Q: Does it support dust collection?
A: Yes, it includes a 4-inch dust port for efficient chip and dust removal.
Q: Is the Powermatic 14" Band Saw suitable for professional shops?
A: Yes, its durable construction, precision controls, and powerful motor make it ideal for serious woodworking environments.
Maintenance Tips
- Clean sawdust and debris regularly from the blade area, wheels, guides, and table.
- Inspect the bandsaw blade for dullness, cracks, or damage; replace when cutting performance decreases.
- Check blade tension and tracking regularly for smooth and accurate cutting.
- Keep blade guides and bearings clean and properly adjusted to reduce wear.
- Clean the cast iron table and apply protective wax to help prevent rust.
- Maintain dust collection connections to reduce buildup inside the machine.
- Lubricate moving parts, bearings, and adjustment mechanisms as needed.
- Inspect belts, motor components, switches, and power connections for wear.
- Tighten bolts, knobs, and hardware periodically to maintain stability.
- Keep the machine in a dry workshop environment to prevent corrosion.
