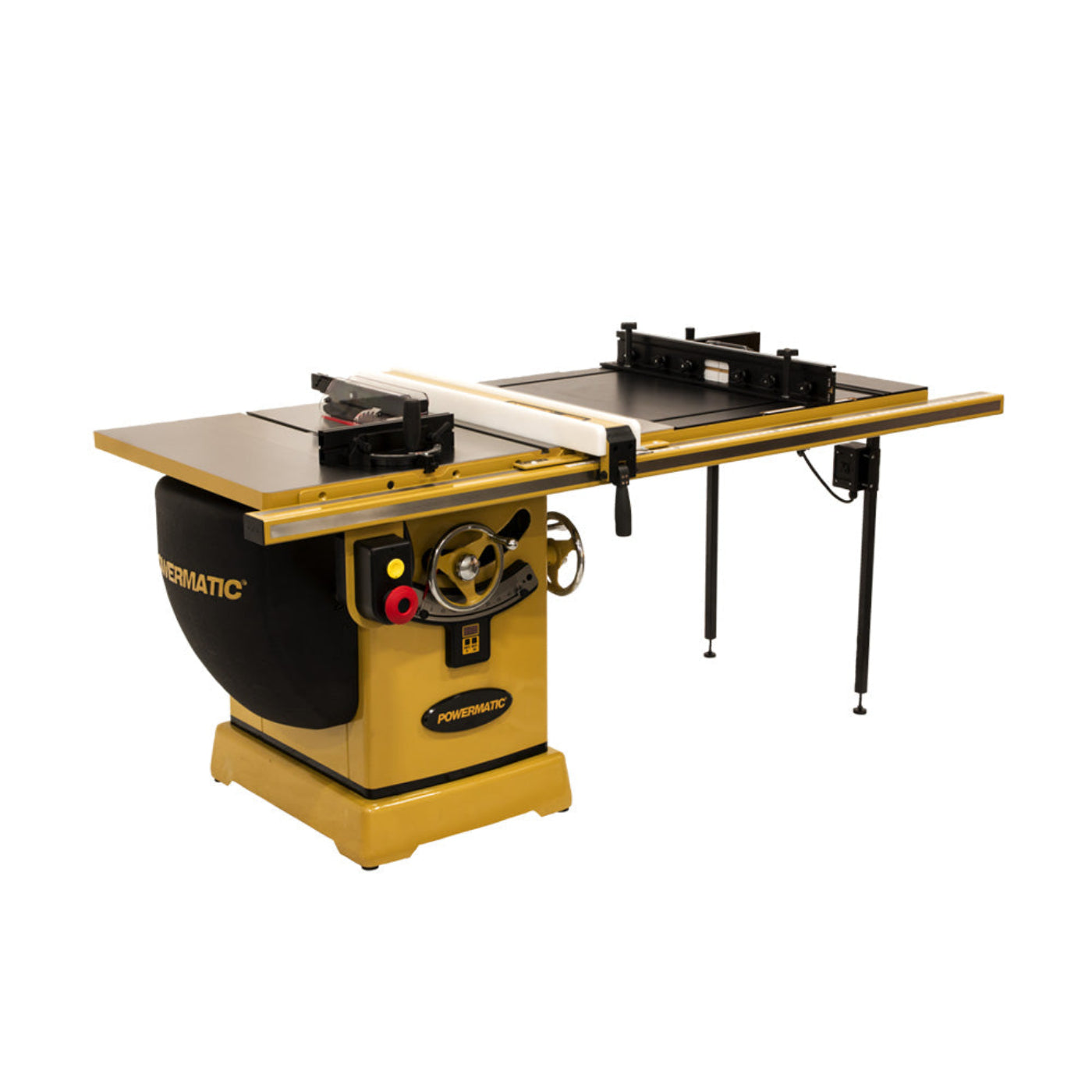

Powermatic PM2000B 50" Rip Table Saw with Accu-Fence & Rout-R-Lift System 3hp, 1PH, 230V - PM9-PM23150RK
The award winning Powermatic PM2000 table saw sets a new standard for innovation with an array of patented features and massive body design. It boasts the heaviest cast iron base in its class that virtually eliminates table vibration. The cast iron tables are oversized, and the push button arbor lock is accessible from above the table top to eliminate the need for dual arbor wrenches. The quick-release riving knife design helps reduce the chance of kickback.
The blade tilt scale has adjustable angle indicators for repetitive bevel cuts. Built-in retractable omni-directional caster system mobilizes your table saw. A wide stance, heavy-duty trunnion and concave teeth on the trunnion gears promote easier raising and tilting of saw blade. Poly-V drive belt system results in quieter, more efficient power transfer from the motor to the arbor with virtually no vibration and less heat build up. Built-in dust collection port with sloped cabinet floor and convenient access to the inside of the saw cabinet make for simple clean-up. The saw has a proprietary safety switch with magnetic interlock, and the stop button can be knee activated.
Features
- Adjustable angle indicators on the blade bevel scale for repeatable bevel cuts
- Arbor lock for quick and easy blade changes
- Integrated digital read out for precise bevel cuts
- Integrated dust collection
- Integrated hydraulic castor system for ease of movement around the shop
- Matching beveled edge between table and extension wings
- One-piece cast iron box trunnion provides the strongest stability of any Powermatic table saw
- Precision-ground, high luster cast iron tabletops with front and rear edge bevel
- Quick release riving knife lever for hassle free riving knife changes
Specifications
| Style (Type) |
Cabinet Table Saw |
| Arbor Diameter |
5/8" |
| Arbor Speed |
4,500 RPM |
| Blade Diameter |
10" |
| Dust Collection Required (Min.) |
400 CFM |
| Dust Port Outside Diameter |
4" |
| Gross Weight |
535 lbs. |
| Net Weight |
385 lbs. |
| Maximum Depth of Cut at 45° |
2-1/8" |
| Maximum Diameter of Dado |
8" |
| Maximum Rip Left of Blade |
13-1/2" |
| Maximum Rip Right of Blade |
50" |
| Maximum Width of Dado |
13/16" |
| Miter Gauge Type |
T-Slot with Stops |
| Motor Amps |
4.9 Amps |
| Motor Power |
3 HP |
| Motor Voltage |
230V |
| Prewired Voltage |
230V |
| Recommended Circuit Size |
20 Amps |
| Overall Dimensions (L × W × H) |
84-3/4" × 39-1/8" × 40-3/8" |
| Table Height from Floor |
35" |
| Table Size (L × W) |
30-1/2" × 22" |
| Table Type |
Cast Iron |
What our Experts Think
Q&A
Q: What is the Powermatic PM2000B Table Saw?
A: The Powermatic PM2000B is a professional cabinet-style table saw designed for accurate ripping, crosscutting, and heavy-duty woodworking applications.
Q: What motor does the PM9-PM23150RK use?
A: It features a powerful 3 HP, single-phase, 230V motor for reliable cutting performance in professional workshops.
Q: What is the rip capacity of this table saw?
A: It offers a 50-inch rip capacity, allowing users to cut large panels and wide materials with ease.
Q: Does it include the Accu-Fence system?
A: Yes, the Accu-Fence system provides precise fence alignment and repeatable cuts for improved accuracy.
Q: What blade size does the PM2000B use?
A: It uses a 10-inch blade designed for a wide range of ripping and crosscutting tasks.
Q: What is the benefit of the Rout-R-Lift System?
A: The integrated Rout-R-Lift system provides convenient router height adjustments and expands the table saw’s woodworking capabilities.
Q: Does it have safety features?
A: Yes, it includes a quick-release riving knife, magnetic safety switch, and arbor lock for safer operation.
Q: Is the saw stable during operation?
A: Yes, the heavy-duty cabinet design, cast iron table, and rigid trunnion system help reduce vibration and maintain accuracy.
Q: Does it support dust collection?
A: Yes, it includes a 4-inch dust port for efficient dust extraction and cleaner shop operation.
Q: Is the PM2000B suitable for professional woodworking shops?
A: Yes, its powerful motor, large rip capacity, and precision features make it ideal for cabinet makers and production environments.
Q: Why choose the Powermatic PM2000B Table Saw?
A: It combines power, precision control, advanced safety features, and durable construction for dependable professional woodworking results.
Maintenance Tips
- Clean sawdust and debris regularly from the blade area, cabinet, trunnion, and dust collection system.
- Keep the cast iron table and extension wings clean and apply protective wax to prevent rust.
- Inspect the saw blade regularly for sharpness, damage, and proper alignment for clean cuts.
- Check and adjust the Accu-Fence system, blade alignment, and miter gauge to maintain cutting accuracy.
- Clean the Rout-R-Lift system and remove dust buildup around moving components.
- Lubricate elevation, tilt, and adjustment mechanisms to ensure smooth operation.
- Maintain dust collection hoses and ports to improve airflow and reduce internal buildup.
- Inspect belts, motor components, switches, and electrical connections for wear.
- Check safety features such as the blade guard and riving knife before operation.
- Tighten bolts, handles, and hardware periodically to maintain stability.
- Store the table saw in a dry workshop environment to protect against corrosion.
