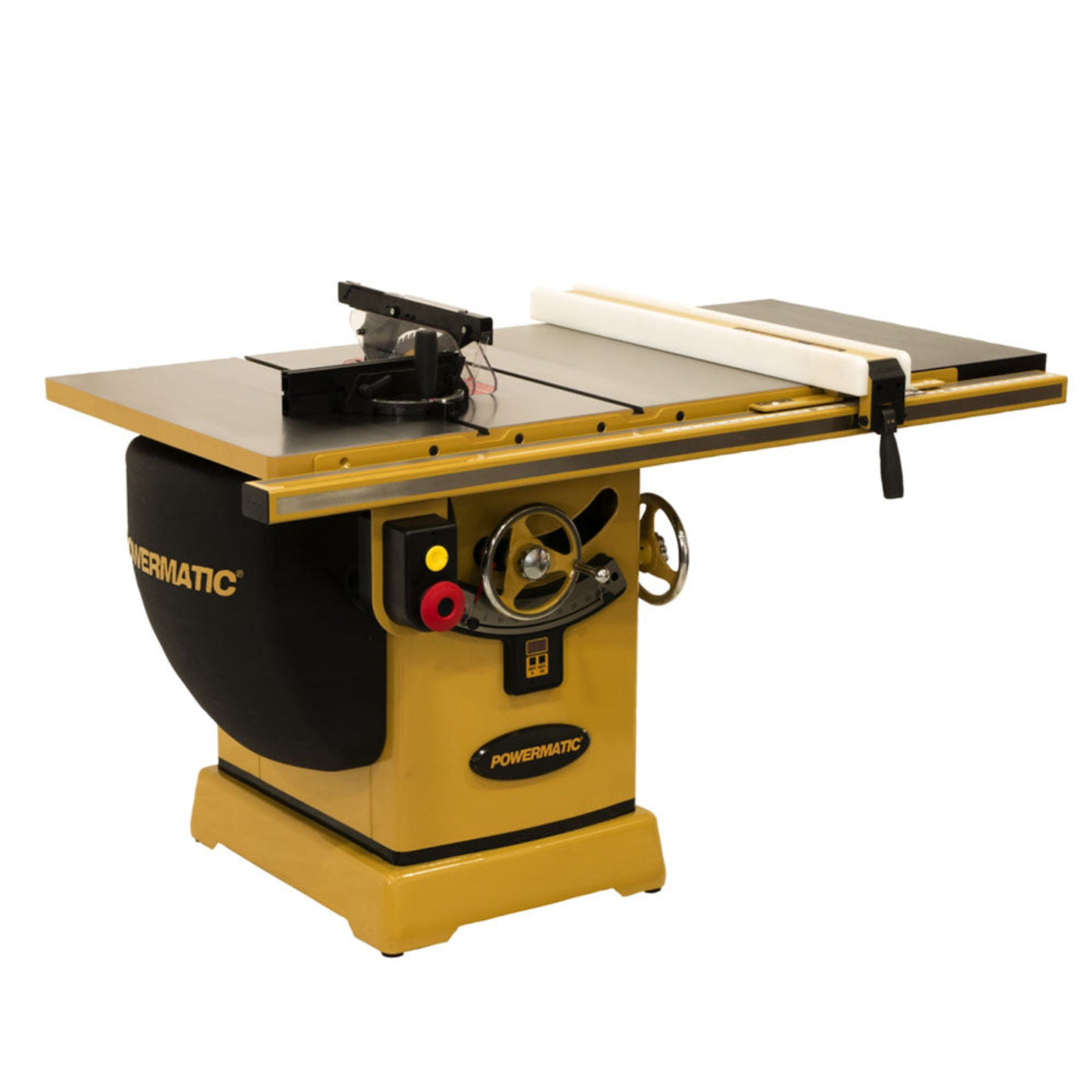

Powermatic PM2000B 30" Table Saw with Accu-Fence 3hp, 1PH, 230V - PM9-PM23130K
The award winning Powermatic PM2000 table saw sets a new standard for innovation with an array of patented features and massive body design. It boasts the heaviest cast iron base in its class that virtually eliminates table vibration. The cast iron tables are oversized, and the push button arbor lock is accessible from above the table top to eliminate the need for dual arbor wrenches. The quick-release riving knife design helps reduce the chance of kickback. The blade tilt scale has adjustable angle indicators for repetitive bevel cuts.
Built-in retractable omni-directional caster system mobilizes your table saw. A wide stance, heavy-duty trunnion and concave teeth on the trunnion gears promote easier raising and tilting of saw blade. Poly-V drive belt system results in quieter, more efficient power transfer from the motor to the arbor with virtually no vibration and less heat build up. Built-in dust collection port with sloped cabinet floor and convenient access to the inside of the saw cabinet make for simple clean-up. The saw has a proprietary safety switch with magnetic interlock, and the stop button can be knee activated.
Features
- Adjustable angle indicators on the blade bevel scale for repeatable bevel cuts
- Arbor lock for quick and easy blade changes
- Integrated digital read out for precise bevel cuts
- Integrated dust collection
- Integrated hydraulic castor system for ease of movement around the shop
- Matching beveled edge between table and extension wings
- One-piece cast iron box trunnion provides the strongest stability of any Powermatic table saw
- Precision-ground, high luster cast iron tabletops with front and rear edge bevel
- Quick release riving knife lever for hassle free riving knife changes
Specifications
| Style (Type) |
Cabinet Table Saw |
| Arbor Diameter |
5/8" |
| Arbor Speed |
4,500 RPM |
| Blade Diameter |
10" |
| Dust Collection Required (Min.) |
400 CFM |
| Dust Port Outside Diameter |
4" |
| Gross Weight |
535 lbs. |
| Maximum Depth of Cut at 45° |
2-1/8" |
| Maximum Diameter of Dado |
8" |
| Maximum Rip Left of Blade |
13-1/2" |
| Maximum Rip Right of Blade |
30" |
| Maximum Width of Dado |
13/16" |
| Miter Gauge Type |
T-Slot with Stops |
| Motor Amps |
4.9 Amps |
| Motor Power |
3 HP |
| Overall Dimensions (L × W × H) |
66-3/4" × 39-1/8" × 40-3/8" |
| Prewired Voltage |
230V |
| Recommended Circuit Size |
20 Amps |
| Table Height from Floor |
35" |
| Table Size (L × W) |
30-1/2" × 22" |
| Table Type |
Cast Iron |
What our Experts Think
-
Professional Table Saw Performance – Designed for serious woodworking shops needing accuracy, power, and long-term reliability.
-
Powerful 3HP Motor – Delivers smooth cutting performance for hardwoods, panels, furniture parts, and demanding projects.
-
30" Rip Capacity with Accu-Fence – Provides precise, repeatable fence positioning for consistent cuts and improved workflow.
-
Heavy-Duty Cabinet Design – Rigid construction helps reduce vibration while maintaining blade alignment and cutting accuracy.
-
10" Blade Capacity – Handles a wide range of ripping, crosscutting, and general woodworking applications.
-
Precision Control Features – Built with advanced adjustment systems to support accurate bevels, blade positioning, and repeatable results.
-
Smooth Workshop Operation – Engineered for stable performance and efficient dust management in professional environments.
-
230V Single-Phase Setup – Suitable for many professional and advanced home workshop installations.
Q&A
Q: What is the Powermatic PM2000B Table Saw used for?
A: The PM2000B is a professional cabinet table saw designed for accurate ripping, crosscutting, and woodworking applications.
Q: What makes the Accu-Fence system useful?
A: The Accu-Fence provides precise fence positioning, stability, and repeatable alignment for consistent cuts.
Q: Is the PM2000B suitable for professional woodworking?
A: Yes, its 3 HP motor, heavy-duty cabinet design, and precision components make it ideal for workshops, cabinetmakers, and furniture builders.
Q: What power requirements does this table saw need?
A: This model uses a 3 HP motor with 230V single-phase power.
Q: What is the benefit of the 30" rip capacity?
A: The 30" rip capacity provides room for cutting common boards, panels, and larger workpieces efficiently.
Q: Does the PM2000B include safety features?
A: Yes, it includes a quick-release riving knife system and design features that help support safer operation.
Q: What blade size does the PM2000B use?
A: It uses a 10" blade capacity for versatile ripping and crosscutting tasks.
Q: Who is the Powermatic PM2000B ideal for?
A: It is ideal for professional woodworkers, cabinet shops, furniture makers, and serious woodworking enthusiasts.
Maintenance Tips
- Clean sawdust and debris from the blade area, table, and cabinet regularly.
- Keep the cast iron table clean and apply protective coating to prevent rust.
- Inspect the blade often and replace dull or damaged blades for accurate cuts.
- Check blade alignment, height, and bevel adjustments periodically.
- Clean and maintain the Accu-Fence system for smooth, precise positioning.
- Lubricate gears, elevation mechanisms, and moving parts as recommended.
- Inspect belts, pulleys, and drive components for wear or damage.
- Keep dust collection ports clear for efficient airflow and cleaner operation.
- Check electrical connections, switches, and cords before use.
- Tighten bolts, handles, and hardware regularly for safe operation.
