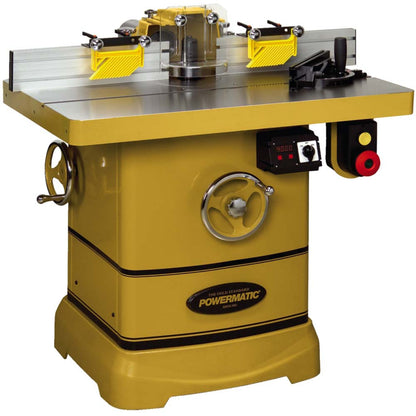

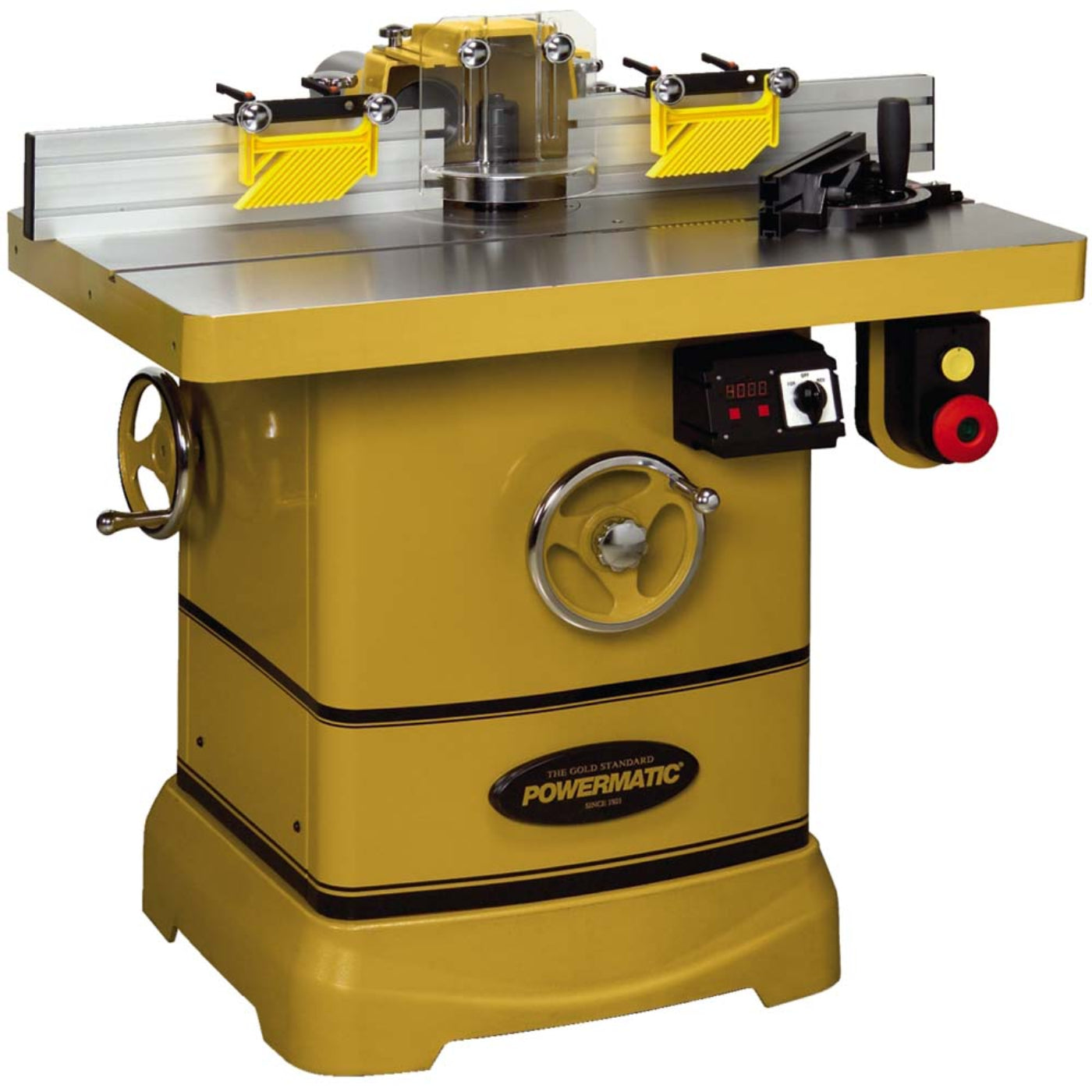

Powermatic PM2700 Shaper 5hp, 1 PH, 230V - PM9-1280101C
The Powermatic PM2700 Shaper offers more features to you than any other shaper in the same class. The extra large 30" x 40" precision ground cast iron table includes a heavy duty miter gauge with an aluminum extruded support. The built-in, omni-directional caster system (patent pending) is retractable into the base. A quick-release lever allows fast speed and belt changes.
The extruded aluminum fence has several T-slots so you can mount a wood face to create a no-clearance surface around any shaper or router bit. The fence also gives you the ability to quickly move the fence close to its final position, lock it in and then use the precision micro adjustments on each side of the cutter to dial in exactly the position you need. Adding to the precision of this machine is a digital readout for the spindle height. This allows making adjustments to within .001" in the spindle height, which is critical when aligning rail and stile cutters for those raised panel doors.
Features
- Digital readout gives the use exact spindle height and allows for .001" adjustments
- Heavy duty 30" x 40" precision ground tabletop for smooth stock feeding
- Heavy duty cast iron base
- Includes 3/4" and 1-1/4" spindles
- Independently adjustable fence sides
- Integrated casters can be raised and lowered to mobilize shaper
- Micro adjust control knobs allow for precision adjustment for the fence
- Superior clear cutter guard promotes safety, allows observation of the entire cut
- Table predrilled and tapped for feeder mounting in two locations
- Two speed reversible spindle speeds
Specifications
| Style (Type) |
Shaper |
| Dust Collection Minimum Required |
600 CFM |
| Dust Port Outside Diameter |
4" |
| Maximum Spindle Diameter |
1-1/4" |
| Motor Amps |
14 Amps |
| Motor Phase |
1 Phase |
| Motor Power |
5 HP |
| Motor Voltage |
230V |
| Prewired Voltage |
230V |
| Recommended Circuit Size |
30 Amps |
| Spindle Travel |
4" |
What our Experts Think
-
Professional Shaping Performance: The Powermatic PM2700 PM9-1280101C is built for serious woodworking shops, delivering powerful and precise shaping performance for cabinetry, furniture, doors, and custom woodworking projects.
-
Powerful 5 HP Motor: The industrial-duty 5 HP motor provides consistent cutting power for demanding shaping tasks, helping maintain smooth results across different materials.
-
Large Precision Work Surface: The 30" x 40" precision-ground cast iron table offers excellent stability, smooth stock feeding, and reduced vibration during operation.
-
Accurate Spindle Adjustments: The digital spindle height readout allows fine adjustments up to .001", making repeat cuts and detailed profiling much easier.
-
Flexible Cutting Options: Dual spindle speeds and interchangeable spindle sizes provide versatility for a wide range of shaping applications.
-
Shop-Friendly Design: Integrated casters, quick belt tensioning, adjustable fence controls, and dual dust ports improve workflow efficiency and convenience.
-
Built for Long-Term Reliability: Heavy-duty cast iron construction and precision components make this shaper a dependable choice for professional woodworking environments
Q&A
Q: What is the Powermatic PM2700 Shaper?
A: The Powermatic PM2700 is a professional woodworking shaper designed for precision edge forming, profiling, raised panels, and furniture-making applications.
Q: What motor does the PM9-1280101C use?
A: It features a powerful 5 HP, single-phase, 230V motor built for demanding woodworking operations.
Q: What projects can this shaper handle?
A: It is ideal for creating decorative edges, moldings, cabinet components, doors, and custom woodworking profiles.
Q: Does it have precision adjustment features?
A: Yes, the PM2700 includes a digital spindle height readout with fine adjustment capability for repeatable and accurate setups.
Q: What table size does the shaper provide?
A: It features a large 30" x 40" precision-ground cast iron table for stable material support and smooth feeding.
Q: What spindle sizes are included?
A: It includes 3/4" and 1-1/4" spindle options for versatile cutter compatibility.
Q: Does it have multiple spindle speeds?
A: Yes, it offers reversible spindle speeds of 7,500 and 10,000 RPM for different cutting applications.
Q: Is the PM2700 easy to move around a shop?
A: Yes, it includes an integrated caster system that allows convenient machine mobility when needed.
Q: Does it support dust collection?
A: Yes, it includes dual 4-inch dust ports for efficient dust extraction.
Q: Is this shaper suitable for professional workshops?
A: Yes, its heavy-duty construction, powerful motor, and precision controls make it suitable for professional woodworking shops.
Q: Why choose the Powermatic PM2700 Shaper?
A: It combines industrial power, accurate adjustments, durable construction, and versatile shaping capability for high-quality woodworking results.
Maintenance Tips
-
Clean sawdust, chips, and debris regularly from the table, spindle area, fence, and dust ports to maintain smooth operation.
-
Keep the precision-ground cast iron table clean and dry; apply protective wax when needed to prevent rust and improve material feeding.
- Inspect cutters, spindle, and collets regularly; replace worn or damaged cutting tools to maintain clean shaping results.
- Maintain proper dust collection through the 4" dust ports to reduce buildup around internal components.
-
Check the fence alignment, spindle height adjustment, and digital readout periodically for accurate setups.
- Lubricate moving parts, height adjustment mechanisms, and belt components according to maintenance guidelines.
- Inspect belts, motor parts, switches, and electrical connections for wear or loose connections.
- Tighten bolts, handles, and hardware regularly to maintain stability during heavy-duty work.
- Keep the machine in a dry workshop environment and cover it during long storage periods.
- Follow safe operating practices and use proper guards and hold-downs during operation.
