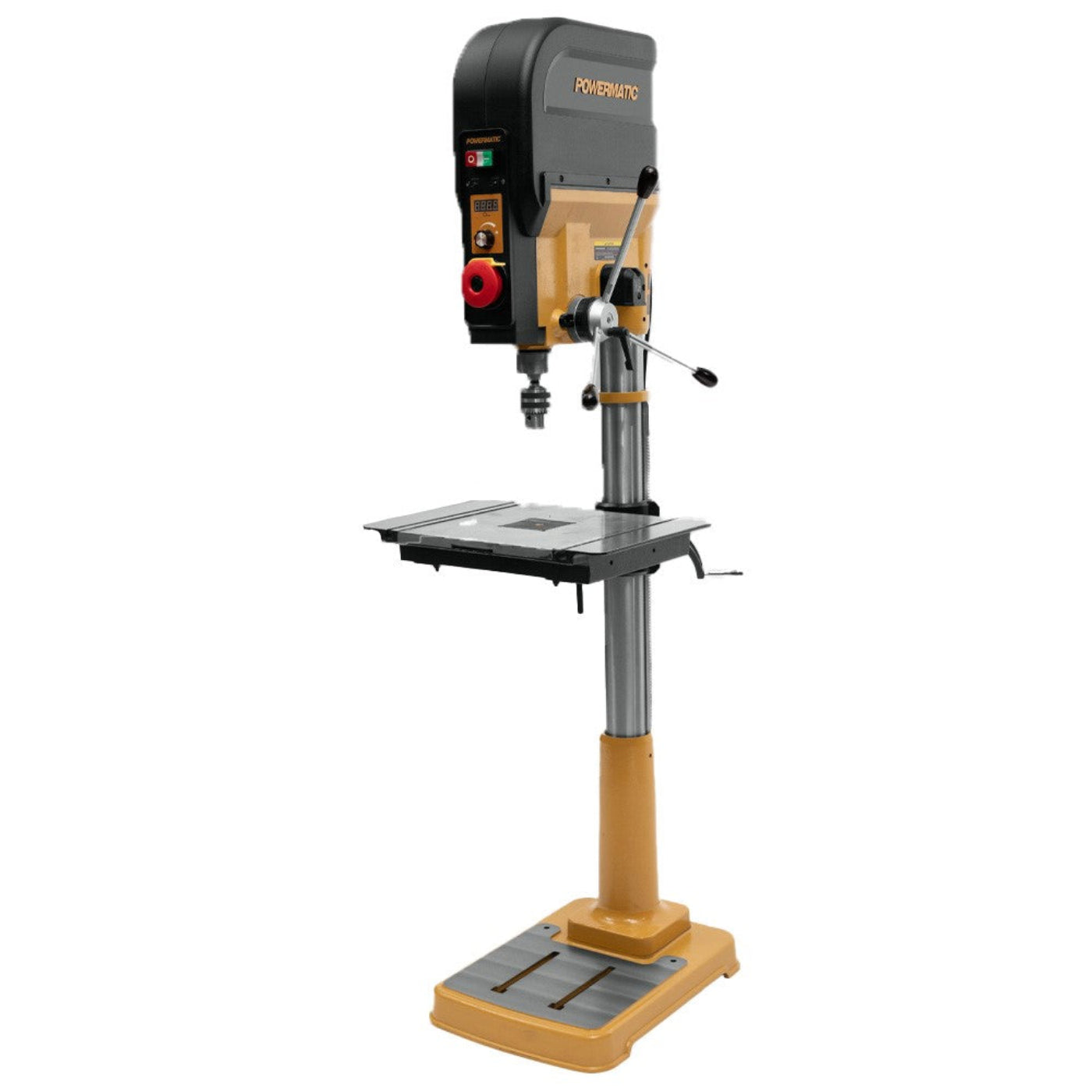

Gear up for the Ultimate Performance with the Powermatic PM2820EVS Drill Press. The gear driven power transfers torque consistently and efficiently for any project in a wide range of materials. A removable cast table with 45° rotation has capacity for projects large and small. The high visibility laser pinpoints the drilling location for total accuracy. Included fence and stop help make repeat and production drilling efficient. Handles can be moved to right or left for ease of use. Oversized cast base give this drill press stability. Integrated LED light reduces shadows for project visibility.
Features
For unbeatable accuracy, the laser cross hairs provide precise tool point indication
Gear driven power transfers torque consistently and efficiently for a wide range of materials
Handles can be reversed for left or right sided operation
Highly visible digital readout gives users control
Includes Powermatic's patented integrated depth stop for efficient drilling
Includes the most versatile table in the drill press market. Allows insert to be removed for better access to oversized pieces
Standing on an oversized cast base for outstanding stability for the 20" swing
The electronic variable speed means torque is not lost using either the higher or low speed settings
The large cast table adjusts to a range of positions and tilts to a 90° position
Specifications
Style (Type)
Floor Drill Press
Base Dimensions
22.7" × 16.3" × 2.75"
Base Size
22-3/4" × 16-3/8" × 2-3/4"
Base Work Table
11.81" × 12.05"
Chuck Distance to Base
41-1/4"
Chuck Distance to Table
19-1/4"
Chuck Size
5/8"
Column Diameter
3-3/8"
Fence Size (L × H)
19-3/4" × 2-5/8"
Gross Weight
413 lbs.
Net Weight
337 lbs.
Motor Power
1 HP
Motor Amps
8 Amps
Motor Voltage
120V
Prewired Voltage
115V
Number of Spindle Speeds
2 Variable
Spindle Speed
150 - 3,600 RPM
Spindle Taper
MT2
Spindle Travel
6"
Quill Diameter
2.6"
Spindle Distance to Base
45"
Spindle Distance to Table (Max.)
23"
Swing
20"
Overall Dimensions (L × W × H)
24.5" × 20.5" × 71.85"
Table Size (L × W)
20-1/2" × 15-1/2"
Table Size Fully Extended (L × W)
20-1/2" × 15-1/2"
Table Tilt
90° Left / 90° Right
Video
What our Experts Think
Professional Drill Press Performance – Designed for precision drilling with the stability and control needed for serious woodworking projects.
Variable Speed Control – Electronic speed adjustment helps match RPM to different materials and drill bit sizes for cleaner results.
Gear-Driven Power System – Delivers consistent torque transfer for smoother drilling performance across applications.
20" Swing Capacity – Large work area supports bigger projects, furniture parts, and workshop tasks.
Laser Alignment System – High-visibility laser helps position holes accurately and improves repeatability.
Integrated LED Lighting – Improves visibility around the drilling area for better control and accuracy.
Cast Iron Table & Base – Heavy construction helps reduce vibration and improves stability during operation.
Workshop-Friendly Design – Fence, stop, and adjustable features support efficient production-style drilling.
Q&A
Q: What is the Powermatic PM2820EVS Drill Press used for? A: The PM2820EVS is a 20" variable-speed floor drill press designed for accurate drilling, woodworking, and shop applications.
Q: What makes the variable speed feature useful? A: Its electronic variable speed control allows users to adjust drilling speeds for different materials and bit sizes.
Q: Is the PM2820EVS suitable for professional woodworking? A: Yes, its gear-driven power system, sturdy cast construction, and precision controls make it ideal for demanding workshops.
Q: What features improve drilling accuracy? A: It includes a high-visibility laser alignment system, digital speed control, and integrated LED lighting for better visibility.
Q: What is the drilling capacity of this model? A: It features a 20" swing, 6" spindle travel, and a 5/8" chuck for versatile drilling tasks.
Q: Can the table adjust for angled drilling? A: Yes, the cast iron table supports flexible positioning for different drilling setups.
Q: What power requirements does the PM2820EVS need? A: This model uses a 1 HP motor with 120V single-phase power.
Q: Who is the Powermatic PM2820EVS ideal for? A: It is ideal for cabinetmakers, furniture builders, professional woodworkers, and serious DIY users needing precision drilling performance.
Maintenance Tips
Clean dust, chips, and debris from the table, spindle, and work area regularly.
Keep the drill press table clean and apply light protection to prevent rust.
Lubricate the quill, column, and moving components as recommended.
Inspect drill bits, chuck, and accessories regularly for wear or damage.
Check chuck tightness and spindle alignment for accurate drilling.
Keep ventilation areas clear to prevent dust buildup and overheating.
Inspect belts, pulleys, and drive parts for wear and proper operation.
Check variable speed controls and adjustment mechanisms periodically.
Tighten bolts, handles, and hardware to maintain stability.
Inspect power cords and switches before use.
