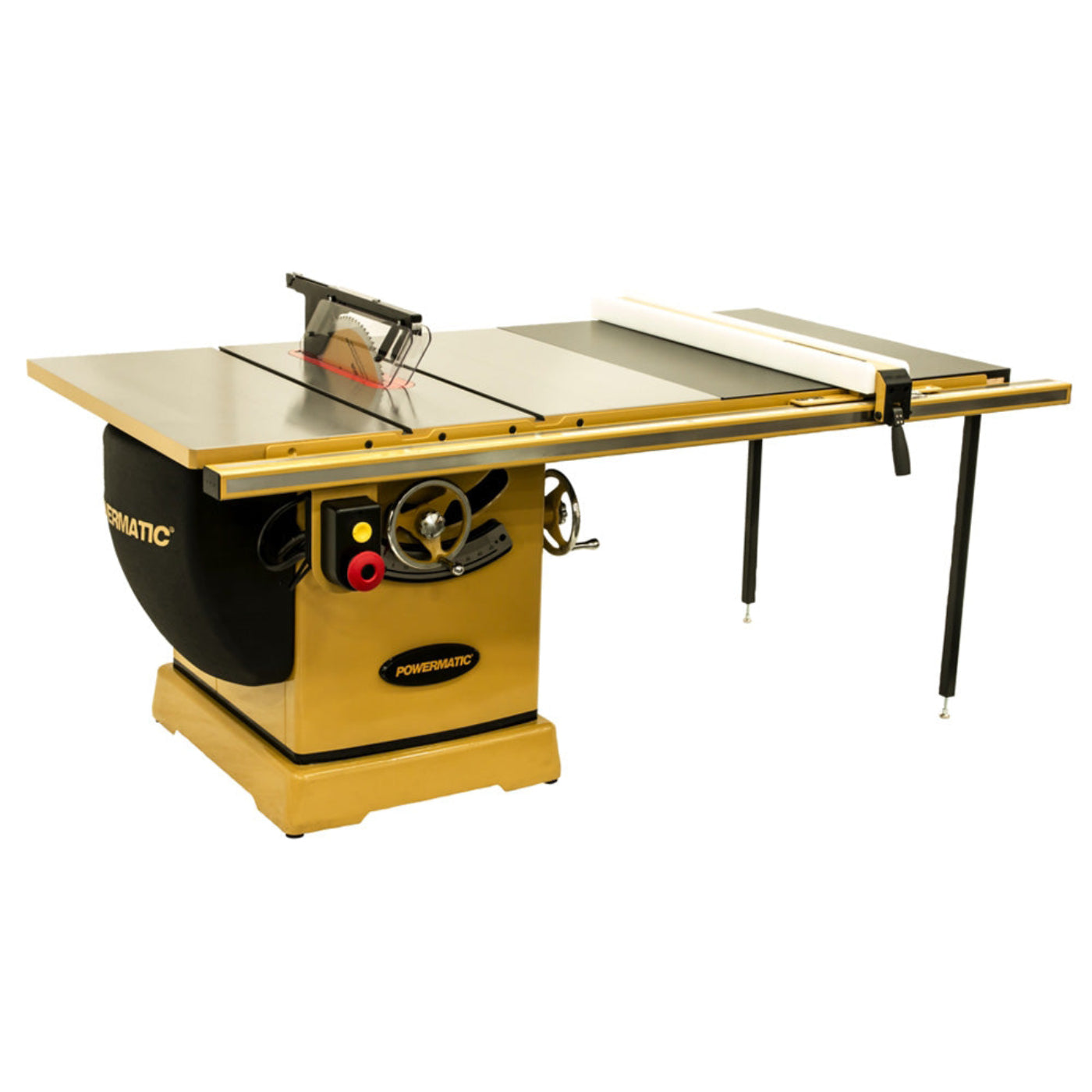

Powermatic PM3000 50" Table Saw - 7.5hp, 3ph, 230/460v - PM9-PM375350K
The PM3000B brings heavyweight performance and patented innovations to the 14-inch table saw arena. The riving knife rises and lowers with the blade, substantially reducing kickback risk; and both riving knife and blade guard each have a quick-release, so mounting and removing them is fast and tool-free. A wide-stance trunnion and concave teeth on the trunnion gears promote smooth blade raising/tilting.
The Poly-V drive belt system results in quieter, more efficient power transfer with virtually no vibration and less heat build-up. A newly designed push button arbor lock is accessible from above the table top and eliminates the need for dual arbor wrenches. Sloped cabinet floor, dust shroud around the blade, and built-in port for dust extraction.
Features
- Adjustable angle indicators on the blade bevel scale for repeatable bevel cuts
- Adjustable miter gauge
- Arbor lock for rapid blade change
- Heavy-duty micro adjustable miter gauge with aluminum extruded fence, for good workpiece and fine angle adjustments
- Industrial magnetic switch has an easy-to-access, large ON/OFF switch with a built-in power indicator light and a removable magnetic safety key
- Industrial-duty Accu-Fence System ensures accurate cuts and increased safety
- One piece, cast iron trunnion provides the strongest stability of any Powermatic table saw.
- Poly-V drive belt system delivers efficient, quiet operation
- Push-button arbor lock for rapid blade change
- Quick-release riving knife lever for hassle-free riving knife changes
Specifications
| Style (Type) |
Cabinet Table Saw |
| Arbor Diameter |
1" |
| Arbor Speed |
4,500 RPM |
| Blade Diameter |
14" |
| Dust Collection Minimum Required |
600 CFM |
| Dust Port Outside Diameter |
4" |
| Gross Weight |
600 lbs. |
| Net Weight |
467 lbs. |
| Max. Depth of Cut at 45° |
3-1/2" |
| Max. Depth of Cut |
3-1/2" or 5-1/8" |
| Maximum Diameter of Dado |
8" |
| Maximum Rip Left of Blade |
14" |
| Maximum Rip Right of Blade |
50" |
| Maximum Width of Dado |
13/16" |
| Miter Gauge Type |
T-Slot with Stops |
| Motor Amps |
6.7 Amps |
| Motor Phase |
3 Phase |
| Motor Power |
7.5 HP |
| Motor Voltage |
230/460V |
| Prewired Voltage |
230V |
| Recommended Circuit Size |
30 Amps |
| Overall Dimensions (L × W × H) |
84-11/16" × 46-1/2" × 42-7/8" |
| Table Height from Floor |
35-1/4" |
| Table Size (L × W) |
26" × 38" |
| Table Type |
Cast Iron |
What our Experts Think
Q&A
Q: What is the Powermatic PM3000 Table Saw?
A: The Powermatic PM3000B is a professional cabinet-style table saw designed for precision ripping, crosscutting, and heavy-duty woodworking applications.
Q: What motor does the PM9-PM375350K use?
A: It features a powerful 7.5 HP, 3-phase motor with 230/460V capability for demanding production environments.
Q: What is the rip capacity of this table saw?
A: The saw provides a 50-inch rip capacity with the Accu-Fence system for accurate cutting of large panels and wide stock.
Q: Does it include the Accu-Fence system?
A: Yes, the Accu-Fence provides stable support and precise fence alignment for repeatable professional cuts.
Q: What blade size does the PM3000 use?
A: It uses a 14-inch blade with a heavy-duty cabinet design built for large-scale woodworking tasks.
Q: Does it have safety features?
A: Yes, it includes a quick-release riving knife, blade guard system, and arbor lock for safer and easier operation.
Q: Is the saw stable during heavy cutting?
A: Yes, the cast iron trunnion, rigid cabinet construction, and precision components help reduce vibration and maintain accuracy.
Q: Does it support dust collection?
A: Yes, it includes a 4-inch dust port for efficient dust extraction and cleaner shop operation.
Q: Is the PM3000 suitable for professional workshops?
A: Yes, its industrial motor, large rip capacity, and durable construction make it ideal for cabinet shops and production woodworking facilities.
Q: Why choose the Powermatic PM3000 Table Saw?
A: It combines high-power performance, precision cutting control, advanced safety features, and heavy-duty durability for professional woodworking results.
Maintenance Tips
- Clean sawdust and debris regularly from the blade area, cabinet, trunnion, and dust collection system.
- Keep the cast iron table and extension surfaces clean and apply protective wax to prevent rust.
- Inspect the saw blade frequently for sharpness, damage, and proper alignment; replace dull blades when needed.
- Check and adjust the fence system, blade alignment, and miter gauge for accurate cuts.
- Maintain the dust collection ports and hoses to prevent buildup and maintain airflow.
- Lubricate elevation and tilt mechanisms to keep adjustments smooth.
- Inspect belts, motor components, switches, and electrical connections for wear.
- Clean and inspect safety components such as the blade guard and riving knife.
- Tighten bolts, handles, and hardware regularly to reduce vibration.
- Keep the table saw in a dry workshop environment to prevent corrosion.
