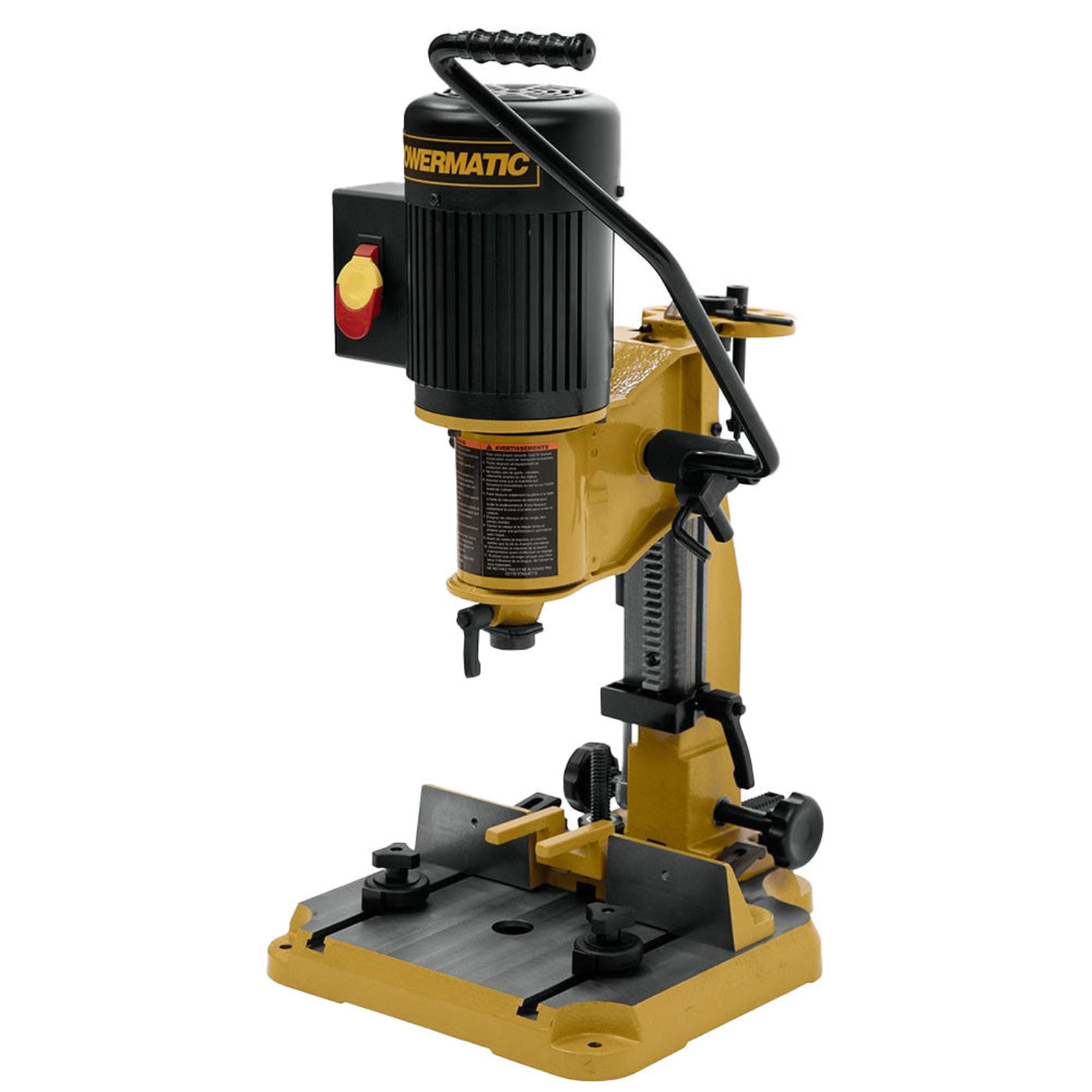

Powermatic PM701 Mortiser - PM9-1791310
The design criteria for the Powermatic 701 Benchtop Mortiser was clear accuracy, durability, and user-friendly operation. The design process was further guided by a list of the features and concerns frequently expressed by woodworkers. The result is the groundbreaking Powermatic 701 Benchtop Mortiser you see here.
Accuracy and durability are based on oversized iron castings that form the base, column, head and fence. These crucial pieces are precisely cast and machined to create a super-stable platform that supports an industry-leading array of features. This foundation also means that the Powermatic 701 Benchtop Mortiser will be a cherished tool for generations.
The plunge action of the head is driven by a true rack and pinion gear system, operated by a large 23" long, solid steel arm. Effort is drastically reduced which means mortising in the toughest of woods with the precision you need has never been easier.
To make the Powermatic 701 Benchtop Mortiser equally comfortable for left and right handed operators, the lever arm can be mounted on the left or right side of the head by simply removing a finger-operated knob and moving the assembly to an identical spline on the other side. Both splines have ten positions so the lever arm can be quickly located for the best range of motion.
Most mortisers have their depth stop located to the side or ahead of the line of force where it can induce racking of the head and deflection of the bit. That deflection drastically increases lateral friction on the bit and compromises accuracy. To eliminate this problem, the Powermatic 701 Benchtop Mortiser depth stop is located on the column, directly on the line of force.
Equipped with a 3/4hp motor (1,725 rpm), the 701 Benchtop Mortiser features plenty of power and torque to drive the largest chisel and bit combinations in the toughest woods. The additional power also means that it runs easier and cooler, extending its life considerably.
Features
- Heavy-duty reversible handle can be installed to either side of the head without tools
- Inline depth stop allows stopping at pre-set depths without racking the bit to the base
- 2" riser block for more over-table capacity
- Extra long solid steel arm
- Integrated chisel and tool holder with sharpening stone
- Large work surfaces on both table and fence for greater stability and accuracy
- Large, hinged chuck door with magnetic catch for rapid access to the chuck
- Quick action cam lock will quickly lock fence in position with one 90° movement
- Rack and pinion design for simple fence adjustments
- Stock hold-down with a double lock system, top and side, to eliminate slippage of workpiece
- Two integrated bit and chisel spacers for quick set up
Specifications
| Style (Type) |
Benchtop |
| Spindle Speed |
1,725 RPM |
| Chuck Size |
1/2" |
| Motor Power |
3/4 HP |
| Under Hold-Down |
5" |
| Motor Phase |
1 Phase |
| Motor Voltage |
115/230V |
| Prewired Voltage |
115V |
| Motor Amps |
15 Amps |
What our Experts Think
-
Precision Mortising Performance – Designed for accurate mortise-and-tenon joinery, making it ideal for furniture, cabinetry, and fine woodworking projects.
-
Powerful 3/4HP Motor – Provides dependable cutting performance for hardwood and everyday workshop applications.
-
5-1/2" Chisel Stroke – Offers practical depth capacity for creating strong, clean mortises.
-
Benchtop Space-Saving Design – Delivers professional mortising capability while fitting smaller workshops.
-
Quick-Action Fence System – Rack-and-pinion fence with cam lock helps improve setup speed and repeatable positioning.
-
Secure Workholding – Dual-lock hold-down system helps keep material stable during chiseling for better accuracy.
-
User-Friendly Adjustments – Reversible handle and accessible controls support comfortable operation from different setups.
-
Organized Workshop Tool – Integrated chisel and tool holder keeps essential accessories within easy reach.
Q&A
Q: What is the Powermatic PM701 Mortiser used for?
A: The PM701 is a benchtop mortiser designed for creating precise square mortises for joinery, furniture, and woodworking projects.
Q: What power requirements does the PM701 need?
A: It features a 3/4 HP motor and operates on 115V or 230V single-phase power.
Q: What is the mortising capacity of this machine?
A: The PM701 supports up to a 3/4" chisel capacity with a 5-1/2" chisel stroke for versatile joinery work.
Q: What features improve accuracy?
A: It includes a rack-and-pinion fence, quick-action cam lock, depth stop, and dual-lock hold-down system for stable, repeatable cuts.
Q: Is the PM701 suitable for professional woodworking?
A: Yes, its heavy-duty construction and precision controls make it suitable for furniture makers, cabinetmakers, and serious woodworkers.
Q: Can the operating handle be adjusted?
A: Yes, the reversible handle can be installed on either side without tools for flexible workshop setup.
Q: Does it save workspace?
A: Yes, the compact benchtop design provides mortising capability while taking up less shop space.
Q: Who is the Powermatic PM701 Mortiser ideal for?
A: It is ideal for woodworkers, cabinetmakers, furniture builders, and hobbyists needing accurate mortise-and-tenon joinery.
Maintenance Tips
- Clean wood chips, dust, and debris from the table, chisel area, and machine after each use.
- Keep chisels and bits sharp and replace worn or damaged cutting tools.
- Remove resin buildup from chisels and augers to maintain clean mortise cuts.
- Lubricate the column, rack, and moving mechanisms as recommended.
- Check chisel alignment and quill movement for smooth, accurate operation.
- Keep the work table clean and dry for secure material positioning.
- Inspect belts, motor components, and fasteners for wear or looseness.
- Maintain proper dust collection around the cutting area.
- Tighten clamps, handles, and hardware regularly.
- Store the mortiser in a dry environment to help prevent rust and corrosion.
