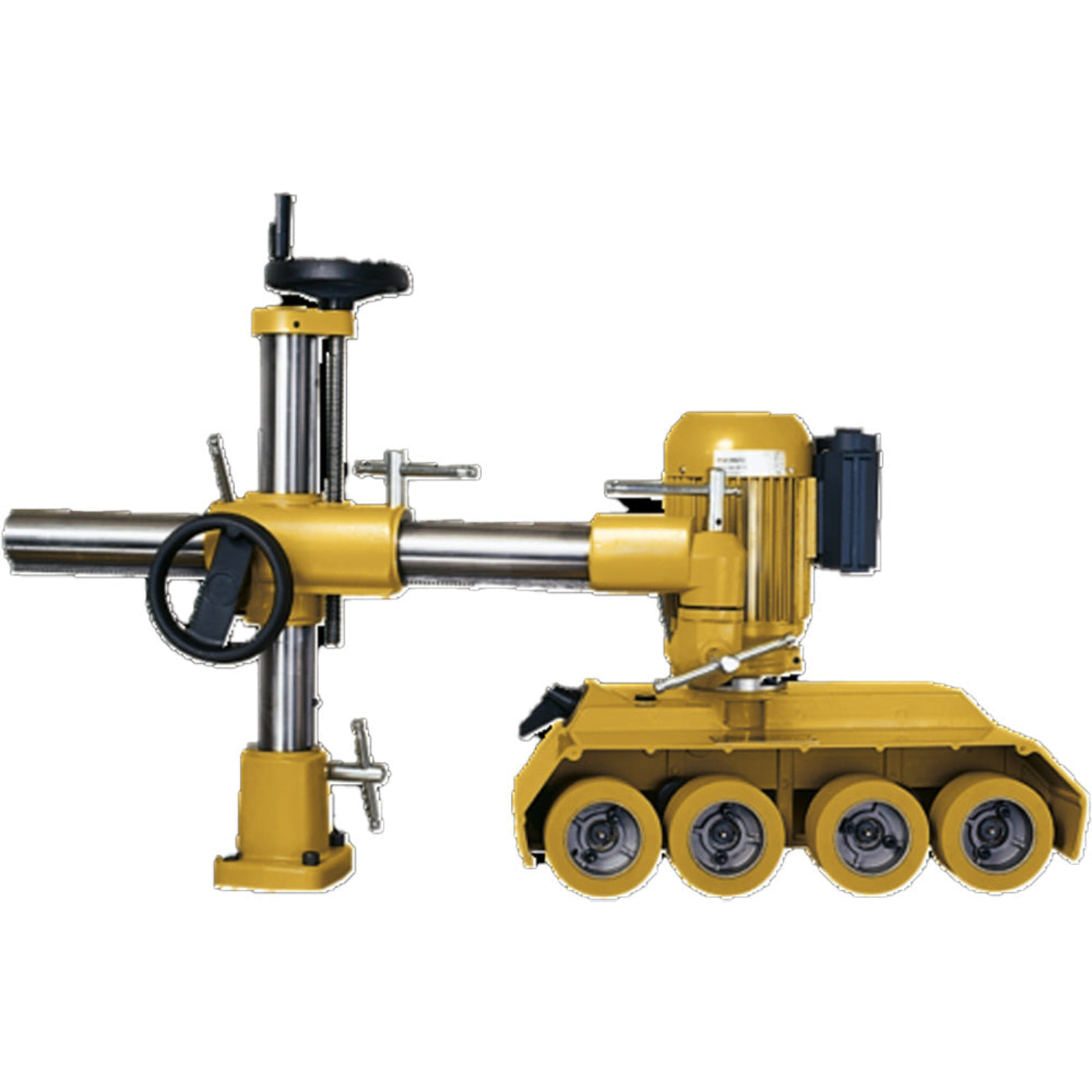

Powermatic PF-41 Power Feeder 1HP, 1-PH, 115V - PM9-1790812K
The Powermatic PF-41 is a rugged stock feeder that has been designed to provide positive, consistent feeding with all types of materials in a busy shop environment. A fully adjustable support column and arm equipped with multiple universal joints, each with tool-free locking mechanisms make it easy to use this feeder in horizontal, vertical, or angle feed configurations. The liberal use of precision machined cast iron and steel makes the PF-41 Feeder smooth running and dependable over the long run.
The Powermatic PF-41 Stock Feeder is equipped with a heavy-duty 1 HP, 115 V, single-phase motor. Powermatic motors are rated using a continuous duty cycle, rather than a "peak" or "max developed" figure. Continuous duty motors are designed to avoid overheating, and are crucial for applications requiring consistent power output. The hefty cast iron motor case with its integral cooling fins keeps operating temperatures low through extended periods of use.
The motor is controlled with an industrial style rotating switch. The switch has three positions: Off, Forward, and Reverse. Another lever-actuated switch on the feeder body shifts the feeder between high, off and low feed rates on models with 1 phase motors. The motor and switch come prewired with a 9-ft-long cord fitted with a three-prong grounding plug.
Non-marring rubber is used on the drive wheels and is formulated to provide excellent gripping characteristics, wear resistance and resilience for years of service. The roller wheels are 3/4" diameter by 2-1/4" wide and are designed to be changed easily and quickly. To help contain costs, the wheels can be changed individually rather than in full sets as required on some other feeders. Each wheel has a grease fitting at its center to keep the PF-41 Stock Feeder running smoothly. The chain and gear shafts also have grease fittings.
The steel and cast iron support column is built to be rigid and rugged. The column comes with a heavy cast iron base and an easy to use bolt pattern template that makes installation easy. The base fits the pre-drilled and tapped mounting holes in the rear corners of the PowermaticThe joints are also made from heavy iron castings and equipped with tool free locking levers that make securing the PF-41 Stock Feeder in whatever position is needed fast and easy.
Features
- Cast iron construction
- Continuous duty motors transfer power from the gear box to the feed roller
- Moveable universal joints and locking mechanisms lock the feeder in horizontal, vertical, or angle feed positions
- Roller chain and sprocket design provide positive feeding for all types of materials
- Rollers can be changed out easily and quickly
- Smart roller system allows for tire to be replaces with out replacing the assembly
- Solid cast iron construction of body pieces and base
- Support column is fully adjustable for horizontal, vertical or angled feeder position
- Universal joints provide stability for vibration free feeding
Specifications
| Style (Type) |
Power Feed / Stock Feeder |
| Feed Rate |
13 / 36 / 43 / 108 FPM |
| Max. Height of Rollers Parallel to Tabletop |
8-1/2" |
| Motor Power |
1 HP |
| Motor Voltage |
115V |
| Prewired Voltage |
115V |
| Swing |
360° |
What our Experts Think
- The Powermatic PF-41 Power Feeder 1HP 1-PH 115V - PM9-1790812K is a heavy-duty woodworking accessory designed to provide consistent material feeding, improved safety, and smoother workflow.
- The 1HP continuous-duty motor delivers reliable feeding power for table saws, jointers, shapers, and other woodworking machines, helping maintain steady cuts and finishes.
- The 4-wheel roller system provides strong stock control and positive feeding, reducing manual pushing effort and improving operator consistency.
- The four-speed feed range (13, 36, 43, and 108 FPM) allows users to adjust material movement based on cutting requirements and project needs.
- The cast iron body, base, and universal joints provide excellent stability while minimizing vibration during operation.
- The adjustable support column with 360° swing capability allows horizontal, vertical, and angled feeding positions for greater machine compatibility.
- The roller chain and sprocket drive system ensures dependable power transfer and consistent feeding performance across different materials.
- The quick-change roller design makes maintenance and setup changes faster, helping reduce downtime in busy workshops.
-
Expert verdict: A professional-grade power feeder that improves cutting accuracy, operator control, and productivity for serious woodworking shops.
Q&A
Q: What is the Powermatic PF-41 Power Feeder?
A: The Powermatic PF-41 is a heavy-duty 4-wheel power feeder designed to provide consistent stock feeding for saws, shapers, routers, and other woodworking machines.
Q: What motor does the PM9-1790812K use?
A: It features a 1 HP, single-phase, 115V motor that delivers reliable continuous-duty feeding performance.
Q: How many rollers does the PF-41 have?
A: It includes a 4-wheel roller system that provides stable material support and smooth, controlled feeding.
Q: What feed speeds are available?
A: The PF-41 offers four feed speeds: 13, 36, 43, and 108 feet per minute for different woodworking applications.
Q: Can the feeder be adjusted for different setups?
A: Yes, the adjustable support column allows horizontal, vertical, and angled feeding positions.
Q: Is the PF-41 built for durability?
A: Yes, the cast iron body, base, and joints provide strength, stability, and reduced vibration during operation.
Q: Does it improve cutting consistency?
A: Yes, consistent automatic feeding helps improve accuracy, surface finish, and operator control.
Q: Are the rollers easy to replace?
A: Yes, the roller system allows quick changes to minimize downtime.
Q: Is the Powermatic PF-41 suitable for professional shops?
A: Yes, its powerful motor and rigid construction make it ideal for demanding woodworking environments.
Q: Why choose the Powermatic PF-41 Power Feeder?
A: It combines reliable power, adjustable positioning, and steady material feeding for safer and more efficient woodworking.
Maintenance Tips
- Clean dust, chips, and debris regularly from the rollers, gearbox, and adjustment areas.
- Inspect feed rollers for wear, buildup, or damage; clean them to maintain consistent material feeding.
- Lubricate pivot points, gears, and moving mechanisms as needed for smooth operation.
- Check roller pressure and alignment periodically for accurate stock feeding.
- Inspect belts, chains, and drive components for wear or loose parts.
- Keep the motor, switches, and electrical connections free from dust buildup.
- Tighten mounting hardware, handles, and adjustment knobs regularly.
- Check the power feeder mounting system for stability before operation.
- Avoid overloading the feeder to prevent unnecessary wear on components.
- Store the unit in a clean, dry workshop environment to prevent corrosion.
