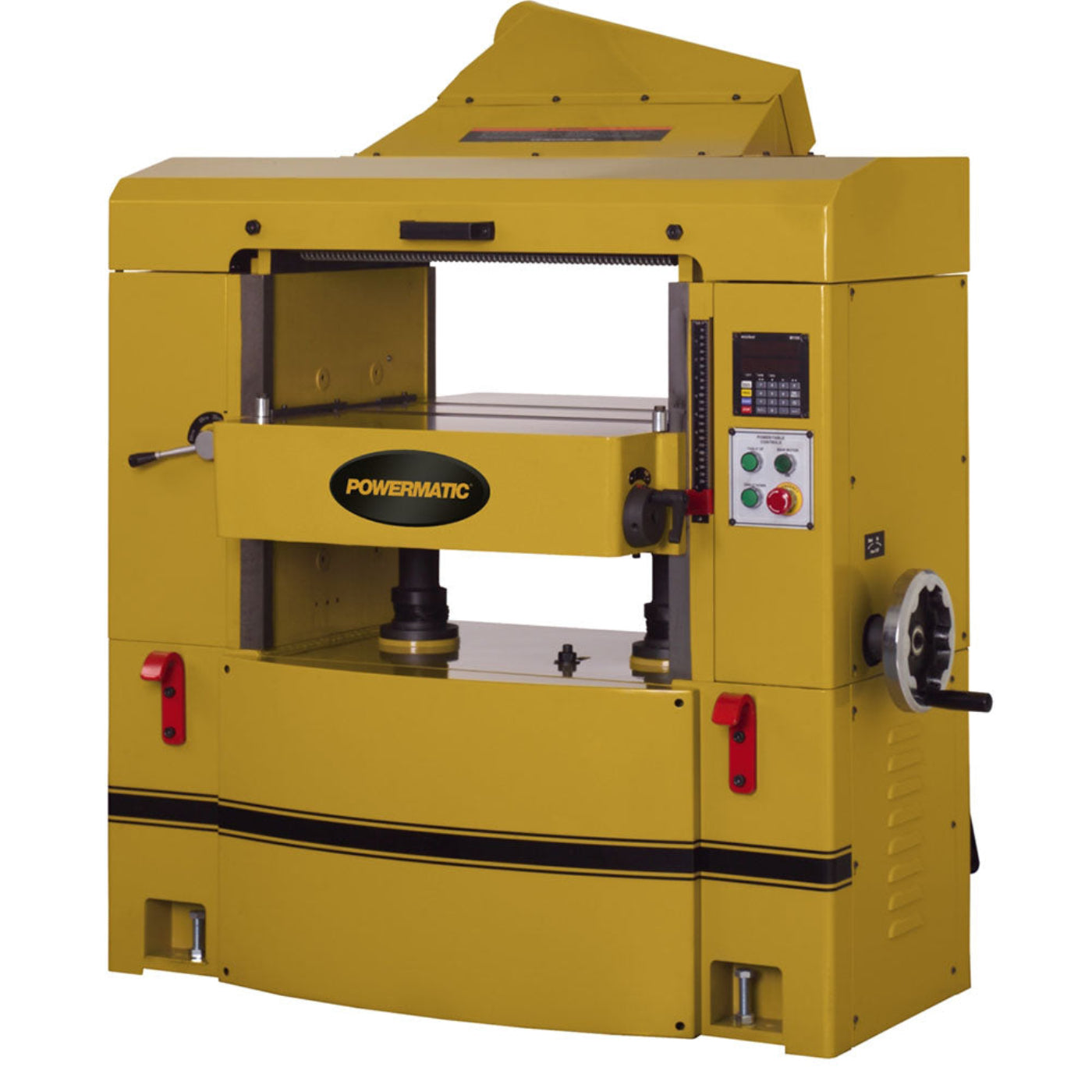

Powermatic WP2510 25" Helical Head Planer - PM9-1791303
The Powermatic WP2510 Planer has a solid steel helical cutterhead with four-sided carbide knife inserts that require no adjustments when changing. With a digital readout and simple PC controller, setting up table heights is quick and easy. The frame is machined from heavy cast iron and has extra wide side panels that offer rigid bed support and ensure accurate alignment.
The planer's segmented, serrated infeed roll with segmented chip breakers has an independent yield of 1/4. Its automatically adjusting, chain drive gearbox powers the 3" diameter infeed rollers, solid pressure bar and dual outfeed rollers for precise feeding of stock. The 3-speed feed selector gives woodworkers flexibility by changing feed rates quickly and easily.
The WP2510 Planer has a large 32-3/16" x 26" precision-ground table which contains two adjustable table rollers for smooth feeding of uneven stock. The planer has a Quick-Set micro-adjustable lever that easily raises and lowers the table rollers from 0 to 0.05". The hood features a built-in 5" diameter dust chute.
Feature
- 3" diameter infeed and outfeed rollers are supported by four large needle bearings for long life
- Adjustable table
- Massive gear box maintains positive feed by using a large chain drive with automatic tensioners to power infeed and outfeed rollers
- Quick-Set micro-adjustable lever easily raises and lowers table rollers from 0" to 0.050" at a touch
- Solid pressure bar has wide foot for long wear and can be adjusted on both ends for precise feeding
- Solid steel helical insert head with 174 four-sided carbide inserts eliminates need for adjustment after changing knives, reduces sound levels
Specifications
| Style (Type) |
Floor Planer |
| Type of Cutterhead |
Helical |
| Column Diameter |
2-1/2" |
| Cuts Per Minute |
30,000 |
| Cutterhead Diameter |
3-3/8" |
| Cutterhead Speed |
5,000 RPM |
| Min. Dust Collection Required |
600 CFM |
| Dust Port Outside Diameter |
5" |
| Feed Rate |
20 / 25 / 30 FPM |
| Infeed Roller Diameter |
3" |
| Maximum Depth of Cut |
1/4" |
| Maximum Full Width Depth of Cut |
1/8" |
| Maximum Planing Width |
25" |
| Minimum Planing Length |
10" |
| Motor Amps |
37 / 18.5 Amps |
| Motor Phase |
3 Phase |
| Motor Power |
15 HP |
| Motor Voltage |
230/460V |
| Prewired Voltage |
230V |
What our Experts Think
-
Professional Planing Performance โ Designed for high-precision wood surfacing, making it ideal for professional workshops and serious woodworking projects.
-
25" Wide Capacity โ Handles larger boards and panels efficiently for furniture, cabinetry, and custom woodworking.
-
Helical Cutter Head Technology โ Provides smoother finishes, reduced tear-out, and quieter operation compared to traditional cutter heads.
-
Powerful Material Removal โ Built to deliver consistent results when working with various wood types.
-
Heavy-Duty Construction โ Engineered with durable components for stability and long-term workshop reliability.
-
Superior Finish Quality โ Helps achieve clean, professional surfaces with less sanding required.
-
Workshop Efficiency Boost โ Improves productivity by combining speed, accuracy, and dependable
Q&A
Q: What is the Powermatic WP2510 Helical Head Planer used for?
A: The WP2510 is designed for precision wood thicknessing, surfacing, and creating smooth, consistent finishes on lumber.
Q: What is the benefit of the helical cutter head?
A: The helical head provides quieter operation, smoother cuts, reduced tear-out, and improved surface quality compared to traditional cutter heads.
Q: Is the WP2510 suitable for professional woodworking?
A: Yes, its 25" capacity and heavy-duty construction make it ideal for professional shops, furniture makers, and demanding projects.
Q: What materials can this planer handle?
A: It is designed for compatible wood materials including hardwoods, softwoods, and rough lumber.
Q: Does the 25" width capacity support larger projects?
A: Yes, the wide planing capacity allows users to process larger boards and panels efficiently.
Q: What features improve planing accuracy?
A: Its rigid construction, precision feed system, and helical cutter head help deliver consistent thickness and smooth results.
Q: Is dust collection recommended?
A: Yes, using a dust collection system helps maintain a cleaner workspace and improves operating efficiency.
Q: Who is the Powermatic WP2510 ideal for?
A: It is ideal for professional woodworkers, cabinetmakers, furniture builders, and serious woodworking enthusiasts.
Maintenance Tips
- Clean wood chips and dust from the cutter head, table, and rollers after each use.
- Keep the planer table clean and apply a protective coating to prevent rust.
- Inspect helical cutter inserts regularly and rotate or replace damaged inserts as needed.
- Clean feed rollers to maintain smooth and consistent material feeding.
- Lubricate chains, gears, and moving components according to manufacturer recommendations.
- Check table alignment, height adjustment, and locking mechanisms periodically.
- Keep dust collection ports clear for efficient airflow and cleaner operation.
- Inspect belts, bearings, and drive components for wear or damage.
- Tighten bolts, screws, and hardware regularly for stable performance.
- Store the planer in a dry environment to help prevent corrosion.
