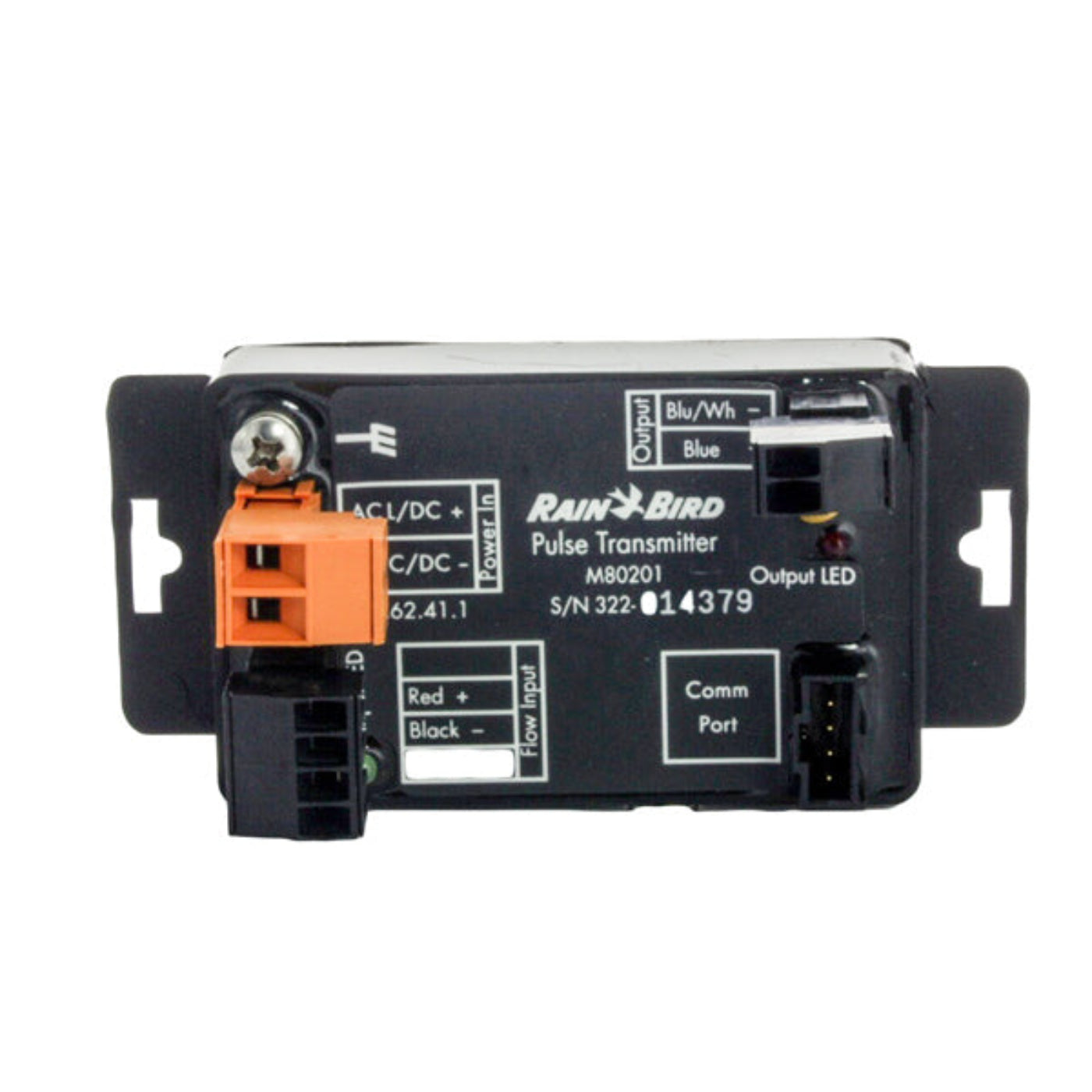

Rain Bird PT322 Pulse Transmitter (No Display) — Compact Programmable - PT322
Compact, solid-state Rain Bird PT322 pulse transmitter that delivers reliable pulse outputs from Rain Bird flow sensors for central controls and stand-alone systems. The PT322 is designed without an integrated display and is programmed using a laptop or PC, making it ideal where remote monitoring and robust connections are required.
Refer to the PT322 Pulse Transmitter Manual and Rain Bird flow sensor technical documents included with this product for detailed installation, wiring diagrams, programming software and safety guidelines.
Features
- Solid‑state pulse output with secure snap‑fit connectors for reliable signal transmission.
- Programmable via PC; supports configuration for Rain Bird FS series flow sensors and selectable k-factors.
- Two diagnostic status LEDs for easy field troubleshooting and status checks.
- Wide operating voltage range (-12 to 30 VDC/VAC) and temperature range (-20°C to 70°C) for outdoor installations.
- Compact, easy-to-mount housing compatible with Maxicom, SiteControl, MAXILink and two‑wire satellite systems.
What our Experts Think
-
Core signal translator module: The Rain Bird PT322 Pulse Transmitter is designed to convert flow sensor signals into digital pulse data for central irrigation control systems.
-
No-display, compact design: Built without an onboard screen, it relies on PC/laptop configuration—keeping the unit small, sealed, and field-robust.
-
High system compatibility: Works with Rain Bird FS series flow sensors and integrates into Maxicom, SiteControl, and other central control platforms for large-scale irrigation networks.
-
Reliable solid-state electronics: Engineered for stable long-term operation in outdoor environments with minimal maintenance requirements.
-
Two-LED diagnostics: Input/output status LEDs simplify troubleshooting and allow quick verification of signal transmission in the field.
-
PC-programmable flexibility: Configuration via software allows precise calibration (k-factor scaling) for accurate flow measurement integration.
-
Built for commercial irrigation systems: Ideal for golf courses, sports fields, and municipal landscapes where centralized monitoring and water management are critical.
-
Trade-off reality: Not a standalone controller—requires compatible central control infrastructure and proper system integration to function.
Q&A
Maintenance Tips
- Compact solid-state pulse transmitter for irrigation flow and wind sensor data
- Converts flow sensor signals into accurate pulse output for central control systems
- Compatible with Rain Bird FS series flow sensors and anemometer wind sensors
- Designed for use with Maxicom, SiteControl, MAXILink, and two-wire satellite systems
-
No local display; fully programmed via laptop/PC software
- Built-in input/output diagnostic LEDs for quick troubleshooting in the field
- Operates on 12–30 V AC/DC wide voltage range for flexible installation
- Compact, epoxy-sealed housing designed for outdoor irrigation environments
- Enables advanced irrigation features like flow monitoring, leak detection, and system shutdown integration
- Ideal for commercial irrigation, golf courses, sports fields, and large-scale landscape systems
