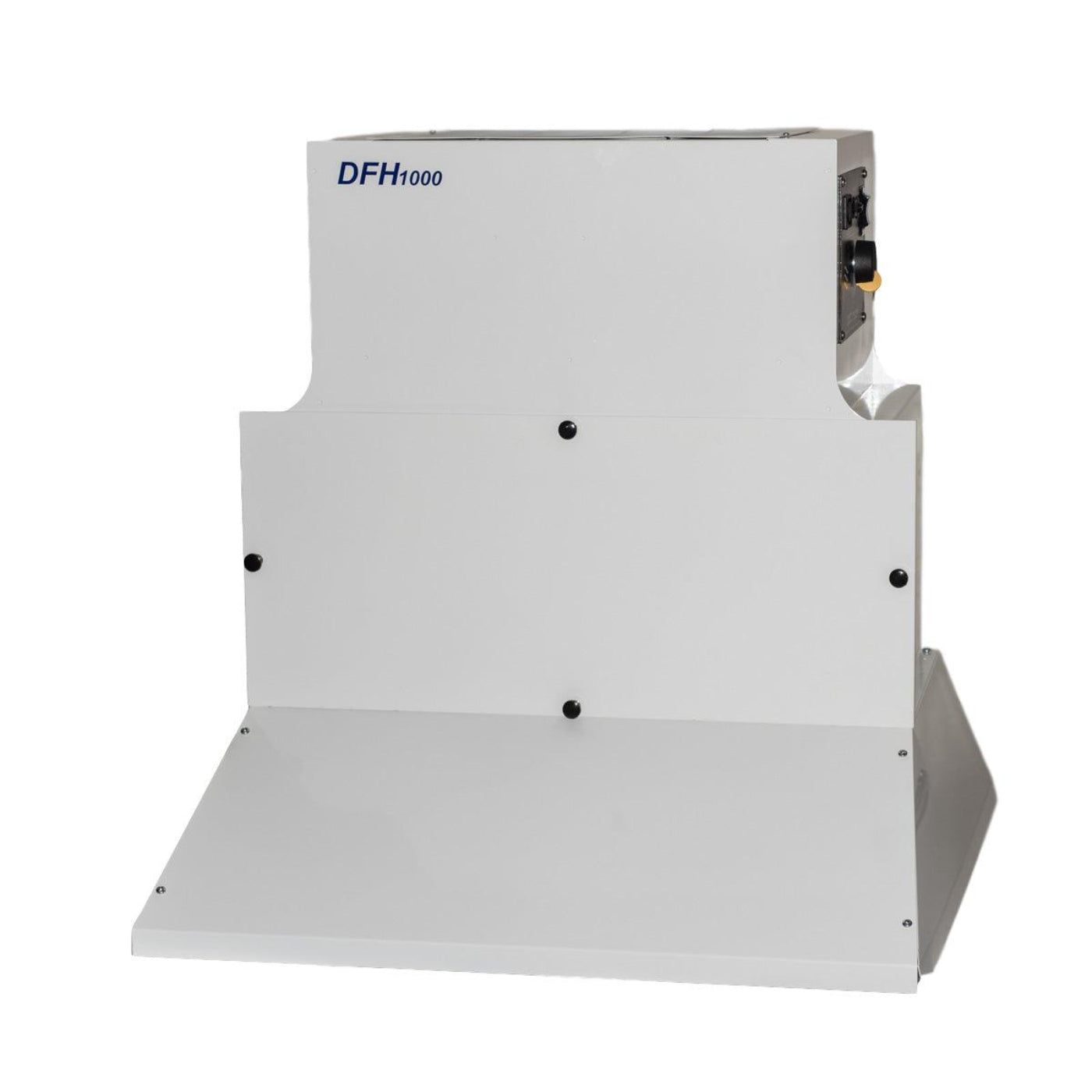

Quatro DFH-1000B Ductless Burnout Fume Hood - 147.624

Quatro DFH-1000B Ductless Burnout Fume Hood - 147.624

The Quatro DFH-1000B Ductless Burnout Fume Hood delivers effective fume and odor control for wax burnout and plating operations — no exterior venting required. Designed for jewelers and metalsmiths working in enclosed studios or spaces where ductwork is impractical, this hood captures and filters harmful fumes through a robust 4-stage filtration system that removes 99.9% of odors and fumes before recirculating clean air back into the workspace.

At 26" high by 28" wide by 18" deep, the DFH-1000B provides a substantial working volume while maintaining a manageable footprint. It ships via truck freight only and runs on standard 115V/60Hz power.

Features

• 4-stage filtration system removes 99.9% of odors and fumes
• No exterior venting or ductwork required
• Ideal for wax burnout and plating fume control
• Standard 115V/60Hz operation
• Substantial hood interior for burnout applications
• Ships via truck freight

Specifications

What our Experts Think

• ductless burnout fume hood designed specifically for wax burnout, casting prep, and resin/plating fumes where VOC control is critical.
• True 4-stage filtration system: Experts highlight its layered filtration (dust + dual carbon stages + HEPA) as highly effective, achieving up to 99.9% odor and particulate removal for enclosed studio safety.
• No external ducting required: A key advantage for small workshops—this unit recirculates cleaned air internally, making it ideal for locations where installing exhaust ductwork is impractical.
• Spacious internal working chamber: The 26" × 28" × 18" workspace provides enough volume for burnout flasks, investment materials, and small casting setups without airflow restriction issues.
• Strong odor and VOC control performance: Particularly effective at reducing burnout fumes and resin smoke, which are among the most difficult contaminants in jewelry production environments.
• Plug-and-play 110V operation: Standard power requirements make it easy to integrate into existing bench setups without electrical modification.
• Workshop safety focused design: Engineers and users consistently note its value in reducing exposure to harmful fumes in enclosed studios, improving long-term respiratory safety.
• Best suited for casting and prep stations: Recommended for jewelers, dental labs, and metalsmiths who regularly perform burnout cycles and need controlled, localized fume extraction rather than general dust collection.

Q&A

Q: What is the Quatro DFH-1000B Ductless Burnout Fume Hood used for?
A: It is a professional ductless fume hood designed to safely contain and filter hazardous fumes, smoke, and odors generated during wax burnout, casting, plating, and related jewelry or dental lab processes.

Q: Does it require external venting or ductwork?
A: No, it is a ductless system that recirculates air through a multi-stage filtration system, removing contaminants before releasing clean air back into the workspace.

Q: What makes the burnout version different from other DFH models?
A: The DFH-1000B is configured specifically for burnout applications, using a 4-stage filtration system that includes HEPA and activated carbon to handle high-odor and VOC-heavy processes.

Q: How effective is the filtration system?
A: It is designed to remove up to 99.9% of odors and airborne contaminants, making it suitable for controlled indoor workshop environments.

Q: What voltage does it use?
A: It operates on standard 115V / 60Hz power, compatible with most workshop and studio electrical setups.

Q: What are the physical size and installation requirements?
A: The unit measures approximately 26" H × 28" W × 18" D and is a countertop-style hood that ships via truck freight due to its size.

Q: Is it suitable for professional use?
A: Yes, it is built for jewelry studios, casting rooms, dental labs, and other professional environments where burnout fumes must be safely controlled.

Q: What maintenance does it require?
A: Regular replacement of multi-stage filters (dust, carbon, and HEPA) is required to maintain safe and effective airflow performance.

Maintenance Tips

• Replace filters regularly: Change HEPA and activated carbon filters on schedule to ensure safe fume capture and odor control.
• Monitor airflow performance: Reduced suction or odor breakthrough indicates clogged or saturated filters.
• Keep interior chamber clean: Wipe down after use to prevent residue buildup from burnout processes.
• Check filter seals: Ensure filters are properly seated to prevent bypass leakage.
• Inspect airflow path: Keep intake and exhaust areas clear for consistent ventilation.
• Clean exterior safely: Use a dry or slightly damp cloth; avoid chemicals near controls and electrical parts.
• Avoid overloading unit: Do not exceed recommended burnout capacity to protect motor and filtration system.
• Run periodic checks: Test smoke/fume capture efficiency regularly during operation.
• Schedule preventive maintenance: Inspect fan system and internal components for dust accumulation and wear.
