Quatro Gold Vault Extra INFINITY Dust Collector-HD-110V - 147.608HD

Quatro Gold Vault Extra INFINITY Dust Collector-HD-110V - 147.608HD

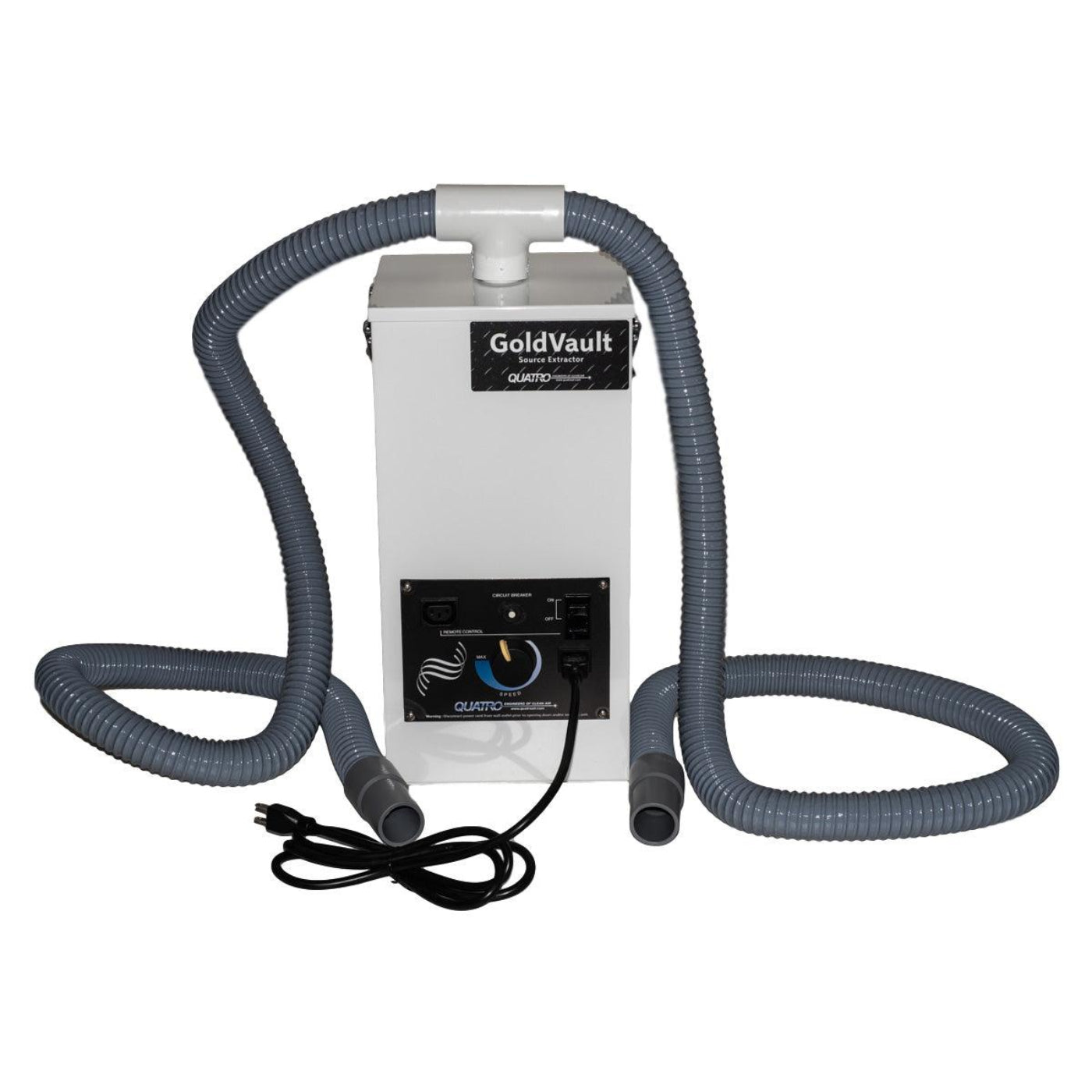

The Quatro Gold Vault Extra INFINITY Dust Collector (GV-217 KRJ, 110V) is a heavy-duty personal dust and fume collector engineered for bench-side use in professional jewelry and metalsmithing studios. This single, quiet unit combines particulate dust collection with fume and odor control through a true 3-stage filter stack: a bag pre-filter, a charcoal fume/odor filter, and a HEPA final filter — all included and installed. Powered by a variable-speed, maintenance-free INFINITY turbine motor, it delivers up to 141 CFM of capture performance while maintaining a compact 9" x 9" footprint.

Features

• Integrated dust and fume control via a 3-stage filter system with individual HEPA and charcoal filters
• Heavy-duty INFINITY turbine motor — quiet, variable speed, maintenance-free (120V, 7A, 1PH, 60Hz, 1 HP)
• Compact 9" x 9" footprint with high capture performance through a 1-1/2" inlet
• Updated control panel and upgraded filter configuration on current production models
• Designed for bench-side use in jewelry and metalsmithing studios

Specifications

What our Experts Think

Q&A

Maintenance Tips

• Empty collection system regularly: Do not allow dust buildup to exceed recommended capacity to maintain suction efficiency.
• Clean filters on schedule: Inspect and clean or replace HEPA and pre-filters as needed to prevent airflow restriction.
• Check hoses & connections: Ensure all ducts are tightly sealed to avoid suction loss and dust leakage.
• Inspect motor intake: Keep intake vents free from dust and debris for optimal motor performance.
• Monitor suction performance: A drop in suction usually indicates a clogged filter or full dust chamber.
• Wipe exterior safely: Use a dry or slightly damp cloth—avoid harsh chemicals near electrical components.
• Routine professional servicing: Schedule periodic inspection to ensure motor longevity and system calibration.
• Avoid overloading: Do not operate beyond rated capacity to prevent strain on the Infinity motor system.
