30" REFURBISHED AVAILABLE HERE: RH-SP06-30-CR-A
36" REFURBISHED AVAILABLE HERE: RH-SP06-36-CR-A
-

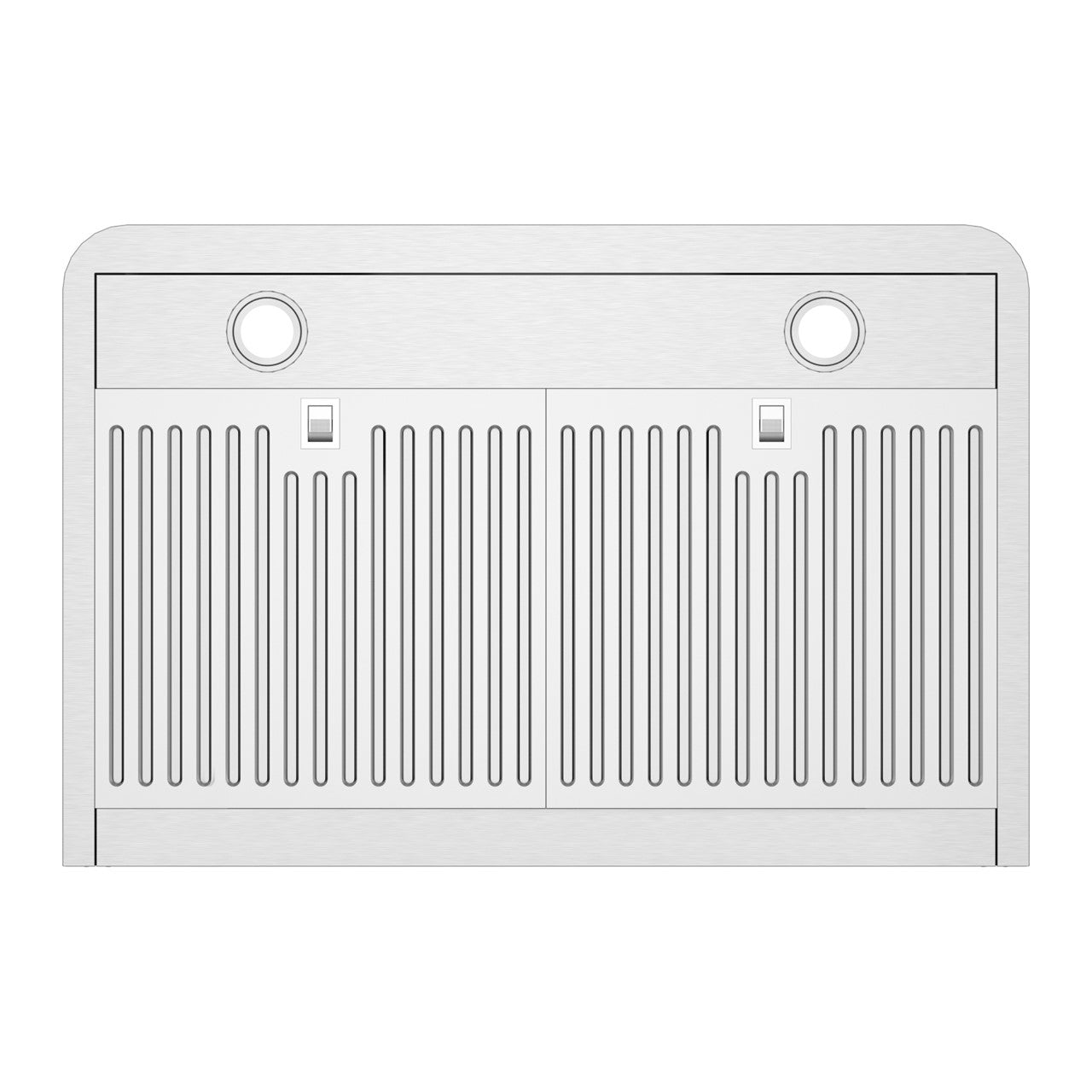

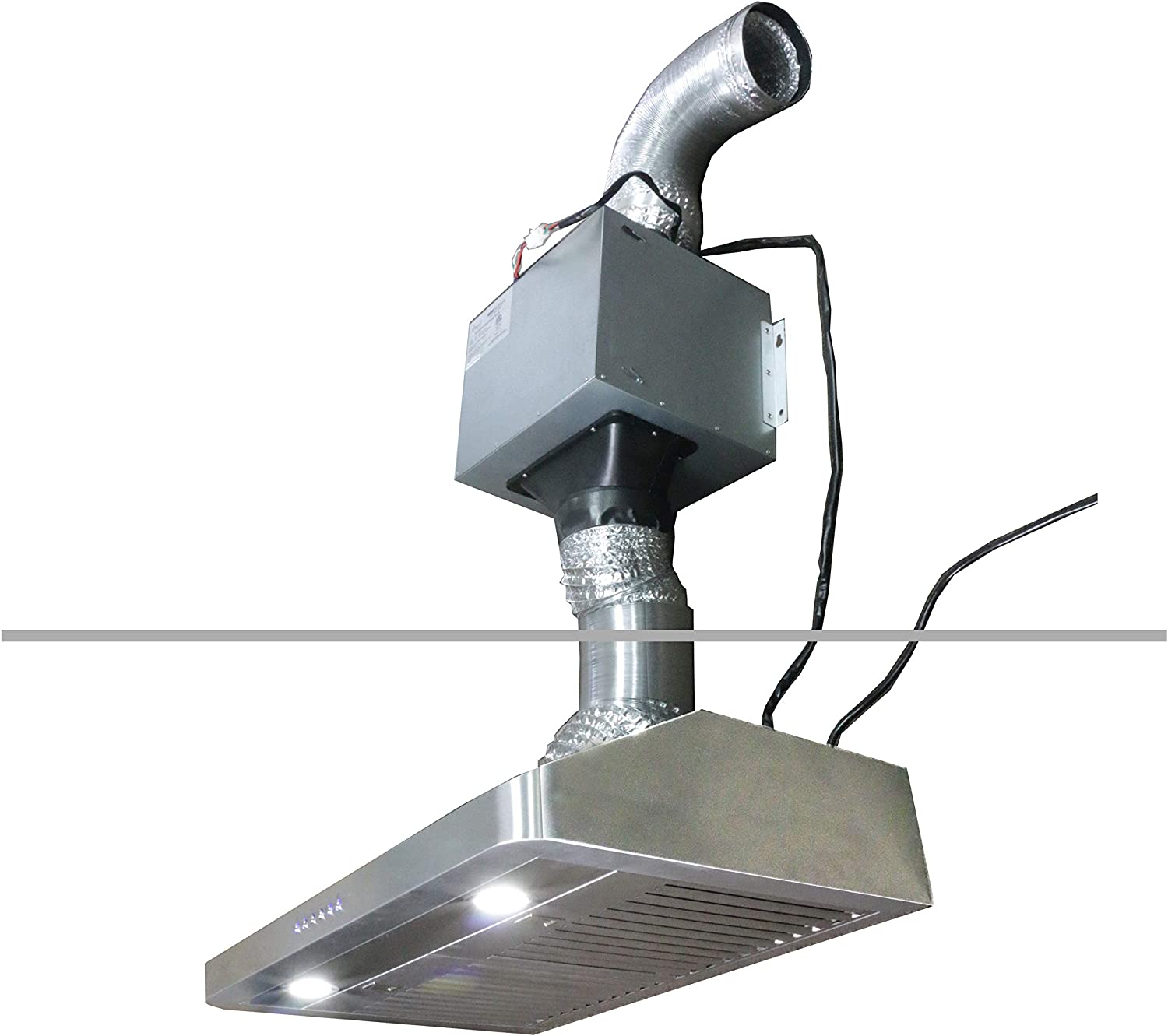

SUPER QUIET INNOVATIVE SPLIT COMPLETE SET: Quiet Split Range Hood includes Hood unit and Blower unit. This builds a super quiet split range hood system; the Blower unit is mounted in the attic. Dishwasher safe stainless steel baffle filters, the oil is contained in the baffle filters, no oil holders needed. Up to 15 minutes auto shut off to vent the leftover smoke after you are done cooking.
-

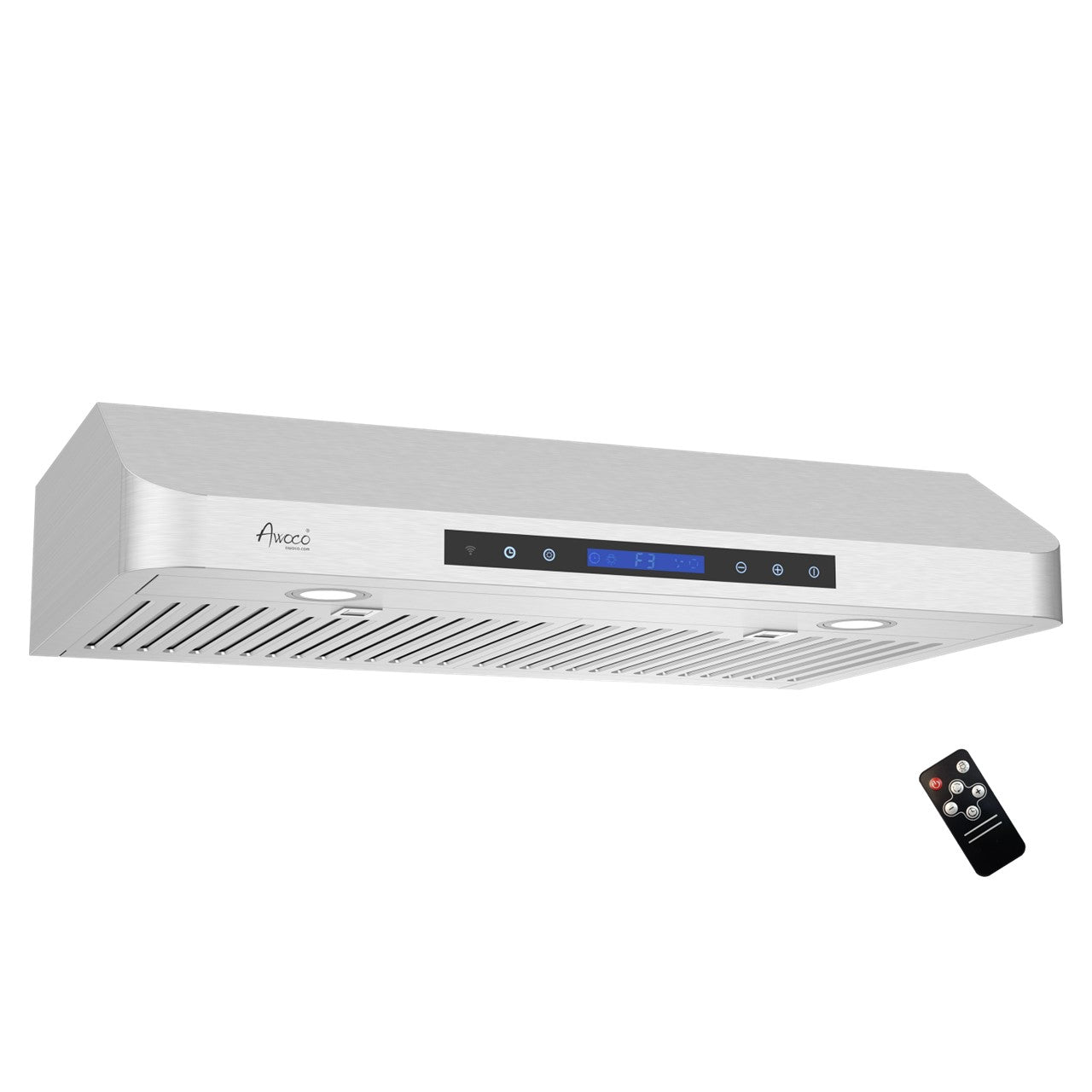

UNDER CABINET OR WALL MOUNTED: high quality stainless steel with brush finishing. 6" high, round front corners. Perfectly fit under the 12” deep standard cabinet; provide slick style and powerful performance.
-
DUCTED VENT OUTSIDE, 6” ROUND TOP VENT: 6” round top exhaust vent on Hood Unit and 6” round vent for Blower Unit. 12 ft connection wire from hood to blower unit.
-

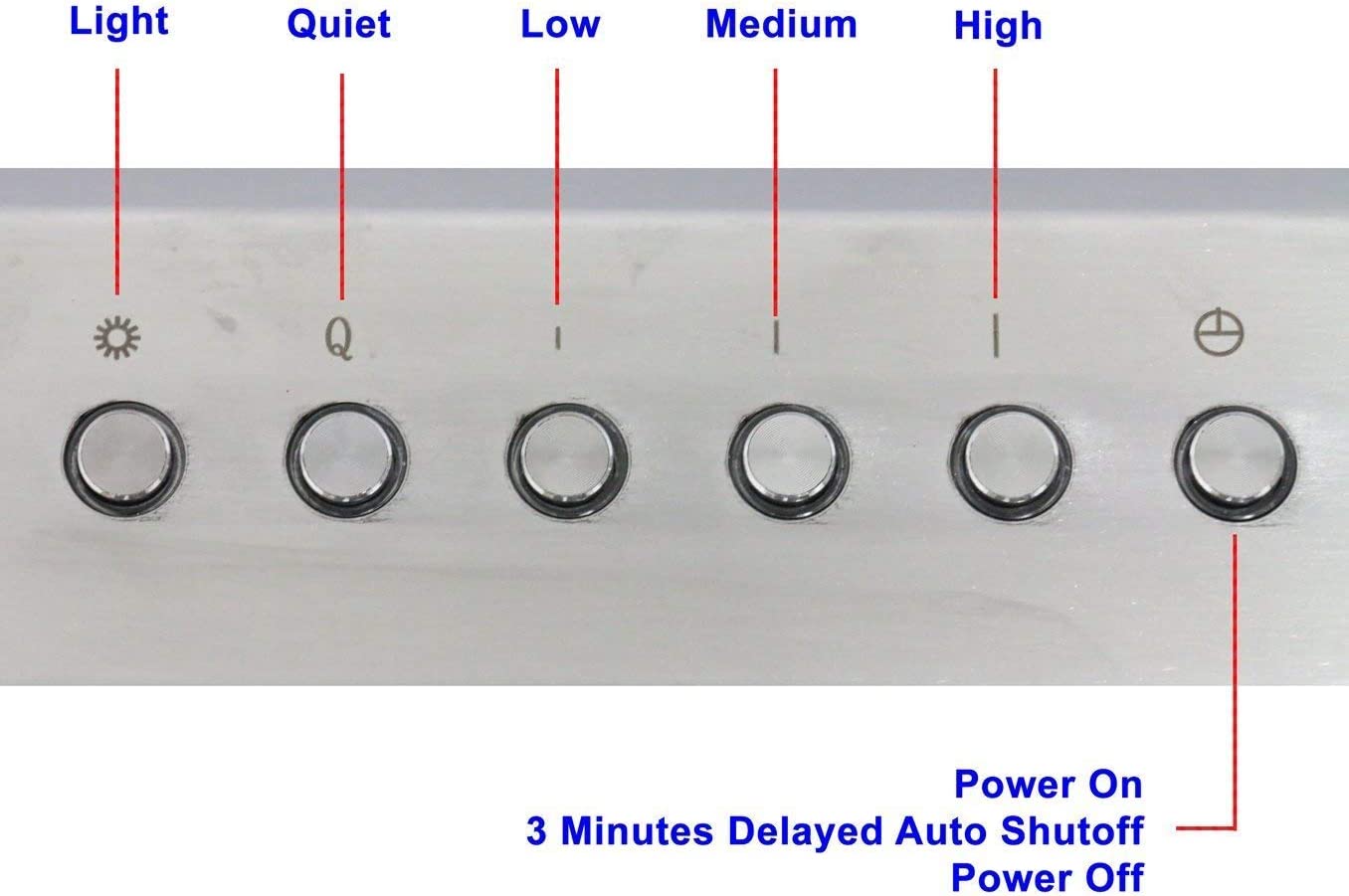

4 SPEEDS POWERFUL OPERATION WITH LED LIGHTS: 4 speeds (Quiet, I, II, III up to 800 CFM), touch panel with remote control. 12 Hr clock displayed at idle. 2 of 3W energy saving cold bright LED lights. 1 motor and 7” wide Centrifugal Squirrel Cage Fan Wheel.
-
Power Rating: 120V/60Hz, 180W Min /275W Max. Power cord with plug is included. Noise level at low: 38 dB, 2.0 sones. Noise level at high: 50 dB, 5.0 sones.
-
1 YEARS LIMITED WARRANTY: Free parts, repair or exchange within 1 year. Awoco high quality product reputation and supreme customer service is a guarantee.

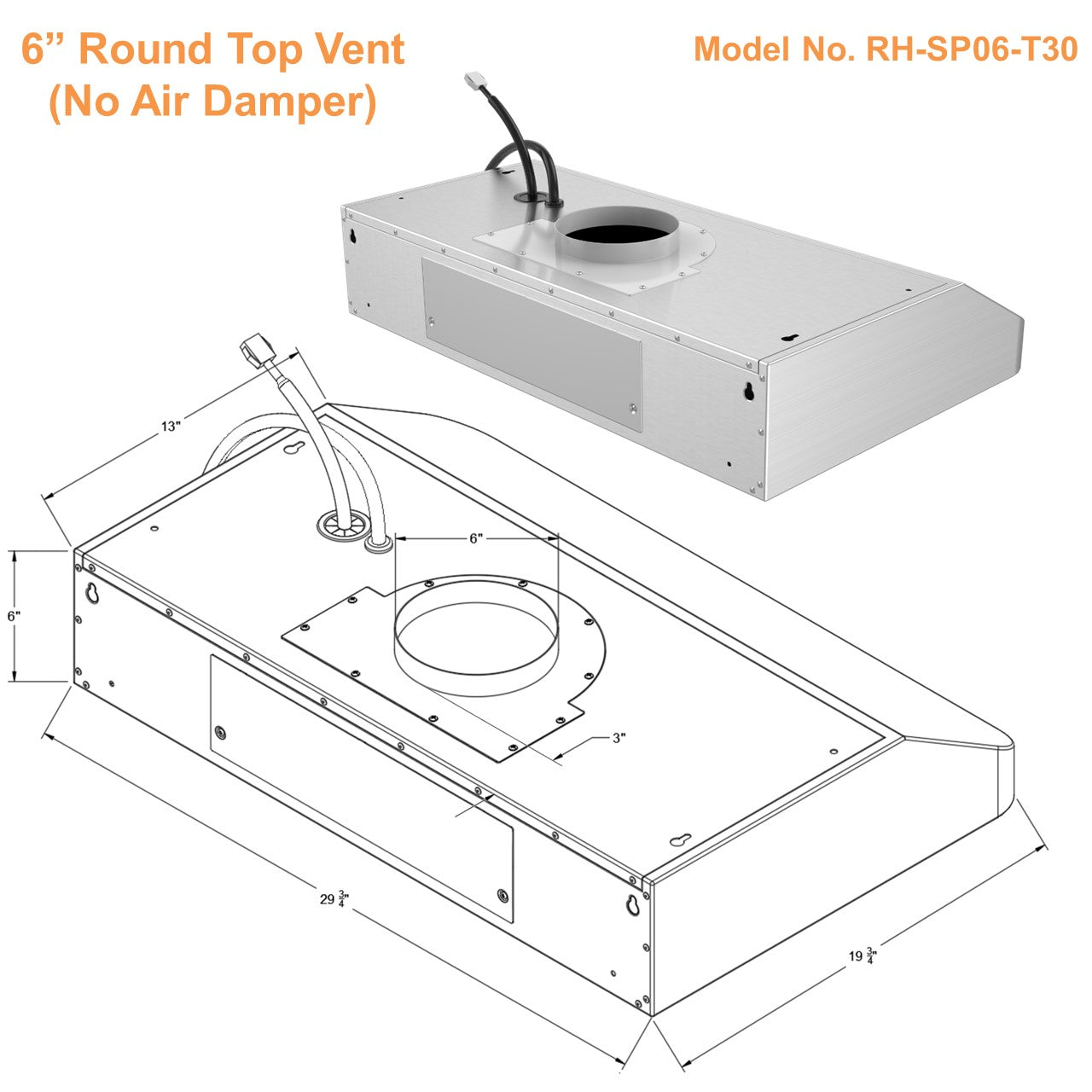

- Quiet Split Range Hood 30" Hood Dimensions: 29-3/4"W x 19-3/4"D x 6"H. Hood weight: 20 lbs.
- Quiet Split Range Hood 36" Hood Dimensions: 35-3/4"W x 19-3/4"D x 6"H. Hood weight: 23 lbs.

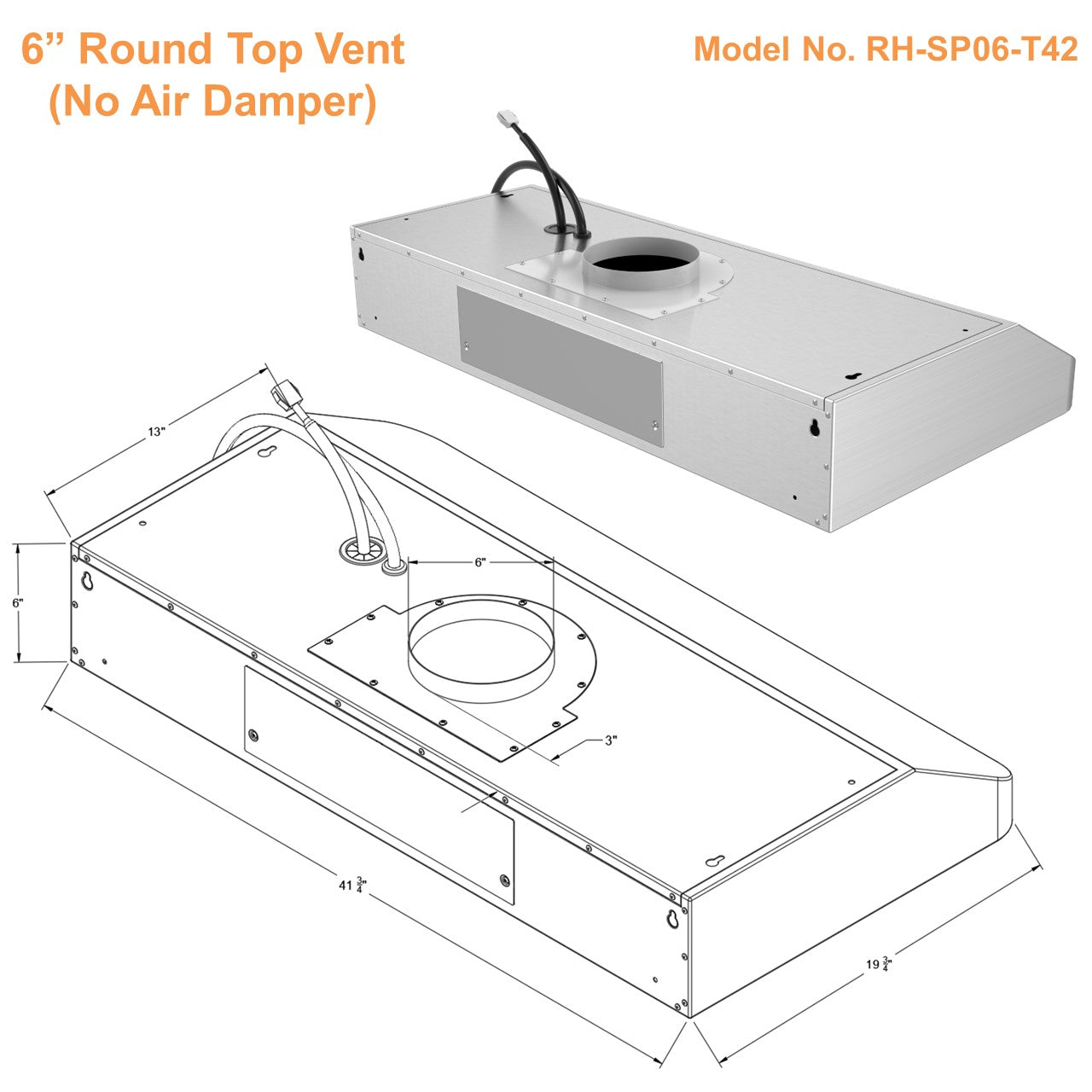

- Quiet Split Range Hood 42" Hood Dimensions: 41-3/4"W x 19-3/4"D x 6"H. Hood weight: 30 lbs.

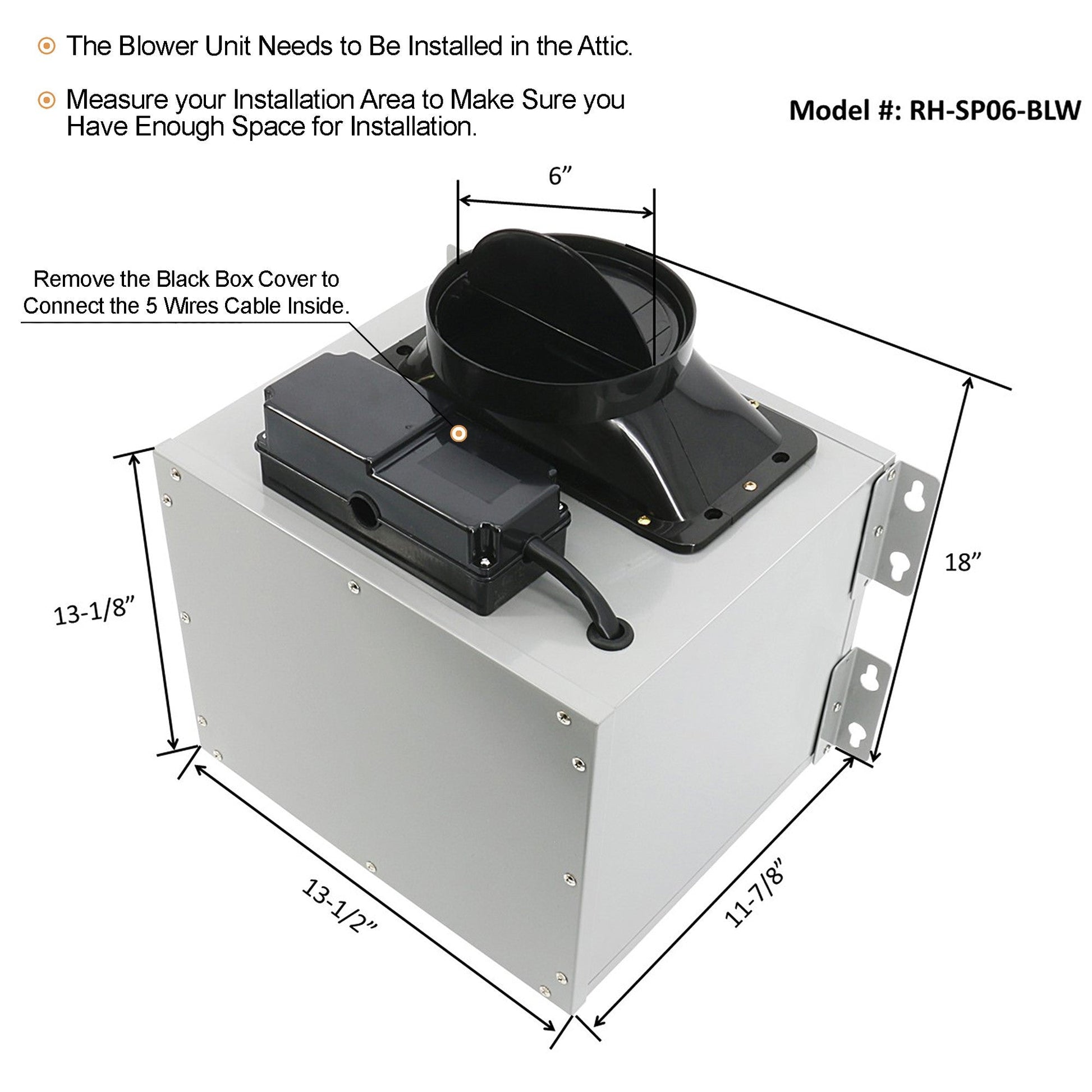

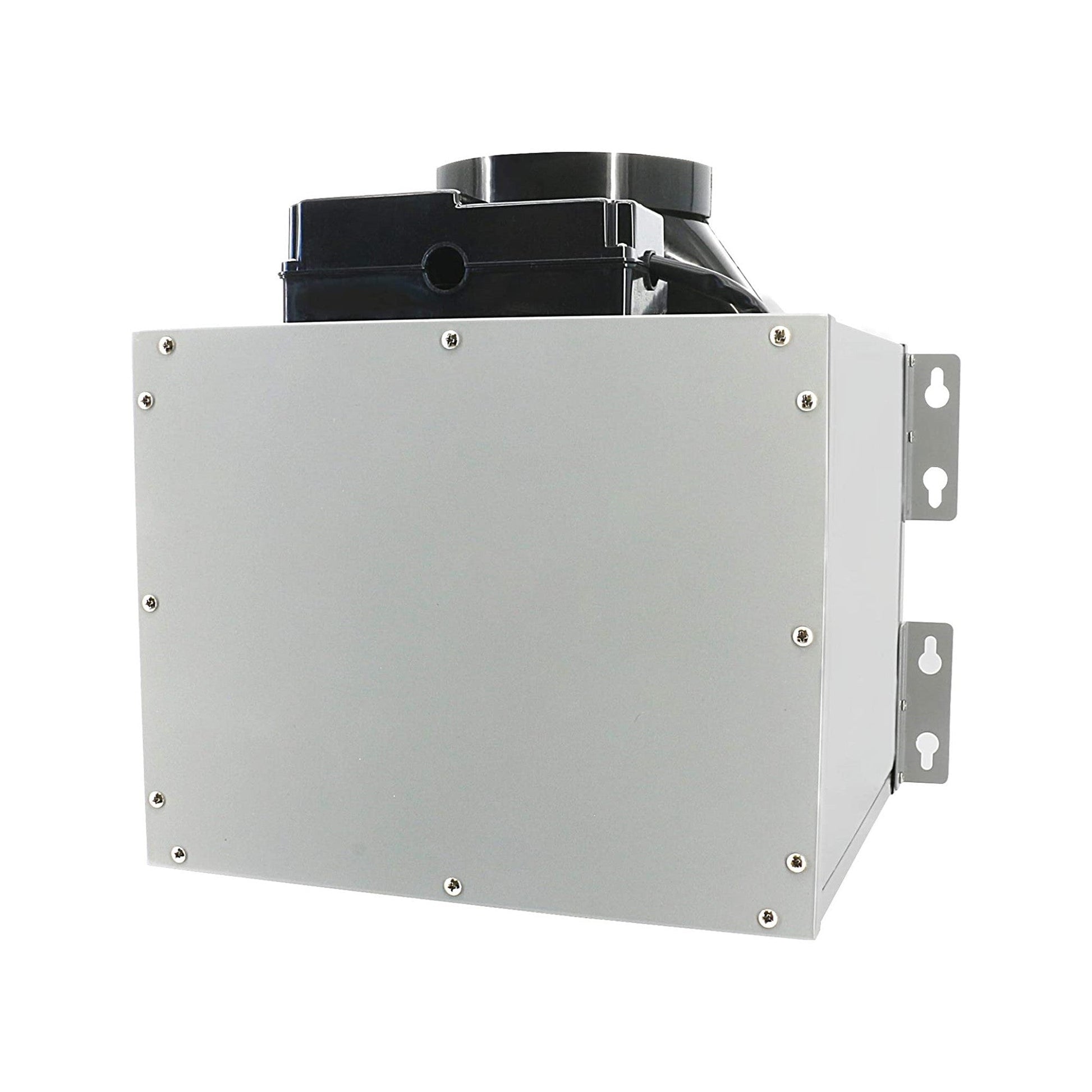

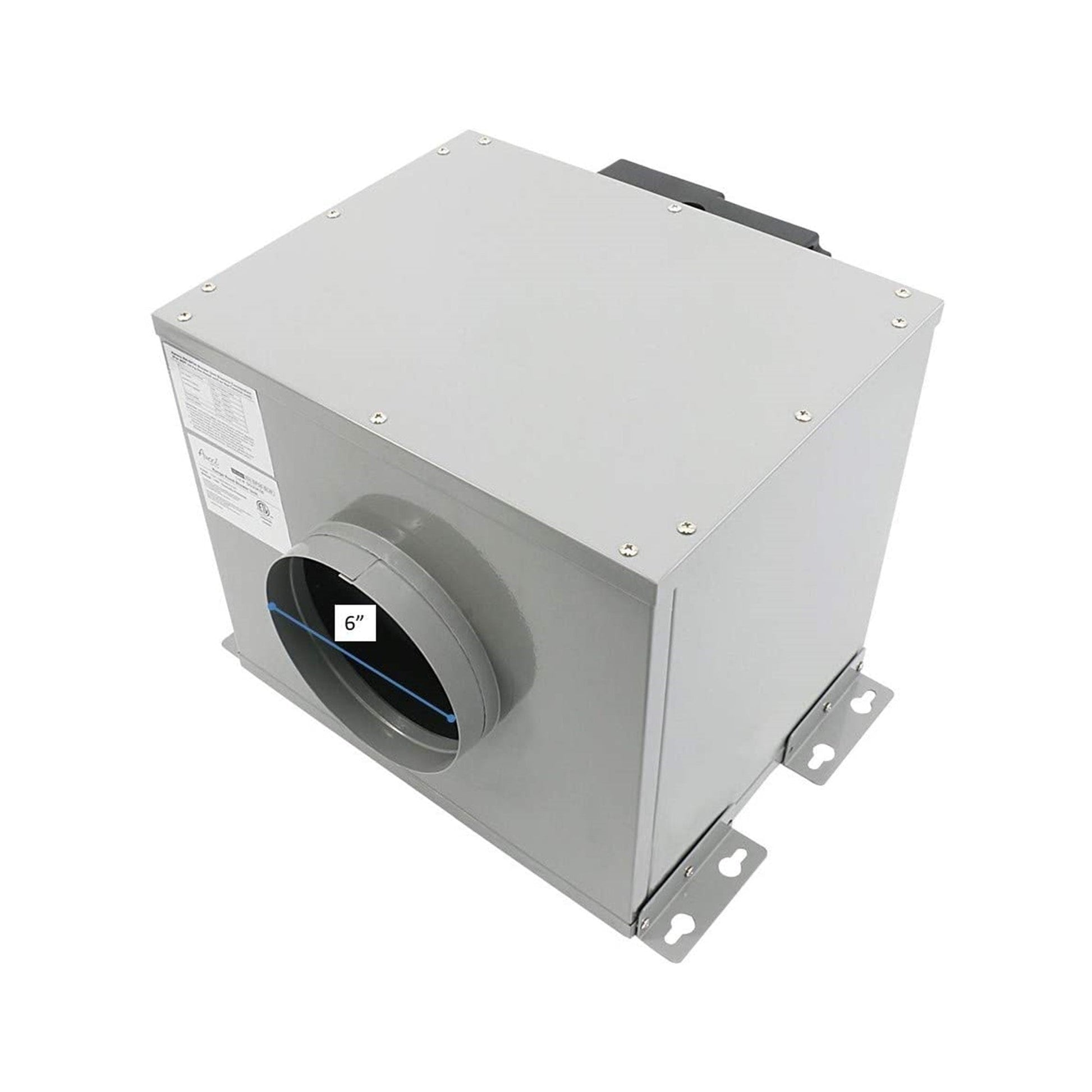

- Quiet Split Range Hood Blower Dimensions: 13-1/2"W x 11-7/8"D x 18"H. Blower weight: 20.4 lbs.
Why Is It Quiet?
Mostly the range hood noise is the sound of air whooshing the steam away. The blower exhausts the air out, sucking the nearby air to one direction. For example, the house fan has bigger noise at higher speed, the sound is from the air collision, not the motor. High speed air collision is the cause of the powerful range hood.
What if we move the air collision from the kitchen area to above the ceiling?

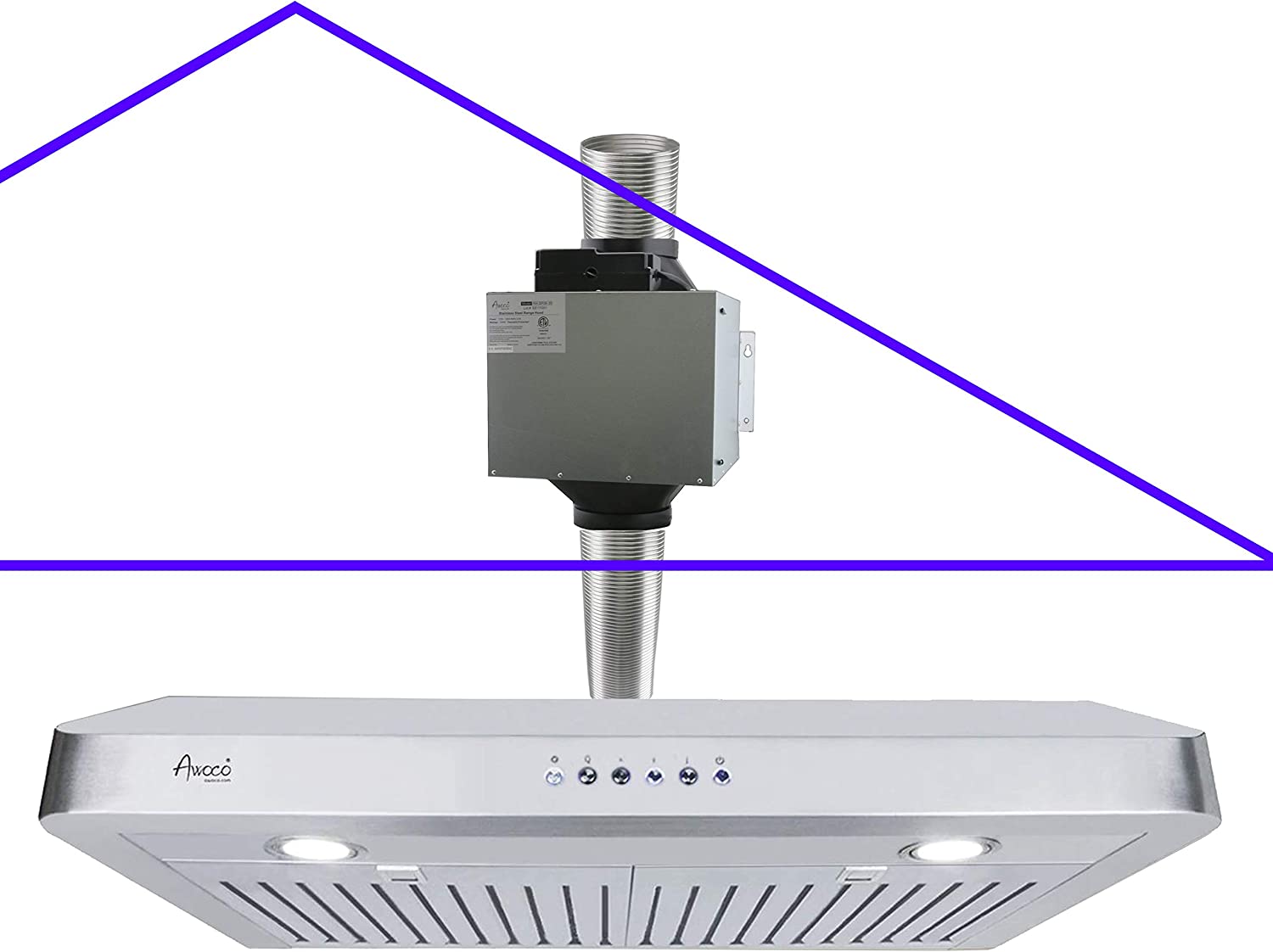

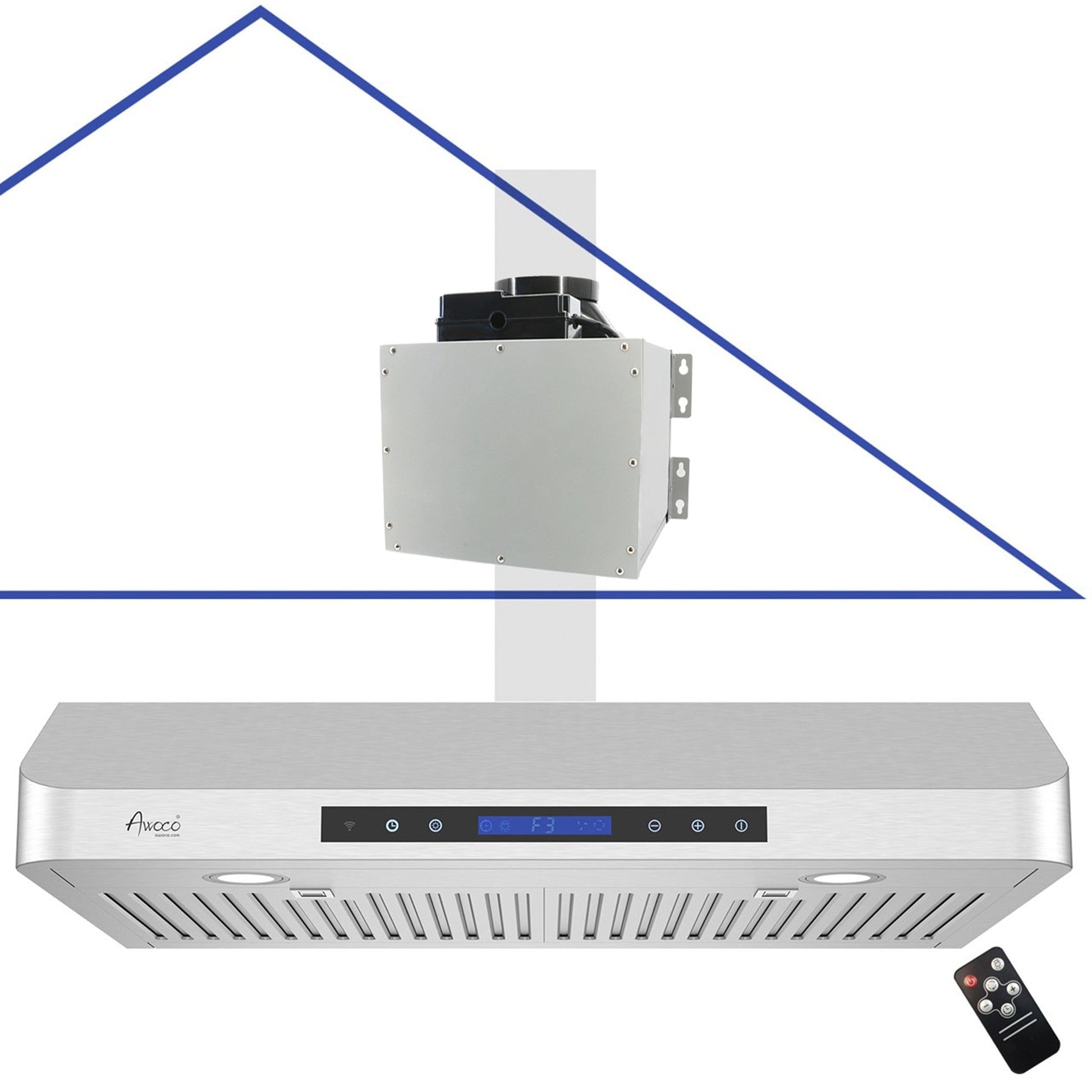

The restaurant exhaust fans are on the roof; therefore, moving the blower to the attic is the solution for residential installments to eliminate the range hood noise. Same as the industrial inline blower, this Blower unit is in between the house exhaust vent and the range hood unit.
