Rain Bird ESP-LXME2 12-Station Modular Irrigation Controller - ESPLXME2

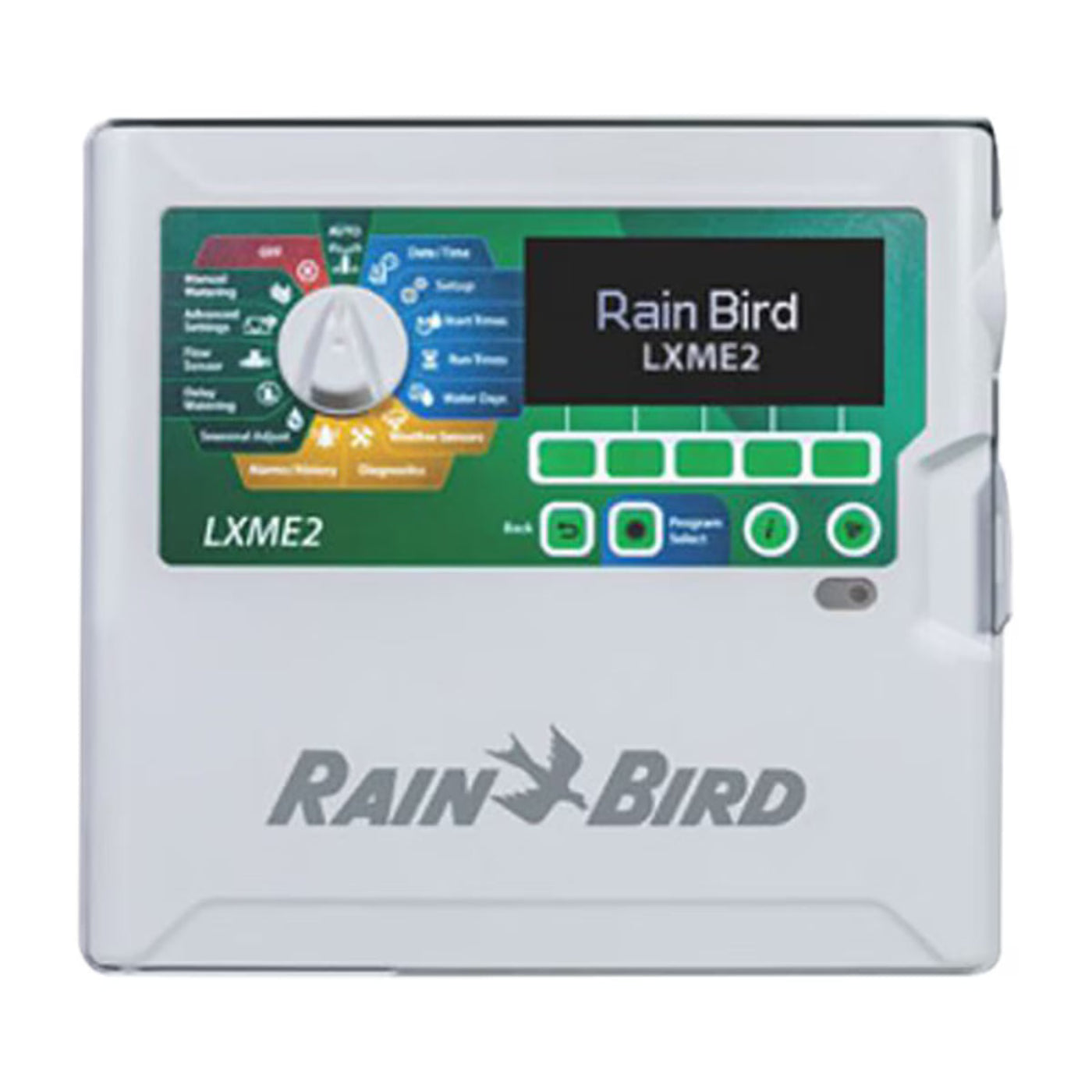

The Rain Bird ESP-LXME2 is a next-generation, traditionally wired irrigation controller with a 12-station base that expands up to 48 stations using 12-station hot‑swappable modules. Designed for indoor or outdoor wall‑mount installation, the plastic enclosure protects electronics while the large backlit LCD and softkey interface make programming fast and accurate. Built-in water‑management features and modular upgrade options give contractors and property managers precise control over runtime and flow.
Ideal for commercial landscapes, multi‑zone residential estates, schools, and parks, the ESP-LXME2 balances water savings and contractor efficiency. Compatible with Rain Bird IQ4 central control and optional LNK2 Wi‑Fi module, it offers remote monitoring and scaleable upgrades so systems can grow without cabinet replacement.
Features
-
Expandable capacity: 12‑station base unit expandable to 48 stations with additional 12‑station modules.
-
Advanced water management: FloManager optimizes hydraulic demand to shorten total watering time and reduce overlap.
-
Flexible programming: 40 independent programs, copy/paste programming, Cycle+Soak, and programmable SimulStations (up to 5 stations simultaneously).
-
Service‑friendly design: Hot‑swappable modules and removable front panel programmable under battery power for quick field servicing.
-
PRO upgrade options: Add the Pro Smart Module or upgrade to LXME2 PRO to enable flow sensor input, FloWatch protection, and a second MV2/P pump start circuit.
-
Durability & diagnostics: UV‑resistant plastic wall‑mount enclosure, 10 kV surge protection, LED alarm light and external alarm port for fast troubleshooting.
What our Experts Think
-
Next-gen commercial control platform: The Rain Bird ESP-LXME2 12-Station Modular Controller is a professional-grade irrigation brain designed for scalable, high-performance landscape systems.
-
Highly expandable architecture: Starts at 12 stations and expands up to 48 stations using modular 12-station expansion modules, making it flexible for evolving sites.
-
Advanced scheduling power: Offers 40 independent programs with multiple start times per program, enabling extremely precise irrigation scheduling across complex zones.
-
Strong water management system: Includes FloManager™, Cycle+Soak™, SimulStations™, and seasonal adjust features to optimize hydraulic efficiency and reduce water waste.
-
Multi-zone simultaneous operation: Supports up to 5 stations running at once, improving irrigation cycle efficiency for large landscapes.
-
Professional diagnostics built in: Features raster wiring tests, sensor integration, and system alarms for fast troubleshooting in the field.
-
Flow-ready ecosystem (PRO upgrade): With optional PRO upgrade, supports flow sensing and advanced leak detection for enterprise water monitoring.
-
Modern user interface: Large backlit LCD and simplified programming interface designed for technicians managing complex systems.
-
Trade-off reality: Extremely powerful and flexible, but best suited for commercial installers—overkill for simple residential irrigation setups.
Q&A
Maintenance Tips
- Professional commercial-grade modular irrigation controller for large landscapes
- Comes with 12 stations standard, expandable up to 48 stations using 12-station modules
- Supports up to 40 independent watering programs for highly flexible scheduling
- Large backlit LCD display with soft-key interface for easy programming and navigation
- Advanced water management via FloManager™ and SimulStations™ (up to 5 stations simultaneously)
- Compatible with flow sensing, leak detection, and automatic shutdown (LXME2 PRO upgrade)
- Supports weather sensors, rain delay, and seasonal adjustment (0%–300%)
- Modular hot-swap design allows station expansion without powering down controller
- Designed for commercial irrigation, sports fields, campuses, and large estates
- Compatible with central control systems (Rain Bird IQ platform) for remote monitoring
