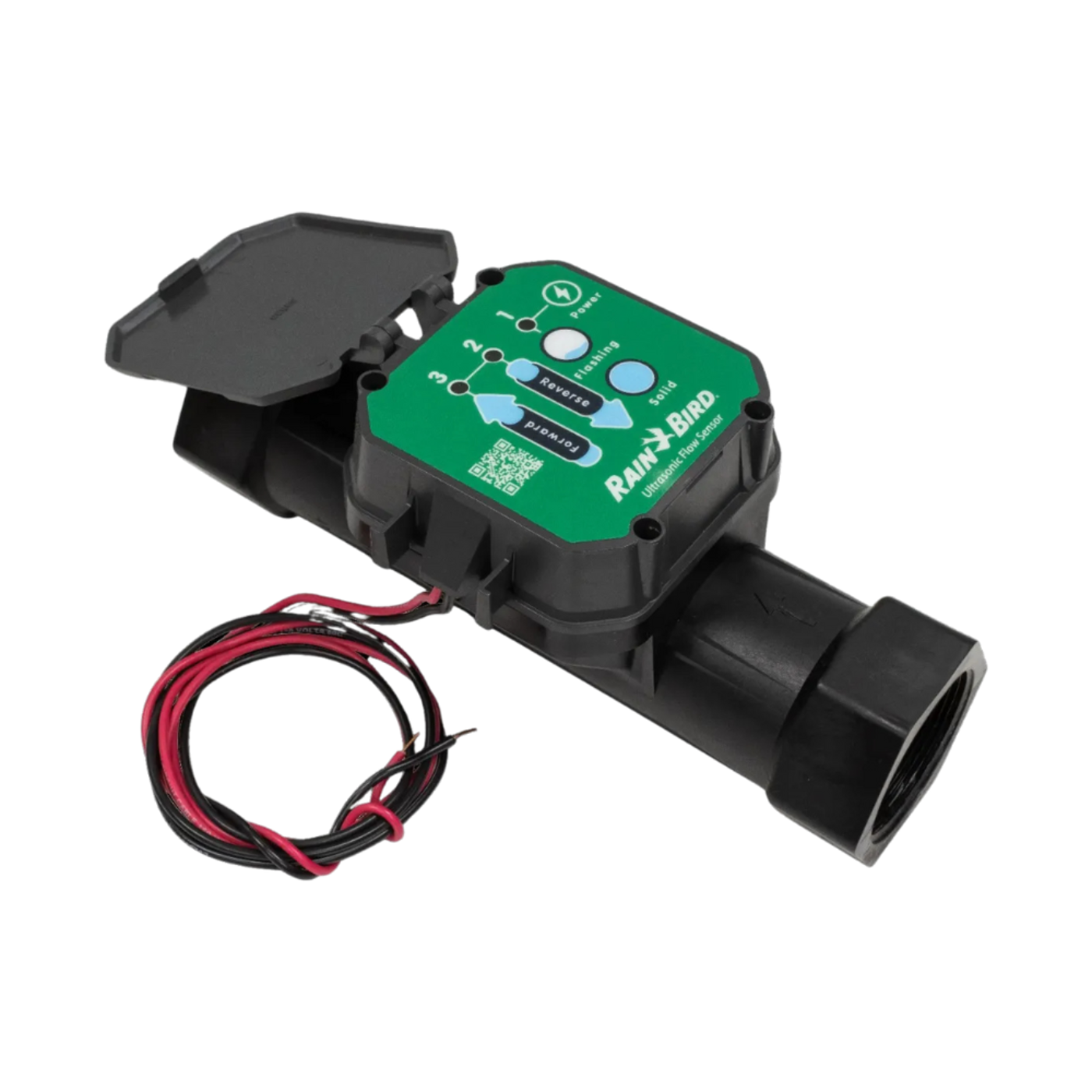

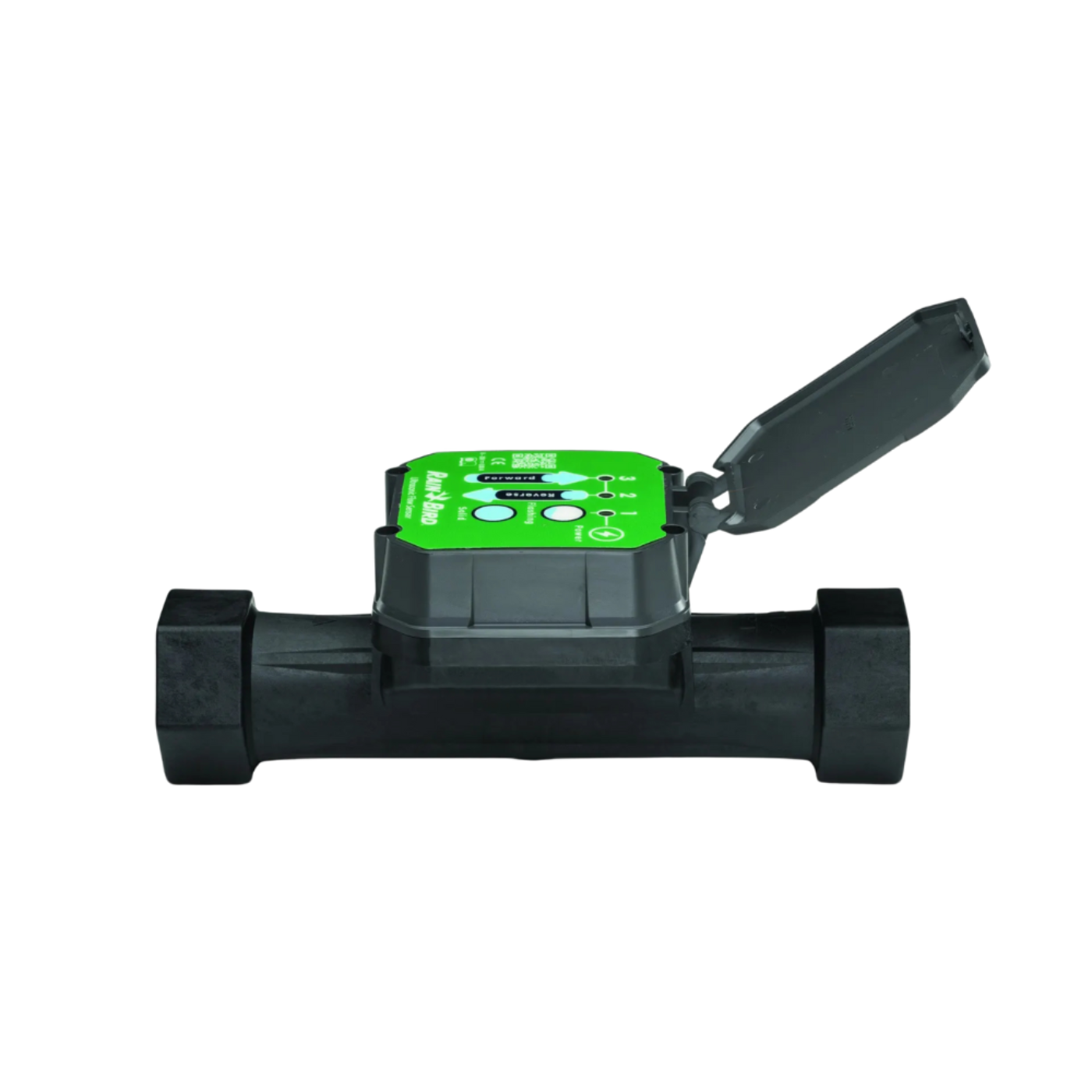

Rain Bird Ultrasonic Flow Sensor - UFS Series 1.5 & 2 in - UFS150
Designed for professional irrigation systems, the UFS Series gives accurate real-time flow and totalized readings to protect landscapes and optimize watering windows. Surge protection is recommended for satellite or Maxicom/SiteControl systems; consult the user guide for wiring and configuration details.
Features
- No straight-pipe requirement: install immediately after a bend or valve; jumbo valve box recommended for easiest fit.
- Wide flow range across models: UFS100 0.3-50 GPM, UFS150 0.5-110 GPM, UFS200 1.0-200 GPM with ±2% accuracy across each range.
- Solid-state ultrasonic sensing with no moving parts for reliable, low-maintenance operation and allowed blowout during winterization.
- Durable construction: glass-filled nylon body, pressure-rated to 200 PSI, electronics rated IP68 / NEMA 4X for outdoor or underground use.

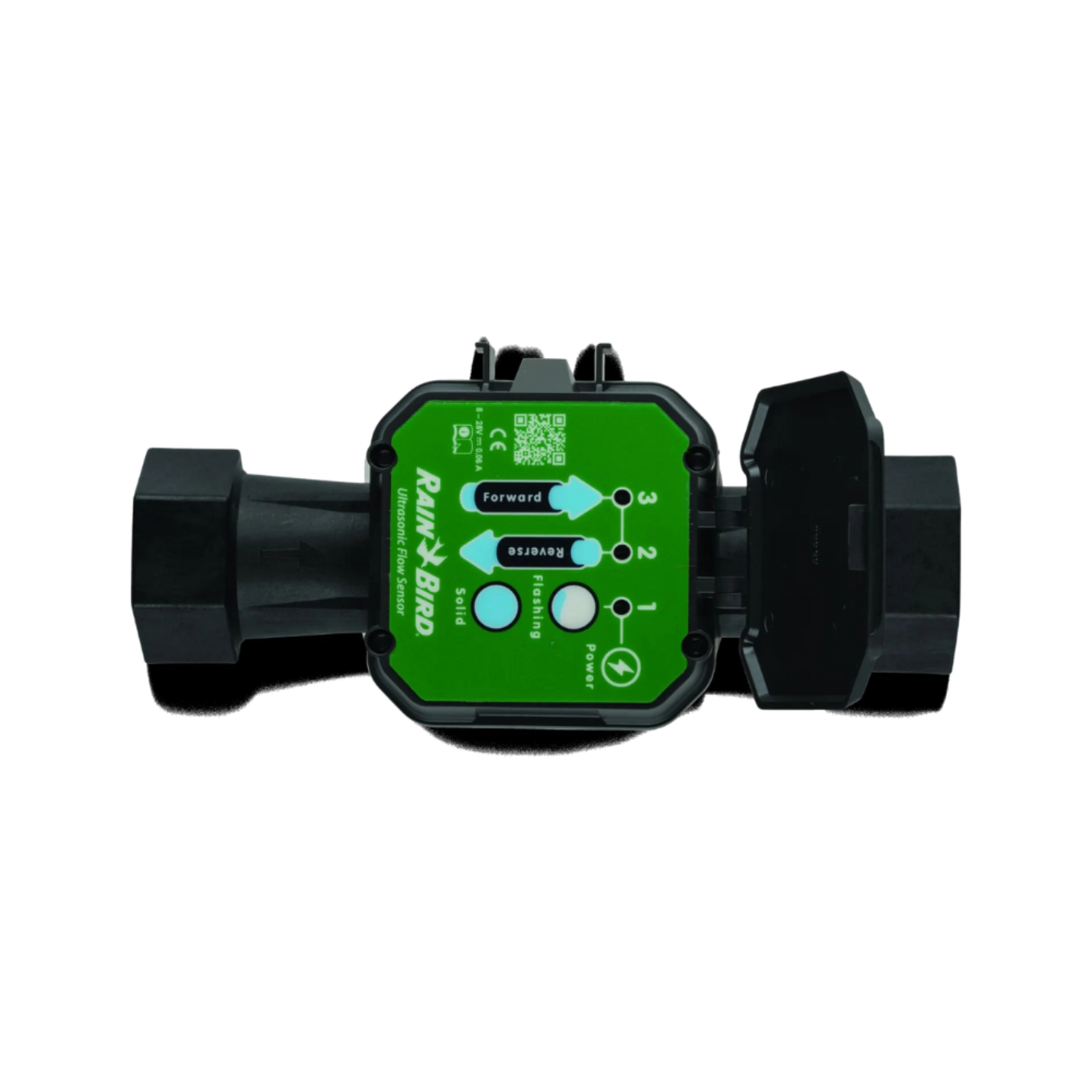

- On-board LED diagnostics indicate power, full-pipe status, forward/reverse flow; simple controller setup with preprogrammed K and offset values.
- Integrates with Rain Bird controllers and transmitters (PT322, PT5002) and supports pulse output, Flo-Watch leak detection, Learned Flow, and FloManager sequencing.
What our Experts Think
-
Ultrasonic precision for modern irrigation systems — Delivers highly accurate, non-mechanical flow measurement for improved system monitoring and control.
-
No moving parts = higher reliability — Reduces wear, clogging, and maintenance issues commonly found in impeller-based sensors.
-
Advanced leak and break detection — Enables fast identification of pipe bursts, leaks, or abnormal flow conditions to protect landscapes and reduce water loss.
-
Ideal for smart water management platforms — Integrates seamlessly with Rain Bird central control systems for real-time diagnostics and automation.
-
Consistent performance in harsh conditions — Maintains accuracy across varying flow rates and environmental conditions, ideal for commercial installations.
-
Supports high-efficiency irrigation design — Helps optimize scheduling and water distribution for golf courses, sports fields, and large commercial sites.
-
Flexible sizing for system compatibility — Designed for 1.5" and 2" pipeline applications, making it suitable for both mid-size and large-scale systems.
Q&A
Q: What is the Rain Bird UFS150 used for?
A: It is an ultrasonic flow sensor designed to measure irrigation water flow for high-accuracy monitoring, leak detection, and system optimization.
Q: What pipe sizes does the UFS150 support?
A: It is designed for 1.5-inch and 2-inch irrigation pipelines.
Q: How does the UFS150 measure flow?
A: It uses ultrasonic technology with no moving parts to measure flow velocity for precise readings.
Q: What are the benefits of ultrasonic flow sensing?
A: It provides high accuracy, low maintenance, and improved reliability compared to mechanical impeller sensors.
Q: Is the UFS150 suitable for commercial irrigation systems?
A: Yes, it is built for commercial landscapes, sports fields, and large-scale irrigation networks.
Q: Can it help detect leaks or abnormal flow?
A: Yes, it supports advanced flow monitoring to identify leaks, breaks, and unusual water usage.
Q: Does the UFS150 require frequent maintenance?
A: No, its non-mechanical ultrasonic design minimizes wear and maintenance needs.
Maintenance Tips
- Rain Bird UFS150 Ultrasonic Flow Sensor (1.5" / 2" UFS Series)
- Part of Rain Bird’s ultrasonic flow sensor family (UFS series) for commercial irrigation systems
-
Flow range: approx. 0.5 to 110 GPM (UFS150 model) (rainbird.com)
- Uses ultrasonic wave technology (no moving parts) instead of impeller/paddle wheel design
- Provides high-accuracy flow measurement (~±2% across full range) (rainbird.com)
-
No straight-pipe requirement — can be installed immediately after elbows, valves, or fittings
-
Wide flow detection range allows accurate reading of both low-flow and high-flow irrigation zones
- Built-in LED indicators for power, flow status, and pipe conditions
-
Pressure rated up to ~200 PSI for commercial irrigation systems
- Works with Rain Bird controllers via modules for ESP-LXD, LX series, IQ central control systems
- Enables advanced functions like:
- Flo-Watch (automatic leak detection/shutdown)
- Learned Flow (automatic zone flow calibration)
- FloManager (optimized zone scheduling)
-
Fully sealed electronic design (IP/NEMA rated) for underground or valve-box installation
- Designed for golf courses, sports fields, parks, and large commercial irrigation networks
