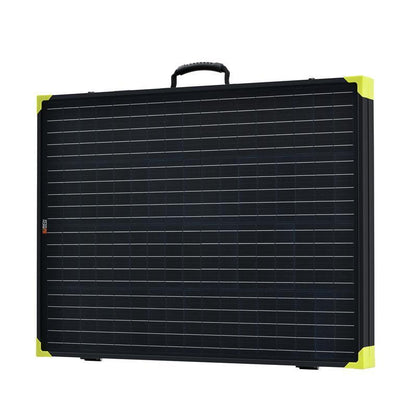

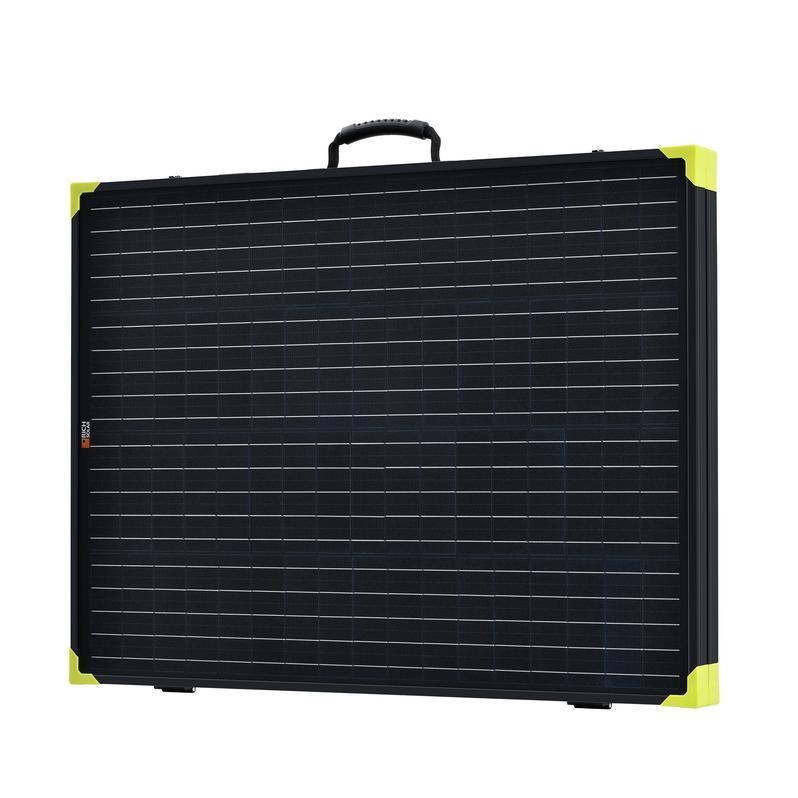

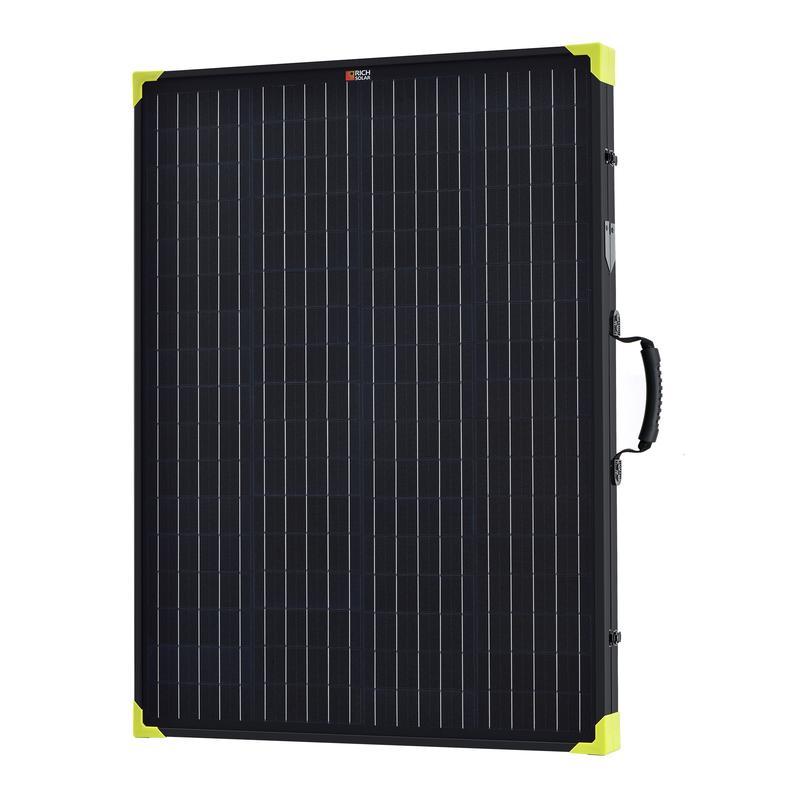

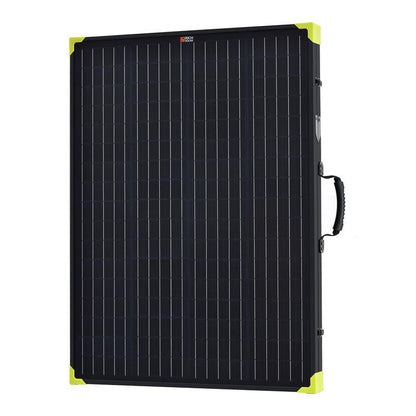

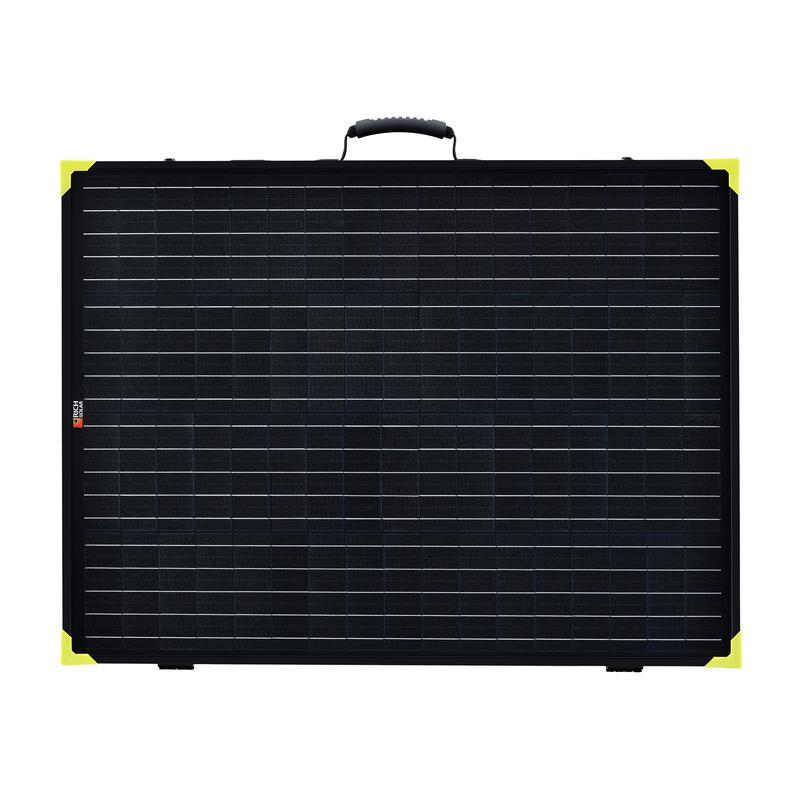

Richell Rich Solar RS-X200B 200 Watt 12 Volt Portable Solar Panel Briefcase With Kickstand New - RS-X200B
The Rich Solar RS-X200B 200 Watt Portable Solar Panel Briefcase With Kickstand is ideal for solar generators, portable power stations, emergency backup or remote power.
What our Experts Think
Q&A
Q: What is the Rich Solar RS-X200B (200W) portable solar briefcase used for?
A: A foldable 200W monocrystalline portable solar panel kit designed for charging 12V batteries, solar generators, and portable power stations during camping, RV use, and off-grid applications.
Q: What is the power output of the RS-X200B?
A: It delivers up to 200W rated power with an operating voltage around 18.4V and current around 10.9A under optimal sunlight conditions.

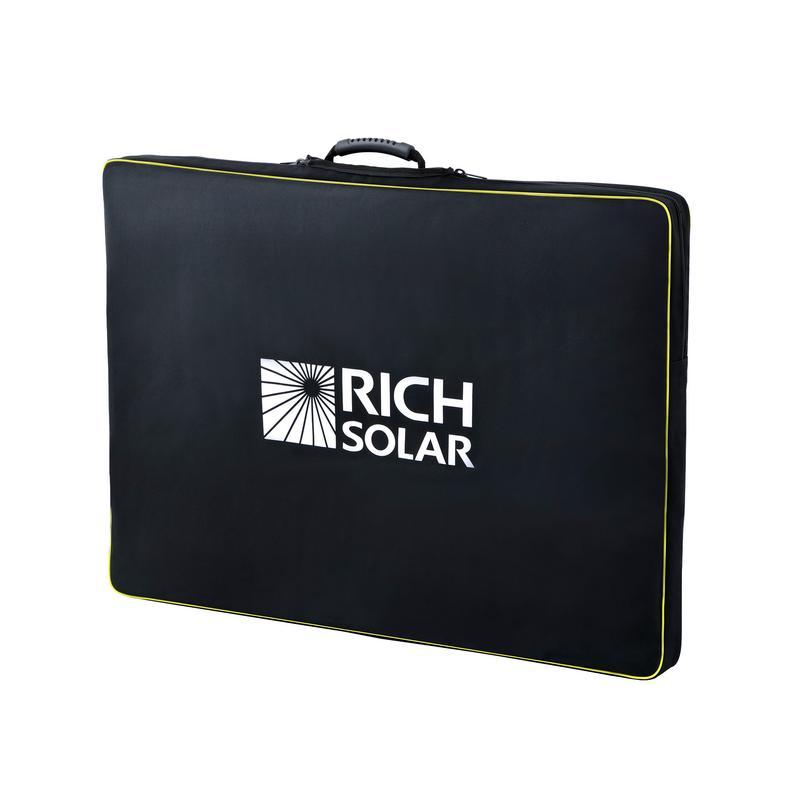

Q: What makes it “briefcase style”?

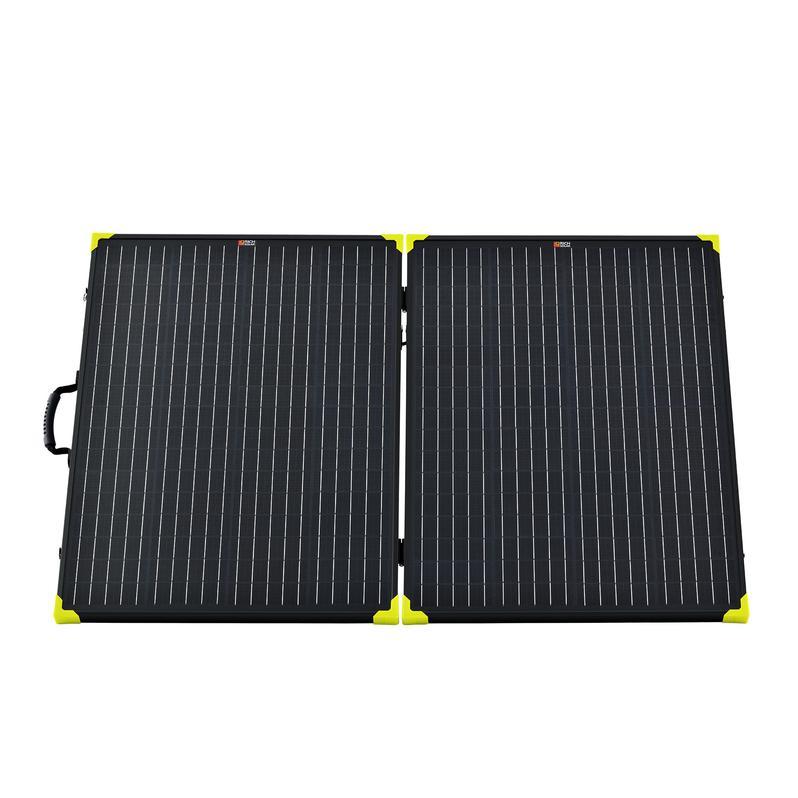

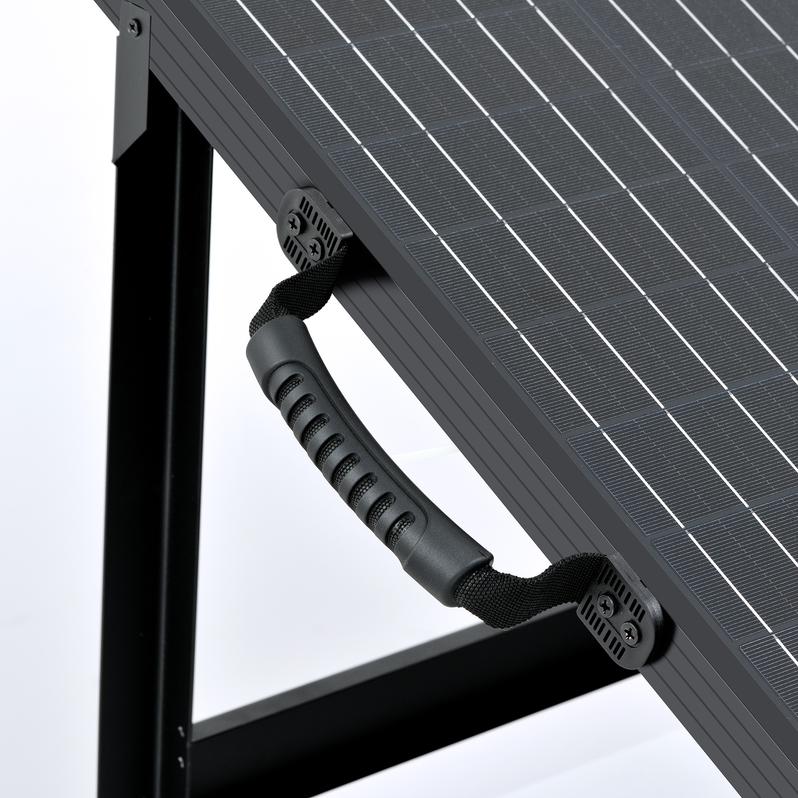

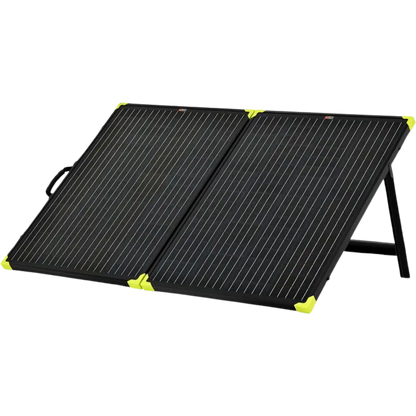

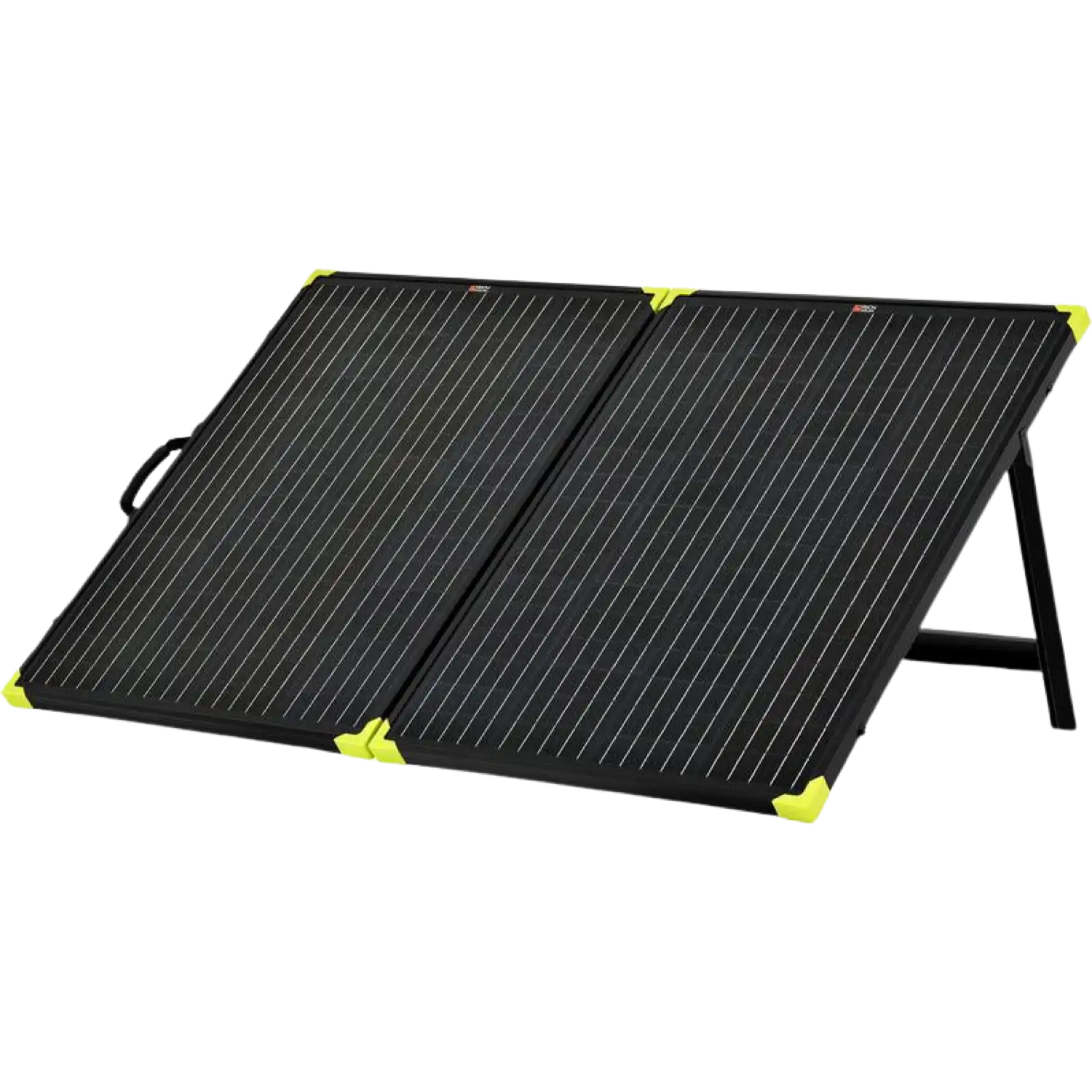

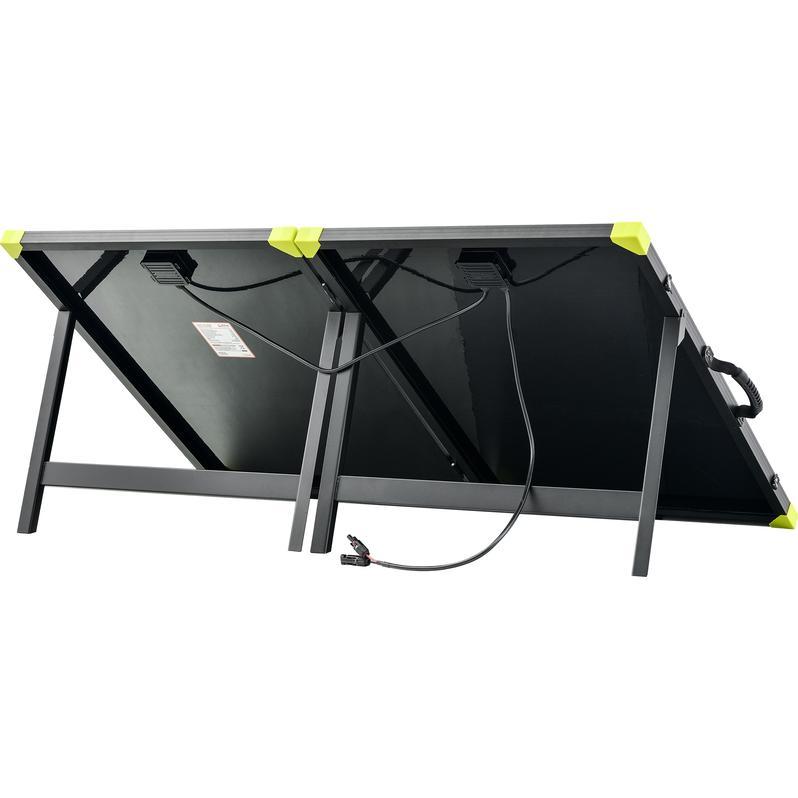

A: It folds into a compact suitcase form with a built-in kickstand, making it easy to transport, deploy, and angle toward the sun for better efficiency.
Q: What devices or systems is it compatible with?
A: It is designed for 12V battery systems, including AGM, GEL, lithium batteries, solar generators, and portable power stations.
Q: What materials is it made from?
A: It uses monocrystalline solar cells, tempered glass, and an aluminum frame, built for outdoor durability and weather resistance.
Q: Is it suitable for outdoor use?
A: Yes, it is built for camping, RVs, emergency backup, and remote off-grid power, with a rugged, weatherproof design.
Maintenance Tips
-
Keep panels clean (most important): Dust, salt, and pollen can reduce output by 10–30%. Clean with soft cloth + water only.
-
Avoid micro-scratches: Never use abrasive pads or chemicals on tempered glass surface.
-

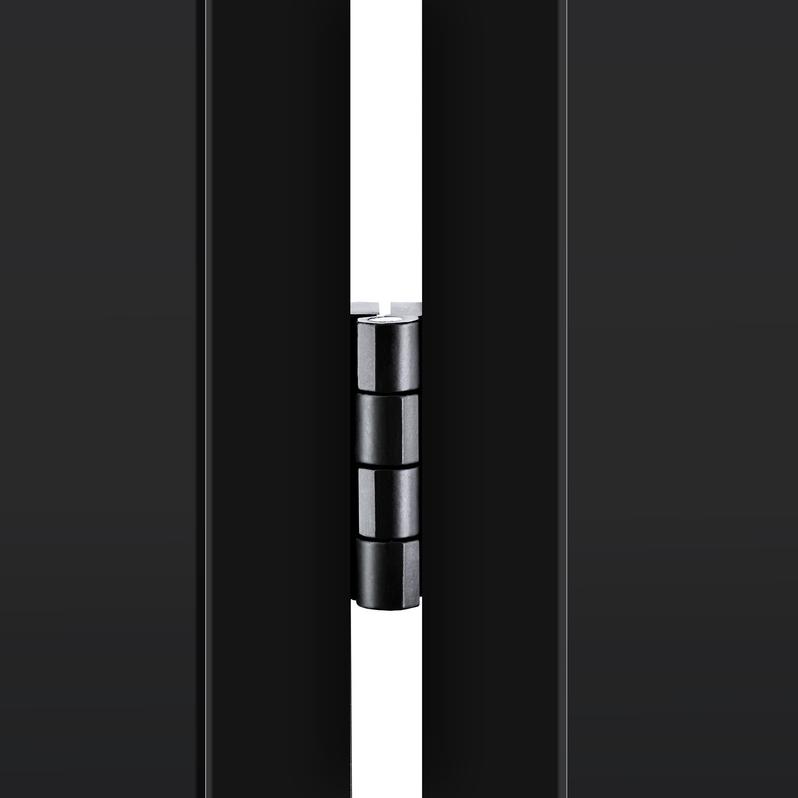

Protect fold hinges: Check hinge tension and locking clips regularly to prevent frame stress or misalignment.
-
Dry before storage: Always fully dry panels before folding to prevent corrosion at connectors and junction box.
-
Check MC4 connectors: Inspect for looseness, melting, or discoloration—common failure point under high current.
-
Avoid overheating in storage: Do not leave folded panels in direct sun or hot vehicles for long periods.
-

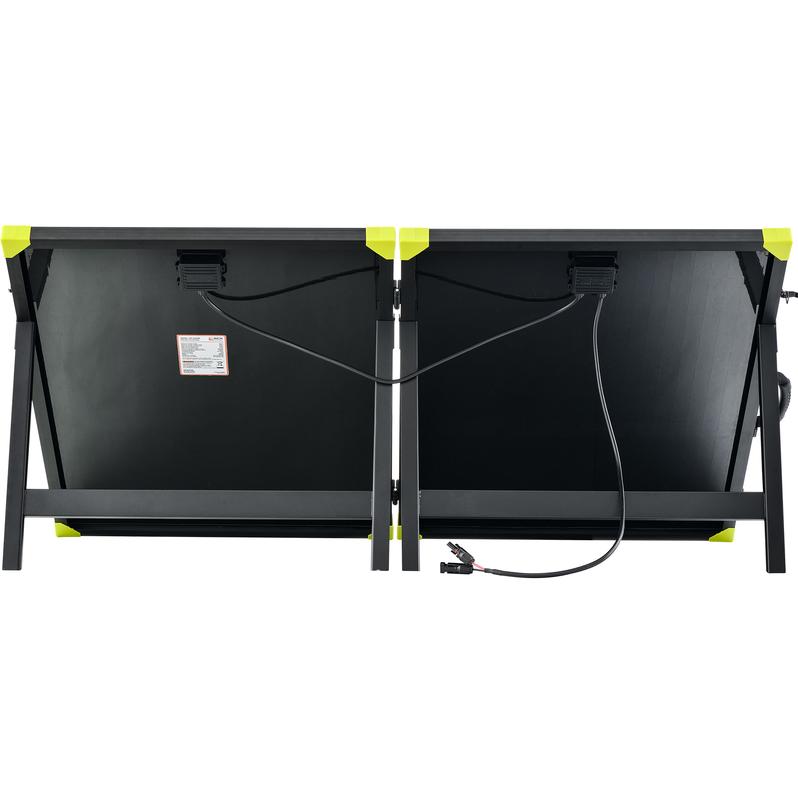

Cable strain relief: Ensure cables are not bent sharply near junction box to avoid internal wire fatigue.
-
Use correct controller: Pair with an MPPT charge controller (not PWM) for maximum harvest efficiency.
-
Do not exceed voltage limits: Open circuit voltage (~22V) must match your system controller specs.
-
Store upright if possible: Prevents long-term pressure stress on hinges and glass laminations.
