Wine Guardian Sentinel Series Duct Collar Kit for Models D050, D088, DP50, DP88, DS050, DS088, SP50, SP88 - 1779457392365_854

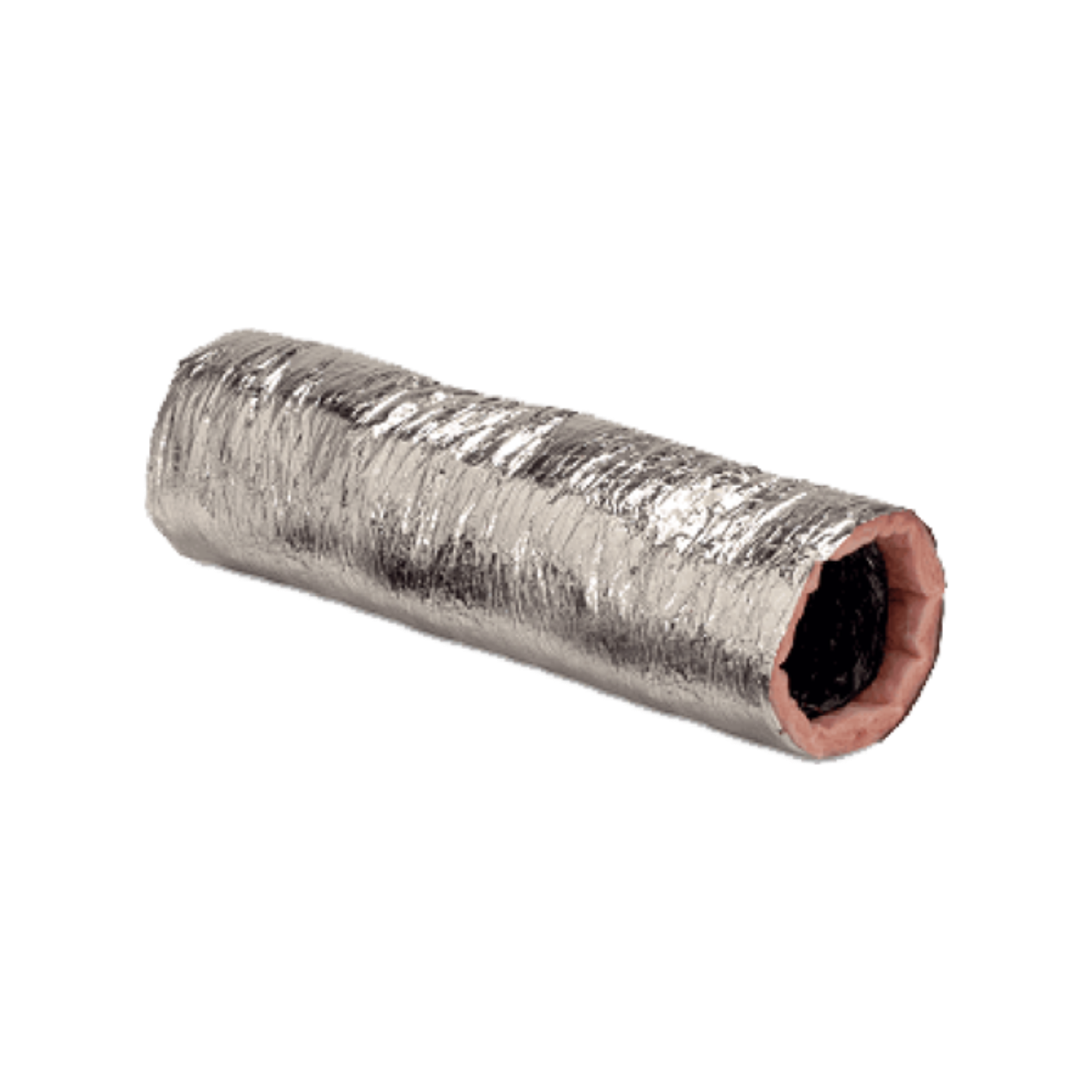

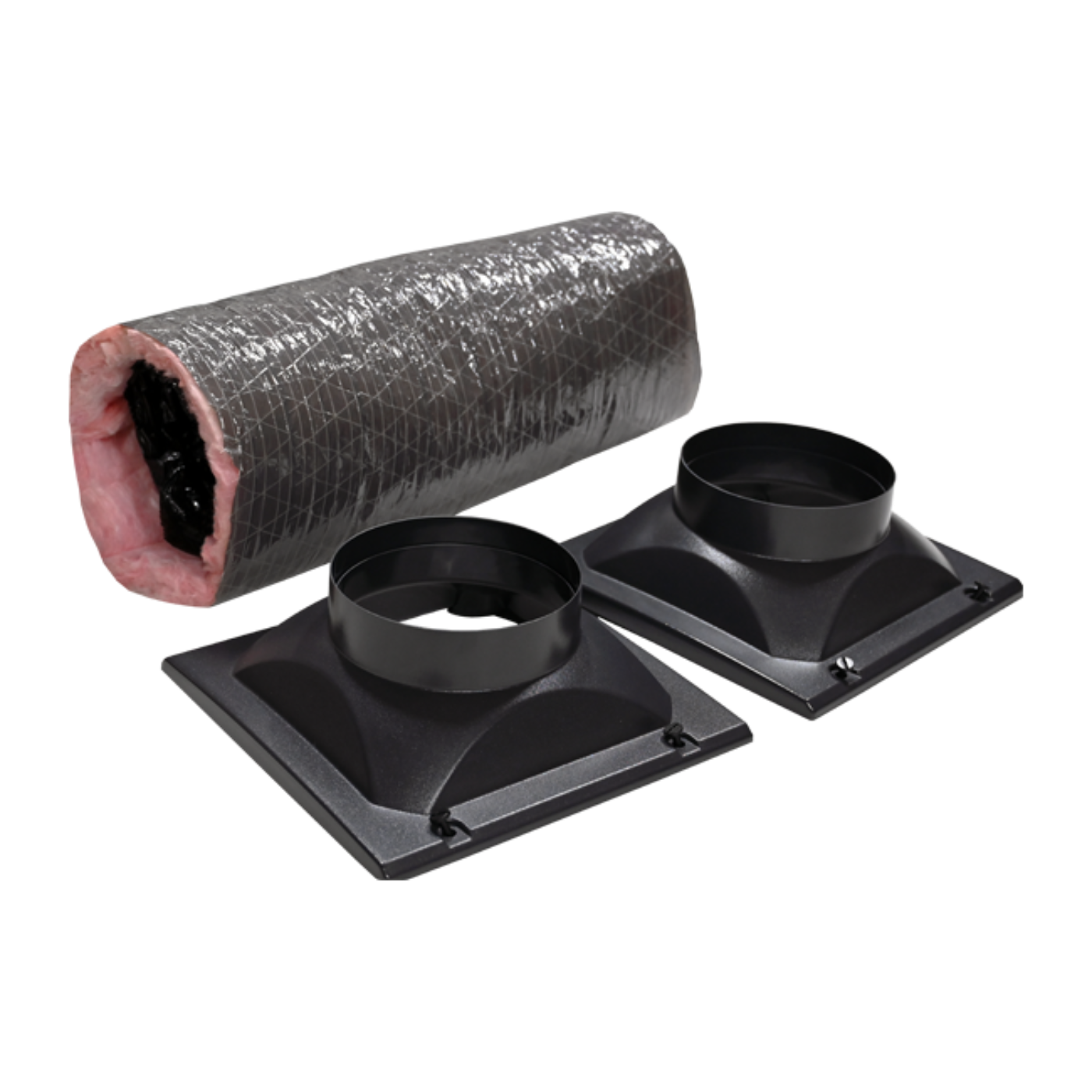

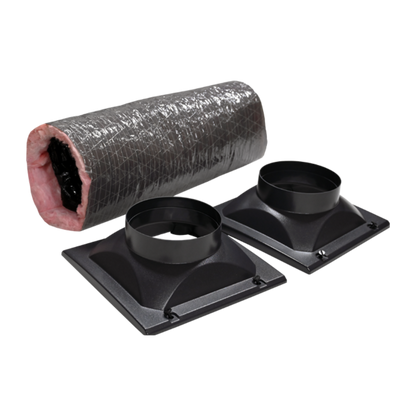

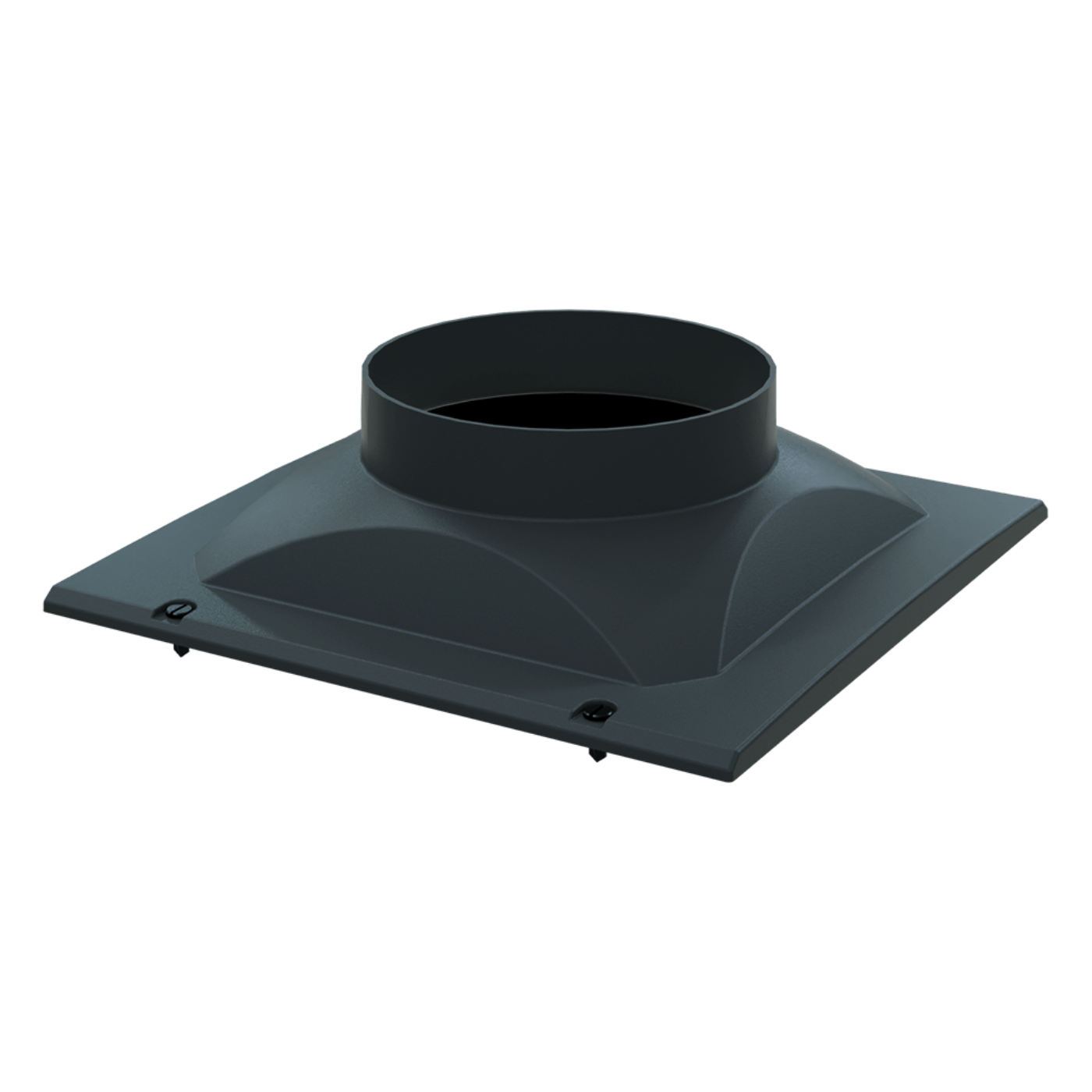

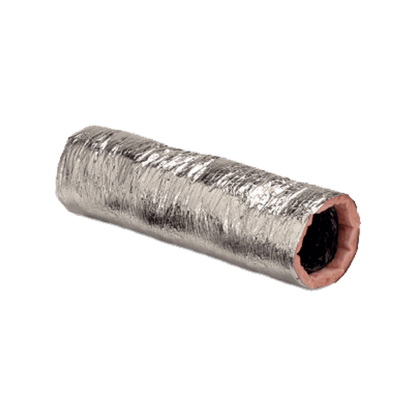

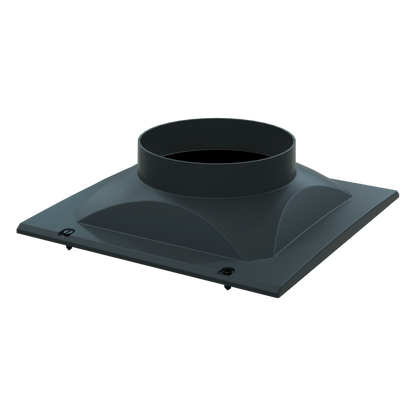

The Sentinel Series Duct Collar Kit is designed for directing warm condenser air away from the wine cellar cooling unit. The kit contains 2 Sentinel Series duct collars, a box of 10″ round flexible ductwork, tie wraps, and fasteners. This kit is for models D050, D088, DP50, DP88, DS050, DS088, SP50, and SP88.
What our Experts Think
- The Wine Guardian Sentinel Series Duct Collar Kit (Models D050, D088, DP50, DP88, DS050, DS088, SP50, SP88) is a critical installation accessory designed to properly manage hot condenser exhaust airflow from compatible Sentinel Series wine cooling systems
- Its primary function is to redirect warm condenser air away from the cellar area, improving overall system efficiency and preventing heat recirculation issues
- The kit includes two insulated duct collars, 10" round flexible ductwork, and installation fasteners/tie wraps, providing a complete airflow management solution for setup
- Built specifically for Sentinel Series systems, it ensures a sealed, controlled ducting connection that reduces temperature loss and condensation risk in demanding environments
- Engineers note the double-wall insulated collar design improves thermal resistance and helps maintain more stable operating conditions for the cooling unit
- Helps support quieter cellar operation, since condenser noise and heat can be routed away from the wine room instead of being expelled nearby
- Commonly used in fully or semi-ducted wine cellar installations, especially where equipment must be installed in utility spaces or adjacent rooms
- Experts position this kit as an essential add-on for optimized performance, not an optional accessory, especially in professional or long-term cellar builds
- Best suited for installers and designers aiming for proper airflow separation, system longevity, and stable wine preservation conditions
Q&A
Q: What is the Wine Guardian Sentinel Series Duct Collar Kit for D050, D088, DP50, DP88, DS050, DS088, SP50, and SP88 used for?
A: It is a ducting accessory kit designed to redirect warm condenser exhaust air away from Wine Guardian Sentinel Series wine cellar cooling units, improving heat management and system efficiency.
Q: What is included in the kit?
A: The kit typically includes two Sentinel Series duct collars, a box of 10-inch round flexible insulated ductwork, tie wraps, and installation fasteners for connecting and routing exhaust air.
Q: Why is this duct collar kit important?
A: It helps move hot condenser air away from the installation area, reducing heat buildup, improving cooling performance, and allowing more flexible installation in tight or enclosed spaces.
Q: Which Wine Guardian models is it compatible with?
A: It is compatible with Sentinel Series ducted systems including models D050, D088, DP50, DP88, DS050, DS088, SP50, and SP88.
Q: Does it improve cooling efficiency or just airflow direction?
A: It primarily improves airflow routing, which indirectly supports efficiency by preventing heat recirculation and helping the cooling system operate under more stable conditions.
Q: Is this required for installation?
A: It depends on the installation design. It is typically used when the condenser air needs to be ducted away from the mechanical space or redirected outdoors for heat management.
Maintenance Tips
- Inspect duct collars regularly for tight seals and secure fastening to prevent hot air leakage
- Check flexible ducting for cracks, sagging, or insulation wear and replace if airflow is restricted
- Ensure all tie-wraps and fasteners remain tight to maintain proper condenser airflow direction
- Keep duct connection points clean to avoid dust buildup that can reduce airflow efficiency
- Verify condenser exhaust air is fully routed outside the cellar space with no recirculation
- Avoid sharp bends or crushed duct sections that reduce airflow and increase system load
- Periodically check insulation integrity to prevent heat transfer back into the cellar environment
- Ensure duct collars remain properly aligned after service or vibration over time
- Clean surrounding unit area to prevent dust ingestion into the cooling system
