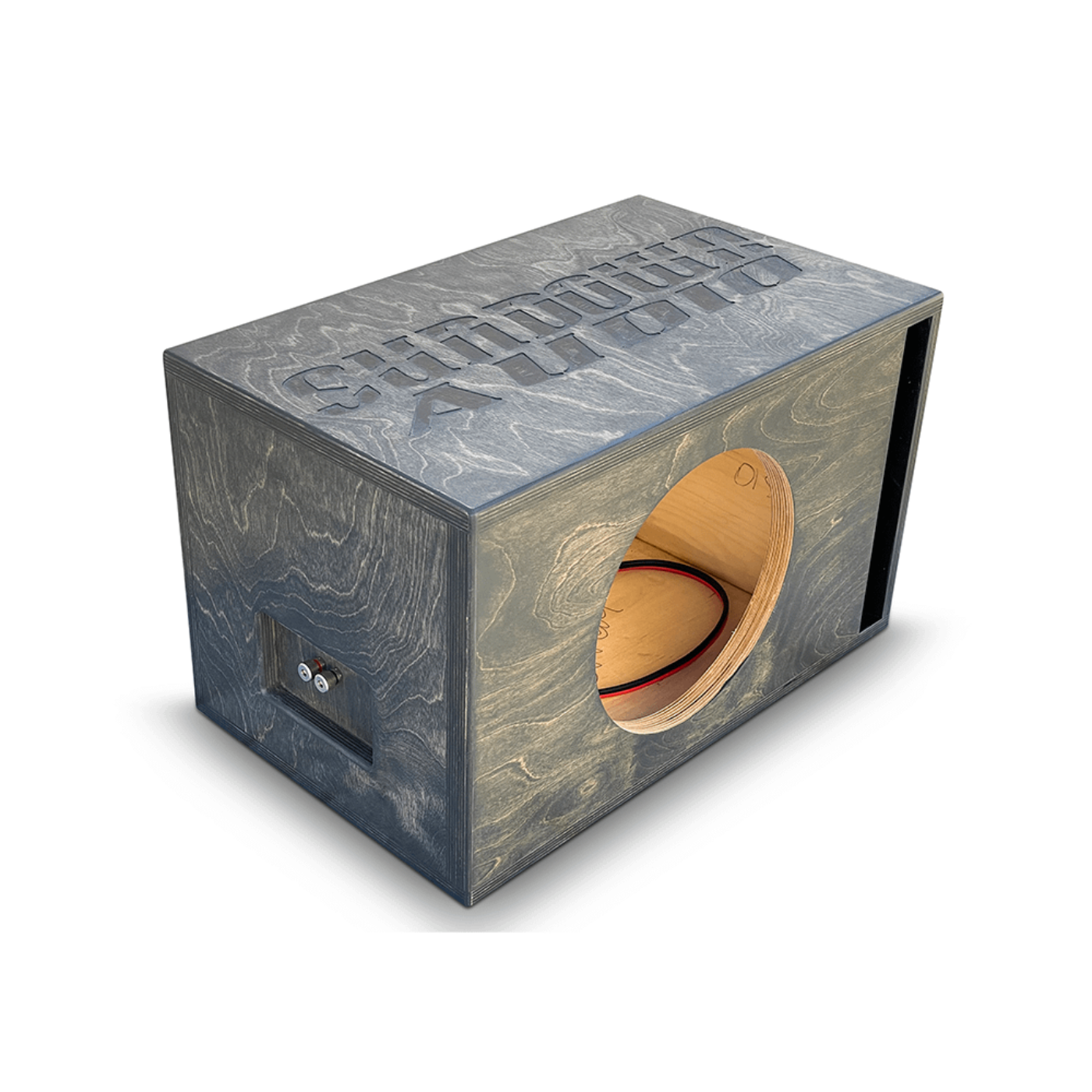

Sundown Audio Single 15" Zv5 Ported Enclosure - AABE-SA-Zv5-S15-HD
Custom built enclosure specifically for the Sundown Audio Zv5 15" subwoofer.Lead time is 2-3 weeks, no refunds once enclosures have been cut out! This is a custom made box specifically for the Sundown Audio Zv5 15" subwoofer. At Basshead Supply the goal with the “branded series” enclosures is to offer subwoofer specific enclosures that are well built, well performing and good looking enclosures at an affordable price. Using premium 1” Baltic Birch all around we are able to achieve a very strong and light enclosure. Using our refined assembly process produces an enclosure with NO visible screw holes anywhere on the enclosure. The entire enclosure is glued together with Titebond III and coupled with our 1” baffle and an additional 24mm baffle brace (on the dual subwoofer models) the enclosure is strong enough to handle high power subwoofer setups. Finished off with our carbon gray stain and a polyurethane finish these enclosures have a unique look to set it apart from all the generic prefabs. Complete with a recessed Satin Nickel Brass binding posts and prewired with OFC 10g wire, you are ready to go the moment it arrives. These are also built with love, by hand right here in the UNITED STATES OF AMERICA.
Specification
- 4.25 cubic feet net enclosure
- 30 hz tuning
- 60 sq inches of port
- 16" x 3.75" port dimensions
- 14.01" subwoofer cut out
- Entire enclosure 1" birch ply
- 17 ply birch veneer construction
- Gray stained finish
- Pre-wired metal binding post
Dimension
- 18" tall
- 31.5" wide
- 23″ deep
What Our Experts Think
Q&A
Q: What is the Sundown Audio Single 15" Zv5 Ported Enclosure designed for?
A: It is a custom-tuned ported enclosure engineered specifically for one 15-inch Sundown Audio Zv5 subwoofer to maximize bass output and performance.
Q: Why choose a 15-inch ported enclosure?
A: The large driver size and ported design deliver deeper bass, greater efficiency, and higher output than many smaller or sealed enclosures.
Q: Is this enclosure designed specifically for the Zv5 subwoofer?
A: Yes, it is optimized to match the airspace and tuning requirements of the Sundown Audio Zv5 15-inch subwoofer.
Q: What type of bass performance can I expect?
A: Expect extreme low-frequency response, deep bass extension, and powerful SPL output for serious car audio systems.
Q: Is the enclosure pre-built and ready to install?
A: Yes, it comes professionally assembled and ready for subwoofer installation.
Q: What materials are used in the enclosure?
A: It is constructed from heavy-duty MDF with reinforced internal bracing for durability, strength, and vibration control.
Q: Does the enclosure improve subwoofer performance?
A: Yes, the tuned ported design helps maximize output, efficiency, and overall bass response.
Q: Is this enclosure suitable for high-power systems?
A: Yes, it is built to support the high power handling and long-excursion capabilities of the Sundown Audio Zv5 series.
Q: Can it be used for SPL-focused builds?
A: Yes, it is an excellent choice for competition-oriented SPL systems and high-output daily driver setups.
Q: Is professional installation recommended?
A: Yes, professional installation is recommended to ensure proper mounting, wiring, and system tuning for optimal performance.
