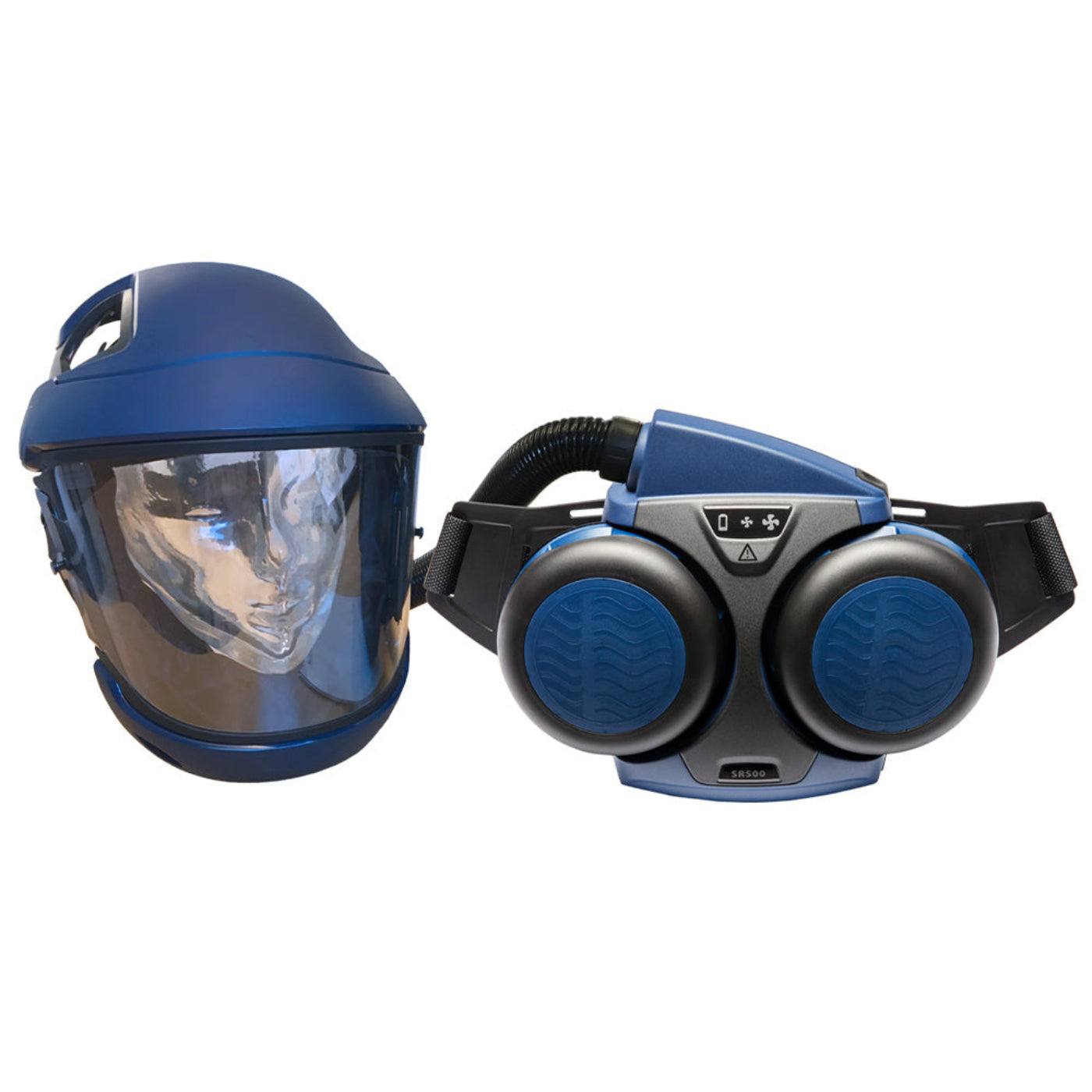

SCM Sundström SR 500 / SR 570 Powered Air Purifying Respirator Kit - H06-6621
The SR 500 Fan Unit is a belt-mounted Powered Air-Purifying Respirator (PAPR) that connects to the SR 570 Face Shield. When used together, the SR 500 and 570 protect against particulates like saw dust and silica dust, as well as harmful odors and gasses (when used with the applicable chemical cartridges).
The SR 500 PAPR system functions as an alternative to Air Purifying Respirators (APR). The powered battery pack provides automatic air flow control, keeping the user safe. The same control is used for starting, stopping, and selecting an operating status for user convenience. The SR 500 can operate at two levels: normal (6.2 CFM) and boosted (7.9 CFM).
The SR 570 is a robust shield with a flip-up visor that provides comfortable and safe respiratory and eye protection. Well-balanced and lightweight, the head hardness offers several adjustment options for the best fit. The SR 570 features an air flow deflector for more comfort, as well as an exhalation valve that reduces the carbon dioxide content in the shield.
Two HE particle filters are included in this kit. These filters provide protection against all types of particulate pollutants and should be used with SR 221 pre-filters. As mentioned above, the particle filter can also easily be combined with Chemical Cartridges in order to provide protection also against gases and vapors, e.g. during spray painting.
Features
- Protects the breathing zone and the crown of the head
- Hinged visor unit
- Scratch resistant and chemicals resistant PC visor
- Adjustable head harness
- Bump camp protects against impact
- Airflow deflector for optimal comfort
- The supply air flow keeps the visor demisted
- Replaceable breathing air hose
- Standard fastener for hearing protection
- Optional protective film
- Equipped with an exhalation valve
- Optional TAC visor
- Lithium-ion type 3.5 Ah battery
- Approximate 2 hour charging time
- Equipped with two filters/combined filters
- Dual flow rates: Regular (6.2 CFM) and Boosted (8.5 CFM)
- Up to 12 hour operating time
- The same control is used for starting, stopping and selection of operating status
- Display with symbols
- Equipped with automatic air flow control with compensation for air pressure and temperature
- Can be used together with a hood, face shield, helmet, full face mask or half mask
What our Experts Think
-
Single-brush sanding system with a wide 49" capacity is ideal for processing large panels, doors, tabletops, cabinetry, and architectural millwork components.
-
Provides consistent surface preparation and finish enhancement, helping create a smooth, uniform appearance across wide workpieces.
-
Excellent for denibbing, raised-grain removal, and finish preparation, reducing the need for extensive hand sanding.
-
Improves workflow efficiency by handling large materials quickly while maintaining consistent sanding results.
-
Heavy-duty construction ensures reliable performance, stability, and durability in demanding production environments.
-
A practical solution for professional woodworkers and manufacturers seeking high-capacity sanding, improved finish quality, and increased productivity.
Q&A
Maintenance Tips
- Clean the face shield, visor, breathing hose, and blower unit after each use following manufacturer guidelines.
- Inspect filters and pre-filters regularly; replace them when clogged, damaged, or at the end of their service life.
- Check the breathing hose, seals, gaskets, and connections for cracks, leaks, or wear before use.
- Keep the visor and head suspension clean and properly adjusted for a secure, comfortable fit.
- Inspect the blower unit air intake and ensure it is free from dust and debris.
- Recharge the battery only with approved Sundström chargers and store batteries in a cool, dry location.
- Verify airflow performance and battery charge status before each use.
- Replace damaged or worn components immediately to maintain respiratory protection.
- Store the complete respirator kit in a clean, dry environment away from direct sunlight and contaminants.
