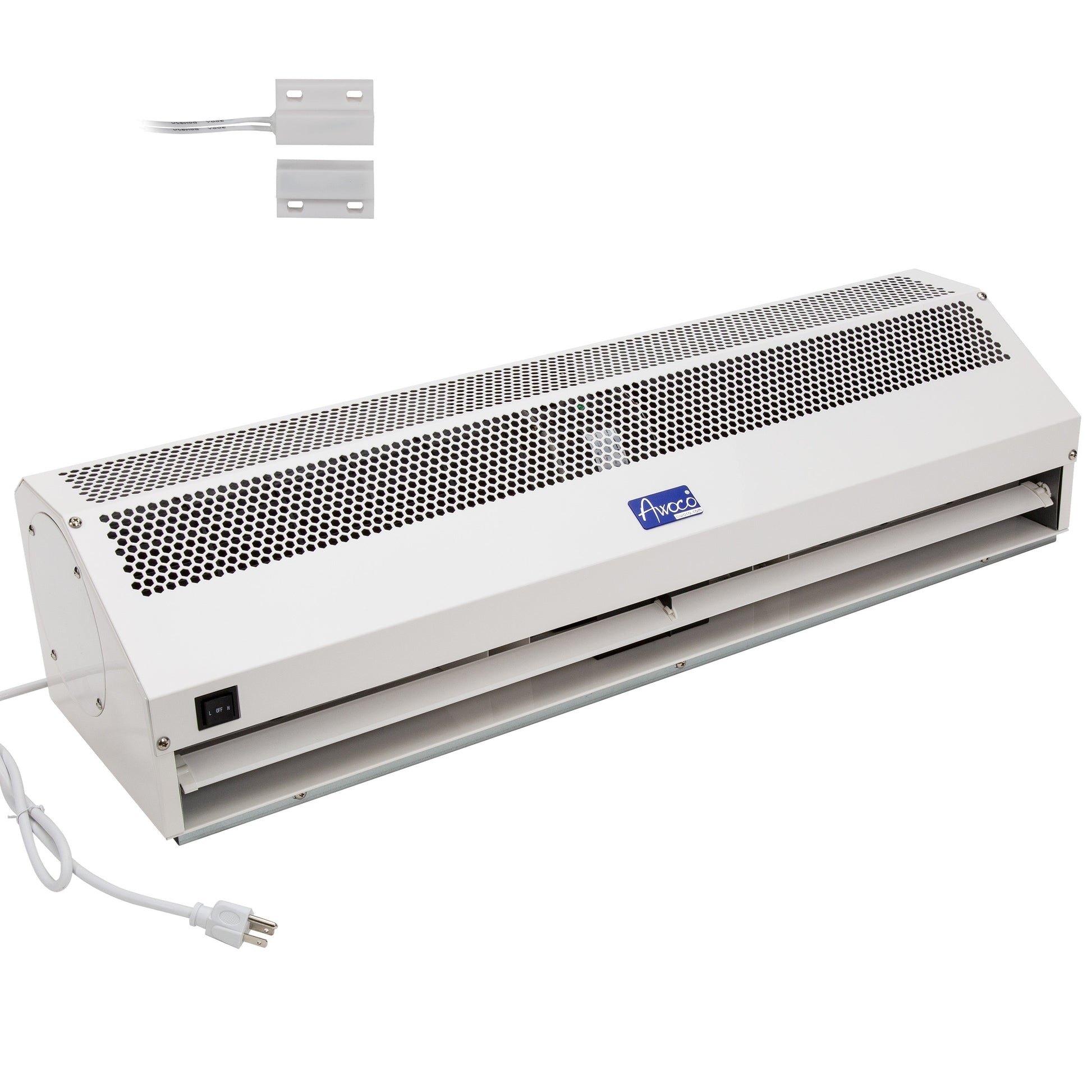

AWOCO Super Power Air Curtain ETL 120V Unheated w/Magnetic Switch by Awoco - FM1509-ETL
-
Super Power Air Curtain ETL Series FM15 by Awoco - 120V Unheated Indoor Air Curtain featuring ETL Certified 1 Speed Operation and Easy-Install Magnetic Switch for Doorways
-

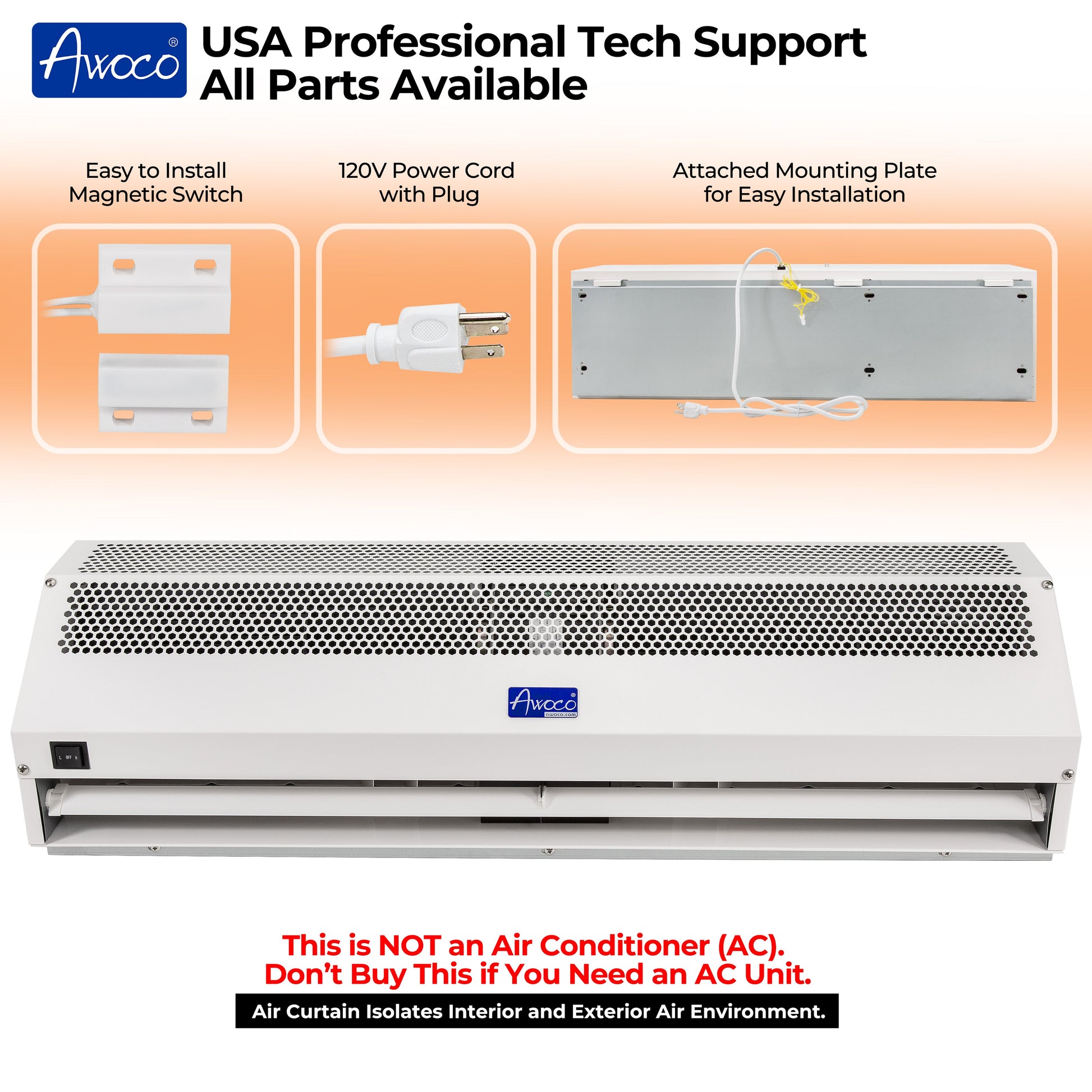

[NOT an Air Conditioner]: DOES NOT GENERATE COLD OR HOT AIR. Do not purchase if you are looking for an A/C unit.
-

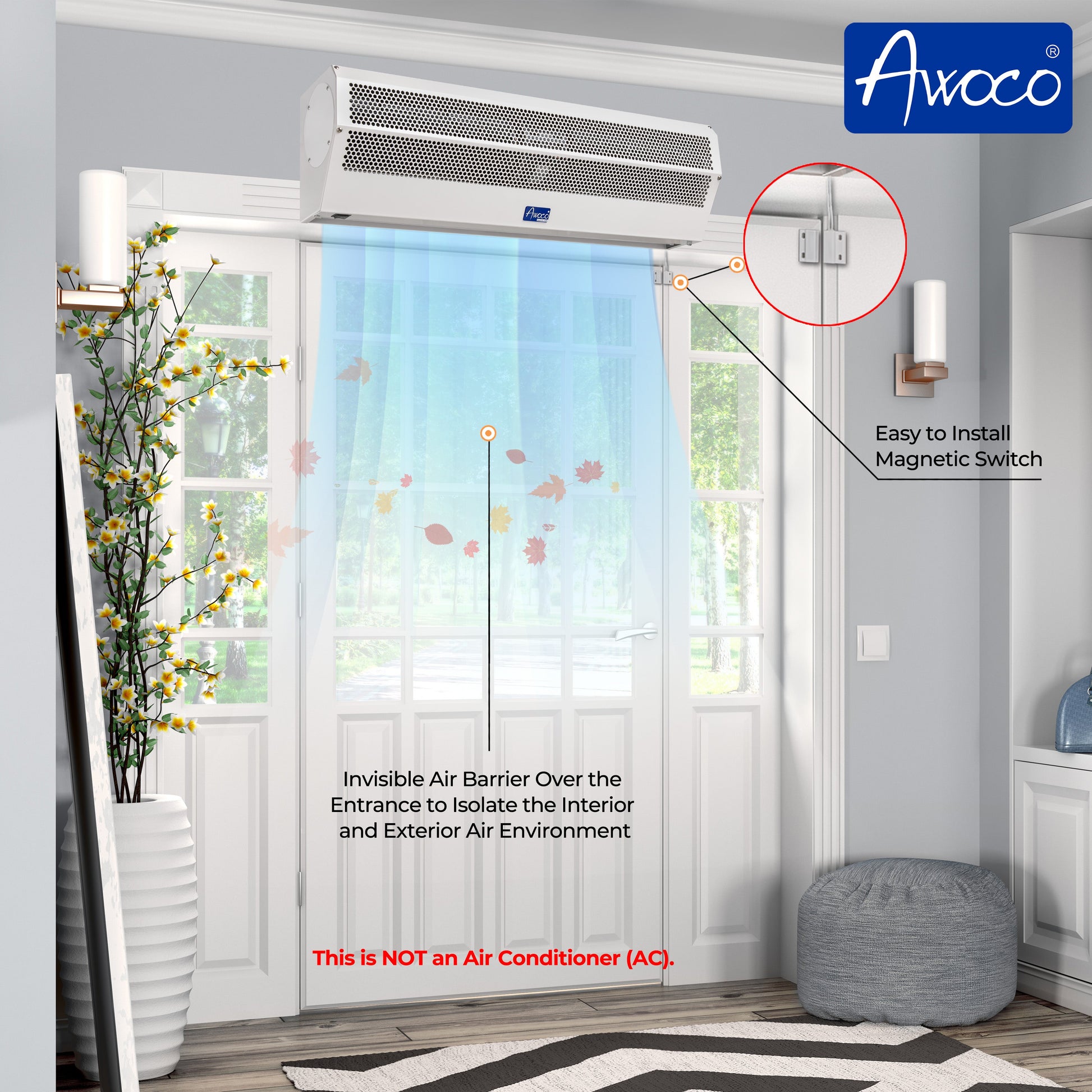

[Isolate Interior from Outside]: The Super Power Air Curtain can help save energy by preventing outdoor air from entering a space, while also helping to block the entry of bugs, dust, and debris. Built with a fireproof and anti-erosive coated metal case for long-lasting durability.
-

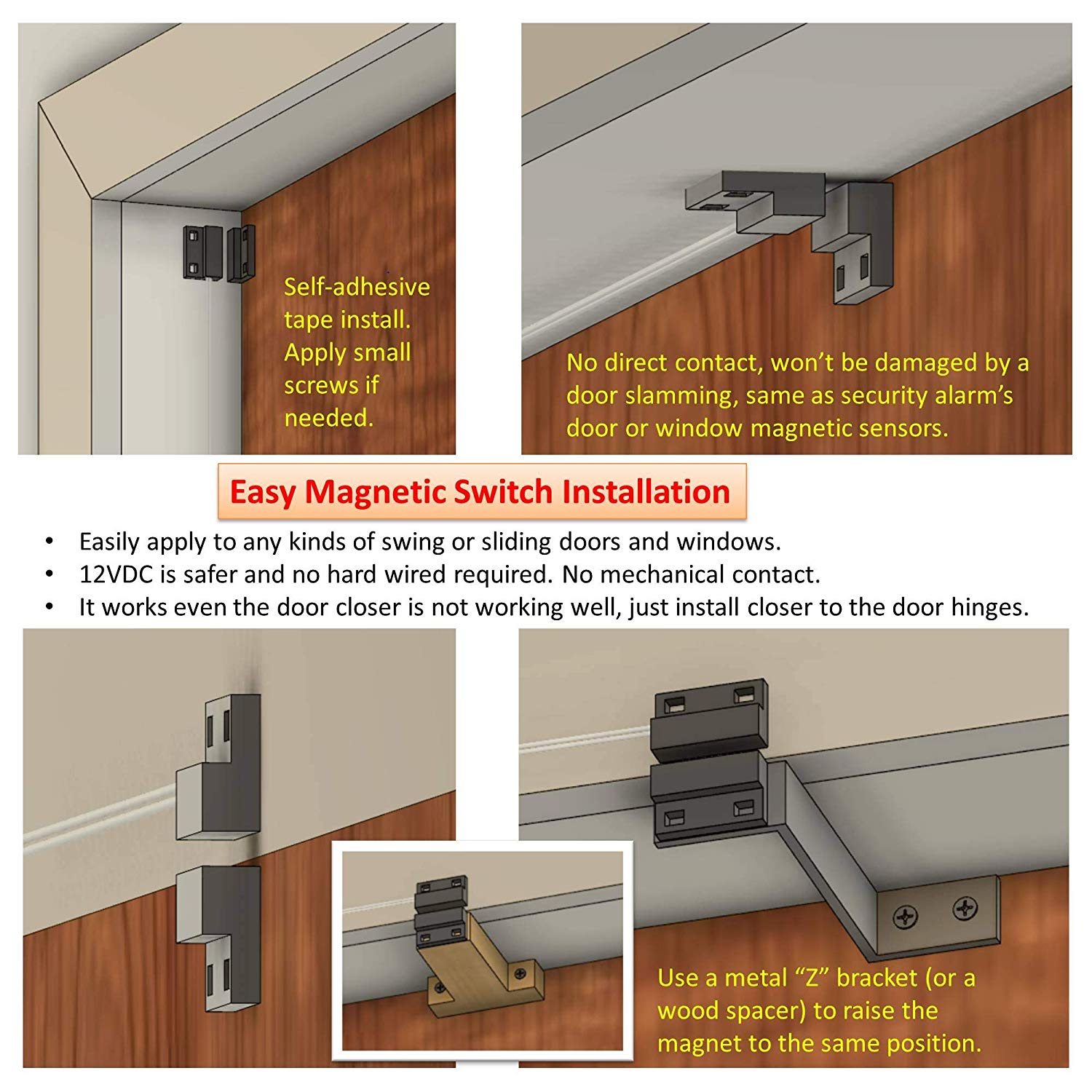

[Magnetic Switch Controlled Circuit (US Patented)]: Uses two magnets to control fan operation without any physical contact, preventing wear or damage from door movement. Installs easily compared to traditional mechanical plunger switches and operates safely on 12VDC power—no hard wiring required.
-
[ETL Sanitation conforms to NSF Standard 37]: ETL Sanitation Listed, 1 speed operation conforms to NSF STD 37 for food service entranceways, and meets Health Department Requirements. 120V 60Hz. Consumes less power than most industrial air curtains. Can run continuously for an entire business day if needed.
-

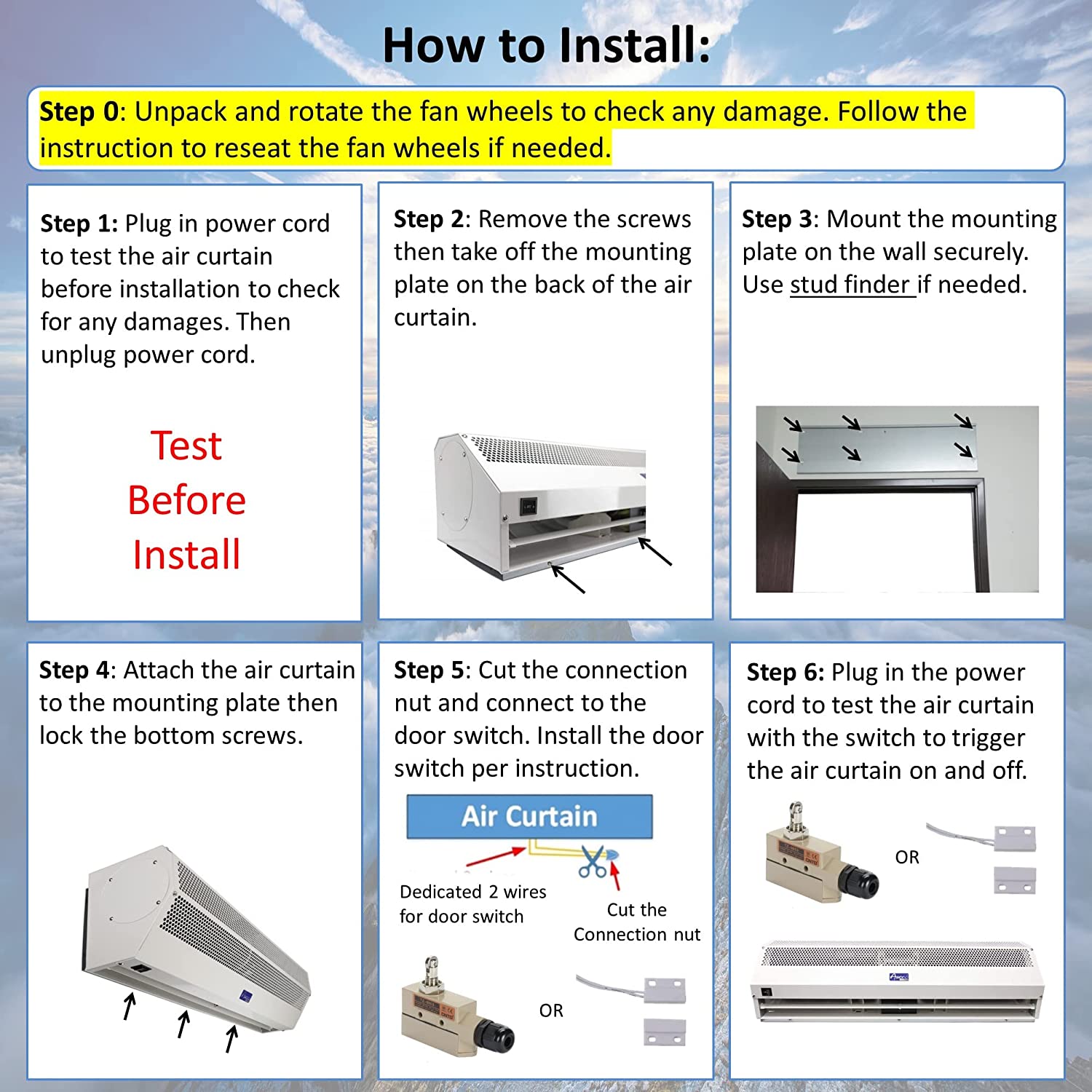

[Simple Installation]: Refer to the User Manual for full installation details
- Indoor installation only, Not designed to withstand outdoor weather and elements
- 1) Mount the solid metal mounting plate securely on wall above doorway
- 2) Set air curtain onto the mounting plate, secure in place with screws

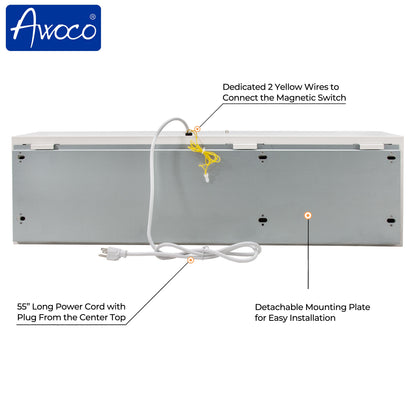

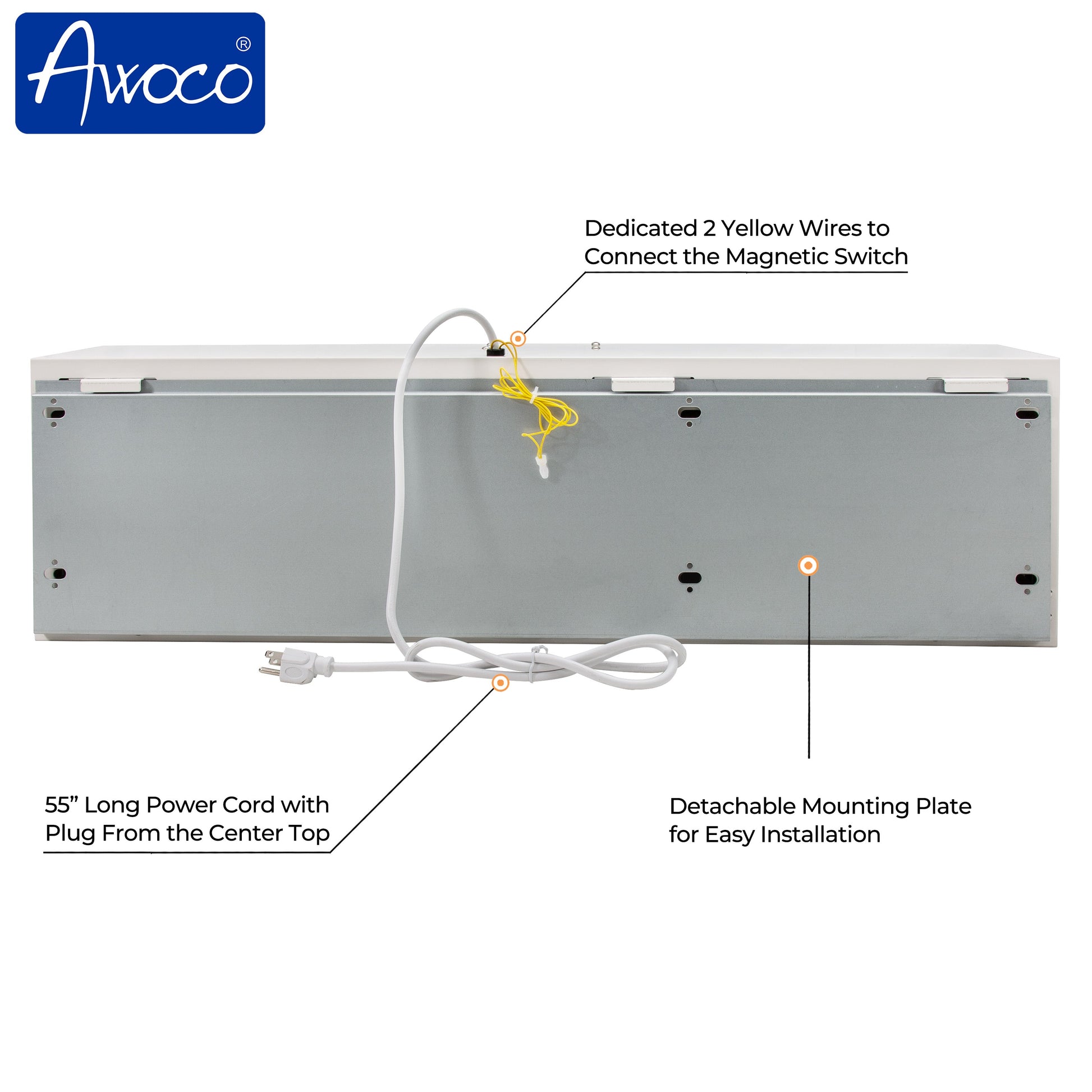

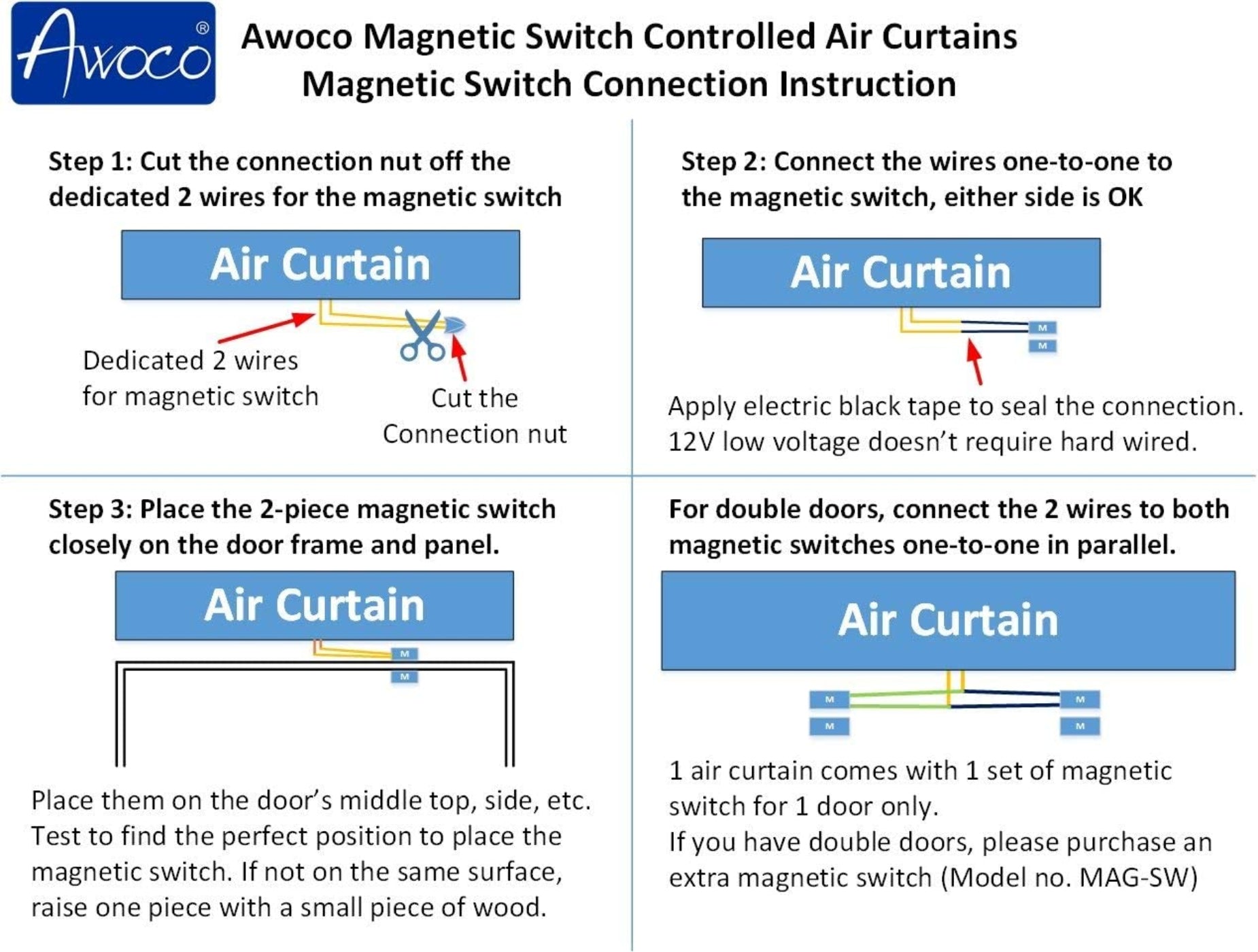

- 3) Install the optional magnetic switch and connect to the two yellow wires from the air curtain
- 4) Switch the air curtain on to desired speed. With magnetic switch installed, fan will turn on when door is open, and turn off when closed
What our Experts Think
-
Reliable doorway air protection: The AWOCO FM1509-ETL creates a powerful air barrier that helps reduce the entry of outside air, insects, dust, and debris while improving indoor comfort.
-
Strong commercial-grade airflow: Designed for 36-inch doorways, this unheated air curtain delivers up to 1,177 CFM airflow and high air velocity to maintain effective separation between indoor and outdoor environments.
-
Smart magnetic switch operation: The included magnetic switch automatically turns the fan on when the door opens and off when closed, reducing unnecessary operation and improving convenience.
-
ETL sanitation certified performance: Built for food service and commercial entrances, the unit meets ETL sanitation requirements (NSF Standard 37) for approved indoor applications.
-
Durable and efficient design: The coated metal housing provides long-lasting durability, while the 120V design offers practical installation for restaurants, shops, offices, and service areas.
-
Ideal for: Commercial entry doors, kitchens, retail spaces, warehouses, and areas where maintaining indoor air quality and reducing energy loss are priorities.
Q&A
Q: What is the AWOCO FM1509-ETL Super Power Air Curtain?
A: The AWOCO FM1509-ETL is a 36-inch ETL-certified, 120V unheated commercial air curtain with a magnetic switch, designed to help separate indoor and outdoor air while blocking dust, insects, and debris.
Q: Does the FM1509-ETL produce hot or cold air?
A: No. This is an unheated air curtain and does not provide heating or cooling. It creates a powerful air barrier to help maintain indoor comfort and cleanliness.
Q: How powerful is the AWOCO FM1509-ETL air curtain?
A: It delivers up to 1,177 CFM airflow with a maximum air velocity of 2,559 FPM, helping reduce the entry of outside air, dust, and flying insects.
Q: What size doorway is this air curtain designed for?

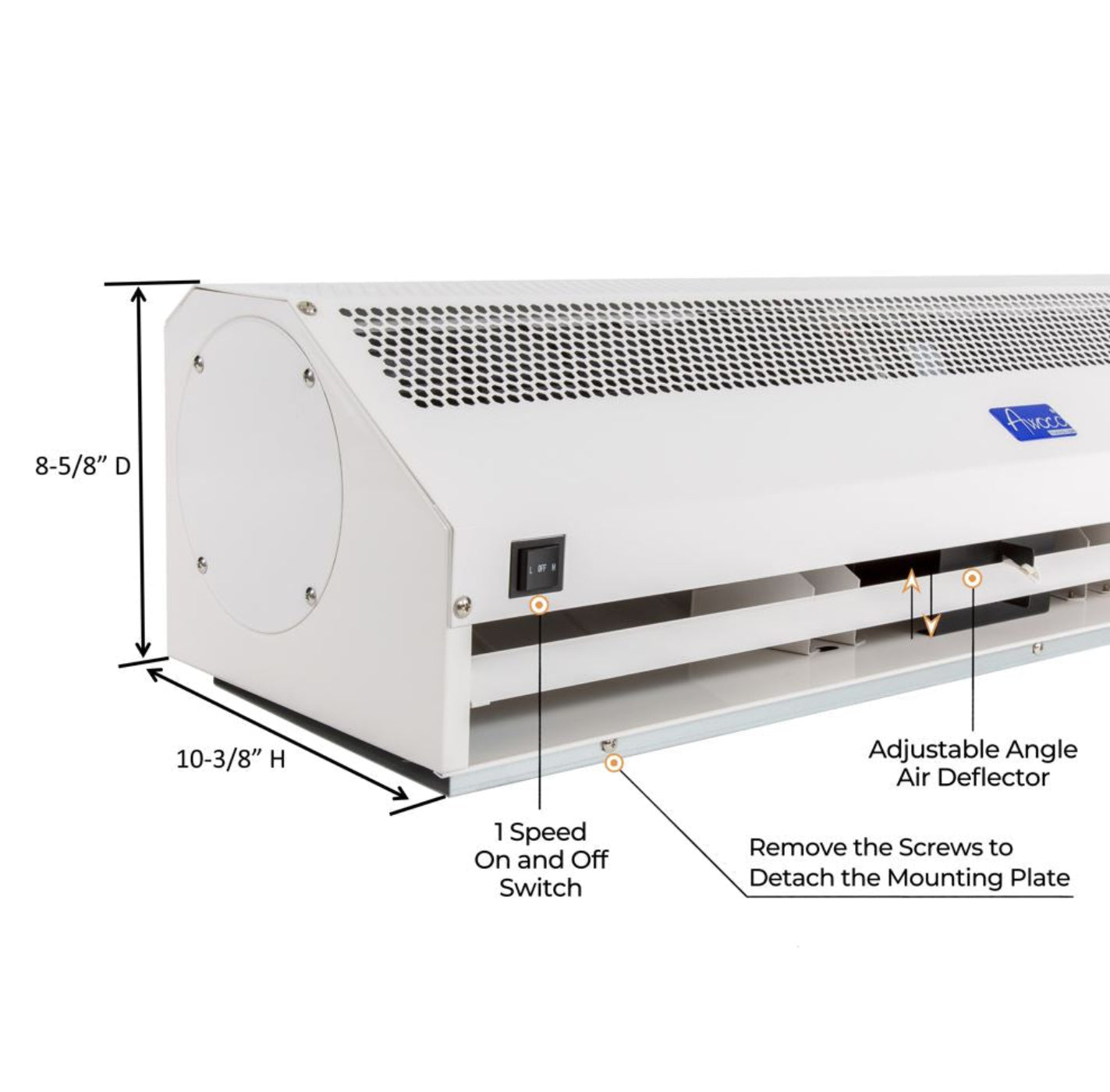

A: The FM1509-ETL is designed for 36-inch door openings and measures approximately 35-1/2 inches wide.
Q: How does the magnetic switch work?
A: The magnetic switch automatically activates the air curtain when the door opens and turns it off when the door closes, helping improve convenience and energy efficiency.
Q: Is the FM1509-ETL certified for commercial use?
A: Yes. It is ETL Sanitation Listed and conforms to NSF Standard 37 requirements for food service entranceways.
Q: Where can this air curtain be installed?
A: It is designed for indoor commercial applications such as restaurants, retail stores, warehouses, kitchens, and service entrances. It is not designed for outdoor weather exposure.
Q: What are the electrical requirements?
A: The FM1509-ETL operates on 120V, 60Hz power and uses approximately 300W with a 3.13A current rating.
Q: What is the benefit of using an air curtain at a doorway?
A: An air curtain helps reduce energy loss by limiting outdoor air infiltration while helping keep out dust, debris, and insects.
Maintenance Tips
- Clean the air curtain housing regularly with a soft cloth to remove dust and debris.
- Inspect air intake and outlet vents to maintain strong, uninterrupted airflow.
- Keep the magnetic switch area clean and properly aligned for reliable operation.
- Check fan performance and airflow settings periodically.
- Inspect mounting brackets and hardware to ensure secure installation.
- Keep electrical components dry and protected from moisture.
- Remove dust buildup from internal components during routine maintenance.
- Avoid abrasive cleaners and harsh chemicals to protect the unit’s finish.
- Schedule periodic inspections to maintain efficient 120V air curtain performance.
