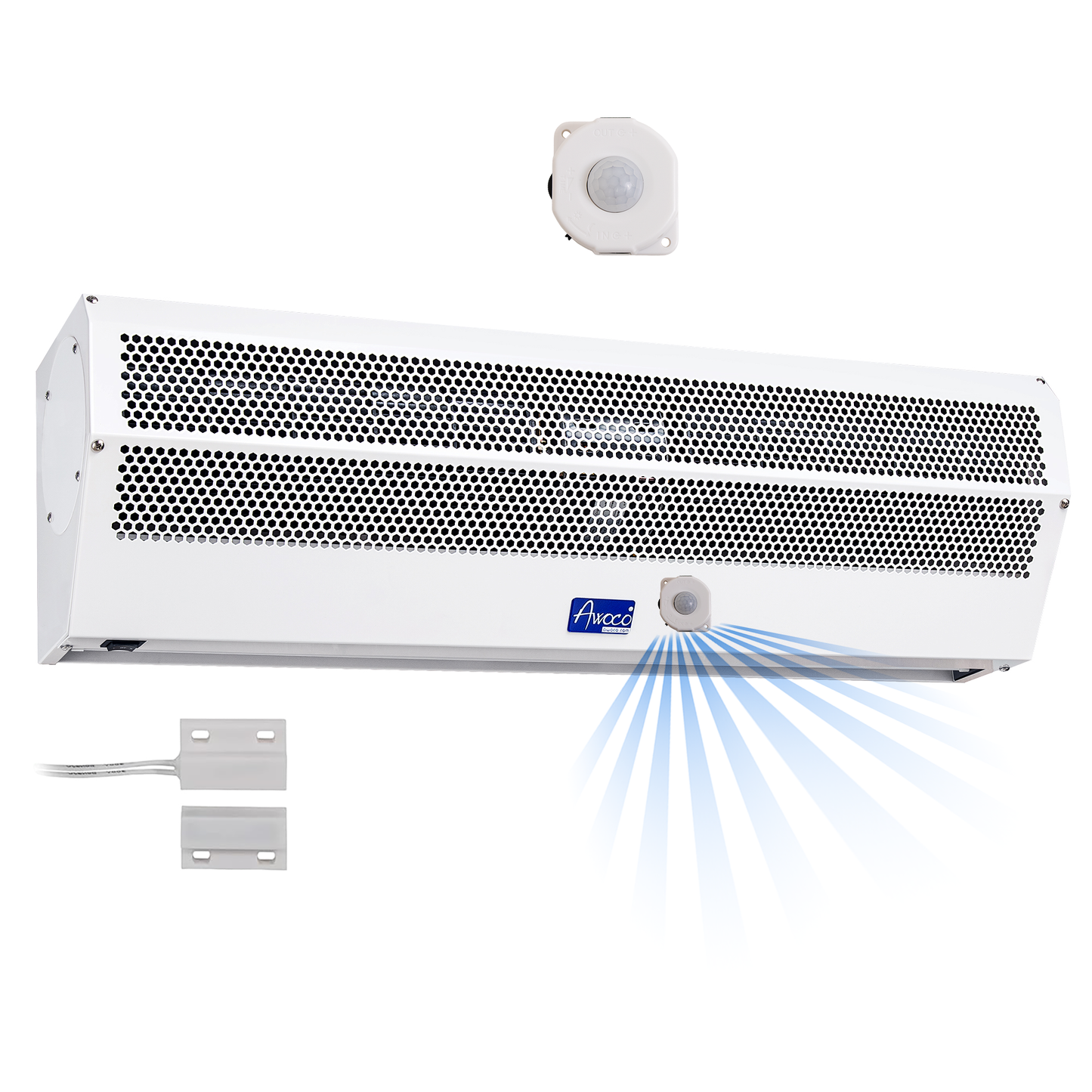

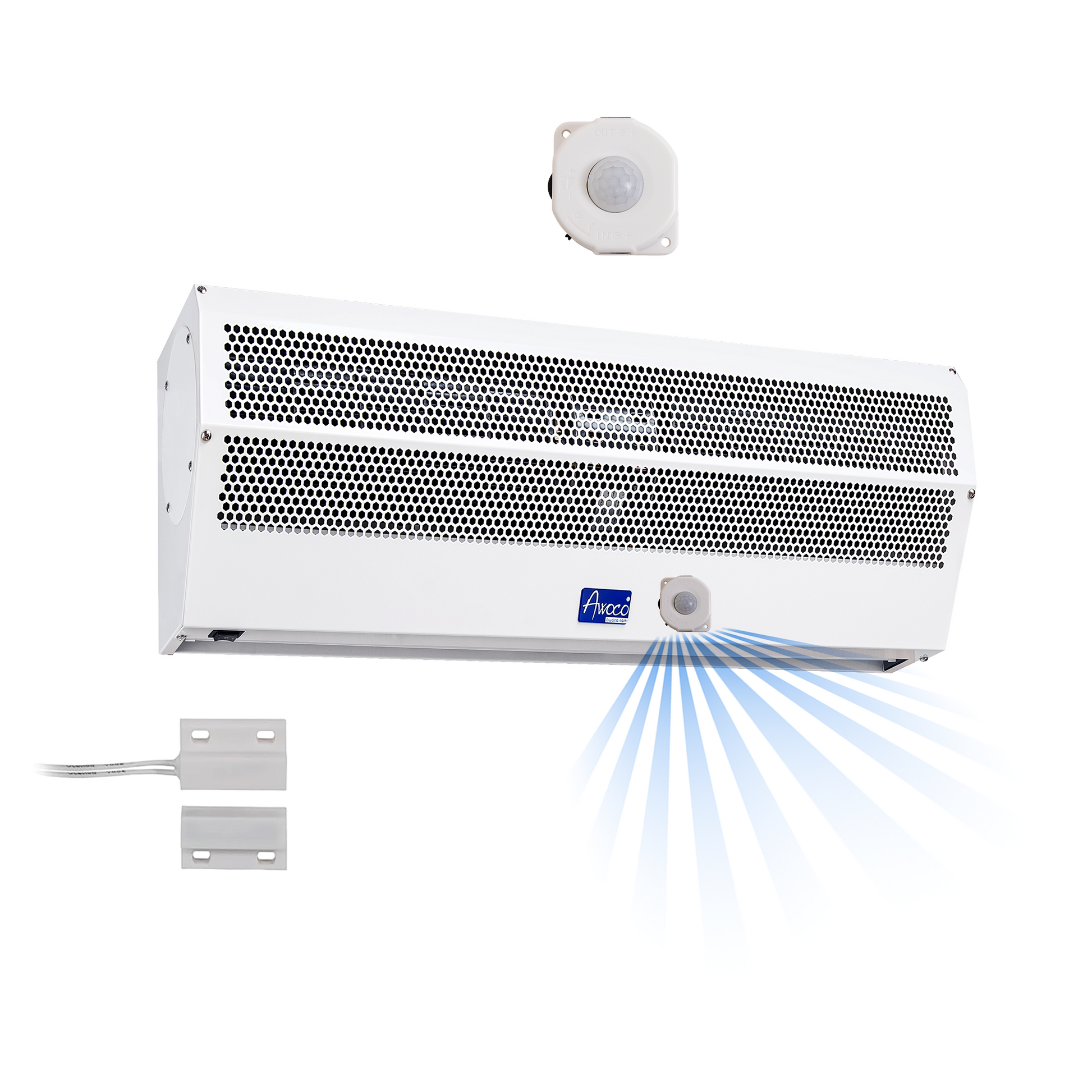

AWOCO Super Power Air Curtain with Motion Sensor 120V Unheated by Awoco - FM1506-MSD
-
Super Power Air Curtain with Motion Sensor FM15 by Awoco - 120V Unheated Indoor Air Curtain featuring 2 Speeds, Motion Sensor Detection and Easy-Install Magnetic Switch for Doorways
-
[NOT an Air Conditioner]: DOES NOT GENERATE COLD OR HOT AIR. Do not purchase if you are looking for an A/C unit.
-

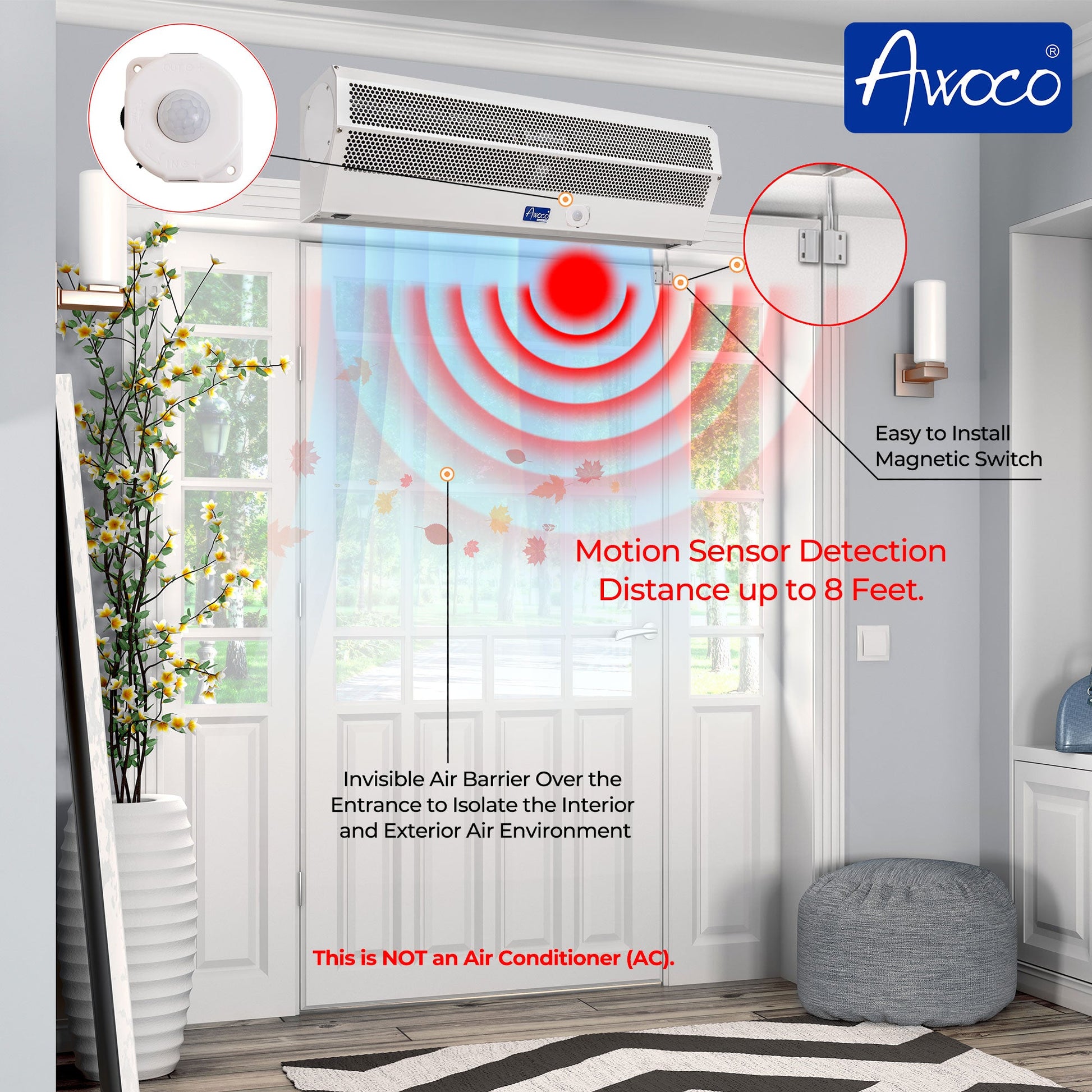

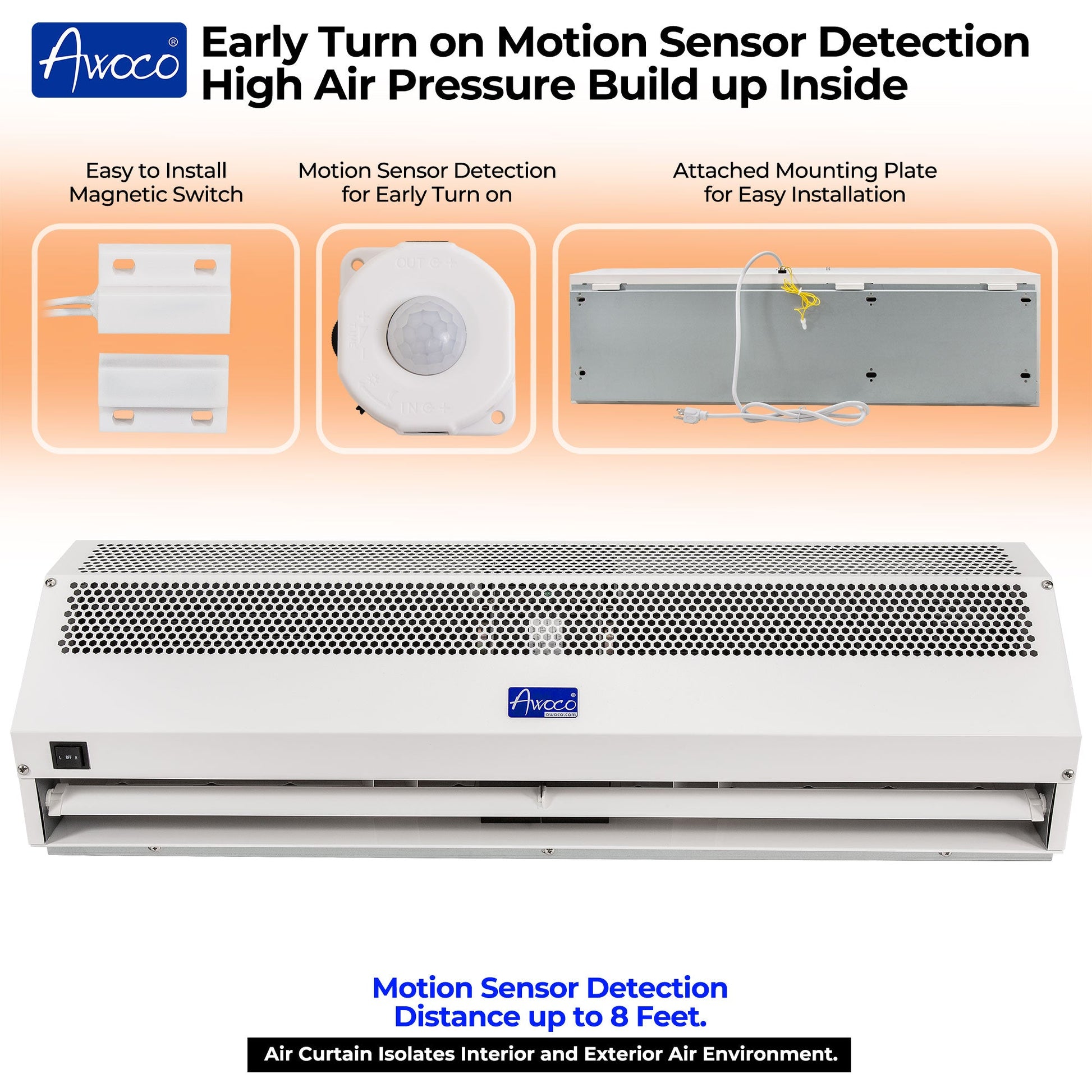

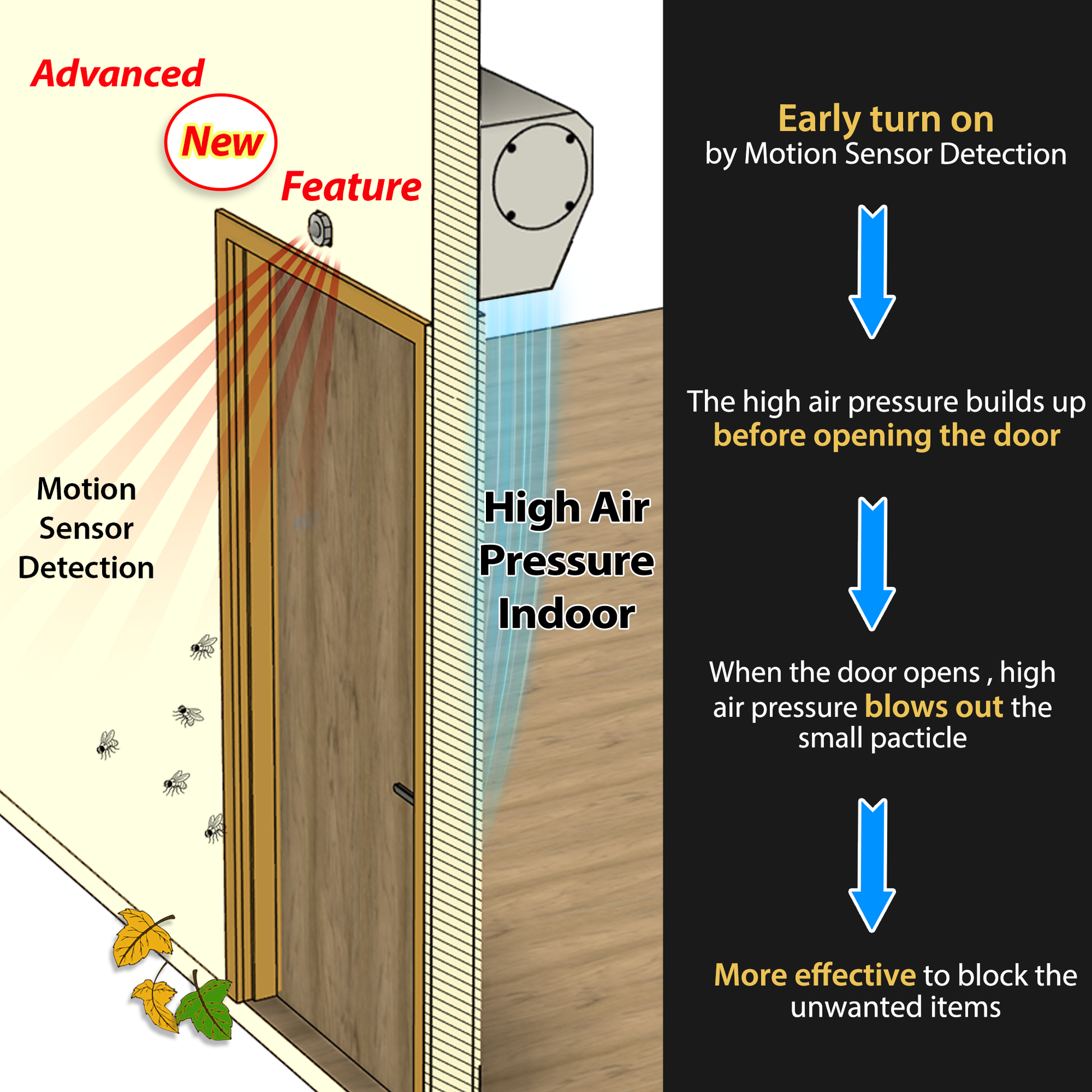

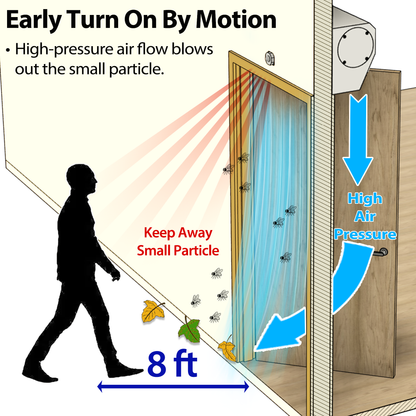

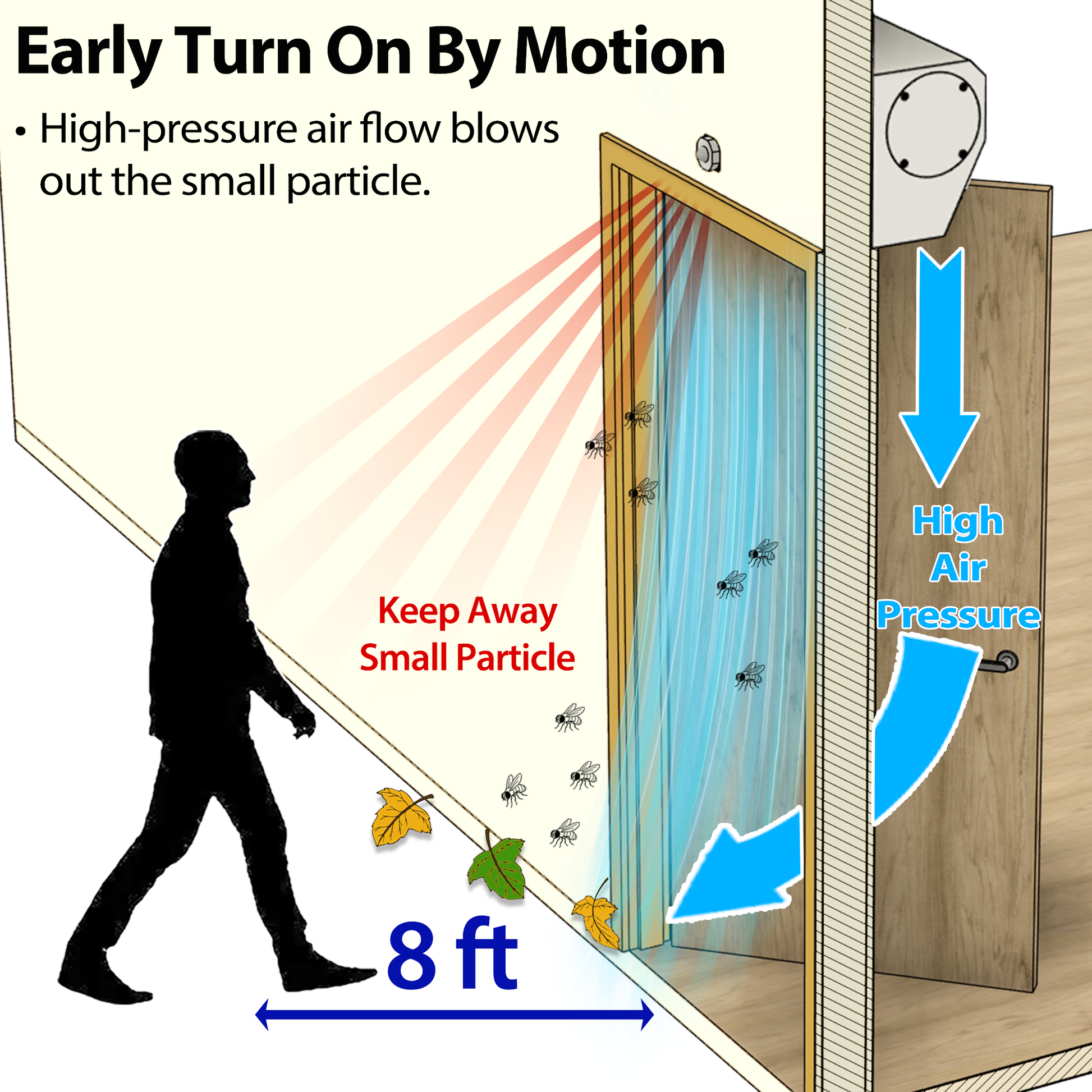

Motion Sensor Detection - Detects movement within a range of 7–9 feet. With its early activation feature, the air curtain quickly builds high indoor air pressure to prevent dust, debris, and small unwanted particles from entering when the door opens. As a result, the air curtain begins working before the door opens to block contaminants immediately, making it much more effective than a traditional door-triggered sensor. When motion is detected, the air curtain fan activates automatically and will shut off after 45 seconds (non-adjustable) when no motion is detected.
-
[Isolate Interior from Outside]: The Super Power Air Curtain with Motion Sensor can help save energy by preventing outdoor air from entering a space, while also helping to block the entry of bugs, dust, and debris. Built with a fireproof and anti-erosive coated metal case for long-lasting durability.
-

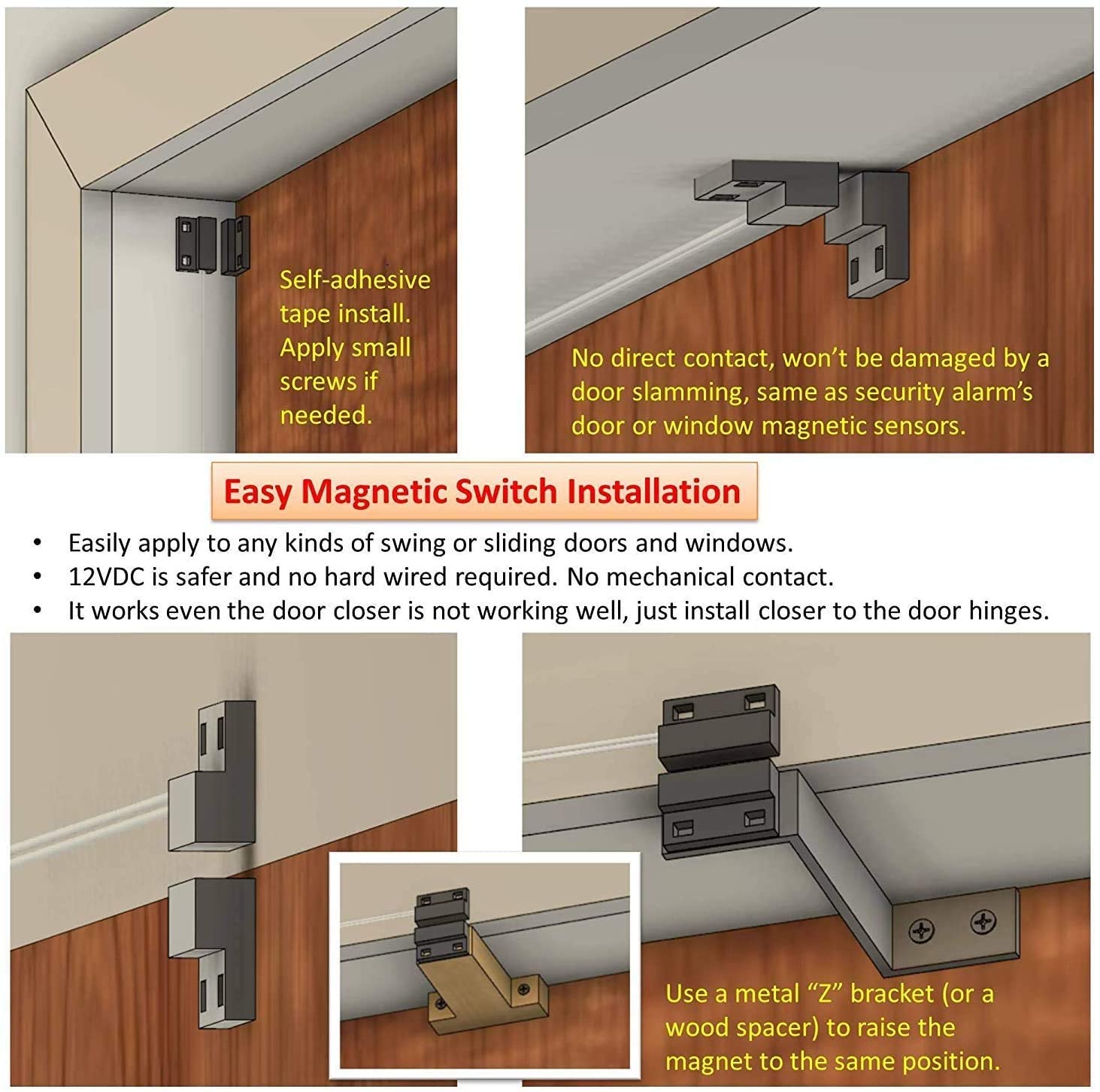

US Patented Magnetic Switch Controlled Circuit (Patent No. US10584889B2) - Uses two magnets to control fan operation without any physical contact, preventing wear or damage from door movement. Installs easily compared to traditional mechanical plunger switches and operates safely on 12VDC power—no hard wiring required.
-

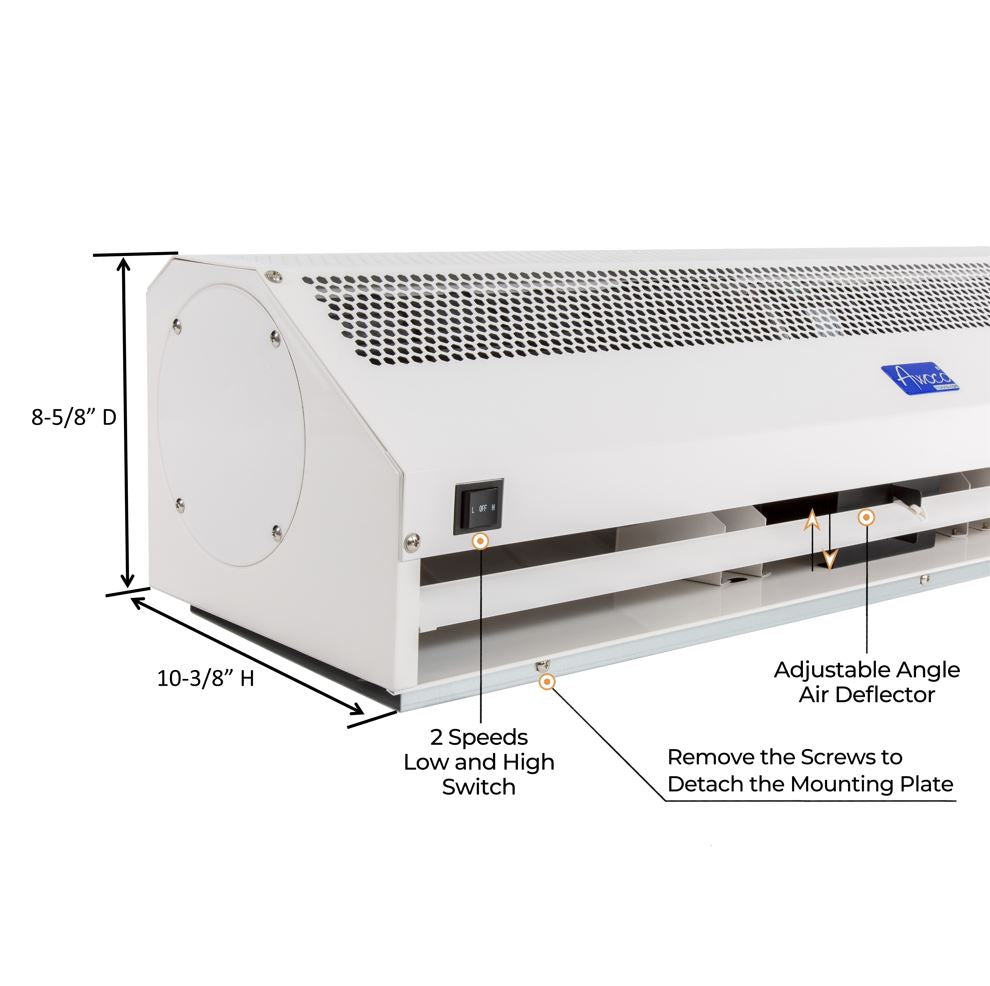

[2 Speeds]: Toggle between high and low speeds. Consumes less power than most industrial air curtains. Can run continuously for an entire business day if needed.
-

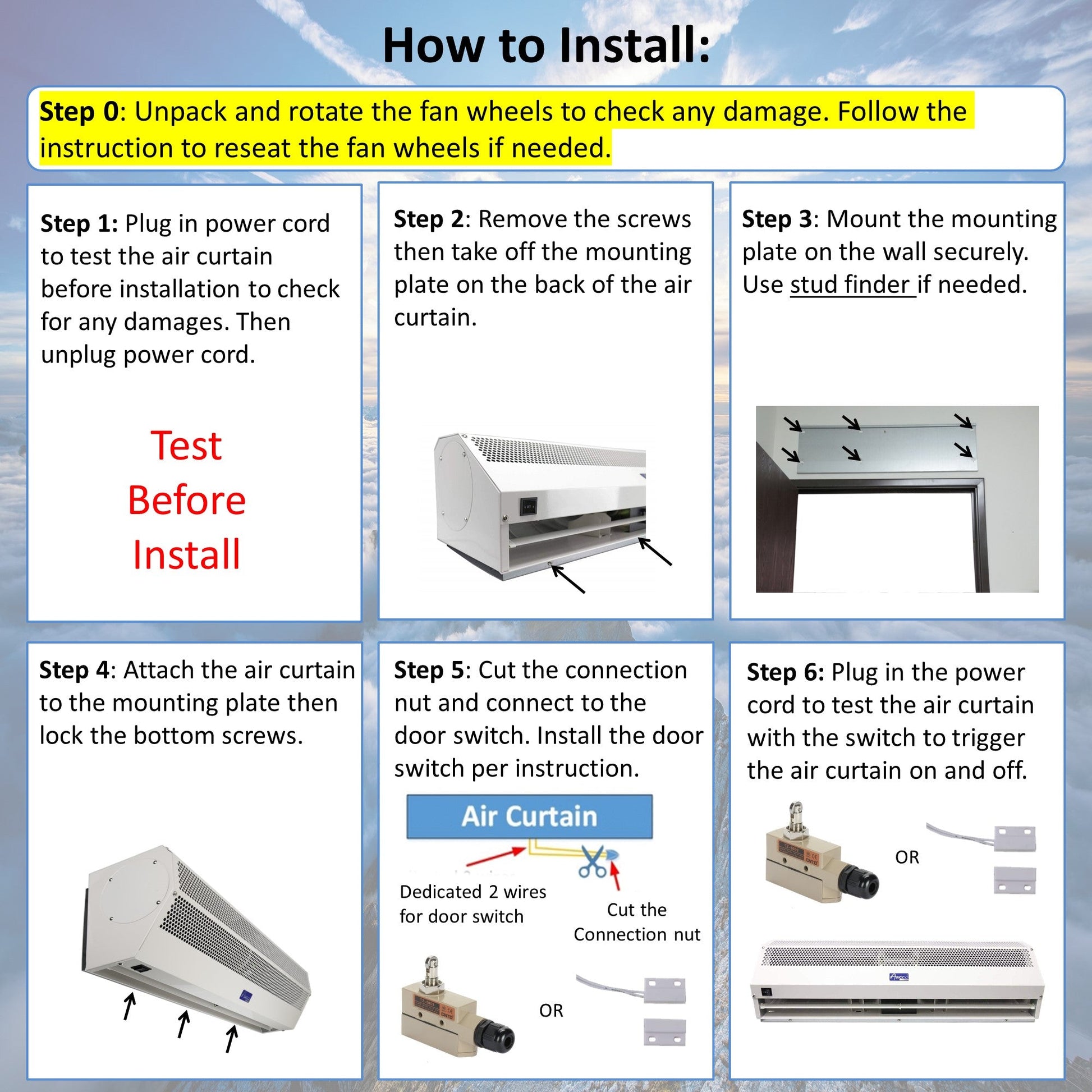

[Simple Installation]: Refer to the User Manual for full installation details
- Indoor installation only, Not designed to withstand outdoor weather and elements
- 1) Mount the solid metal mounting plate securely on wall above doorway
- 2) Set air curtain onto the mounting plate, secure in place with screws
- 3) Install the Motion Sensor Detection kit (see Additional Assembly and Wiring below)

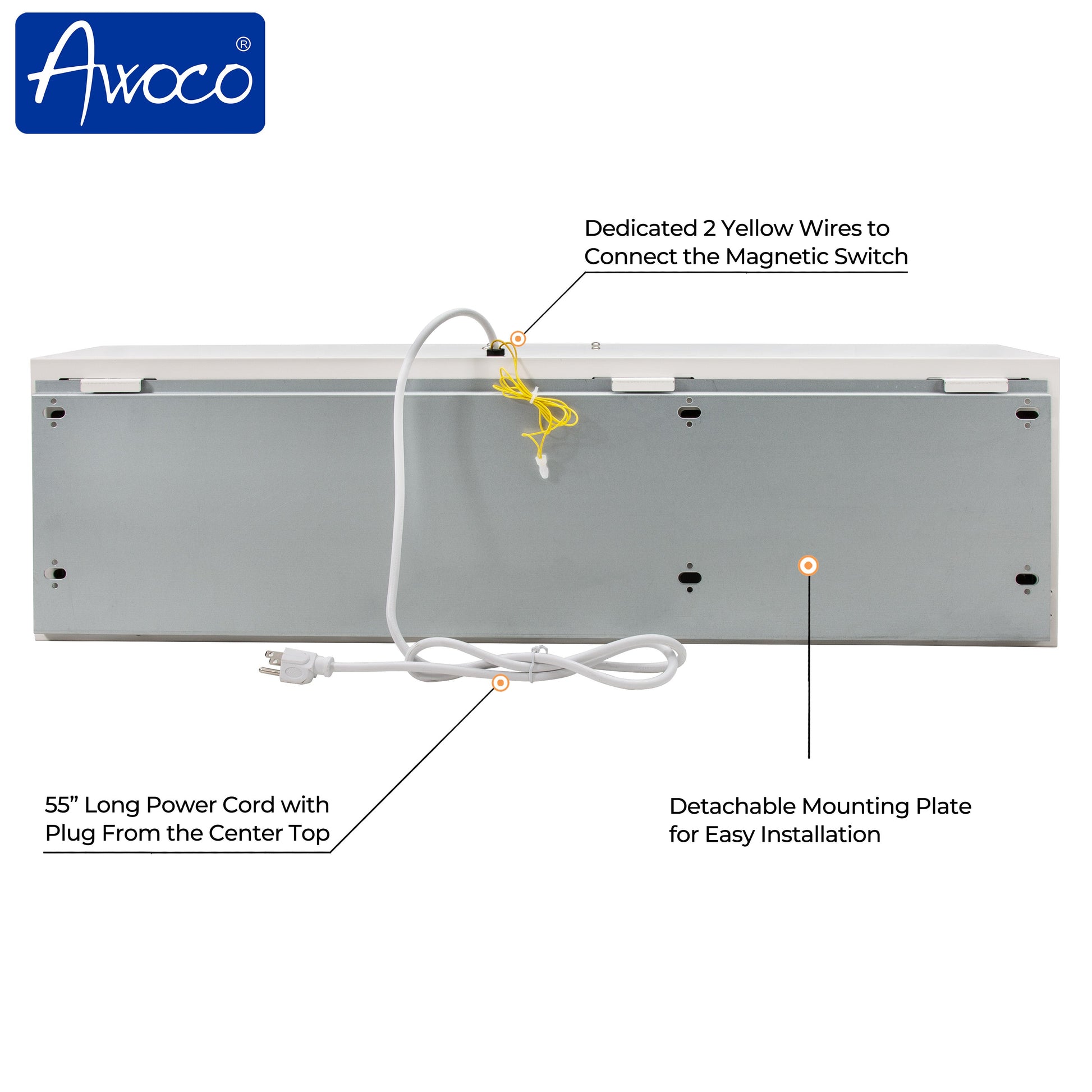

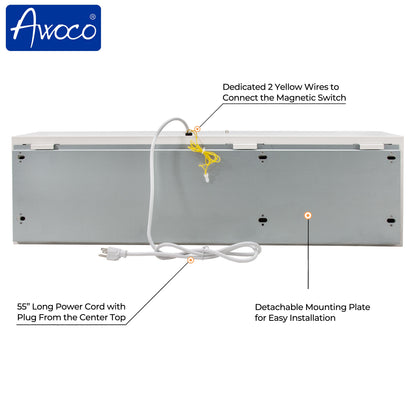

- 4) Install the optional magnetic switch and connect to the two yellow wires from the air curtain
- 5) Switch the air curtain on to desired speed. With magnetic switch installed, fan will turn on when door is open, and turn off when closed

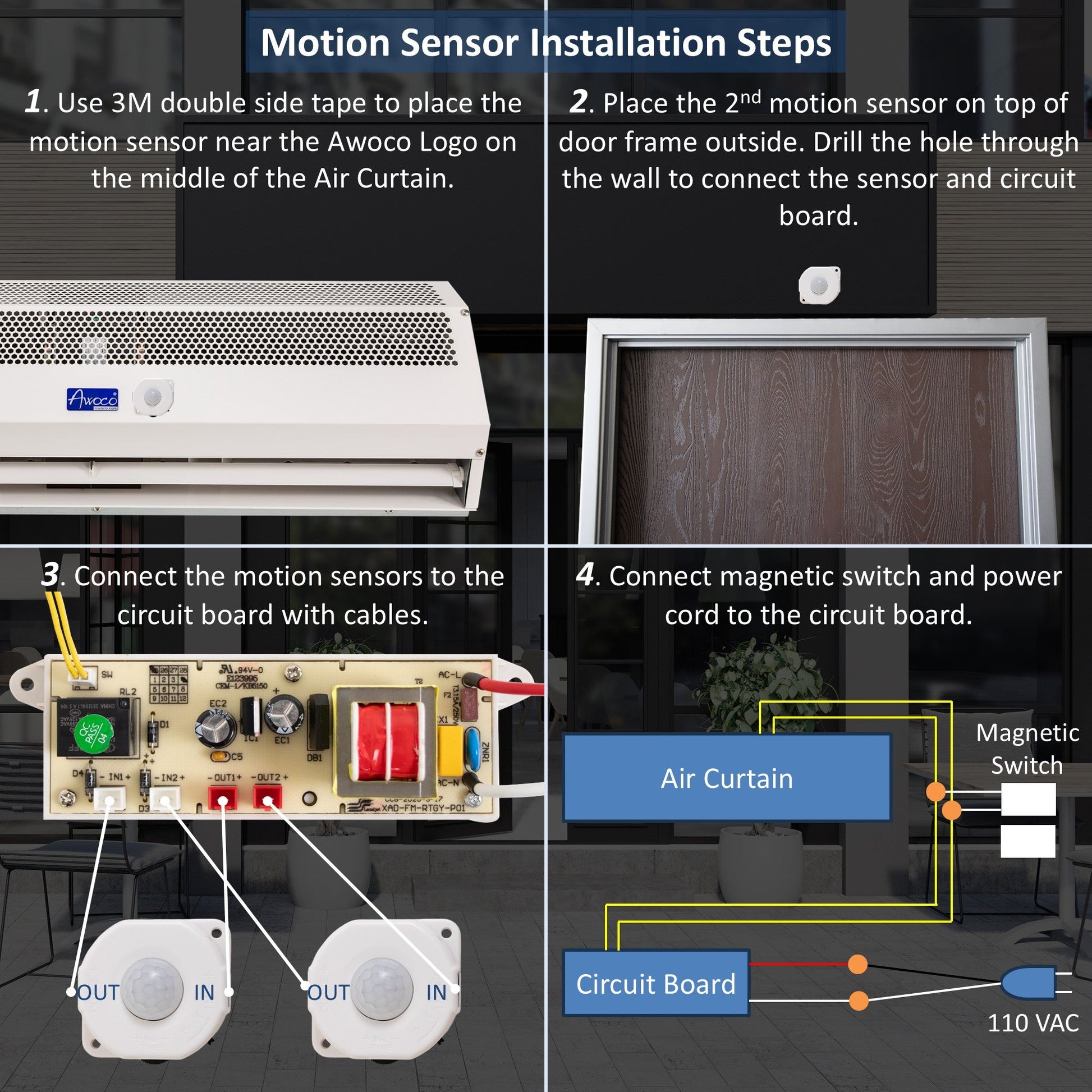

- [Additional Assembly and Wiring Required]
- For 36" and 42" units ONLY - Motion Sensor and Circuit Board are pre-assembled. Only required to install the remaining Motion Sensor device on the opposite side of the door.
- For 24", 48", 60", and 72" - Mount one Motion Sensor device on the front of the air curtain and the other on the opposite side of the door. Connect wires to the Motion Sensor Circuit Board, and mount it inside the Air Curtain to conceal.

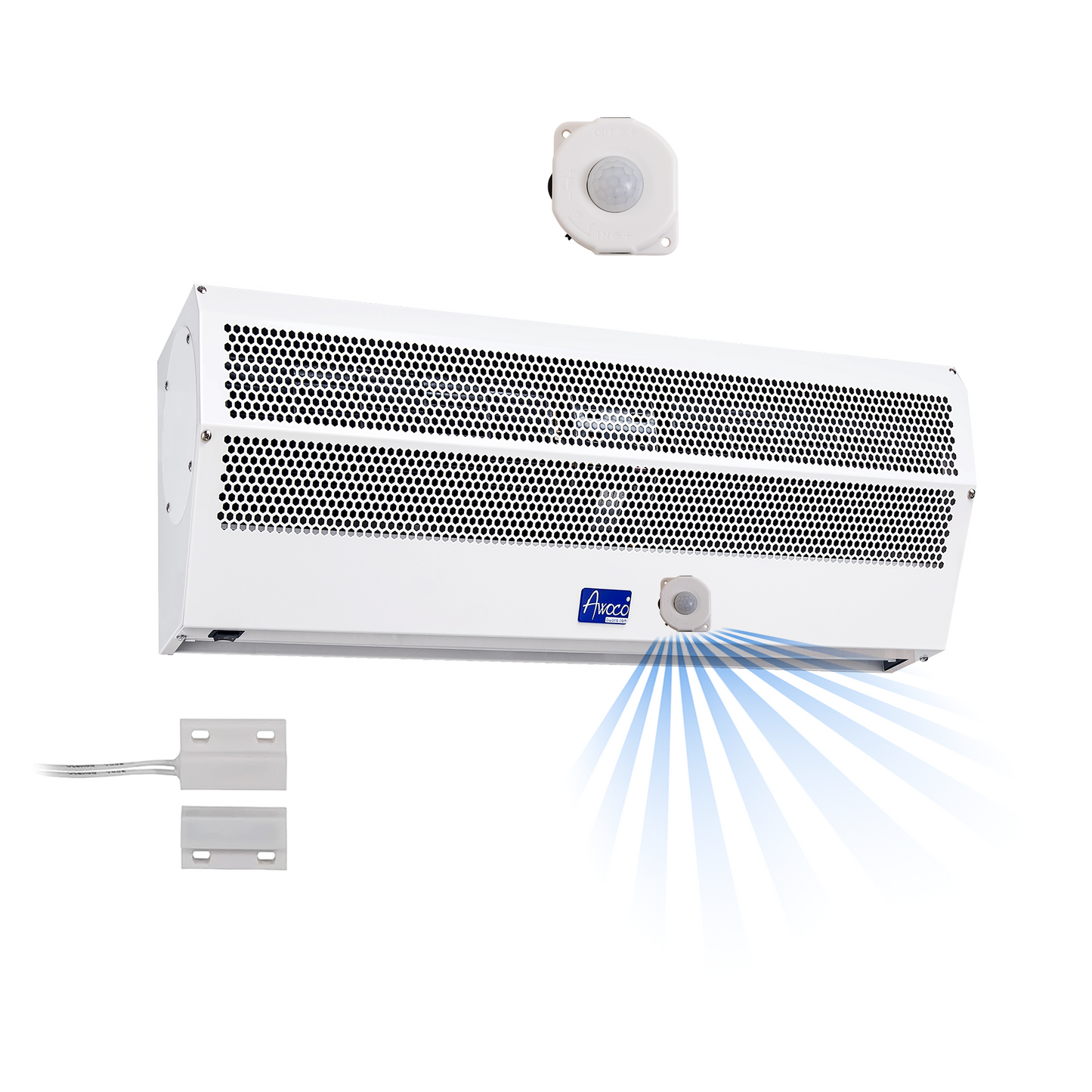

- Package includes 1 air curtain, 1 magnetic switch, 2 motion sensor devices (for 36" and 42" units, one is already pre-installed), 1 motion detection circuit board with power cord for 110VAC (pre-installed for 36" and 42" units), motion sensor wiring cables, and 1 user manual. Mounting screws not included.
What our Experts Think
-
Smart doorway protection: The AWOCO FM1506-MSD uses motion sensor technology to automatically activate airflow when movement is detected, helping prevent outside air, dust, insects, and debris from entering through open doors.
-
Powerful air separation performance: This 24” unheated air curtain delivers up to 785 CFM airflow with high air velocity, creating an effective invisible barrier while maintaining comfortable indoor temperatures.
-
Energy-saving operation: By reducing unwanted outdoor air infiltration, the air curtain can help improve HVAC efficiency in commercial and residential entry areas.
-
Automatic delayed shutoff: The motion sensor system activates before door opening and automatically stops after inactivity, improving convenience and reducing unnecessary operation.
-
Durable and reliable design: Built with a coated metal housing for long-lasting performance, this unit is designed for indoor entrances such as shops, kitchens, offices, and service areas.
-
Quiet two-speed control: Choose between low and high settings to balance airflow needs and noise levels, with operation designed for everyday indoor environments.
Q&A
Q: What is the AWOCO FM1506-MSD Super Power Air Curtain?
A: The AWOCO FM1506-MSD is a 24-inch unheated 120V indoor air curtain with motion sensor activation, designed to help block dust, insects, debris, and unwanted outdoor air from entering through doorways.
Q: Does this air curtain generate hot or cold air?
A: No. The FM1506-MSD is an unheated air curtain and does not function as an air conditioner or heater. It creates a high-velocity air barrier to separate indoor and outdoor environments.
Q: How does the motion sensor work?
A: The built-in motion sensor detects movement from approximately 7–9 feet away, automatically activating the fan and shutting it off after about 45 seconds when motion stops.
Q: How powerful is the AWOCO FM1506-MSD air curtain?
A: It provides 2-speed operation with up to 785 CFM airflow on high speed and 628 CFM on low speed, helping maintain indoor comfort and cleanliness.
Q: What door size is this air curtain designed for?
A: The FM1506-MSD is designed for 24-inch wide door openings and measures approximately 23-3/4 inches long.
Q: Does the FM1506-MSD include automatic door control?
A: Yes. It includes a magnetic switch with delayed shutoff (MSD) for convenient automatic operation when paired with the door opening system.
Maintenance Tips
- Clean the air curtain housing regularly with a soft cloth to remove dust and debris.
- Inspect and clean the air intake and outlet vents to maintain strong airflow.
- Keep the motion sensor area clean and unobstructed for reliable activation.
- Check fan operation periodically to ensure consistent air performance.
- Inspect mounting hardware and brackets for secure installation.
- Keep electrical components dry and protected from moisture.
- Avoid abrasive cleaners and harsh chemicals to protect the unit’s finish.
- Remove dust buildup from internal components during routine maintenance.
- Schedule periodic inspections to maintain efficient 120V air curtain operation.
