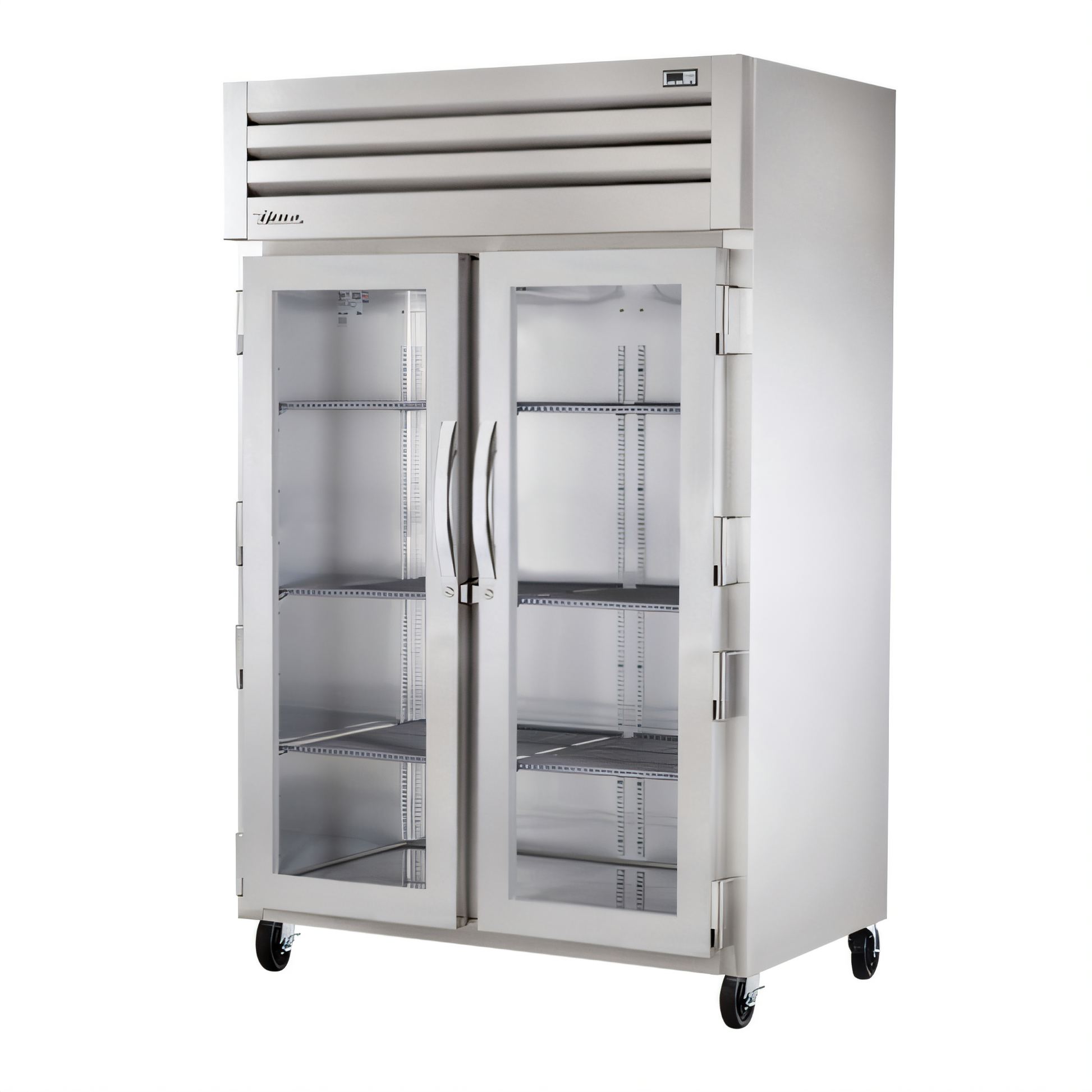

SPEC SERIES® STR2H-2G Heated Holding Cabinet
Reach-in • Two Glass Swing Doors • Made in the USA by True Refrigeration
Built for the fast-paced demands of commercial kitchens, the True SPEC SERIES® STR2H-2G keeps prepared foods hot, safe and ready for service. All-stainless construction, precise digital controls and “Low-E” double-pane glass doors deliver the durability and performance chefs expect from True’s flagship line.
Key advantages
- 140 – 180 °F (60 – 82.2 °C) holding range maintained by a 3 kW stainless-steel element.
- Exterior on/off switch and digital temperature controller with either °F or °C read-out.
- Two Low-E, double-pane self-closing doors with 120° stay-open feature, cam-lift hinges and factory-installed keyed locks.
- Full stainless-steel interior, exterior front and sides for maximum corrosion resistance and easy sanitation.
- Low-velocity fan system plus a manually controlled top vent for even heat and precise humidity control.
- (2) Interior kit sets factory-installed — configure for trays, pans or shelves without tools.
- 5 in. locking plate castors standard; optional 6 in. legs or flanged seismic legs available.
- NSF-4 listed for open food, cULus & UL EPH Classified.
Included interior kit (per section)
- Nine (9) #1 type tray slides & pilasters — bottom support for one 18 in. × 26 in. sheet pan or two 14 in. × 18 in. pans.
- Kits arrive pre-installed at the factory so you can load pans right out of the box.
Specification overview
| Exterior dimensions (W × D × H) |
52 5⁄8 in. × 33 3⁄4 in. × 77 3⁄4 in.
1337 mm × 858 mm × 1975 mm
Height excludes 6 1⁄8 in. castors.
|
| Doors |
2 glass swing, self-closing, cam-lift, locked |
| Construction |
Stainless steel front, sides, interior, floor & ceiling; foamed-in-place polyurethane insulation (zero ODP/GWP) |
| Heating system |
3 kW stainless element, low-velocity fan circulation, manual vent |
| Voltage / Phase |
208–240 V / 1-ph, 60 Hz |
| Amps / Power |
14.4 A (at 208 V) | 3,000 W |
| Electrical connection |
Hard-wire, 2-pole 3-wire, dedicated 20 A circuit (no cord or plug supplied) |
| Listings |
cULus, UL EPH, NSF-4 |
| Country of origin |
Made in the USA – O’Fallon, Missouri |
Optional accessories (factory or field-installed)
- Alternate interior kits (#2 rod slides, #3 universal slides, or #4 chrome shelves).
- Extra shelves or slide sets to tailor capacity.
- 6 in. standard or seismic/flanged legs.
- Stainless-steel back for island placement.
Installation note: This unit must be hard-wired by a qualified electrician. A dedicated 208-240 V, single-phase, 20 A supply is required.
Industry-leading warranty
True backs the STR2H-2G with a 7-year parts & labor warranty (U.S. & Canada). See full warranty terms at TrueMfg.com.
