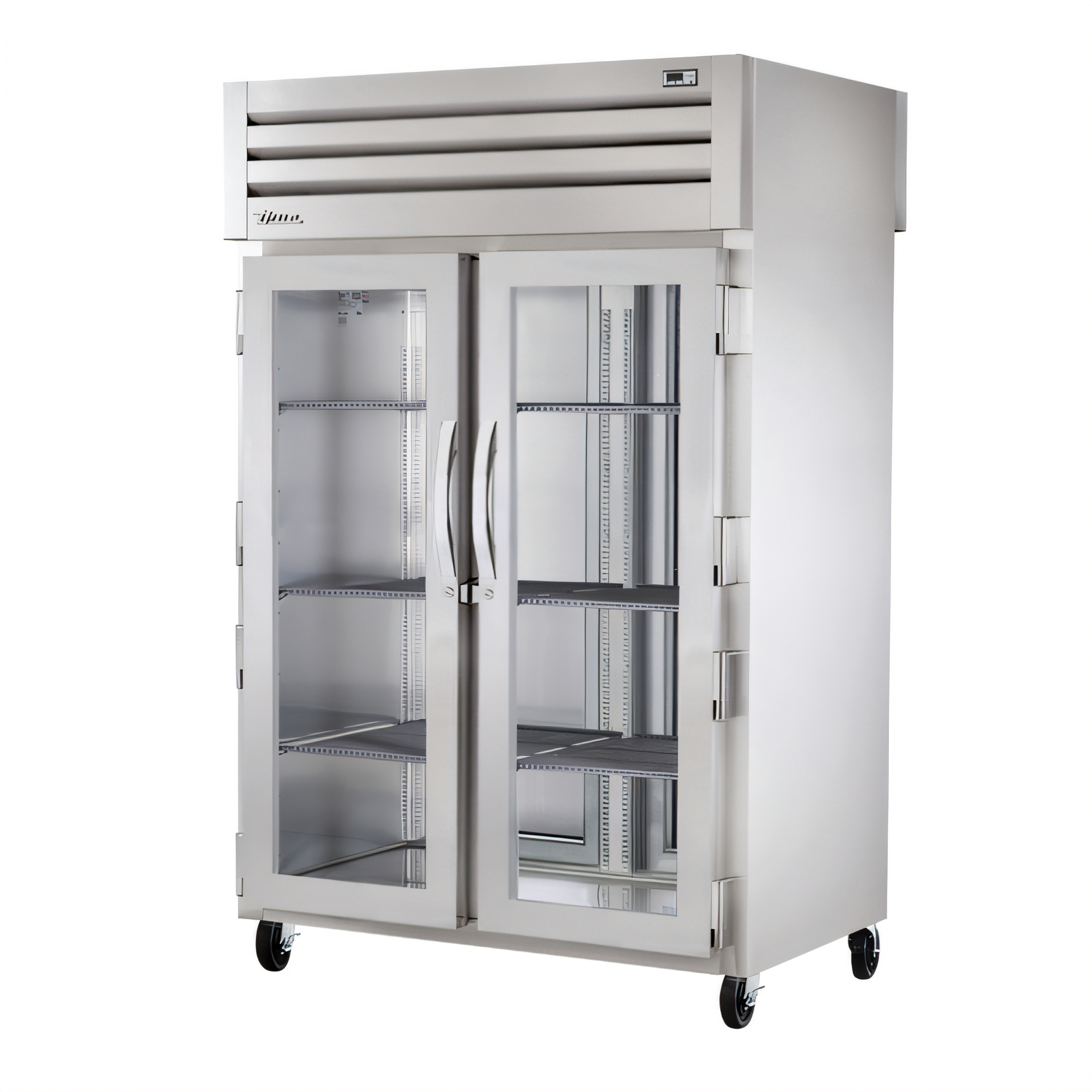

True SPEC SERIES® STR2HPT-2G-2S Pass-Thru Heated Cabinet
2-Section • Glass Front / Solid Stainless Rear Doors • 208-240 V, 3.0 kW
Built for the busiest commercial kitchens, the STR2HPT-2G-2S keeps cooked product hot, safe and
instantly accessible from either side of the line. This pass-thru cabinet pairs rugged, all-stainless
construction with precise electronic controls to deliver dependable holding temperatures of
140 – 180 °F (60 – 82.2 °C) shift after shift.
Why this True cabinet belongs on your line
- Dual-access design: (2) Low-E double-pane glass doors on the service side and (2) solid stainless doors on the prep side.
- 3000 W stainless steel heating element plus eco-friendly, foamed-in-place insulation for exceptional heat retention.
- Exterior digital controller with °F/°C read-out and a manual top vent for quick humidity adjustment.
- Positive-seal, self-closing doors with a 120° stay-open position, lifetime-guaranteed cam-lift hinges and bolt-style locks.
- Incandescent interior lighting (rocker switch) brightly showcases product.
- (2) Factory-installed interior kits per section—configure pan slides, shelves or universal slides without extra hardware.
- 5" plate castors (front locking) for effortless mobility; optional 6" legs and seismic/flanged legs available.
- NSF-4 listed for open food holding; cULus & UL EPH Classified for total code compliance.
- Made in O’Fallon, Missouri and backed by an industry-leading 7-year parts & labor warranty.
At-a-glance specs
| Model |
STR2HPT-2G-2S |
| Sections |
2 |
| Door configuration |
(2) glass swing doors front / (2) stainless swing doors rear |
| Construction (exterior / interior) |
Stainless steel doors, front & sides / All-stainless interior |
| Temperature range |
140 °F – 180 °F (60 °C – 82.2 °C) |
| Heat input |
3.0 kW stainless steel element |
| Dimensions (W × D × H) |
52 5/8" × 36 1/8" × 77 3/4" (1337 × 918 × 1975 mm)* |
| Mobility |
5" locking castors (standard) • 6" legs optional |
| Electrical |
208-240 V / 60 Hz / 1-ph • 20 A dedicated circuit • hard-wire |
| Certifications |
NSF-4, cULus, UL EPH Classified |
| Country of origin |
Made in USA |
*Height shown excludes 6 1/8" castors; depth excludes 1 1/2" door handles.
Included STR Series interior kit (per section)
- Configure with tray slides, universal slides or chrome wire shelves.
- Popular layouts include:
• Kit #1 – 9 sets #1 pan slides for 18" × 26" or 2 × 14" × 18"
• Kit #2 – Half-section #2 steel rod slides for 18" × 26"
• Kit #3 – 6 sets universal slides for 18" × 26", 14" × 18" or 12" × 20"
• Kit #4 – 3 chrome wire shelves 26 5/16" × 21 9/16" (wall pilasters optional)
Electrical connection required: Unit ships without a cord and must be hard-wired by a qualified electrician
to a dedicated 208-240 V / 60 Hz, single-phase, 2-pole, 3-wire circuit.
Elevate your holding game with the durability, efficiency and peace of mind only True’s SPEC SERIES® can provide.
Add the STR2HPT-2G-2S to your cart today and keep service moving at peak speed.
